Appendix C — Interfaces
Bar Code Wand Interface
146
EasyCoder PF2i Bar Code Label Printer User's Guide (Fingerprint Version)

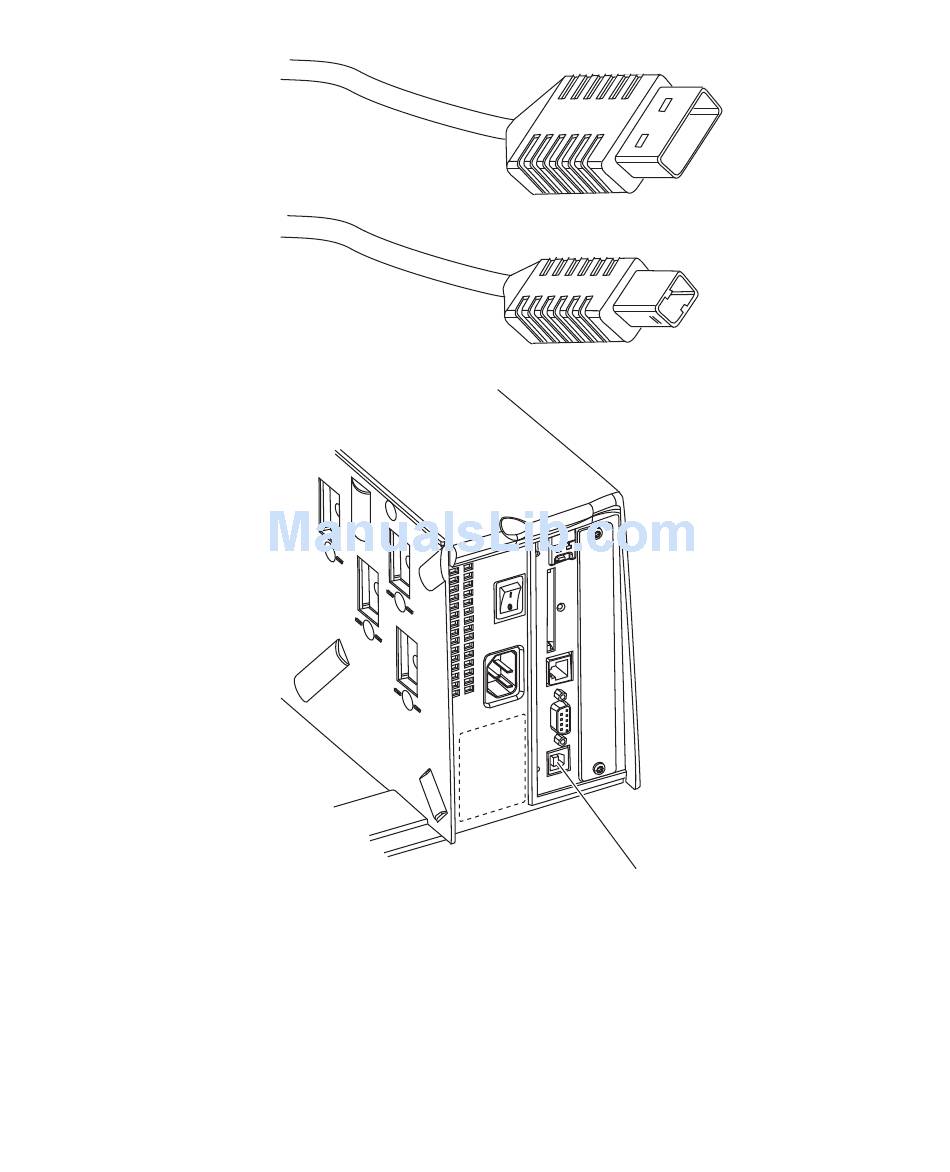

USB Class A connector,
connect to PC or hub
USB Class B connector,
connect to USB receptacle
on the printer's rear plate
The printer has a socket on the CPU board for connecting a bar
code wand or scanner. The socket is accessible through a slot in
the printer's rear plate.
USB ("usb 1:")
