Chapter 4 — Media Load

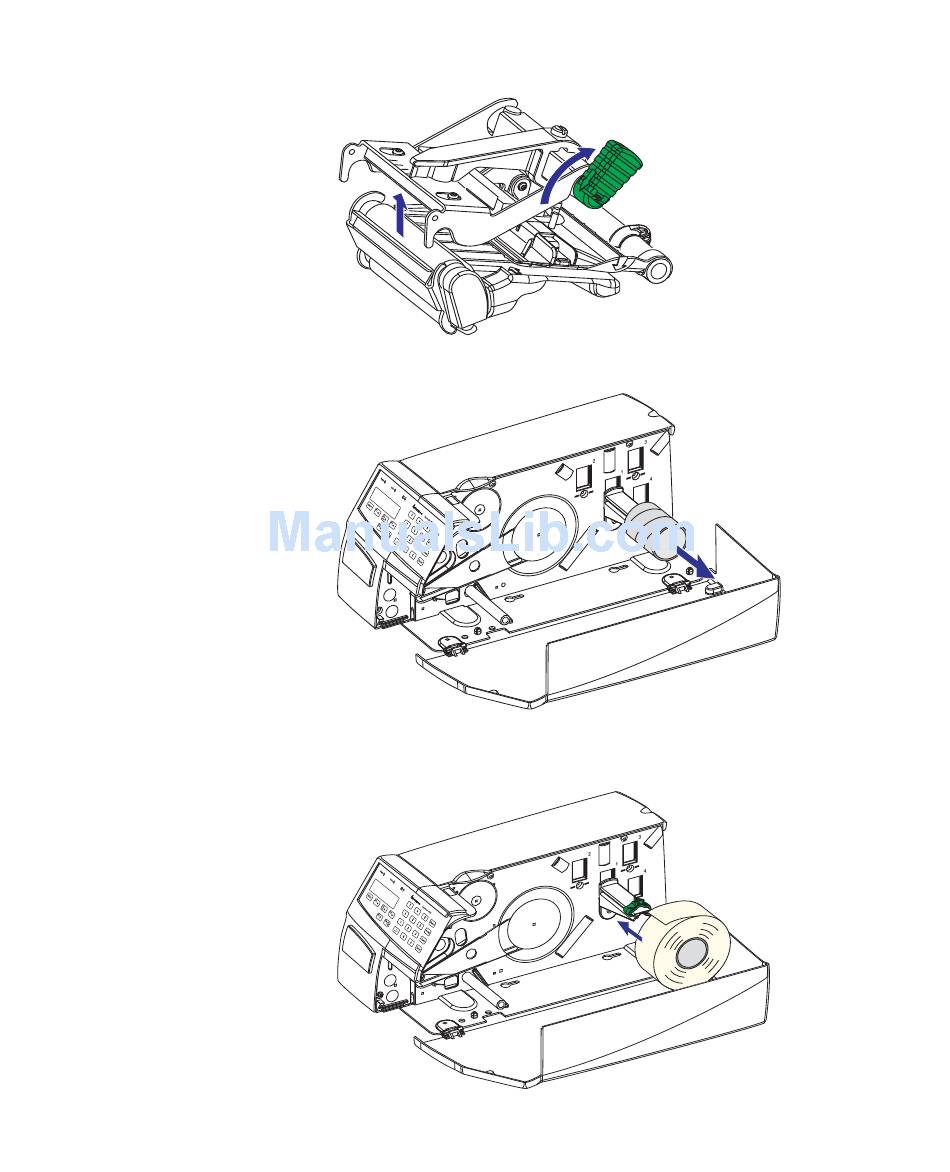

2 Turn the printhead lift lever clockwise to raise the printhead.
3 Remove any empty core from the media supply roll post.
4 Fit new roll of media on the supply post and adjust the edge
guide, so the roll becomes flush with the center section.
EasyCoder PF2i Bar Code Label Printer User's Guide (Fingerprint Version) 27
