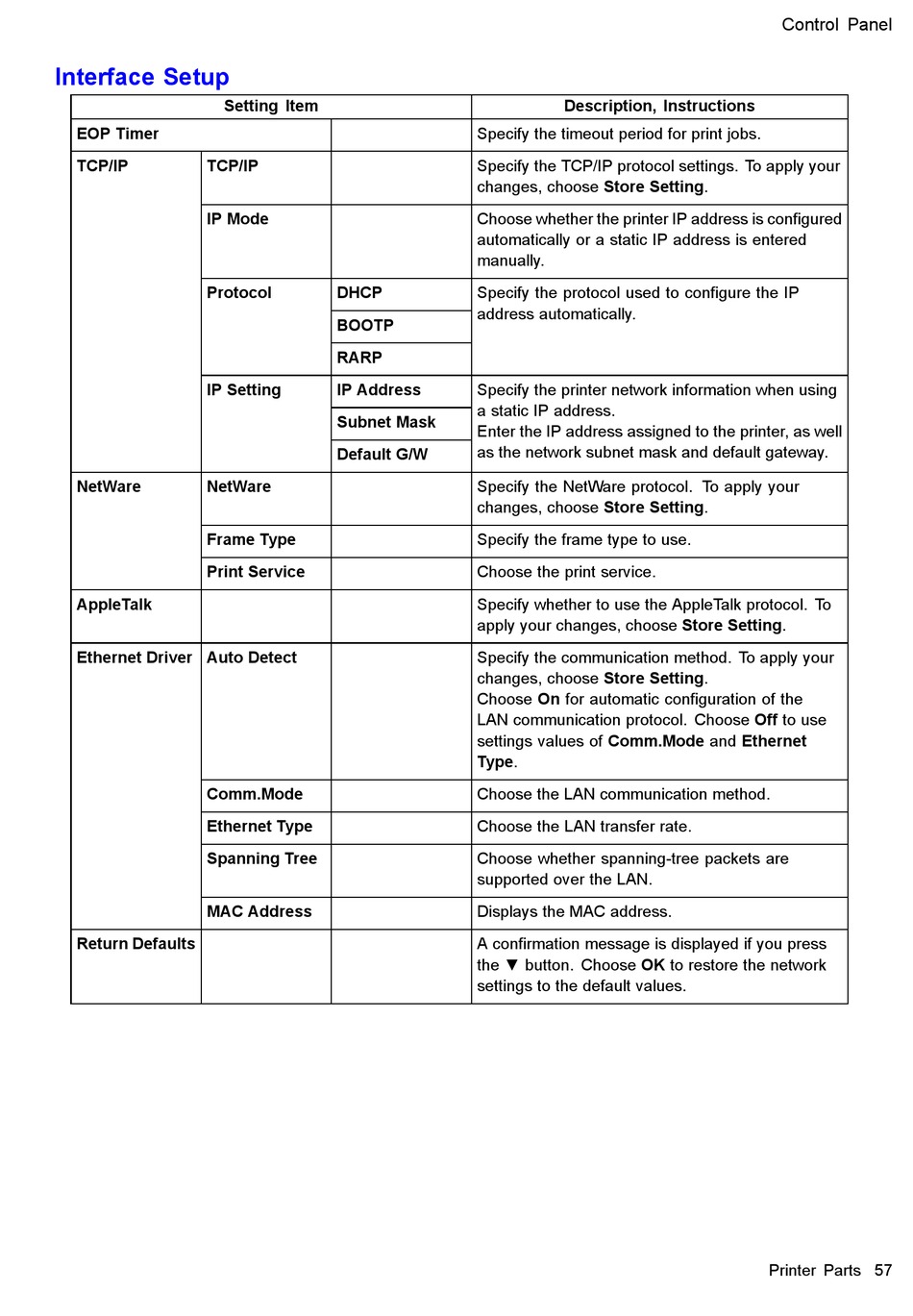

Interface Setup

Setting Item
EOP Timer
TCP/IP TCP/IP
IP Mode
Protocol
IP Setting
NetWare NetWare
Frame Type
Print Service
AppleTalk
Ethernet Driver Auto Detect
Comm.Mode
Ethernet Type
Spanning Tree
MAC Address
Return Defaults
Specify the timeout period for print jobs.
Specify the TCP/IP protocol settings. To apply your
changes, choose Store Setting.
Choose whether the printer IP address is congured
automatically or a static IP address is entered
manually.
DHCP Specify the protocol used to congure the IP
address automatically.
BOOTP
RARP
IP Address Specify the printer network information when using
a static IP address.
Subnet Mask
Enter the IP address assigned to the printer, as well
as the network subnet mask and default gateway.
Default G/W
Specify the NetWare protocol. To apply your
changes, choose Store Setting.
Specify the frame type to use.
Choose the print service.
Specify whether to use the AppleTalk protocol. To
apply your changes, choose Store Setting.
Specify the communication method. To apply your
changes, choose Store Setting.
Choose On for automatic conguration of the
LAN communication protocol. Choose Off to use
settings values of Comm.Mode and Ethernet
Type.
Choose the LAN communication method.
Choose the LAN transfer rate.
Choose whether spanning-tree packets are
supported over the LAN.
Displays the MAC address.
A conrmation message is displayed if you press
the ▼ button. Choose OK to restore the network
settings to the default values.
