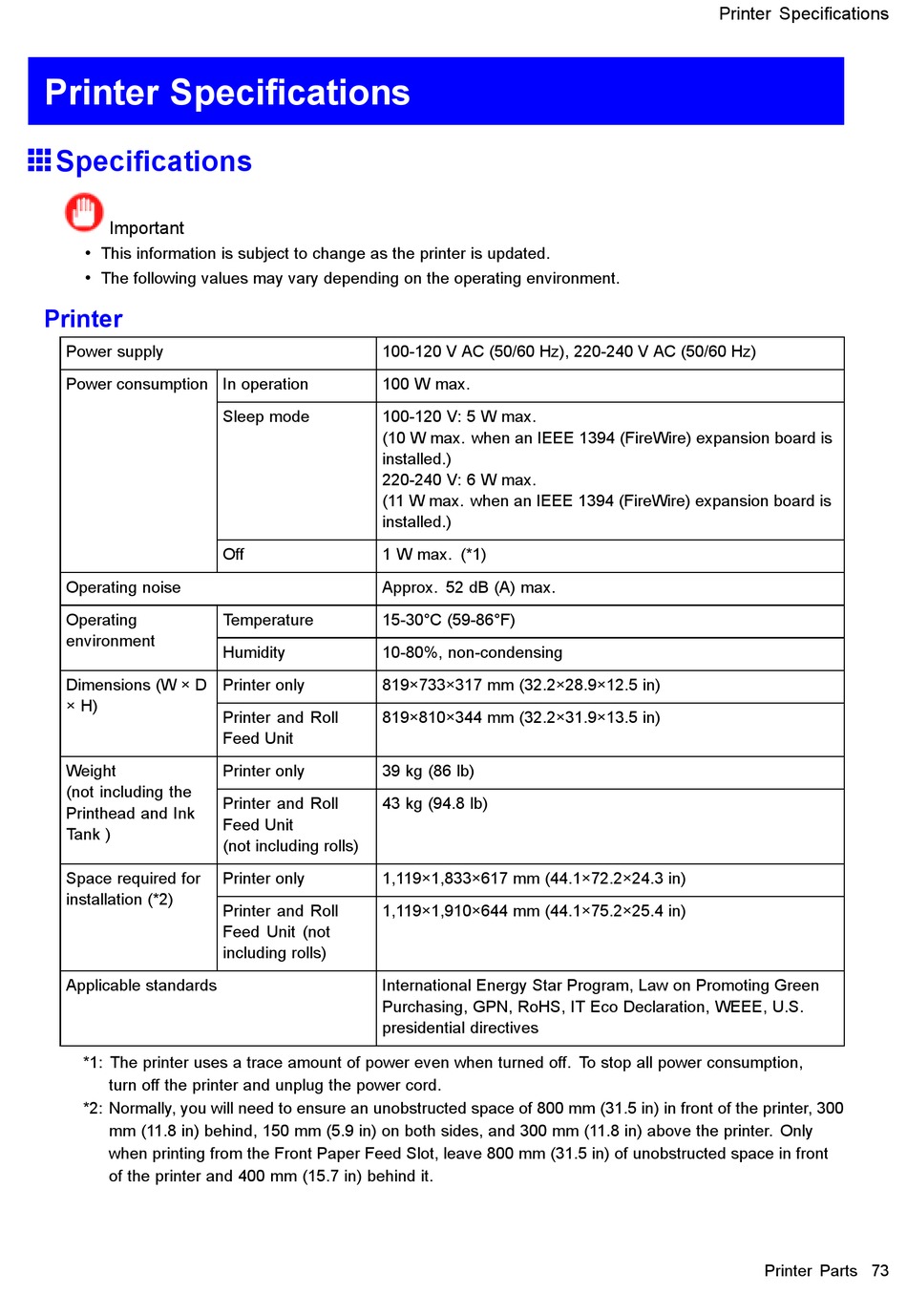

Printer Specications
Specications
Important
•
This information is subject to change as the printer is updated.
•
The following values may vary depending on the operating environment.
Printer
Power supply
Power consumption
Operating noise
Operating
environment
Dimensions (W × D
× H)
Weight
(not including the
Printhead and Ink
Tank )
Space required for
installation (*2)
Applicable standards
*1: The printer uses a trace amount of power even when turned off. To stop all power consumption,
turn off the printer and unplug the power cord.
*2: Normally, you will need to ensure an unobstructed space of 800 mm (31.5 in) in front of the printer, 300
mm (11.8 in) behind, 150 mm (5.9 in) on both sides, and 300 mm (11.8 in) above the printer. Only
when printing from the Front Paper Feed Slot, leave 800 mm (31.5 in) of unobstructed space in front
of the printer and 400 mm (15.7 in) behind it.
100-120 V AC (50/60 Hz), 220-240 V AC (50/60 Hz)
In operation 100 W max.
Sleep mode 100-120 V: 5 W max.
(10 W max. when an IEEE 1394 (FireWire) expansion board is
installed.)
220-240 V: 6 W max.
(11 W max. when an IEEE 1394 (FireWire) expansion board is
installed.)
Off 1 W max. (*1)
Approx. 52 dB (A) max.
Temperature 15-30°C (59-86°F)
Humidity 10-80%, non-condensing
Printer only 819×733×317 mm (32.2×28.9×12.5 in)
Printer and Roll 819×810×344 mm (32.2×31.9×13.5 in)
Feed Unit
Printer only 39 kg (86 lb)
Printer and Roll 43 kg (94.8 lb)
Feed Unit
(not including rolls)
Printer only 1,119×1,833×617 mm (44.1×72.2×24.3 in)
Printer and Roll 1,119×1,910×644 mm (44.1×75.2×25.4 in)
Feed Unit (not
including rolls)
International Energy Star Program, Law on Promoting Green
Purchasing, GPN, RoHS, IT Eco Declaration, WEEE, U.S.
presidential directives
Printer Specications
Printer Parts 73
