Printheads
Replacing the Printhead
Follow the steps below to replace the Printhead. Failure to follow this procedure may cause ink leak from
the Printhead, which may cause stains.
Note
•
Prepare a new Ink Tank when ink levels are low.
•
Your hands may become dirty during Printhead replacement. Use the gloves provided with the new
Printhead for replacement.
•
Choose On in Auto Print to have the printer automatically adjust the Printhead alignment after
replacement of the Printhead. (→P.51)
1.
If the roll is not ejected because of the cutting method selected, cut it manually and remove it.
(→P.437)
2.
Clean inside the Top Cover. (→P.627)
3.

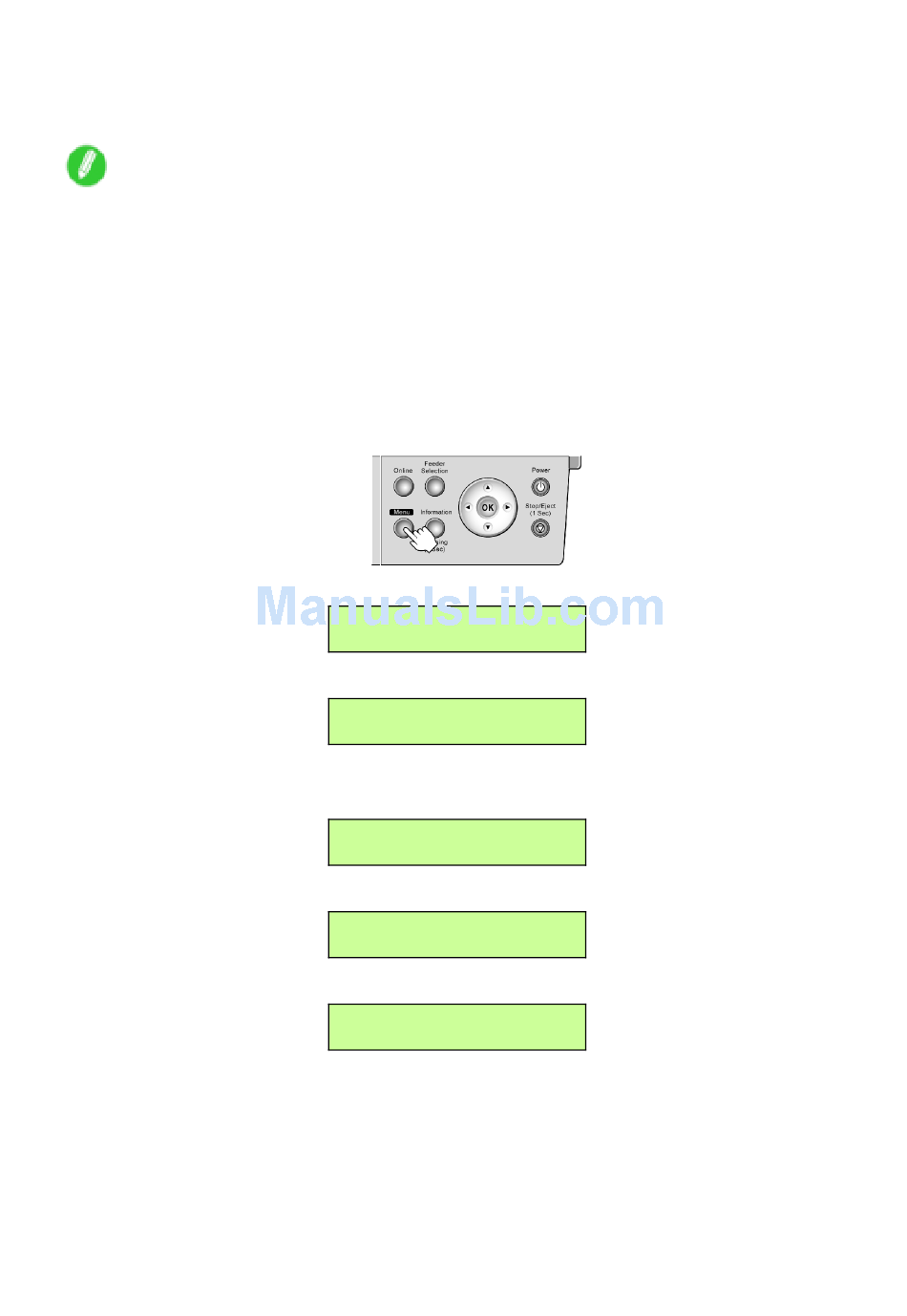

Press the Menu button to display MAIN MENU.
4.
Press ◄ or ► to select Maintenance, and then press ▼.
5.
Press ◄ or ► to select Replace P.head, and then press ▼.
6.
Press ◄ or ► to select Yes, and then press OK.
The setting is updated, and an equals sign "=" is displayed at left.
Please Wait.. is shown on the Display Screen, and excess ink is absorbed.
After about three minutes, Open UpperCover is shown on the Display Screen.
612 Maintenance
MAIN MENU
Maintenance ↓
Maintenance
Replace P.head ↓
Replace P.head
= Yes
Replace P.head
Please Wait..
Replace P.head
Open UpperCover
