2.

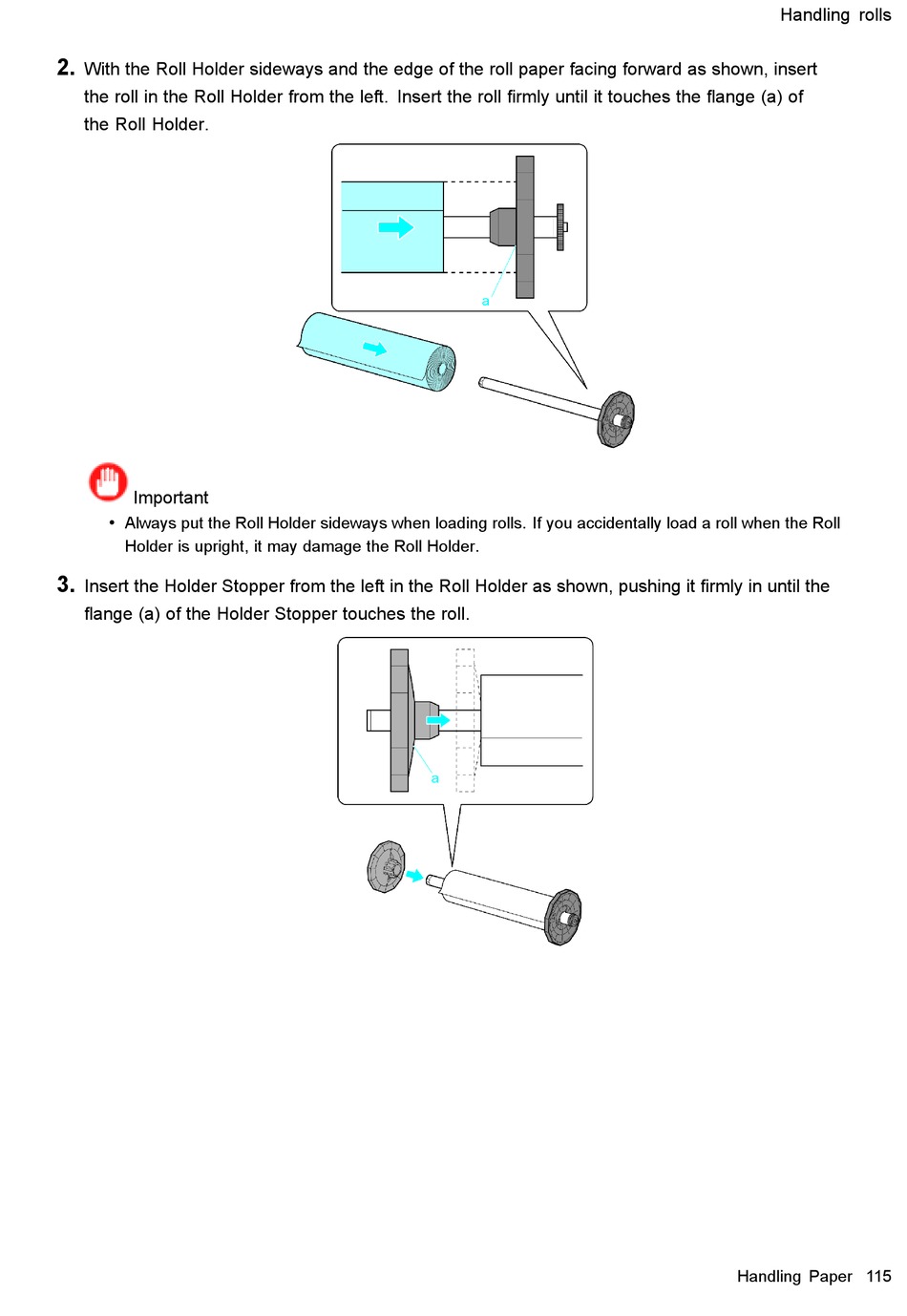

With the Roll Holder sideways and the edge of the roll paper facing forward as shown, insert
the roll in the Roll Holder from the left. Insert the roll rmly until it touches the ange (a) of
the Roll Holder.
Important
•
Always put the Roll Holder sideways when loading rolls. If you accidentally load a roll when the Roll
Holder is upright, it may damage the Roll Holder.
3.
Insert the Holder Stopper from the left in the Roll Holder as shown, pushing it rmly in until the
ange (a) of the Holder Stopper touches the roll.
