Adjusting the printhead by using test pattern

This section describes adjustment based on an example of printing a band adjustment pattern.
1.

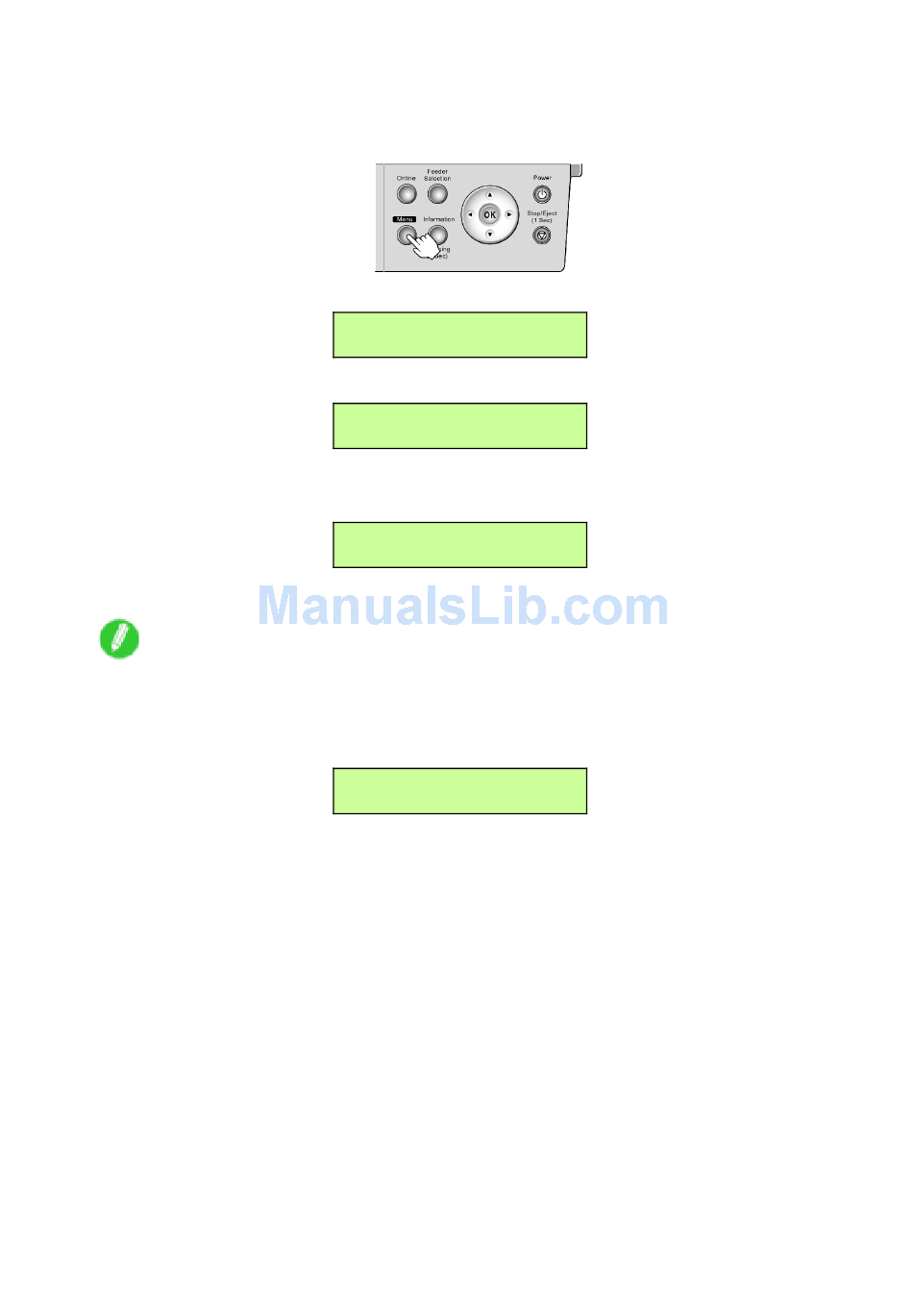

Press the Menu button to display MAIN MENU.
2.
Press ◄ or ► to select Adjust Printer, and then press ▼.
3.
Press ◄ or ► to select Manual Band Adj, and then press ▼.
4.
Press ◄ or ► to select the paper source, and then press the OK button.
The setting is updated, and an equals sign "=" is displayed at left.
Test pattern A is printed for band adjustment.
Note
•
The following screen is displayed if automatic feeding is selected when an optional Roll Feed Unit
is installed but no roll is loaded. In this case, select the paper source and press the OK button. If
Cassette is selected on the following screen, or if automatic feeding is selected when an optional
Roll Feed Unit is not installed, select the type and size of paper loaded in the Cassette.
MAIN MENU
Adjust Printer ↓
Adjust Printer
Manual Band Adj ↓
Manual Band Adj
= Yes
Media Source
= Roll
Adjusting the feed amount
Adjustments for Better Print Quality 591
