Control Panel

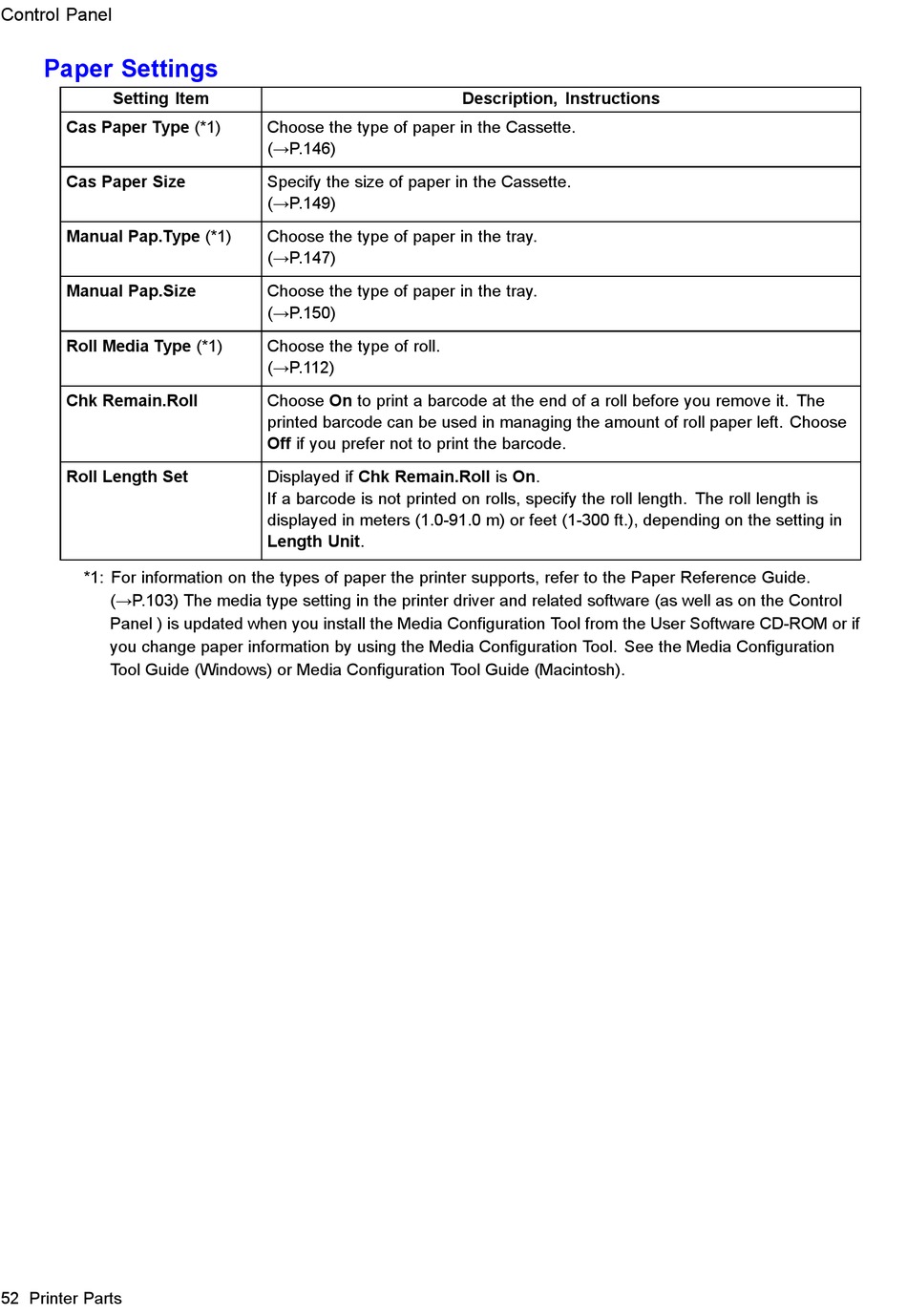

Paper Settings

Setting Item
Cas Paper Type (*1)
Cas Paper Size
Manual Pap.Type (*1)
Manual Pap.Size
Roll Media Type (*1)
Chk Remain.Roll
Roll Length Set
*1: For information on the types of paper the printer supports, refer to the Paper Reference Guide.
(→P.103) The media type setting in the printer driver and related software (as well as on the Control
Panel ) is updated when you install the Media Conguration Tool from the User Software CD-ROM or if
you change paper information by using the Media Conguration Tool. See the Media Conguration
Tool Guide (Windows) or Media Conguration Tool Guide (Macintosh).
52 Printer Parts
Choose the type of paper in the Cassette.
(→P.146)
Specify the size of paper in the Cassette.
(→P.149)
Choose the type of paper in the tray.
(→P.147)
Choose the type of paper in the tray.
(→P.150)
Choose the type of roll.
(→P.112)
Choose On to print a barcode at the end of a roll before you remove it. The
printed barcode can be used in managing the amount of roll paper left. Choose
Off if you prefer not to print the barcode.
Displayed if Chk Remain.Roll is On.
If a barcode is not printed on rolls, specify the roll length. The roll length is
displayed in meters (1.0-91.0 m) or feet (1-300 ft.), depending on the setting in
Length Unit.
Description, Instructions
