Omron SYSMAC CJ - REFERENCE MANUAL 08-2008 Reference Manual page 1175

Clock Instructions
Operand Specifications
Description
The following table shows the structure of the Calendar/Clock Area.
Addresses
A35100 to A35107 Second (00 to 59, BCD)
A35108 to A35115 Minute (00 to 59, BCD)
A35200 to A35207 Hour (00 to 23, BCD)
A35208 to A35215 Day of month (01 to 31, BCD)
A35300 to A35307 Month (01 to 12, BCD)
A35308 to A35315 Year (00 to 99, BCD)
A35400 to A35407 Day of week (00 to 06 = Sunday to Saturday, hexadecimal)
A35408 to A35415 Always set to 00.
Area
CIO Area
Work Area
Holding Bit Area
Auxiliary Bit Area
Timer Area
Counter Area
DM Area
EM Area without bank
EM Area with bank
Indirect DM/EM
addresses in binary
Indirect DM/EM
addresses in BCD
Constants
Data Registers
Index Registers
Indirect addressing
using Index Registers

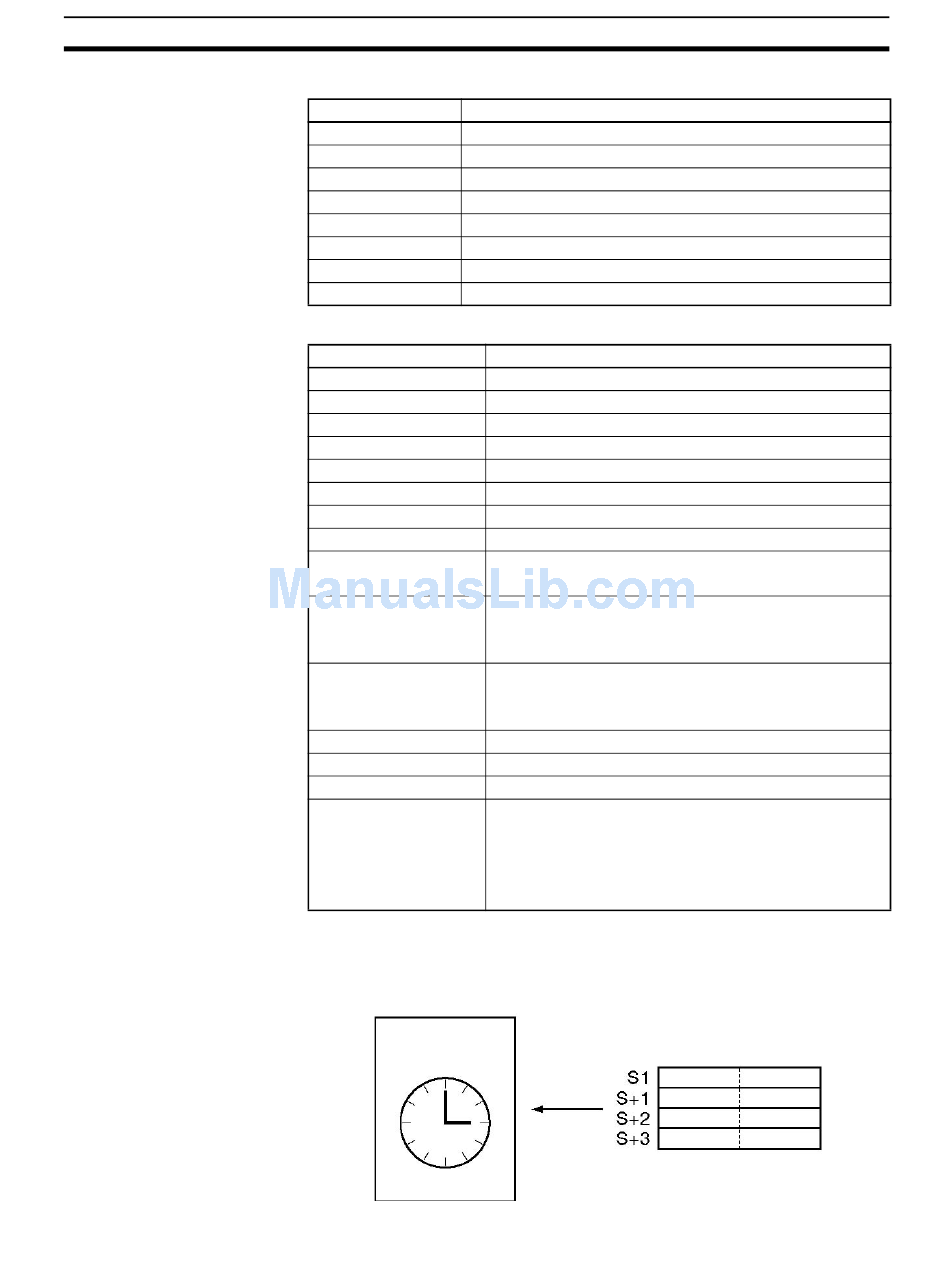

DATE(735) changes the internal clock setting according to the clock data in
the four source words. The new internal clock setting is immediately reflected
in the Calendar/Clock Area (A351 to A354).
CPU Unit
Internal clock
Contents
CIO 0000 to CIO 6140
W000 to W508
H000 to H508
A000 to A956
T0000 to T4092
C0000 to C4092
D00000 to D32764
E00000 to E32764
En_00000 to En_32764
(n = 0 to C)
@ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
*D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
---
---
---
,IR0 to ,IR15
-2048 to +2047 ,IR0 to -2048 to +2047 ,IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,-(- -)IR0 to, -(- -)IR15
New setting
Section 3-28
S
Minutes Seconds
Day Hour
Year Month
00 Day of week
1135
