Network Instructions
Operand Specifications
Description
Area
CIO Area
Work Area
Holding Bit Area
Auxiliary Bit Area
Timer Area
Counter Area
DM Area
EM Area without bank
EM Area with bank
Indirect DM/EM
addresses in binary
Indirect DM/EM
addresses in BCD
Constants
Data Registers
Index Registers
Indirect addressing
using Index Registers

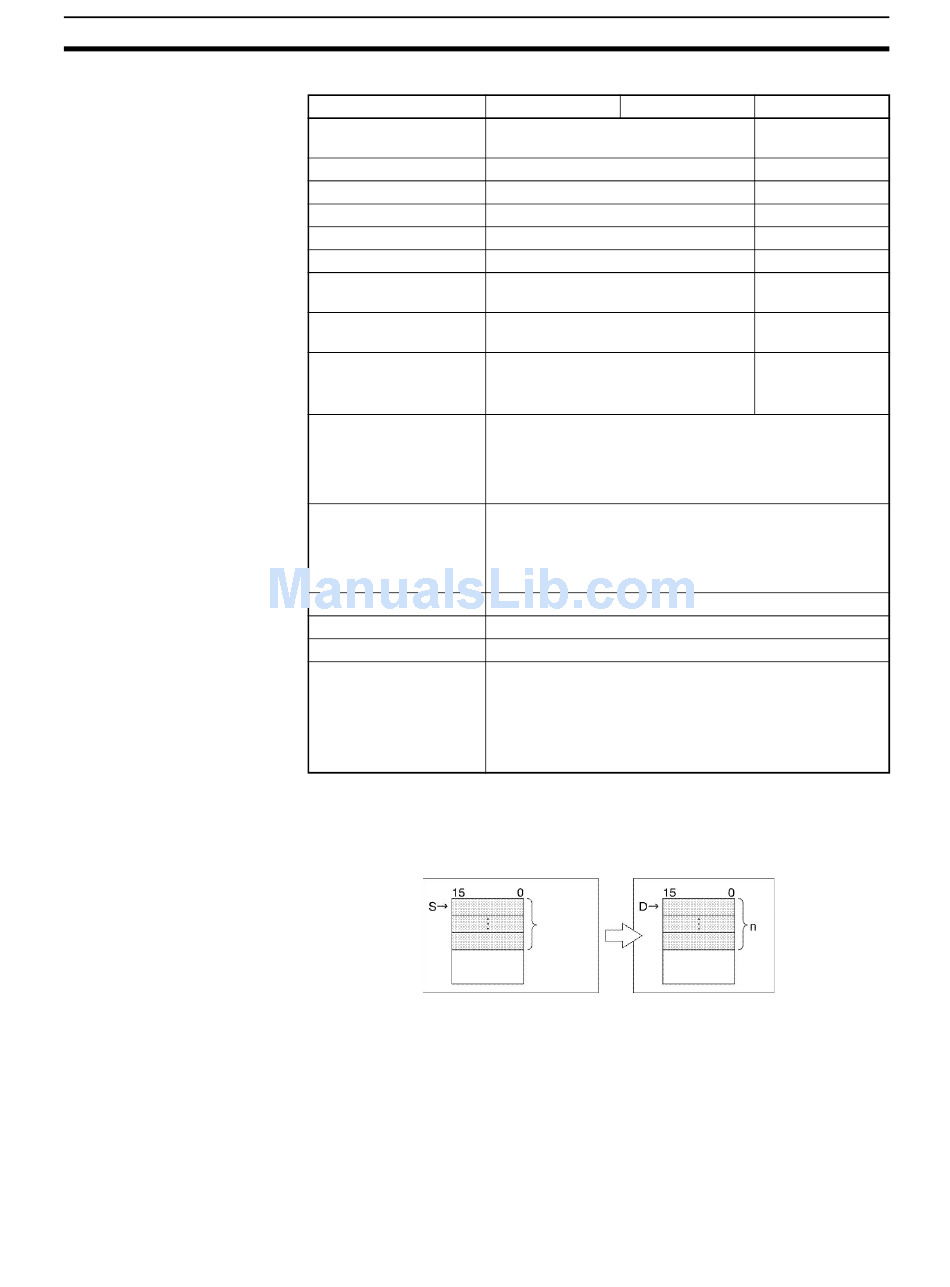

SEND(090) transfers the data beginning at word S to addresses beginning at
D in the designated device through the PLC's CPU Bus or over a network.
The number of words to be transmitted is specified in C.
Local node
If the destination node number is set to FF, the data will be broadcast to all of
the nodes in the designated network. This is known as a broadcast transmis-
sion.
If a response is requested (bits 12 to 15 of C+3 set to 0) but a response has
not been received within the response monitoring time, the data will be
retransmitted up to 15 times (retries set in bits 0 to 3 of C+3). There will be no
response or retries for broadcast transmissions.
SEND(090) can be used to transmit data to a particular serial port in the des-
tination device as well as the device itself.
S
CIO 0000 to CIO 6143
W000 to W511
H000 to H511
A000 toA959
T0000 to T4095
C0000 to C4095
D00000 to D32767
E00000 to E32767
En_00000 to En_32767
(n = 0 to C)
@ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
(n = 0 o C)
*D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
(n = 0 to C)
---
---
---
,IR0 to ,IR15
–2048 to +2047, IR0 to –2048 to +2047, IR15
DR0 to DR15, IR0 to IR15
,IR0+(++) to ,IR15+(++)
,–(– –)IR0 to, –(– –)IR15
Destination node
Number
of words
to trans-
mit, n
Section 3-25
D C
CIO 0000 to
CIO 6139
W000 to W507
H000 to H507
A000 to A955
T0000 to T4091
C0000 to C4091
D00000 to
D32763
E00000 to
E32763
En_00000 to
En_32763
(n = 0 to C)
