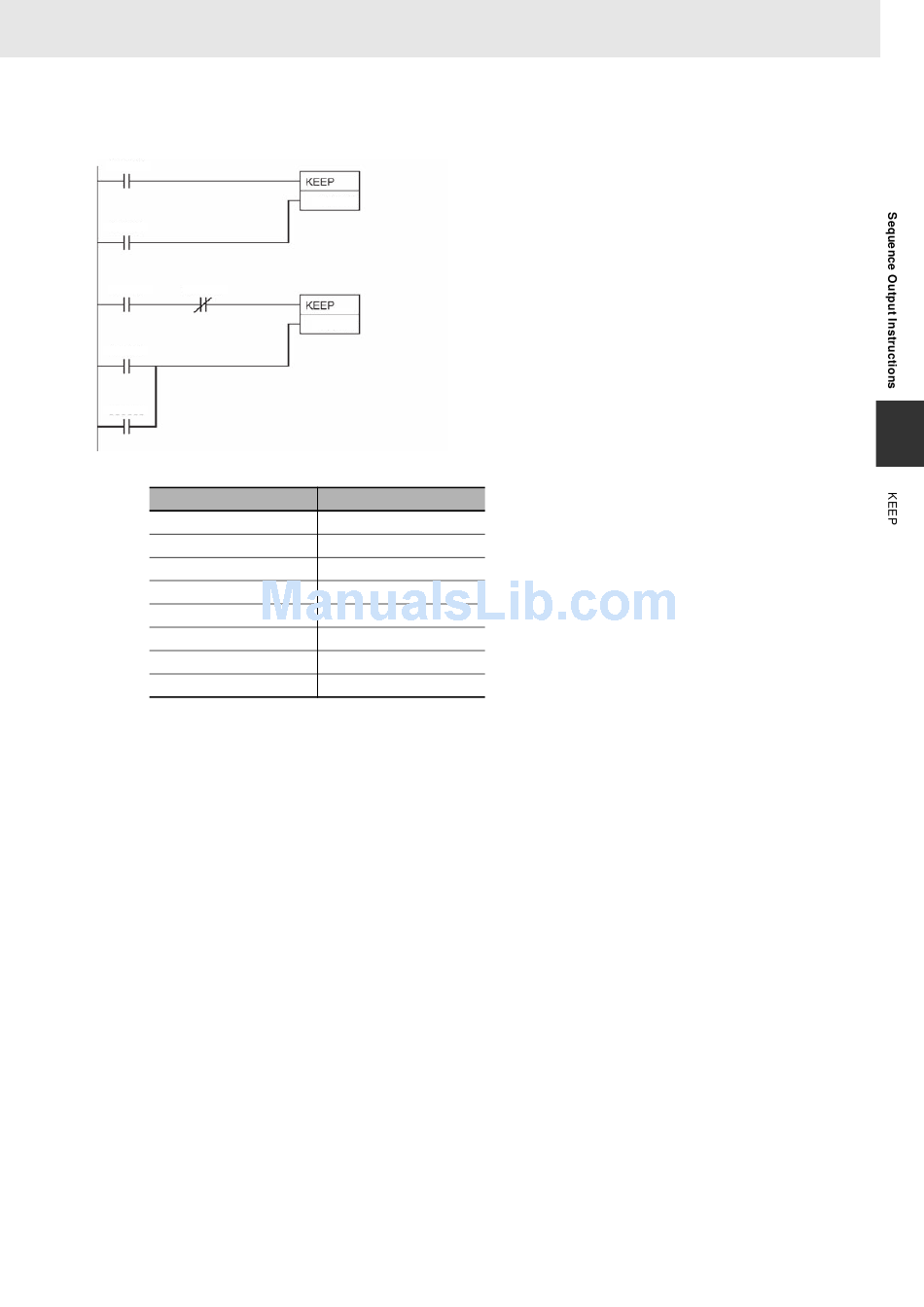

Example Programming
0.00
0.01
0.03
0.02
0.04
0.05
Coding
Instruction
LD
LD
KEEP (011)
LD
AND NOT
LD
OR
KEEP (011)
Note KEEP(011) is input in different orders on in ladder and mnemonic form. In ladder form, input the set input,
KEEP(011), and then the reset input. In mnemonic form, input the set input, the reset input, and then
KEEP(011).
CS/CJ/NSJ Series Instructions Reference Manual (W474)
When CIO 0.00 goes ON in the left example, CIO 5.00 is
turned ON. CIO 5.00 remains ON until CIO 0.01 goes
5.00
ON.
When CIO 0.02 goes ON and CIO 0.03 goes OFF in the
left example, CIO 1.00 is turned ON. CIO 1.00 remains
ON until CIO 0.04 or CIO 0.05 goes ON.
1.00
Operand
0.00
0.01
5.00
0.02
0.03
0.04
0.05
1.00
3. Instructions
3
163
