• DTXDU(262) will not be executed while the DTXDU(262) Send Ready Flag (n+9/n+19 bit 04) is OFF
(n = CIO 1500 + 25
for DTXDU(262).

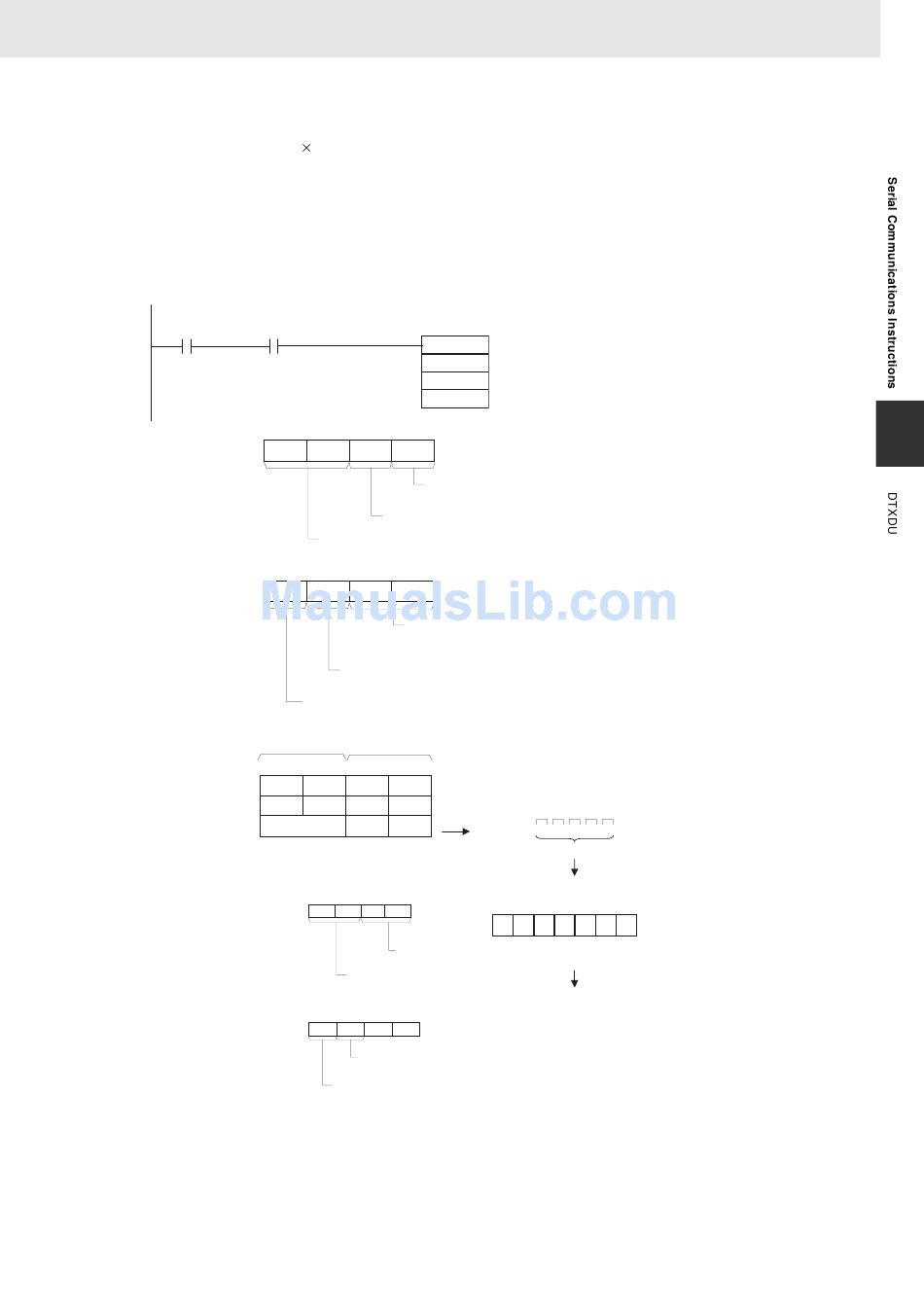

Example Programming
In the following sample, if CIO 0.00 is turned ON while the DTXDU(262) Send Ready Flag (CIO
1559.04) is ON, 5 bytes of data starting from the lower byte of D100 will be sent to the external device
connected to port 1 of the Serial Communications Unit with unit number 2 without converting the data in
any way.
1559.04
0.00
DTXDU(262) Send
Ready Flag
(Unit 2, port 1)
C+0: D200
C+1: D201
15
S: D100
D101
D102
CS/CJ/NSJ Series Instructions Reference Manual (W474)
unit number). Use the DTXDU(262) Send Ready Flag in an NO input condition
DTXDU
S
C
N
15 12 11 8 7 4 3 0
0 0 0 1
RS and ER signal control
0: No RS and ER signal control
Always 00
15 12 11 8 7 4 3 0
0 1 1 2
Serial Communications Unit's unit address (Unit
address as CPU Bus Unit)
12 hex = Unit number + 10 hex
Serial port number
1: Port 1
Always 0
Most signifi- Least signif-
cant bytes icant bytes
8 7 0
3 4 1 2
C D A B
E F
Example allocated DM Setup Area settings:
Start code and end code values
15 12 11 8 7 4 3 0
D30204 0 2 0 3
End code
(03 hex)
Start code
(02 hex)
Start code and end code specifiers
15 12 11 8 7 4 3 0
D30205: 1 1
End code specifier
(1: Use end code.)
Start code specifier
(1: Use start code.)
D100
D200
&5
Byte order
1: Least significant bytes first
Transfer order
1 2 3 4 A B C D E F
5 bytes
In this example, a start and end code have been
specified in the allocated DM Setup Area.
ST 12 34 AB CD EF ED
ST: Start code (e.g., 02 hex)
ED: End code (e.g., 03 hex)
Data sent.
