3. Instructions

Operand Specifications

Word addresses

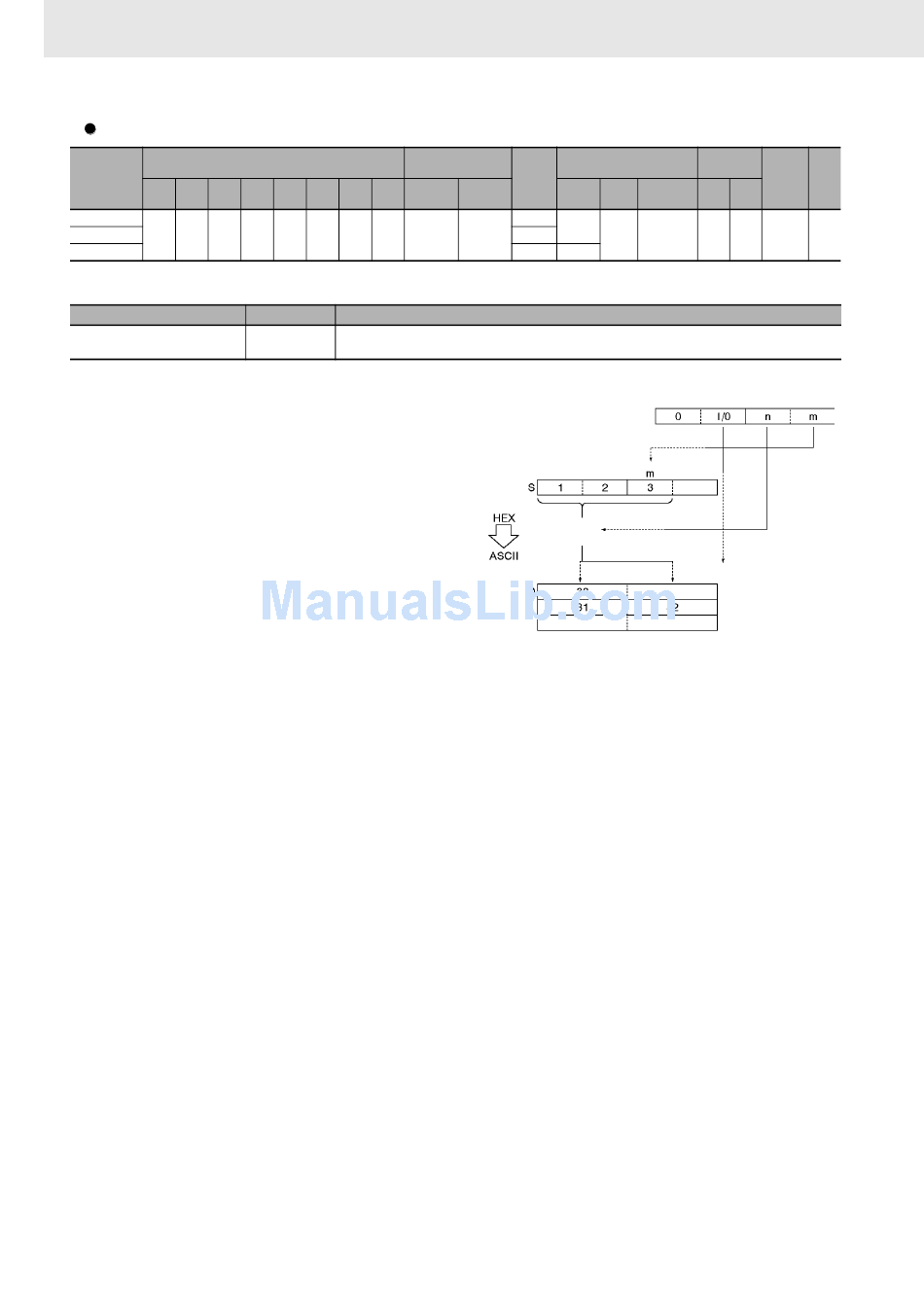

ASC(086) treats the contents of S as 4

hexadecimal digits, converts the designated

digit(s) of S into their 8-bit ASCII equivalents,

and writes this data into the destination word(s)

beginning with the specified byte in D.

A parity specification (bits 12 to 15 of K) is

possible in the leftmost bit of the ASCII code

data, and this can be converted to an odd or

even parity bit (the number of bits that are 1 of

the eight bits is adjusted to odd or even).

• The parity bit is appended to the data to enable detection of errors when the data is transmitted. By

adding this bit, the number of bits that are 1 in the data can be indicated as odd or even, and if the

number of 1s in the received data is not similarly odd or even, it is assumed that an error has

• With CS1-H/CJ1-H CPU Units with unit version 4.0 or later and CJ2 CPU Units, there are instructions

to convert 4, 8, and 16 digits of numeric data to ASCII (STR4(524), STR8(527), and STR16(528)).

• When multiple digits are specified in the number of digits to be converted (K), the digits are converted

in order from the starting conversion digit going left (returns to digit 0 after digit 3), and the conversion

results are stored in order from the output position of D going to the left word side (in units of 8 bits).

• Among the data in the conversion result output word, data in positions that are not to be output are

• When converting multiple digits, take care that D+2 and D+2CH do not exceed the area.

Indirect DM/EM

• ON if the content of Di is not within the specified ranges.

• OFF in all other cases.

First digit to convert

digits (n+1)
