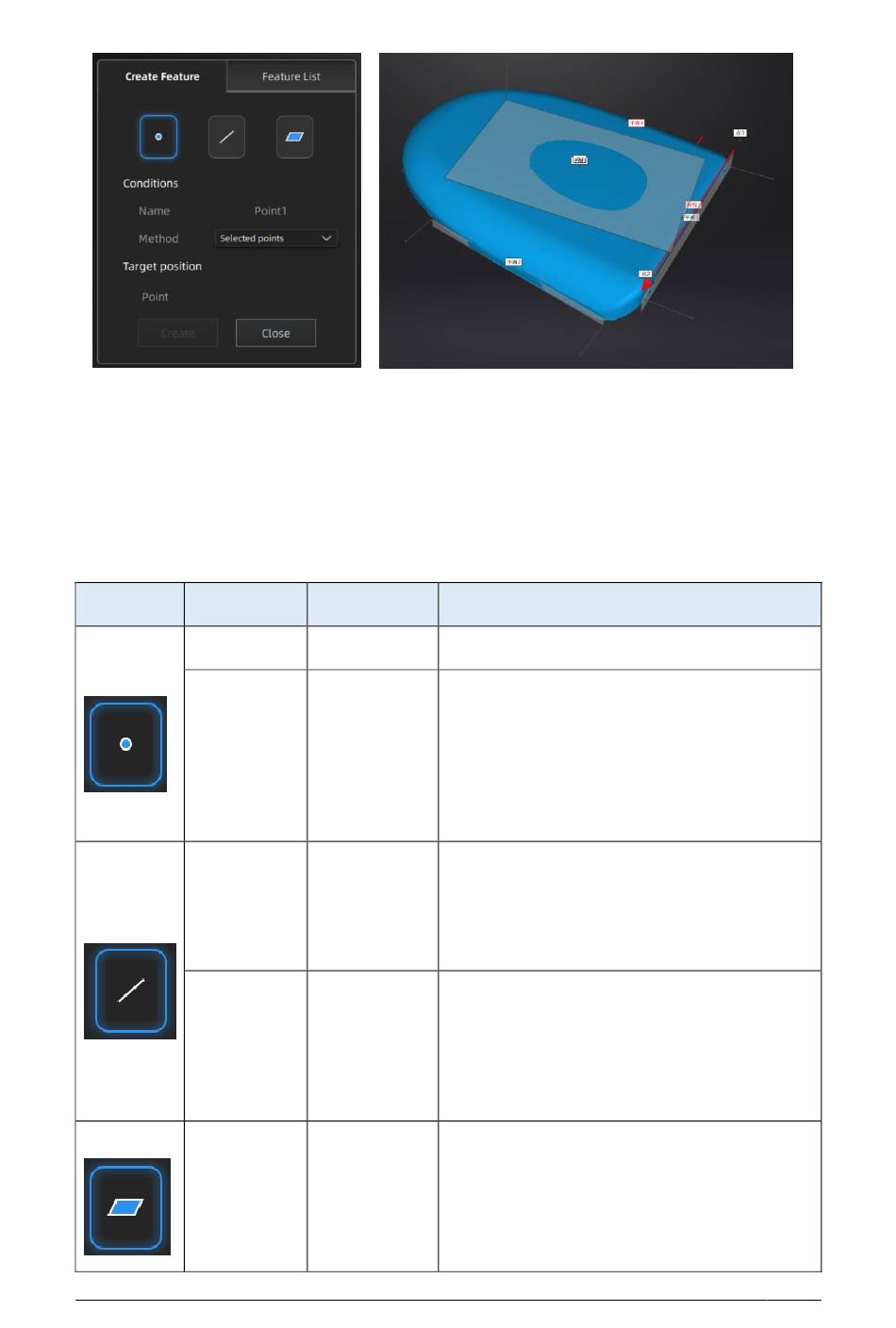

Feature menu
Click on the corresponding icon to create points, lines, planes.
Then select the creation method and follow the instructions, click "Create" to generate, or "Close" to
cancel and close the window.
The features created displaying in gray, the selected features are in red. In the feature list, click
"delete button" to remove (Delete action cannot undo).
Creation
Feature
method
Selected
Points
Point
Line-Plane
Interface
Point-Point
Line
Plane-Plane
Intersection
Plane
3 Points Fit
Shining 3D Transcan C_User Manual_V1.4.1
Requirement

Click on the data to select a point

Click create to create a point

Click on the created line, or select it on the
drop-down list.

Line and Plane Click on the created plane, or select it on the
should be drop-down list.
created in The point generated is the intersection between
advanced the non-parallel line and plane
Feature creation failed! Error code 9: the line is
parallel to the plane

Pick 2 points.

Click on the data to select a point or click on a
feature point previously created
In the Choice list select one of the points to redo it
The line generated is define as point from to point
to point

Click on the plane previously created, or
select it on the drop-down list, repeat for the
2 Planes should second plane.

be created in The created line is the intersection between
advanced the 2 non-parallel planes
Feature creation failed! Error code 1: the planes
are parallel

The plane is generated by 3 points not
co-linear.

Click on the data to select one point or click
on a previous created feature point.

In the Choice list select one of the points to
reselect it
Feature creation failed! Error code 6= the points
Display of Features
Description
