Fitting Point cloud: Press Shift + left-click to select data, then click the button "Generate
plane". The cut plane will be created by point cloud fitting. The direction of the plane will be
calculated by the software according to the direction of point cloud.
Creating straight line: Press Shift + left-click to draw a line, and generate the cut plane
according to the line.
By Marker: Press Shift + left-click to select markers. 3 markers or more are required to
generate the cut plane.
Cut Plane setting
Rotation axis: Cut plane can be rotated around the axis by operating the active bar, editing
the text box or placing the cursor on the edge of the cut plane and dragging.
Translation increment: Translate the cut plane by operating the active bar, editing the text
box or placing the cursor in the center of the cut plane and dragging. After translation, the
increment value will be reset to 0.
Delete: click this option, data in the reverse direction will be shown in red. Apply this, and
the red data will be deleted.
Reverse: Reverse the normal direction of the cut plane.
Delete plane: Delete the created cut plane.
Other operation
Mouse operation: Double-click the cut pane to enter the cut plane setting after quitting the
cut plane interface.
Hide/Show cut plane: After creating the cut plane, hide or show the cut plane by right click.
Notes:
Editing markers is not available for cutting plane.
When cutting plane is present, the data below the normal direction of the cutting
plane cannot be scanned, except for the markers.
Shining 3D Transcan C_User Manual_V1.4.1

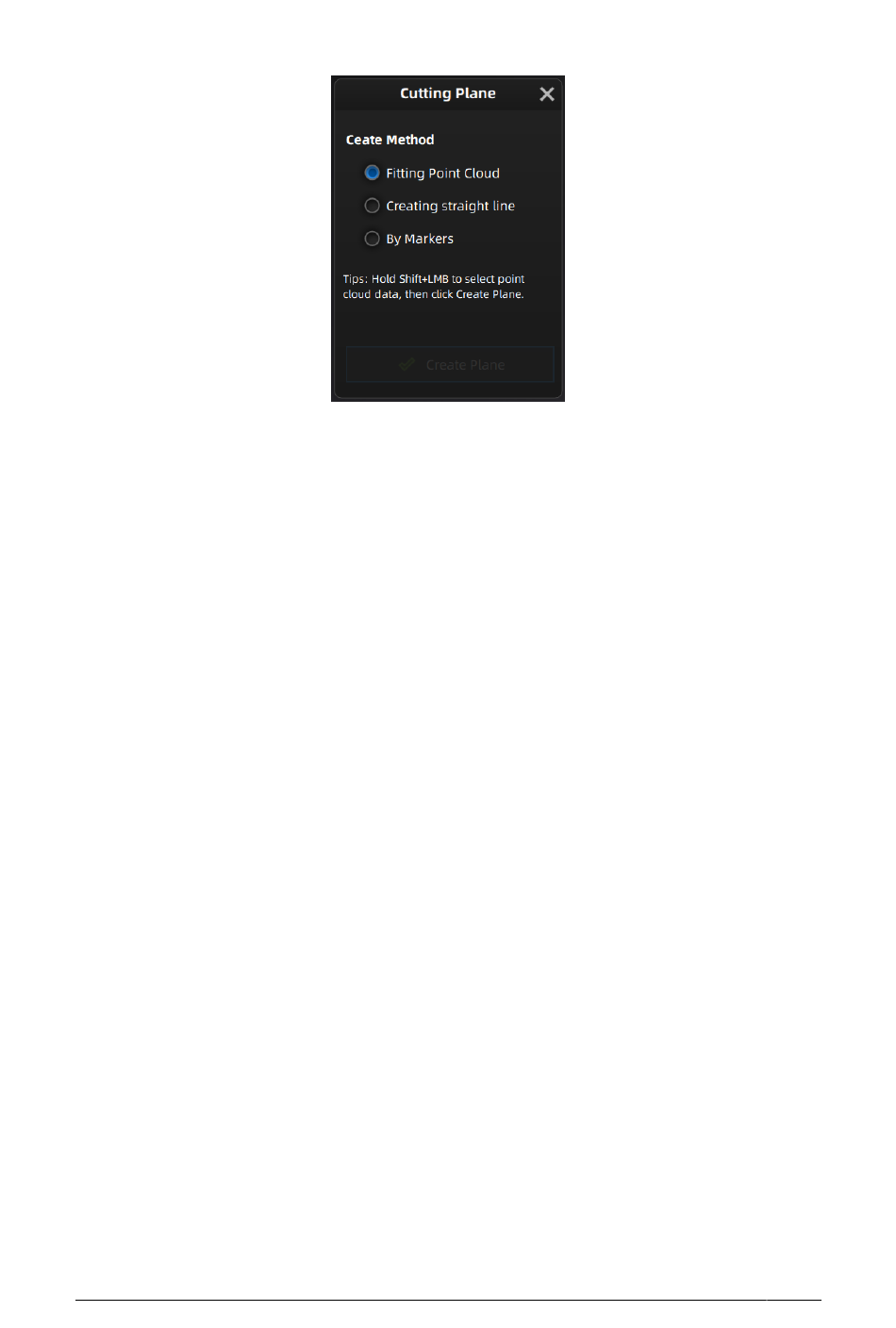

Interface of creating cut plane
35
