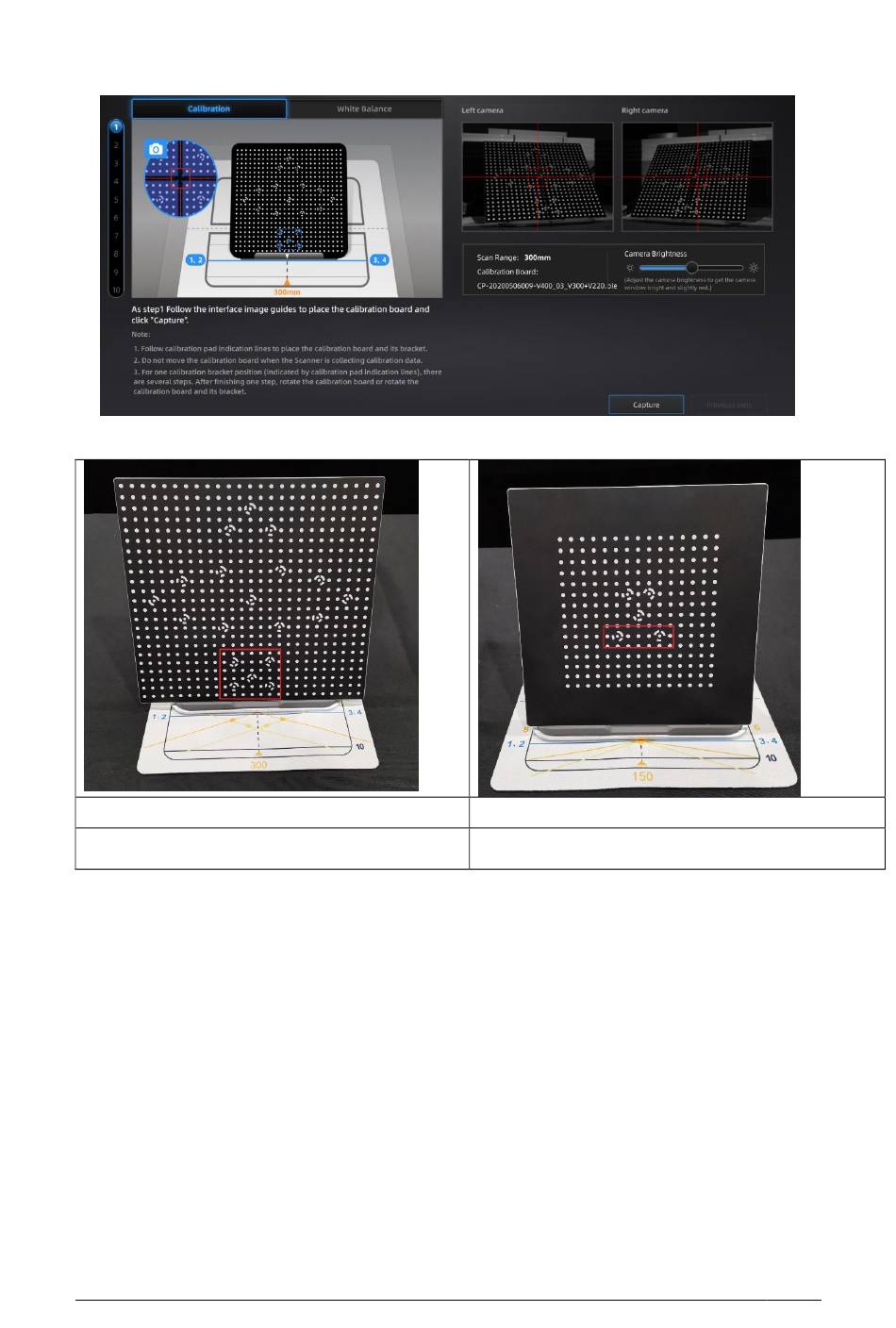

Follow the interface image guides to place the Scanner. Ensure the Scanner projected lights
cover the whole calibration board and the black cross is aligned with the calibration board center.
The calibration board can be divided into upper, lower, left and right.
300mm
Ensure the five encoded points are at the bottom.
Ensure that the calibration board is placed smoothly and facing the cameras. Click Capture. Do
not move the calibration board during the collection process.
After the collection is completed, the software interface displays for the second step calibration.
As shown in the figure below, remove the calibration board from the calibration board bracket,
rotate the calibration board 90° clockwise, and put it on the calibration board bracket.
Click Previous Step to go back to the previous step to capture again.
Shining 3D Transcan C_User Manual_V1.4.1
150mm
Ensure the two encoded points of the further distance
are at the bottom.
