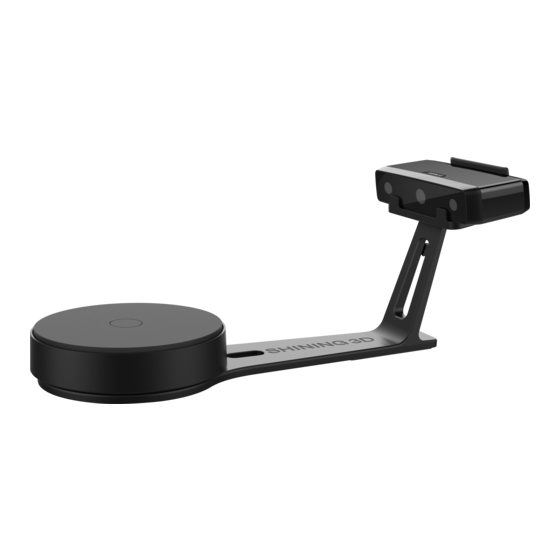

EinScan-SE
Desktop 3D Scanner
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EinScan-SE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shining 3D EinScan-SE

Summary of Contents for Shining 3D EinScan-SE

  • Page 1 EinScan-SE Desktop 3D Scanner User Manual...

  • Page 2: Table Of Contents

    Catalog Device List and Specification ..................... 2 Device List ........................3 System Requirement ..................... 5 Installation Notes ......................6 Hardware Installation ....................7 Software download ....................... 9 Software installation ....................10 Software Introduction ....................11 Scan Preparation ....................... 12 First Scan ........................13 1.2.1.

  • Page 4: Device List

    Device List Items Picture Quantity Scanner Head Turntable Scanner Stand Scanner Bracket Calibration Board Calibration Board Holder Power Adapter Power Cord USB Cable USB Cable Quick Guide...
  • Page 5 Specification Parameter Specification Parameter Model EinScan-SE Scan Mode Auto Scan Fixed Scan Scan speed <2min <8s Point distance 0.17mm~0.2mm Single Scan Accuracy Accuracy: 0.1mm Suitable 290—480mm distance Light source White light LED Maximum 200mm*200mm*200mm 700mm*700mm*700mm scan volume Minimum scan 30mm*30mm*30mm...

  • Page 6: System Requirement

    System Requirement Items Recommended PC configuration Operating System Win7，8，10，64bit Port at last one USB2.0/3.0 port >8G Graphic Card NVDIA Series Graphic Memory >1G i5 or higher...

  • Page 8: Hardware Installation

    Hardware Installation Scanner Set-up  Step 1. Place the scanner head onto the bracket.  Step 2. Insert calibration board onto the board holder . NOTE : Rotate the calibration board only while calibration.  Step 3. Turntable and Scanner installation. Place the turntable onto scanner stand 2) Screw the scanner into...
  • Page 9 Hardware Installation 3) Plug power cord into outlet and the back of scanner;Plug USB cable into back of scanner and computer USB port;Plug USB cable into back of scanner, and turntable Scanner Turn-on/off  Hold on the touch switch for about one second to turn the scanner on; ...

  • Page 10: Software Download

    Software download Software download Firstly, enter the Support page: http://www.einscan.com/support. Click “Software download”, as shown below: Secondly, please complete the registration, if registered, click log in. After take the survey, it will enter the page http://www.einscan.com/software-download Finally, click the icon to jump to the page of any file to download the software.

  • Page 11: Software Installation

    Software Installation Software Installation Double click installation package, Follow the instructions as the window pops up. Users can either choose the default installation path or click the Browse button to select the installation path. Default installation is suggested. When the acquired activated file window pop-ups, you can choose multiple device types, then click “Next”.

  • Page 12: Software Introduction

    The software provides Fixed Scan ( Without turntable ), Auto Scan.

  • Page 13: Scan Preparation

    Scan Preparation Mode selection (1) Auto Scan: This mode is recommended for objects within the size of 200*200*200mm. (2) Fixed Scan: This mode is recommended for objects over the size of 200*200*200mm, as well as a comparative stable environment (without obvious vibration) are required. Not recommended to scan objects within the size of 30*30*30mm.

  • Page 14: First Scan

    First Scan Choose the device “EinScan-SE”, as shown below. 1.2.1. Help Mode for Beginners Close Help Mode for Beginner by clicking the top right corner . To open Help Mode for Beginner, go to Menu -> User Setting ->Help Mode for Beginner 1.2.2.
  • Page 15 Operation Procedure...

  • Page 16: Drop Down Menu

    Drop down Menu Click from the upper right to open drop down menu. 1.3.1. Language This software version is including Simplifed Chinese, Chinese, English, German, Japanese, Spanish, French, Korean, Russian and Turkish. Language can be switched in the choose device type interface.

  • Page 17: Feedback

    Drop down Menu 1.3.3. Feedback If you have any questions, or suggestions, please share with us by clicking “Feedback”. Leave your email in “ My E-mail” 1.3.4. User Setting Debug window Tick the checkbox to open debug window; if you want to close it, unselect it. Help Mode for Beginners Help Mode for Beginner is the default selection, which is to guide the new users make a scan completely step by step.

  • Page 18: Factory Default

    Drop down Menu User Experience Program To help us improve the quality and user experience of Einscan, we hope to be allowed to collect usage information to Einscan Team. This information will not identify you and does not include your project data. By default, this checkbox is selected, and we strongly recommend you to select it.

  • Page 19: Calibration

    Scanning cannot be entered if calibration is not done after installing the software. There is a WARNING: No calibration data, please calibrate first.

  • Page 20: Calibration

    Calibration Click ‘Calibrate’ to enter the interface of calibrate. The first time choose the device type and click “Next”, it will enter the calibration interface automatically. The interface of calibrate: Calibrating your scanner is important in order to get accurate scan results. The following describes the three steps required to successfully calibrate your scanner.
  • Page 21 Calibration calibration board, and the cross from scanner should target at the calibration board n clearly. Place the calibration support and board in the center of the turntable as shown in Figure A. Check that the calibration board is located at the center of the turntable with the Figure A pattern facing the scanner and click “Snap”.
  • Page 22 Calibration Upon completion of the 3rd calibration sequence, the software will automatically calculate and archive the current conditions. This calculation may take several seconds but once complete, you are ready to start automatic turntable scanning. When calibration is finished, the software will close the calibration window automatically and enter the scan mode selection page.

  • Page 23: Calibration Precaution

    Calibration Precautions You must finish all the calibration steps according to the instruction when you calibrate at the first time. Situations as below need do calibration again: ① When the scanner is used for the first time or after long time without using. ②...

  • Page 25: Help Mode For Beginner

    Help Mode for Beginner Choose Auto Scan, as shown below, click “Next”. Help Mode for Beginner is the default selection, which is to guide the new users make a scan completely step by step. Close Help Mode for Beginner by clicking the top right corner .

  • Page 26: Scan Operation

    Auto Scan Enter the interface of New Project and Open Project, the default project save location is the desktop, then it will remember where the user last created a new project. Click “New Project”, enter the project name, then click ‘Save’ to enter the interface of Non-texture Scan and Texture Scan selection.
  • Page 27 Work distance：Adjust the distance between the object and device (suitable working distance is 290 ~ 480mm), until the cross is clearly to be seen on the object. Adjust Brightness Click the bottom on the right toolbar to open the adjust brightness window. Click the button again, and the camera viewport will be hidden.
  • Page 28 Auto Scan Ctrl + Left mouse: deselect selected data Delete selected data Click the button and “DELETE” in the keyboard to delete selected data. Undo You can only undo the last deleted data. Show/Hide Stripes Click the button to switch the texture display and hide. Non-texture scan, there is no such button.
  • Page 29 Auto Scan not enough overlapping region for registration, click the button to delete current data and then change the position of the scanner or the object to scan again. When auto scan mode is scanning, you can click the button to stop the current scan. The current data will be deleted directly.
  • Page 30 Auto Scan Texture watertight results : Data Post Processing After meshing, the following dialogue box of data post processing will appear. You can simplify the data per your request, do fill holes, sharpening or smoothing operations. Unwatertight and watertight, the post processing of the interface as shown below. Data simplification After simplification, the polygon numbers, size and surface detail of data will be reduced accordingly.
  • Page 31 Auto Scan Before simplification After simplification Fill holes The default does not check the mark point and fill hole, check the fill hole you need set perimeter, choose 10-100mm perimeter to fill the hole, less than the perimeter of the hole will be filled.
  • Page 32 Auto Scan Before smooth After smooth Sharpen Improve the overall clarity of the data, the figure below before and after sharpening: Before sharpen After sharpen Save Your Data Before merging can save data as asc single. After merging, it can be saved as asc, stl, ply and obj.
  • Page 33 Auto Scan Share Your Data Click the button after merging to share data, it will show the dialog as below. You can share your model to Sketchfab, while model title, username and user password are required. Register an account and look at the shared model at http://sketchfab.com. Note：...

  • Page 34: Help

    Auto Scan Hold down the middle mouse button: pan the object; Hold down the mouse wheel: Scroll up and down to the object; scroll down to enlarge the object; Hold down the Shift + left mouse button: select the area on the object; Hold down the Ctrl + left mouse button: deselect selected data;...
  • Page 35 Auto Scan Click on the 3d viewer window will close the model view. The scanning window will be not affected.

  • Page 37: Fixed Scan

    Fixed Scan Choose the Fixed Scan mode, as shown below, enter the scan interface, refer to Auto Scan new project ,the select texture and adjust brightness. After new a project, the scan interface is as shown below:...
  • Page 38 Fixed Scan Adjust the distance between the object and device (290 ~ 480mm), adjust brightness, refer to Auto Scan. Click to start scanning. When the scan is completed, change the position of object or scanner for next scan. Make sure the overlap area of currently scan area and the last scanned data is more than 1/3.

  • Page 40: Faq

    1. How to scan objects in transparent, semi-transparent or black? Solution：Scan before spraying on the surface. 2. Under auto scan mode, if the turntable is not moving, but with a humming sound, how to solve? Solution：Disconnect power line and connect again in few seconds. 3．How to solve if after scan there is no data? Solution：Open control panelRegion, then click “Additional settings”, decimal symbol choose “.”...

  • Page 42: Contact Us

    Contact Us Contact us Email: einscan_support@shining3d.com More scanning information http://www.einscan.com More scanning information can refer to ---Support...
