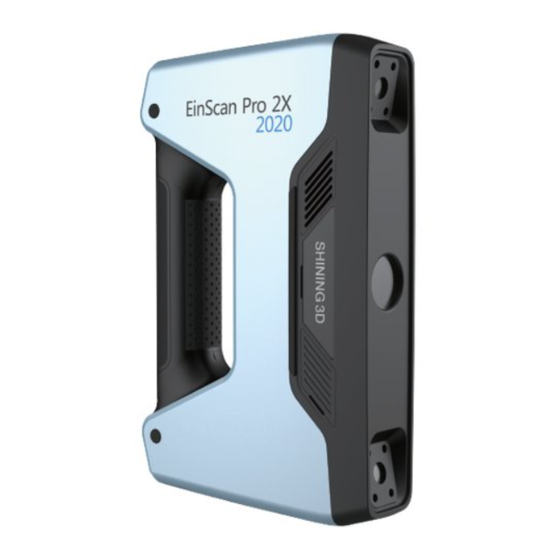

- Page 1 EinScan Pro 2X 2020 Multifunctional Handheld 3D Scanner Quick Start Guide Getting Started with EinScan Pro 2X 2020...
- Page 2 Preparation Device List Standard Pack Scanner body Power adapter Power cable Markers Calibration board Calibration board support Markers remover / Phone screen mount USB drive Module port cap lifter Cable clip Industrial Pack (optional) Turntable Tripod Scanner tray USB cable Power adapter Power cable Color Pack (optional)
- Page 3 Preparation Recommended Win10, 64bit Graphics Card NVIDIA GTX/RTX series cards，higher or equal to GTX 1080 Video Memory >4G Processor I7-8700 Memory Interface high-speed USB 3.0 Installation Hardware Installation 1. Standard Pack STEP Turn on the device and connect it to the computer through USB 3.0 port.
- Page 4 Installation Hardware Installation 2. Industrial Pack STEP Fasten the scanner tray onto the tripod and place the scanner on the tray. STEP Plug the USB cable into the USB port of the turntable and connect it to the computer. Connect the power cable to the turntable.
- Page 5 Software Installation Software Download Download the software and user manual from support.shining3d.com or www.einscan.com/software-download Run the installer STEP Double click software installation icon to install the software. License Activation STEP After successful installation, when the device is correctly connected, double-click to open the software and activate the device.
- Page 6 Calibration STEP Camera Calibration Follow the instruction on the software to place the calibration board in 5 different positions. Hold the scanner vertically and cover the screen range. STEP STEP STEP STEP...
- Page 7 Calibration White Balance Calibration Only required for Color Pack Hold the scanner vertically to the back side of calibration board (white) and adjust the distance until you find the proper distance. The first time installing the software , calibration is required by default. Calibration is also required for the following: 1.Device Change 2.After device enduring bumpy transportation...
- Page 8 Fixed Scan Fixed Scan New Project or Open Project Markers With Turntable Alignment Without Turntable Turntable Coded Select Align Mode Targets Alignment Feature Alignment Adjust Angle and Distance Adjust Brightness Scan Tips: Shift + Mouse Left, the Edit selected part turns red, edit the 3D data using buttons on the right.
- Page 9 Handheld HD Scan Handheld HD Scan New Project Open Project Select Align Mode Select Texture Select Operation Mode Select Resolution Tips Click the start button once to preview Click the start button once again Preview to start scan; To adjust the brightness before or during scan, click the start button twice, and using “+”...
- Page 10 Handheld Rapid Scan Handheld Rapid Scan New Project Open Project Select Align Mode Select Texture Select Operation Mode Select Resolution Tips Click the start button once to preview; Click the start button once again Preview to start scan; To adjust the brightness before or during scan, click the start button twice, and using “+”...
- Page 11 Scanning Tips Scan Mode Selection Use Handheld Rapid Scan mode when: A fast scanning experience is needed; Objects with good geometry for feature alignment; Objects are hard to move or too big to stay on turntable for scanning. Use Handheld HD Scan mode when: High accuracy and high resolution by handheld scanning is required;...
- Page 12 Register at support.shining3d.com for support or contact through: Email: einscan_support@shining3d.com Skype: einscan_support For more videos of the scanners, please follow our YouTube channel “ SHINING 3D” . APAC Headquarters EMEA Region SHINING 3D Tech. Co., Ltd. SHINING 3D Technology GmbH.
