Shining 3D Transcan C User Manual page 20

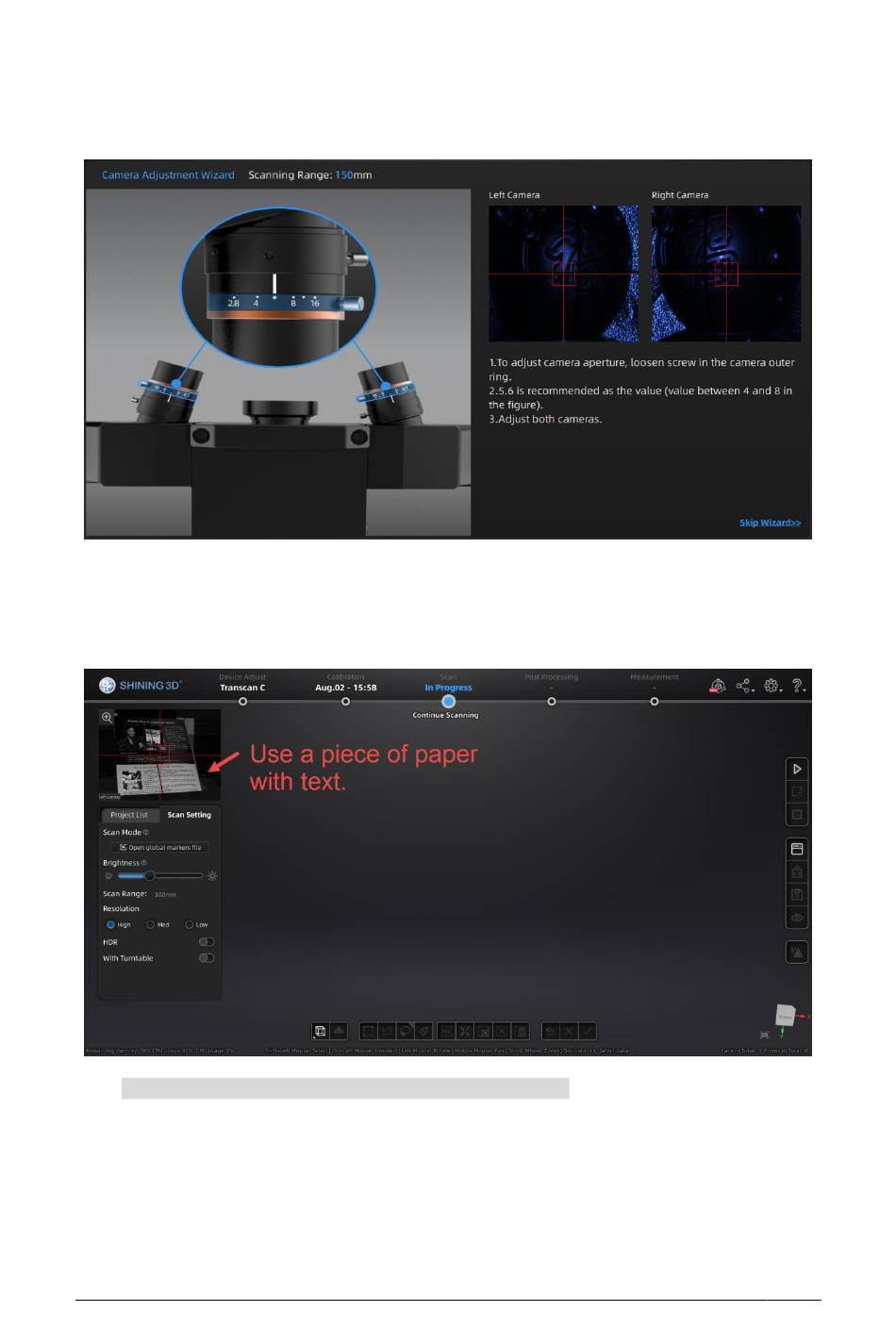

Adjust the camera aperture according to the steps shown in the following figure. Unscrew the
screw on the aperture and turn the aperture to adjust the brightness of the left and right camera
windows so that the white spots on the calibration board inside the viewport can be clearly seen. The
recommended value is 5.6. The brightness of the camera windows is different depending on the
ambient light. When the adjustment is complete, tighten the screw.
Adjust the camera clarity by following the steps in the following figure. A piece of paper with text
can be placed on the calibration board to help observe clarity. Adjust to clear writing in the video
stream of the left and right cameras. Double-click the left and right camera windows to zoom in and
view clarity. After the adjustment is completed, tighten the screw to prevent loosening to limit the
scanning effect.
Note:
Use a piece of paper with text to help cameras get clear image.
Shining 3D Transcan C_User Manual_V1.4.1 20
