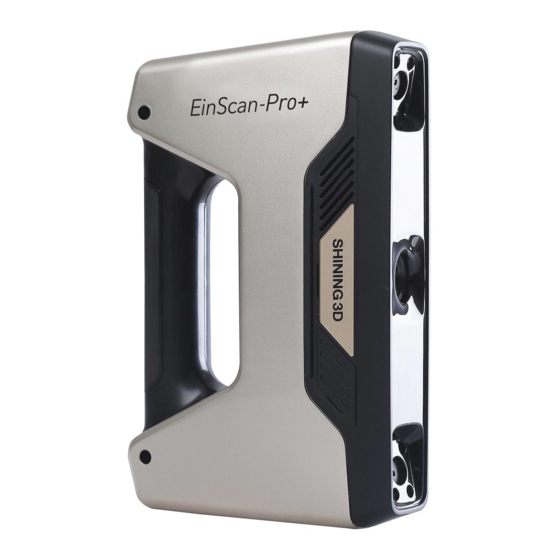

Shining 3D EinScan-Pro+ User Manual

Multi-functional handheld 3d scanner
Hide thumbs Also See for EinScan-Pro+:
Table of Contents

Advertisement

Quick Links

Download this manual
EinScan-Pro+
Multi-Functional Handheld 3D Scanner
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EinScan-Pro+ and is the answer not in the manual?

Questions and answers

Related Manuals for Shining 3D EinScan-Pro+

Summary of Contents for Shining 3D EinScan-Pro+

  • Page 1 EinScan-Pro+ Multi-Functional Handheld 3D Scanner User Manual...

  • Page 2: Table Of Contents

    Catalog Device List and Specification ....................2 1.1. Device List ........................... 3 1.2. Specification Parameter ..................... 4 Installation Notes ........................5 1.1. Hardware Installation ......................6 1.2. Software Installation ......................7 Software Introduction ......................9 1.1. Scan Preparation ......................10 1.2.

  • Page 4: Device List

    Device List Item Quantity Unit Scan head Adapter Power line Basic Aviation plug Version Calibration board Mark points Installation Guide Turntable Tripod Industrial Pack Scan head tray （add-on module） USB line Power adapter Power line Color pack Texture camera （add-on module）...

  • Page 5: Specification Parameter

    Specification Parameter Model EinScan-Pro+ fixed scan Handheld HD Handheld Rapid Scan Mode Auto Scan ( without Scan Scan turntable ) Single Scan Single Scan Accuracy 0.1mm 0.3mm Accuracy: Accuracy: 0.05mm 0.05mm 0.55 mil points 0.45 mil points Single Scan: Single Scan: Scan speed /sec /sec...

  • Page 7: Hardware Installation

    Hardware Installation Basic Module Connect one end of the line to the scanner, the other end to power line and USB on the computer as shown in the picture. Connect to USB2.0 or USB3.0. (This installation mode is suitable for Handheld Scan.) Industrial module installation Put the basic module on the tripod when the installation finishes.

  • Page 8: Software Installation

    Software Installation Software download Firstly, enter the Support page: http://www.einscan.com/support. Click “Software download”, as shown below: Secondly, please complete the registration, if registered, click log in. After take the survey, it will enter the page http://www.einscan.com/software-download Finally, click the icon to jump to the page of any file to download the software.
  • Page 9 Software Installation Software Installation Double click installation package, Follow the instructions as the window pops up. Users can either choose the default installation path or click the Browse button to select the installation path. Default installation is suggested. When the acquired activated file window pop-ups, you can choose multiple device types, then click “Next”.

  • Page 10: Software Introduction

    The software provides fixed scan ( without turntable ), Turntable Auto Scan, Handheld HD Scan and Handheld Rapid Scan, taking into account portability high-precision.

  • Page 11: Scan Preparation

    Scan Preparation Mode selection  Fixed Mode (1) Auto Scan: This mode is recommended for objects within the size of 200*200*200mm. For example, small workpieces. (2) Fixed Scan ( without turntable ): This mode is recommended for objects over the size of 200*200*200mm, while high details and resolution, as well as a comparative stable environment (without obvious vibration) are required.

  • Page 12: First Scan

    First Scan First time open the software to enter the home page, there will be User Experience Program pop-up, view the details of the plan as shown, and determine whether to participate in the program, or not. Choose the device “EinScan-Pro+”, as shown below. Operation Procedure...
  • Page 13 First Scan...

  • Page 14: Advanced Options

    Advanced Options Open start menu, choose Shining3d_EinScan-Pro----Click “Advanced”, as shown. Advanced option window， you can do acquire activated file, set user experience program and open or close debug window.  Acquire activated file Choose device type (multiple choose), click “Next”, connect the device type as the pop-up window show and confirm there is only one device connected.
  • Page 15 Scanning cannot be entered if calibration is not done after installing the software. There is a WARNING: No calibration data, please calibrate first.

  • Page 16: Calibration

    Calibration Click ‘Calibrate’ to enter the interface of calibrate. It will show the below picture if the device only has two cameras. (Texture camera is not attached). It will show the below picture if the device has three cameras. (With texture camera).
  • Page 17 Calibration There are one calibration steps if the device without texture camera: ①camera calibrate; There are two calibration steps if the device with texture camera: ①camera calibrate ②Texture camera white balance. Note： Calibration board SN is under the camera viewport, choose the corresponding board to do calibration.

  • Page 18: Camera Calibration

    Camera Calibration The calibration board should be placed in 5 different positions as the software operation guide shown, and each position will be taken 5 photos. Firstly, adjust the distance between the projector and calibration board （ ）. 450mm-550mm The first calibration board direction should be same as software operation guide shown below, and the cross from scanner should target at the blank position clearly.
  • Page 19 Camera Calibration Put the calibration board on the support according to the instruction. The collection is same as above. When all five positions photos are captured, the software will calibrate the camera automatically. You will see the progress bar as below. The camera calibration may keep for a long time in 52%, please be patient.

  • Page 20: Color Camera White Balance

    Color camera white balance During the texture calibration, just place texture camera towards white area of the reverse side of calibration board, click “Snap” or on the hardware, and move the scanner up and down, until the green area turns blue, and the white balance test is completed. The picture below will show up when the calibration is successful.

  • Page 21: Calibration Precaution

    Calibration Precautions You must finish all the calibration steps according to the instruction when you calibrate at the first time. If resolution is lost under HD Mode, or environment light changes and influences the scanning, you can do line calibration or white balance calibration solely. Situations as below need do calibration again: ①...

  • Page 22: Fix Scan

    Fix Scan has two scan modes：fixed scan ( without turntable ) and Auto Scan.

  • Page 23: Auto Scan

    Auto Scan Choose Fix Scan, click ‘Next’ to enter the interface of two scan modes selection. Choose Auto Scan, as shown below, click “Next”. Enter the interface of New Project and Open Project, the default project save location is the desktop, then it will remember where the user last created a new project.
  • Page 24 Auto Scan Work distance：Adjust the distance between the object and device (suitable working distance is 450 ~ 550mm), until the cross is clearly to be seen on the object. Adjust Brightness Drag the button to adjust the brightness. The brightness is appropriate at the right scan distance: equipment against objects, the cross is clearly in the brightness viewing window.
  • Page 25 Auto Scan excess parts, both data and mark points can be edited. SHIFT+Left mouse： Select excess parts, the selected section is displayed in red, as shown below. Delete selected data Click the button and “DELETE” in the keyboard to delete selected data.
  • Page 26 Auto Scan preview windows for Manual align, As shown on the right. Delete Current Data If you are not satisfied with current scanning data, or there is not enough overlapping region for registration, click the button to delete current data and then change the position of the scanner or the object to scan again.
  • Page 27 Auto Scan Watertight Unwatertight Texture watertight results : Data Post Processing After meshing, the following dialogue box of data post processing will appear. You can simplify the data per your request, do fill holes, sharpening or smoothing operations. Unwatertight and watertight, the post processing of the interface as shown below.
  • Page 28 Auto Scan Unwatertight Watertight Data simplification After simplification, the polygon numbers, size and surface detail of data will be reduced accordingly. Check the simplify check box and set the ratio, the default is 100%. The comparison of detail between before simplification and after simplification (at 30% simplify proportion).
  • Page 29 Auto Scan After Before Note： 1. If the edge of the hole is not smooth may cause the effect is not good, not recommended to fill hole. 2. Hole-filling: choose 10-100mm perimeter to fill the hole; Smooth The data to denoise processing, improve data quality, the figure before and after smoothing: Before smooth After smooth Sharpen...
  • Page 30 Auto Scan Save Before merging can save data as asc single. After merging, it can be saved as asc, stl, ply and obj. To save color texture, please select Ply and obj. To save global mark point file please select p3. Scale Scaling the volume of scanning data, while the quantity of triangular facets and size of data will not be changed.
  • Page 31 Auto Scan Auto Scan Project You can new or open projects. The default project location is the desktop, then it will remember where the user last created a new project. Note： 1. The scanning projects created by different scan modes (Industry fixed scan, handheld HD scan and handheld rapid scan) cannot be reciprocally imported.
  • Page 32 Hold down the Shift + left mouse button: select the area on the object; Delete: Delete the selected area. Fixed scan’s manual align, the prompt text is as follows: Press and hold shift + left mouse click: Select point to start manual align Current Points and Triangles When scanning it will show the current points and current triangles in the lower right corner.

  • Page 33: Fixed Scan ( Without Turntable )

    fixed scan ( without turntable ) Choose the fixed scan ( without turntable ) mode, as shown below, enter the scan interface, refer to Auto Scan to new project and select texture. After new a project, the scan interface is as shown below: Adjust the distance between the object and device (450 ~ 550mm), adjust brightness, refer to...
  • Page 34 fixed scan ( without turntable ) Click to start scanning. When the scan is completed, change the position of object or scanner for next scan. If use feature align, make sure the overlap area of currently scan area and the last scanned data is more than 1/3. If use mark point aligns, the common points should more than 3.

  • Page 36: Scan Head Key Function

    Scan head key function Scanning distance indicator: “ - ” “ + ” ： During the Green for best distance; scanning, zoom in and blue for too far, red for too out in view of data close. The color is same as under exposure window ，...

  • Page 37: Handheld Rapid Scan

    Handheld Rapid Scan Choose Handheld Rapid Scan, click “Next”, as shown below: Enter the interface of new project, as shown below, click “New Project”, type the project name, then will pop-up the interface of texture scan and resolution selection. Texture scan is only active when the scanner is with texture camera.
  • Page 38 Handheld Rapid Scan Note： 1.Higher resolution takes more time to scan and consumes more memory of graphic card，and size of the object to be scanned will be limited. Theoretically, the maximum size of scan = point distance*8192/mm. In actual process, the size of the object can be scanned depending on computer graphic card.
  • Page 39 Handheld Rapid Scan If the scanning presents purple color and appears, it indicates that the position tracking fails. You need to go back to the previous scan area and wait for about 3 seconds and adopt merging features for about several seconds, and then try to scan normally.
  • Page 40 Handheld Rapid Scan When the position tracking fails, it will appear , you need to go back to the previous markers to get to be tracked again to continue scan. Distance Bars When scanning it will show distance bars on the left, green indicates the optimum dist ance, blue indicates the distance is too far, red indicates the distance is too close.
  • Page 41 Handheld Rapid Scan Undo You can only undo the last deleted data. Show/Hide Stripes Click the button to switch the texture display and hide. Non-texture scan, there is no such button. Done Click the button when scanning data is complete to save the data. Note：...
  • Page 42 Handheld Rapid Scan Note： 1. Select High for objects with fine texture, select Med or Low for objects in smooth surface or with less detail. The time for data processing is in relation to the detail setting. The higher the level of details is, the longer time the processing takes.
  • Page 43 Handheld Rapid Scan Data Post Processing After meshing, the following dialogue box of data post processing will appear. You can simplify the data per your request, do fill holes, sharpening or smoothing operations. Unwatertight and watertight, the post processing of the interface as shown below. Data simplification After simplification, the polygon numbers, size and surface detail of data will be reduced accordingly.
  • Page 44 Handheld Rapid Scan Fill holes The default does not check the mark point and fill hole, check the fill hole you need set perimeter, choose 10-100mm perimeter to fill the hole, less than the perimeter of the hole will be filled. Mark point fill hole as an example. After Before Note：...
  • Page 45 Handheld Rapid Scan Before sharpen After sharpen Save Before merging can save data as asc. After merging, it can be saved as asc, stl, ply and obj. To save color texture, please select Ply and obj. Save global mark point file please select p3. Scale Scaling the volume of scanning data, while the quantity of triangular facets and size of data will not be changed.
  • Page 46 Handheld Rapid Scan Handheld Rapid Scan Project You can new or open projects. The default project location is the desktop, then it will remember where the user last created a new project. Note: 1. Handheld rapid scan will follow whether the imported project is mark point align or feature align.
  • Page 47 Delete: Delete the selected area. Current Frame, Points and Triangles When scanning it will show the Frame rate, current points. After merging, it will show current triangles in the lower right corner. Handheld Rapid Scan’s scan speed is 10 frames/sec. When you edit the scan data, the current points and the current triangles change in real time.

  • Page 48: Handheld Hd Scan

    Handheld HD Scan HD scan relies on reflective mark points to align. Stick mark points on the object in random, avoiding sticking in one line. Note： The single scan range is 300mm X 170mm, public areas alignment require at least four mark points.
  • Page 49 Handheld HD Scan Adjust Brightness Adjust the distance between the object and device (suitable working distance is 450 ~ 550mm), click the button to call up the camera viewport, drag the brightness bar above to adjust. Click the button again, and the camera viewport will be hidden.

  • Page 51: Faq

    1. What if no scan data when the turntable has rotated one circle? Solution: Please make sure that the object won’t block the mark points on the turntable. Or, there will be no fringe pattern, while turntable will be still rotating. If the align mode is mark point, please make sure that the marks on the turntable are covered, so as not to affect the scanning.
  • Page 52 (2) Scan markers on the workpiece rapidly. Do spiral rotating via transition zone. Scan as many mark points as possible on both sides and transition zone to build frame. The faster, the better. (3) After building frame, scan the surface of workpiece slowly and carefully to finish the whole scan.
  • Page 53 8. Under auto scan mode, if the turntable is not moving, but with a humming sound, how to solve? Solution：Disconnect power line and connect again in few seconds. 9．How to solve if after scan there is no data? Solution：Open control panelRegion, then click “Additional settings”, decimal symbol choose “.”...

  • Page 55: Help

    Help Contact us einscan_support@shining3d.com Email: More scanning information More scanning information can refer to http://www.einscan.com ---Support...
