Click OK to confirm the transformation.
Tips:

Start from data reposition (offset to 0,0,0)

Edit rotations prior to transformation

Change the view normal to a reference plane to change the corresponding angle

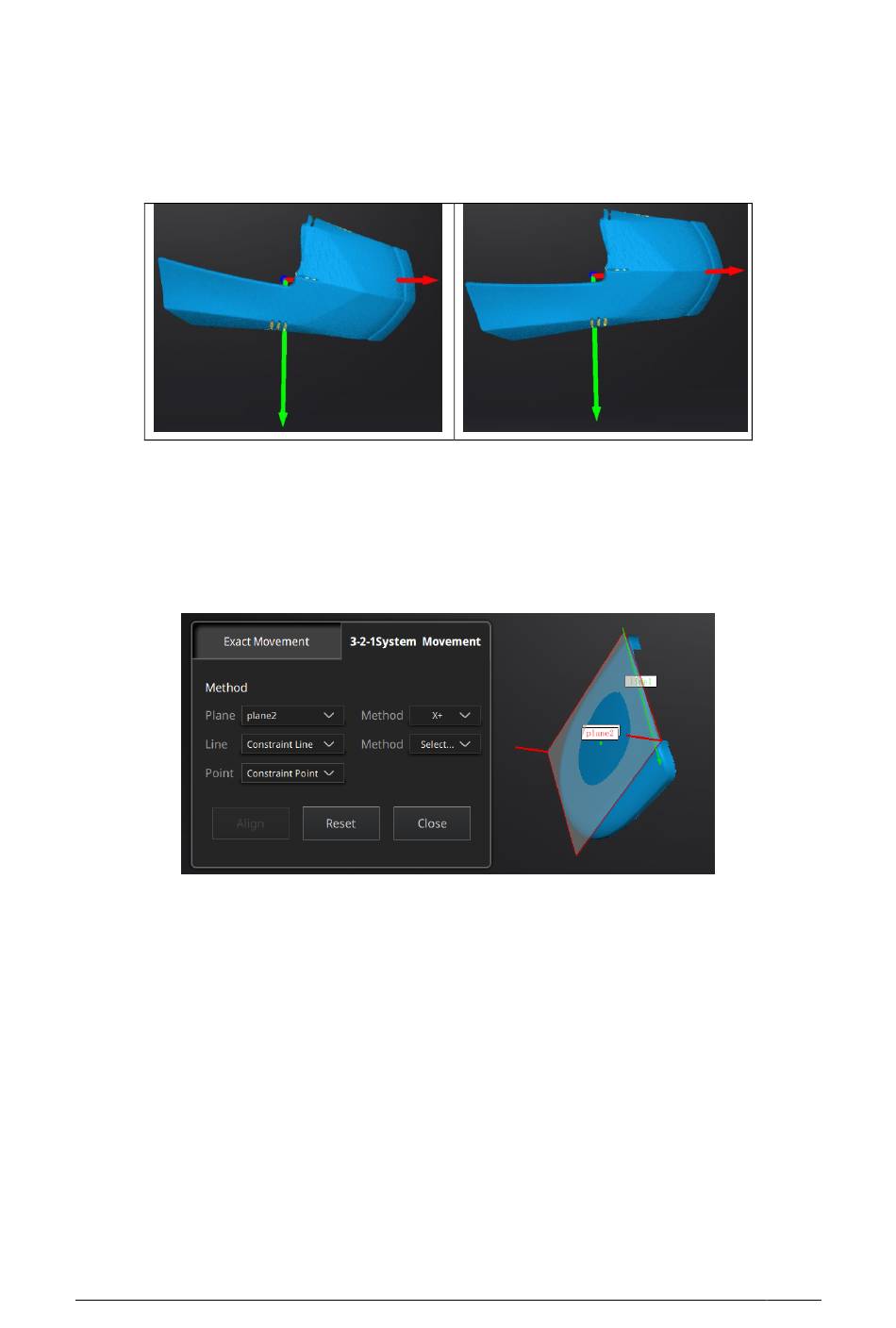

3-2-1 Movement
Prior to 3-2-1 movement, the creation of a plane, line not normal to the plane and point are required.
3-2-1 movement (plane-line-point alignment) aligns the data by deletion of the Degrees of Freedom.
The arrows represent the global coordinate system, Red=X+, Green=Y+, Blue=Z+

Select a Plane in the drop-down menu, match it to the first axis in the Method drop-down. The
arrows on the corners of the plane represent the plane positive direction. The normal vector of
the plane will match the axis direction.

Select a Line in the drop-down menu, match it to the first axis in the Method drop-down. Beware
the direction of the line to match it to the + or - axis. The projection of the line to the first plane
will be parallel to the corresponding axis

Select a Point in the drop-down menu. The data will be translated to match the point with the
origin point (coordinate 0,0,0)
Click Align to perform the transformation.
Shining 3D Transcan C_User Manual_V1.4.1
3-2-1 Movement menu
