3. Equipment Regulation

Before adjusting the scanner, place the calibration pad, calibration board and calibration bracket at

the appropriate position to be scanned.

Open the software and click the device adjustment button in the navigation bar to enter the

device adjustment interface.

The scanner has two scanning ranges, 150mm and 300mm, which can be selected depending on

the size of the object.

Note:

Follow the interface prompt to adjust the distance between the optical machine and the

calibration board until the light projected by the machine falls on the proper position on the

calibration board.

Shining 3D Transcan C_User Manual_V1.4.1

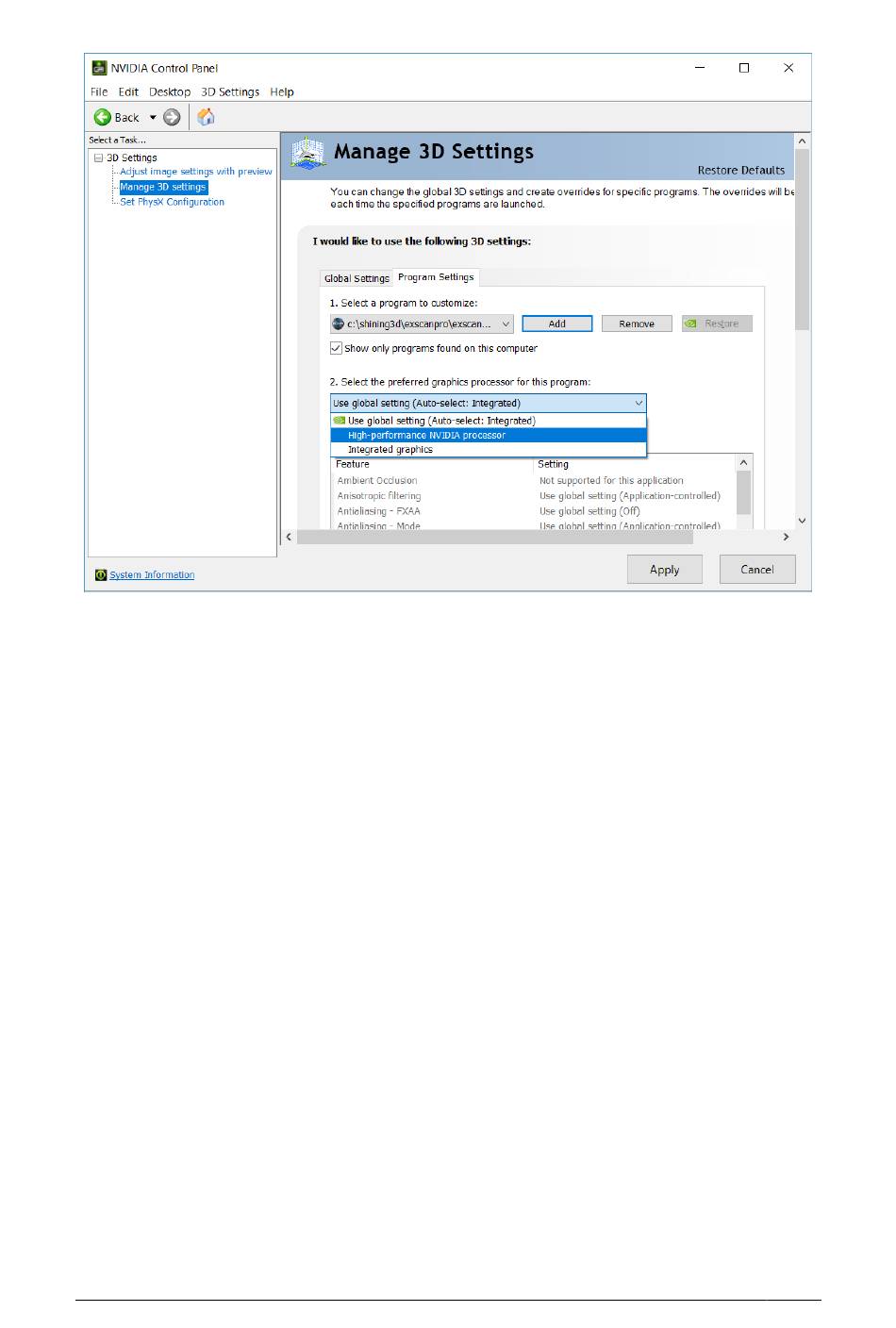

Change graphic card preferences for Transcan C
