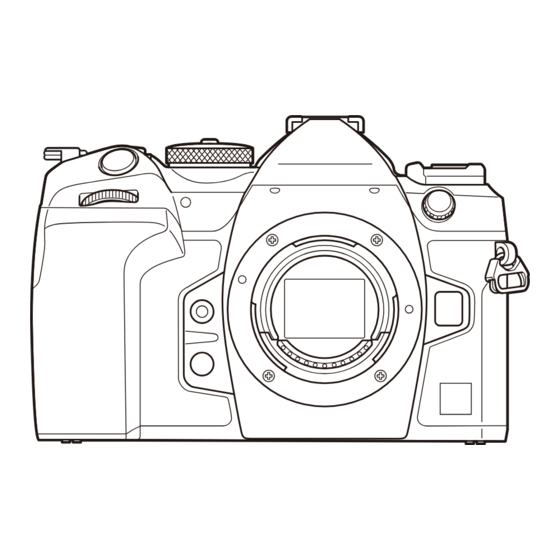

DIGITAL CAMERA
Instruction Manual
EN
Thank you for purchasing our digital camera. Before you start to use your new camera, please
read these instructions carefully to enjoy optimum performance and a longer service life.
Be sure you have read and understood the contents of "SAFETY PRECAUTIONS", before
using this product. Keep these instructions available for future reference.
We recommend that you take test shots to get accustomed to your camera before taking important
photographs.
The screen and camera illustrations shown in this manual were produced during the development
stages and may differ from the actual product.
If there are additions and/or modifications of functions due to firmware update for the camera, the
contents will differ. For the latest information, please visit our website.
Model No. : IM027

Advertisement

Table of Contents
loading

Related Manuals for OM SYSTEM OM-1 Mark II

Summary of Contents for OM SYSTEM OM-1 Mark II

  • Page 1 DIGITAL CAMERA Instruction Manual Model No. : IM027 Thank you for purchasing our digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Be sure you have read and understood the contents of “SAFETY PRECAUTIONS”, before using this product.

  • Page 2: Table Of Contents

    Table of Contents Introduction..............19 Before You Begin.
  • Page 3 Shooting............... . 44 Information displays while shooting.
  • Page 4 Settings Available in the Super Control/LV Super Control Panel....... 93 Using the menu.
  • Page 5 Lens Focus Range ( AF Limiter)............129 Using the settings saved in [AF Limiter].
  • Page 6 Choosing how the camera measures brightness (Metering)....... . . 159 Locking the exposure (AE Lock).
  • Page 7 Flash and Exposure Compensation ( )..........188 Setting the exposure balance for TTL metering (Balanced Flash Metering).
  • Page 8 Choosing which options are displayed when selecting a picture mode ( Picture Mode Settings)..................227 Adjusting color (WB (white balance)).
  • Page 9 Configuring Multiple Exposure............256 Shooting.
  • Page 10 Displaying a + mark in the center of the screen while recording movies (Center Marker)..287 Displaying zebra patterns over high luminance areas while recording movies (Zebra Pattern Settings)................288 Displaying zebra patterns.
  • Page 11 Selecting Multiple Pictures (Share Order Selected, Rating Selected, , Copy Select, Erase Selected) ..................314 Print order (DPOF).
  • Page 12 How to configure the Fn lever............352 Configuring [ Fn Lever Function].
  • Page 13 Histogram Exposure Warning (Histogram Settings)........380 Settings related to operation and display of menus.
  • Page 14 Battery/Sleep Settings............Displaying Battery Status ( Battery Status).
  • Page 15 Adding position information to images........... 435 Resetting smartphone connection settings (Reset Settings).
  • Page 16 Powering the Camera via USB (USB PD)..........468 Connecting to TVs or External Displays via HDMI.
  • Page 17 A dialog prompting you to choose a language is displayed....... 495 No picture is taken when the shutter button is pressed.
  • Page 18 SAFETY PRECAUTIONS............558 SAFETY PRECAUTIONS.

  • Page 19: Introduction

    Introduction Before You Begin Read and Follow Safety Precautions To prevent incorrect operation resulting in fire or other damage to property or harm to yourself or to others, read “SAFETY PRECAUTIONS” (P.558) in its entirety before using the camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life.

  • Page 20: Installing Pc Software/Apps

    Installing PC Software/Apps OM Capture Use “OM Capture” to automatically download and view pictures as they are taken or control the camera remotely. To learn more or to download the software, visit our website. When downloading the software, be prepared to provide the camera serial number. OM Workspace This computer application is used to download and view photos and movies recorded with the camera.

  • Page 21: About This Manual

    About This Manual How to find what you want to know You can use the following methods to find what you want to know in this manual. Search method Where to look Search based on what you want to do  “Table of Contents”...

  • Page 22: How To Read This Manual

    How to read this manual Supported shooting modes for each function In this manual, the shooting modes in which each shooting function can be used are listed at the top of the function description. Black indicates supported shooting modes, while gray indicates unsupported shooting modes.
  • Page 23 Symbols in this manual The symbols below are used throughout this manual. Indicates an operation performed by pressing the buttons (respectively the up, down, FGHI left, and right arrow buttons) on the arrow pad (d). Indicates an operation performed using the front dial (a). Indicates an operation performed using the rear dial (b).

  • Page 24: Names Of Parts

    Names of parts Mode dial lock (P.51) button (P.358) Mode dial (P.51) (AF/metering mode) button (P.159) (Exposure Compensation) button (P.58, (sequential shooting/self-timer/flash) P.61, P.63, P.67, P.152) button (P.179, P.190) (Movie)/ (High Res Shot)/ (selection) External flash terminal (P.176) button (P.78 P.239 / P.314) Microphone jack cover...
  • Page 25 Diopter adjustment dial (P.47) Multi selector (P.105, P.351) MENU button (P.97) Arrow pad (P.294) OK button (P.97, P.89, P.294) (LV) button (P.47) INFO button (P.49, P.99, P.293) Monitor (Touch screen) (P.44, P.47, P.54, P.143, P.299) (playback) button (P.294) Viewfinder (P.47, P.368) Speaker Eye sensor Power battery holder (PBH) cover (P.478)

  • Page 26: Preparation

    Preparation Unpacking the box contents At purchase, the package contains the camera and the following accessories. If anything is missing or damaged, contact the dealer from whom you purchased the camera.  1 Body cap EP‑18 eyecup Camera  1 Hot shoe cover Strap CB-USB13 USB cable DIGITAL CAMERA...

  • Page 27: Attaching The Strap

    Attaching the Strap Before attaching the strap, remove the end from the keeper loop and loosen the strap as shown. Pass the end of the strap through the strap eyelet and back through the keeper loop. Pass the end of the strap through the buckle and tighten as shown. Attach the other end of the strap to the other eyelet.

  • Page 28: Inserting And Removing The Battery

    Inserting and removing the battery Inserting the battery Confirm that the ON/OFF lever is in the OFF position. ON/OFF lever Open the battery compartment cover. Battery compartment cover Battery compartment lock Insert the battery. Use only BLX‑1 batteries (P.26, P.508). Direction indicating mark Inserting and removing the battery...

  • Page 29: Removing The Battery

    Close the battery compartment cover. Be sure the battery compartment cover is closed before using the camera. It is recommended to set aside a backup battery for prolonged shooting in case the battery in use drains. See also “Batteries” (P.472). Removing the battery Turn off the camera before opening or closing the battery compartment cover.

  • Page 30: Charging The Battery Using The Usb-Ac Adapter

    Charging the battery using the USB-AC adapter The battery will not be fully charged at the time of purchase. Charge the battery before use. Check that the battery is in the camera, and connect the USB cable and USB-AC adapter. When attaching the USB cable, use an optional cable protector and cable clip to prevent damage to the connectors and disconnection.
  • Page 31 The battery will be charged regardless of whether the camera is turned on or off. The charging time will be longer if the camera is on. Charging stops when the battery temperature is too high. It will resume after the battery temperature falls.

  • Page 32: Charging The Battery Using A Usb Device

    Charging the Battery using a USB Device The battery inserted in the camera will charge when the camera is connected via a USB cable to a USB PD-compliant USB device. Charging via USB Confirm that the ON/OFF lever is in the OFF position. Connect the camera to the USB device using a USB cable.

  • Page 33: Inserting And Removing The Card

    Inserting and removing the card Inserting the card In this manual, all storage devices are referred to as “cards.” The following types of SD memory card (commercially available) can be used with this camera: SD, SDHC, and SDXC. Cards must be formatted with this camera before first use or after being used with other cameras or computers.

  • Page 34: Removing The Card

    Removing the card Press the card in to eject it. Pull out the card. Never remove batteries or memory cards while the card write indicator (P.44) is displayed. Using Two Memory Cards When two memory cards are inserted, you can choose how each card is used according to your goals.  “Setting the card to record to ( Card Slot Settings / Card Slot Settings)”...
  • Page 35 Access to some playback functions and the like may be restricted when the write-protect switch is in the “LOCK” position. Inserting and removing the card...

  • Page 36: Attaching And Removing Lenses

    Attaching and removing lenses Attaching a lens to the camera “Interchangeable lenses” (P.474) for information on compatible lenses. Confirm that the ON/OFF lever is in the OFF position. Remove the rear cap of the lens and the body cap of the camera.

  • Page 37: Removing Lenses

    Remove the front lens cap. Removing Lenses Confirm that the ON/OFF lever is in the OFF position. Hold the lens release button and rotate the lens as shown. Attaching and removing lenses...

  • Page 38: Using The Monitor

    Using the monitor Rotate the monitor for ease of viewing. The angle of the monitor can be adjusted according to conditions at the time of shooting. 180° 90° 90° 270° 270° Gently rotate the monitor within its range of motion. Attempting to rotate the monitor beyond the limits shown below could damage the connectors.

  • Page 39: Turning The Camera On

    Turning the camera on Set the ON/OFF lever to the ON position. When the camera is turned on, the monitor will turn on and display the super control panel. ON/OFF lever (LV) button Viewfinder Monitor Battery level The camera displays the level of the battery 100% 100% currently in use.

  • Page 40: Sleep Mode

    Sleep Mode If no controls are used for a set period, the camera will automatically enter suspend operation to reduce the drain on the batteries. This is referred to as “sleep mode”. When the camera enters sleep mode, the monitor will turn off and operation will be suspended. Pressing the shutter or button reactivates the camera.

  • Page 41: Initial Setup

    Initial setup After turning the camera on for the first time, perform the initial setup by choosing a language and setting the camera clock. The file name is also included with the date and time information. Be sure to set the correct date and time before using the camera.
  • Page 42 Set the date, time, and date format. Use the buttons to highlight items. Time Use the buttons to change the highlighted item. – – – – – – – – – – – – – – Y/M/D The time is displayed using a 24-hour clock. MENU The clock can be adjusted at any time from the menu.

  • Page 43: What To Do If You Can't Read The Display

    What to Do If You Can’t Read the Display If you see unfamiliar characters or words in other languages, you may not have selected the language you intended. Follow the steps below to choose another language. Press the MENU button to การตั...

  • Page 44: Shooting

    Shooting Information displays while shooting For information on the super control panel, which appears on the monitor by default, see “Settings Available in the Super Control/LV Super Control Panel” (P.93). Monitor display during still photography [ 99 ] AF Limit [ 99 ] 1023 [ 1 : 02 : 03 ]...
  • Page 45 Battery level (P.39) WB BKT (P.273) USB PD (P.468) White balance (P.228) Card write indicator (P.29, P.34) RC Mode (P.185) Maximum number of continuous shots (P.192) Flash Intensity Control (P.184) ® Active Bluetooth connection (P.428, P.455) Flash Mode (P.179) Remote control (P.455) ISO sensitivity (P.166) Wireless LAN connection (P.426, P.441) ISO BKT (P.275)
  • Page 46 Touch Controls (P.54) Flicker Scan (P.157) Internal temperature warning (P.500) HDMI Output (P.285) Touch control lock (P.336) Recording time (displayed during recording) AF Targeting Pad (P.143) (P.78) Zoom operation direction/Focal length View Assist (P.238) All Battery Information (P.39, P.28) Red frame during move recording (P.290) Histogram (P.50) Center Marker (P.287) Multiple Exposure (P.255)

  • Page 47: Switching Between Displays

    Switching between displays The camera uses an eye sensor to automatically switch between the viewfinder and monitor displays. The viewfinder and monitor display (super control panel/live view) also show information on camera settings. Options are available for controlling display switching and choosing the information shown. The camera monitor displays the super control panel (P.89) by default.
  • Page 48 If the viewfinder is not in focus, put your eye to the viewfinder and focus the display by rotating the diopter adjustment dial. Diopter adjustment dial Display switching and viewfinder display options are available.  “Selecting the display style of the viewfinder (EVF Style)” (P.368), “Configuring the eye sensor (Eye Sensor Settings)”...

  • Page 49: Switching The Information Display

    Switching the information display P A S M B You can switch the information displayed in the monitor during shooting using the INFO button. 1023 1023 [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 60p L - 8 L - 8 100% 100%...
  • Page 50 Histogram display A histogram showing the distribution of brightness in the image is displayed. The horizontal axis gives the brightness, the vertical axis the number of pixels of each brightness in the image. Areas above the upper limit at shooting are displayed in red, those below the More Dark lower limit in blue, and those within the spot metering range in...

  • Page 51: Shooting Still Pictures

    Shooting still pictures P A S M B Use the mode dial to select the shooting mode, and then shoot the image. Indicator Mode icon Types of shooting modes For how to use the various shooting modes, see the following. Program AE (P.58) Aperture-priority AE (P.61) Shutter-priority AE (P.63)
  • Page 52 Press the mode dial lock to unlock it, and then turn to set the mode you wish to use. When the mode dial lock has been pressed down, the mode dial is locked. Each time you press the mode dial lock, it switches between locked/released. Frame the shot.
  • Page 53 Adjust the focus. Position the AF frame over your subject. 1023 1023 [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 60p L - 8 L - 8 100 % 100 % S - AF S - AF Auto Auto...

  • Page 54: Shooting With Touch Screen Operations

    Shooting with touch screen operations P A S M B You can tap the subject to focus and take a photograph. 60p L - 8 L - 8 1023 1023 [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 100% 100% S - AF...
  • Page 55 Previewing the subject ( Tap the subject in the display. An AF target will be displayed. Use the slider to choose the size of the frame. 1023 1023 [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 60p L - 8 L - 8 100% 100%...

  • Page 56: Photo Review (Image Review)

    Photo Review (Image Review) P A S M B Pictures are displayed immediately after shooting. This gives you a chance to quickly review the shot. You can choose how long pictures are displayed or disable photo review altogether. To end photo review and resume shooting at any time, press the shutter button halfway. 0.3–20sec Choose how long photos are displayed.
  • Page 57 Change the settings using the buttons and press FGHI Image Review the OK button. Auto 0.3sec 0.5sec 1sec 2sec Images are not displayed after shooting. MENU Press the MENU button to exit the menus. Shooting still pictures...

  • Page 58: Letting The Camera Choose Aperture And Shutter Speed ( : Program Ae)

    Letting the camera choose aperture and shutter speed ( : Program AE) A S M B The camera chooses the optimal aperture and shutter speed according to subject brightness. Rotate the mode dial to Focus and check the display. 1023 1023 [ 1 : 02 : 03 ] [ 1 : 02 : 03 ]...
  • Page 59 Subject Too Dark or Too Bright If the camera is unable to achieve optimal exposure, the shutter-speed and aperture displays will flash as shown. Display Problem/solution Large aperture (low f/- number)/slow shutter speed The subject is too dark. Use a flash. 60"...

  • Page 60: Program Shift

    Program Shift Without changing exposure, you can choose from different combinations of aperture and shutter speed selected automatically by the camera. This is known as program shift. Rotate the rear dial until the camera displays the desired 1023 1023 [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 60p L - 8 L - 8 100 %...

  • Page 61: Choosing Aperture ( : Aperture-Priority Ae)

    Choosing aperture ( : Aperture-Priority AE) S M B In this mode, you choose the aperture (f/-number) and the camera automatically sets the shutter speed for optimal exposure according to subject brightness. Lower aperture values (larger apertures) reduce the depth of the area that appears to be in focus (depth of field), blurring the background. Higher aperture values (smaller apertures) increase the depth of the area that appears to be in focus in front of and behind the subject.
  • Page 62 You can choose the functions performed by the front and rear dials.  “Assigning Roles to the Front and Rear Dials ( Dial Function / Dial Function)” (P.347) You can use the Fn lever to reverse the roles of the front and rear dials. The Fn lever can also be assigned other roles.

  • Page 63: Choosing Shutter Speed ( : Shutter-Priority Ae)

    Choosing shutter speed ( : Shutter-Priority In this mode, you choose the shutter speed and the camera automatically sets aperture for optimal exposure according to subject brightness. Faster shutter speeds appear to “freeze” fast-moving subjects. Slower shutter speeds add blur to moving objects, lending them a sense of motion for a dynamic effect.
  • Page 64 Release the shutter. You can choose the functions performed by the front and rear dials.  “Assigning Roles to the Front and Rear Dials ( Dial Function / Dial Function)” (P.347) You can use the Fn lever to reverse the roles of the front and rear dials. The Fn lever can also be assigned other roles.

  • Page 65: Choosing Aperture And Shutter Speed ( Manual Exposure)

    Choosing aperture and shutter speed ( Manual Exposure) P A S In this mode, you choose the aperture and shutter speed. You can adjust settings according to your goals, for example by combining fast shutter speeds with small apertures (high f/-numbers) for increased depth of field.
  • Page 66 You can choose the functions performed by the front and rear dials.  “Assigning Roles to the Front and Rear Dials ( Dial Function / Dial Function)” (P.347) You can use the Fn lever to reverse the roles of the front and rear dials. The Fn lever can also be assigned other roles.

  • Page 67: Using Exposure Compensation In Mode

    Using Exposure Compensation in Mode In mode , exposure compensation is available when [Auto] is selected for [ ISO]. Because exposure compensation is performed by adjusting ISO sensitivity, aperture and shutter speed are not affected.  “Changing ISO sensitivity (ISO)” (P.166), “Setting the range of ISO sensitivity values selected in [Auto] mode ( ISO-A Upper/Default /...

  • Page 68: Long Exposures ( : Bulb/Time)

    Long Exposures ( : Bulb/Time) P A S M Select this mode to leave the shutter open for a long exposure. You can preview the photo in live view and end the exposure when the desired results have been achieved. Use when long exposures are required, for example when photographing night scenes or fireworks.
  • Page 69 Select [Bulb] (for bulb photography) or [Time] [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 60p L - 8 L - 8 1023 1023 100 % 100 % S - AF S - AF (time photography).
  • Page 70 Release the shutter. In bulb and live bulb modes, keep the shutter button pressed. The exposure ends when the button is released. In time and live time modes, press the shutter button all the way down once to start the exposure and again to end it.

  • Page 71: Lighten Blending ( : Live Composite Photography)

    Lighten Blending ( : Live Composite Photography) P A S M Select this mode to leave the shutter open for a long exposure. You can view the light trails left by fireworks or stars and photograph them without changing the exposure of the background. The camera combines multiple shots and records them as a single photograph.
  • Page 72 Press the OK button to save changes. The menus will be displayed. Press the MENU button repeatedly to exit the menu. Adjust aperture. At default settings, aperture can be adjusted using the front dial. Press the shutter button all the way down to ready the camera. The camera is ready to shoot when [Ready for composite 1023 1023...

  • Page 73: Saving Custom Settings To The Mode Dial ( , And Custom Modes)

    Saving Custom Settings to the Mode Dial ( , and Custom Modes) Frequently-used settings and shooting modes can be saved as custom modes and recalled as needed simply by rotating the mode dial. Saved settings can also be recalled from the menus. Save settings to positions through Saving Settings (Assign)
  • Page 74 Highlight the desired custom mode ([C1] – [C4]) using Custom Mode buttons and press the OK button. MENU The menu for the selected custom mode will be displayed. Highlight [Assign] using the buttons and press the OK Recall button. Assign Save Settings Reset MENU Highlight [Set] using the...

  • Page 75: Using Custom Modes

    Using Custom Modes ( P A S M B To recall all saved settings, including the shooting mode: Recalling Settings with the Mode Dial Rotate the mode dial to the desired custom mode ( , or The camera will be set to the settings for the selected mode. By default, changes made after recall will not be applied to the stored settings.
  • Page 76 Highlight the desired custom mode ([C1] – [C4]) using Custom Mode buttons and press the OK button. MENU Highlight [Recall] using the buttons and press the OK Recall button. Assign Save Settings Reset MENU Highlight [Yes] using the buttons and press the OK button.
  • Page 77 Saving the Changes Made to Settings while in Custom Modes You can save the changes made to settings while in custom modes in the camera. The changed settings remain even if you rotate the mode dial. Custom modes can be used in much the same way as modes , and Press the MENU button to view the menus.

  • Page 78: Recording Movies

    Recording Movies When recording movies, use an SD card that supports an SD speed class of 10 or higher. A UHS-II or UHS-I card with a UHS speed class of 3 or better is required when: a movie resolution of [4K] or [C4K] is selected in the [ ] menu or a Motion Compensation of [A-I] (All-Intra) is selected in the [ ] menu...
  • Page 79 Rotate the mode dial to Press the button to begin recording. A beep is not heard when the camera focuses in movie mode. Movie you are recording will be displayed on the monitor. If you put your eye to the viewfinder, movie you are recording will be displayed in the viewfinder.
  • Page 80 Highlight the desired mode using buttons and press the OK button. Optimal aperture is set automatically according to the brightness of the subject. Use the front dial or rear dial to adjust exposure compensation. Depiction of background is changed by setting the aperture. Use the front dial to adjust exposure compensation and rear dial to adjust aperture.

  • Page 81: Recording Movies In Photo Shooting Modes

    Recording movies in photo shooting modes P A S M Movies can be recorded in program AE mode even when the mode dial is not in the position. REC] must be assigned to a button using [Button Function] (P.334). The AF target takes on the shape selected for movie mode (P.78). Rotate the mode dial to  (movie mode) and choose target shape in the AF target selection display (P.106).

  • Page 82: Touch Controls (Silent Controls)

    Touch Controls (Silent Controls) P A S M B You can prevent the camera from recording operating sounds that occur due to camera operations while shooting. After tapping an item, tap the displayed arrows to select the settings. [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 60p L - 8 L - 8 REC 00:12...

  • Page 83: Shooting Settings

    Shooting Settings How to change the shooting settings The camera offers many photography-related functions. Depending on how often you use them, you can access settings via buttons, icons in the display, or menus that can be used for detailed adjustments. Method Description Adjust settings directly using buttons, including those listed below.

  • Page 84: Direct Buttons

    Direct Buttons Functions and Direct Buttons Frequently-used photographic functions are assigned to buttons. These are referred to as “direct buttons”. They are useful when changing the settings frequently according to the subject. The buttons to which functions can be assigned are listed below. Direct buttons during photo shooting Direct button Assigned function...
  • Page 85 Direct button Assigned function AF-ON button AF-ON (P.116, P.117) ISO button ISO sensitivity (P.166) Multi selector (  (AF Target Point) (P.105) Multi selector ( Arrow pad ( FGHI Sequential/self-timer shooting/flash (P.179, P.190) button AF/metering mode (P.159) button Exposure compensation (P.152) button High Res Shot (P.239) ) button...
  • Page 86 Direct button Assigned function AF-ON button AF-ON (P.116, P.117) ISO button ISO sensitivity (P.166) Multi selector (  (AF Target Point) (P.105) Multi selector ( Arrow pad ( FGHI AF/metering mode (P.159) button Exposure compensation (P.152) button Movie recording (P.78) ) button No function is assigned by default.

  • Page 87: Setting With Direct Buttons

    Setting with Direct Buttons This section explains how to operate when a selection menu is displayed, using [AF Mode] as an example. Press the button of the function you want to use. Press the AF button. A selection menu appears. Single AF S-AF C-AF C-AF+TR Pre...
  • Page 88 In this manual, the procedure for changing a setting using a direct button is shown as follows. Button Button Quickly changing the setting while keeping the button pressed Some settings can be changed by rotating the front/rear dial while keeping the button of the function pressed.

  • Page 89: Super Control Panel/Super Control Panel

    LV Super Control Panel/Super Control Panel On LV Super Control Panel/Super Control Panel The super control panel/LV super control panel lists shooting settings and their current values. Use the super control panel when framing shots in the viewfinder, the LV super control panel when framing shots in the monitor (“live view”).
  • Page 90 LV Super Control Panel (Live View Photography) To display the LV super control panel in the monitor, press the OK button during live view. 1023 1023 [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 60p L - 8 L - 8 100% 100%...

  • Page 91: Setting With Super Control Panel/Lv Super Control Panel

    Setting with Super Control Panel/LV Super Control Panel This section explains how to operate super control panel/LV super control panel using [Subject Detection] as an example. Press the OK button. If you press the button during live view, the LV super control Shooting Mode panel will be displayed in the monitor.
  • Page 92 Additional Options Pressing the OK button or tapping the item in Step 2 displays options for the highlighted setting. You can also configure items by tapping the setting values directly in the display. In some cases, additional options can be configured. OK button INFO button Single...

  • Page 93: Settings Available In The Super Control/Lv Super Control Panel

    Settings Available in the Super Control/LV Super Control Panel Photo shooting mode Super control panel Natural Auto ± Small 5400 S-AF ± 4 : 3 S-IS Auto 60p L - 8 1023 1:02:03 18 19 LV super control panel Natural Auto ±...
  • Page 94 Name of the currently selected option Button Function (P.334) Shutter Speed (P.58, P.63) Flash Intensity Control (P.184) Shooting Mode (P.58) Flash Mode (P.179) Exposure Compensation/Highlight & Shadow Image Stabilizer (P.204) Control (P.152 / P.344) Save Settings (P.389) AF Target Mode (P.106) Subject Detection (P.120) White Balance (P.228) Metering (P.159)
  • Page 95 Movie recording mode LV super control panel Natural Auto 5400 60p L - 8 C-AF M-IS 1 1:42:22 ± 17 18 Name of the currently selected option Aperture Value (P.79) Shutter Speed (P.79) ISO sensitivity (P.166) Mode (Movie Exposure Modes) (P.79) Wi-Fi/Bluetooth (P.426) Exposure Compensation/Highlight &...

  • Page 96: Using The Menu

    Using the menu What you can do with menus In addition to shooting and playback options, the menus contain options that let you customize the operation and display of the camera, and set up the camera. There are several tabs which represent function categories, and related functions are contained in each page.

  • Page 97: How To Operate The Menus

    How to operate the menus Front dial Select a tab. Select a page. /Rear dial Move the cursor. OK button Confirm the setting/proceed to the next screen. MENU button Cancel operation/return to previous screen. The following explanation uses [ AF Mode] as an example. Press the MENU button to view the menus.
  • Page 98 or the rear dial to select the desired page. AF Mode] can be found on the 5th page, [5. Movie AF]. Press or rotate the rear dial until the [5. Movie AF] is highlighted. Movie AF AF Mode AF Mode S-AF C-AF AF+MF...

  • Page 99: Displaying The Description Of A Menu Item

    to highlight an option and press the OK button to select. The setting is confirmed. Pressing the MENU button closes the menu. The procedure after selecting an item and pressing the OK button in Step 4 varies depending on the menu item. Some menu items require further settings after you select an option in Step 5.

  • Page 100: Basic Functions For Focusing

    Basic functions for focusing Choosing a focus mode ( AF Mode / Mode) P A S M B You can select a focusing method (focus mode). Button Button U HIi Super control panel AF Mode / AF Mode Menu MENU 1.
  • Page 101 This function allows you to manually focus on any position by operating the focus ring on the lens. MF (Manual focus) Near Focus ring The camera focuses in S-AF mode. You can adjust the focus position by S-AF operating the focus ring on the lens. Press the shutter button halfway or press the AF-ON button to focus;...

  • Page 102: Using Starry Sky Af

    [S-AF ] only appears in [ AF Mode]. To focus manually during autofocus when taking pictures, use [ AF+MF].  “Combined Auto and Manual Focus ( AF+MF)” (P.113) [C-AF+TR] does not appear if a setting other than [Off] is selected for [Subject Detection] (P.120).

  • Page 103: Setting A Focus Position For Preset Mf

    Manual focus is selected when a Four Thirds lens is attached. Starry sky AF is available with Micro Four Thirds lenses made by OM Digital Solutions or OLYMPUS. It cannot, however, be used with lenses with a maximum aperture over f/5.6. For more information, visit our website.
  • Page 104 Keeping the shutter button pressed halfway, rotate the focus ring to adjust focus manually. To refocus using autofocus, release the shutter button and press it halfway again. Manual focus adjustment during autofocus is not available in [ ] mode. Manual focus adjustment during autofocus is available via the focus ring on M.ZUIKO PRO (Micro Four Thirds PRO) lenses.

  • Page 105: Choosing A Focus Target (Af Target Point)

    Choosing a Focus Target (AF Target Point) P A S M B The frame showing the location of the focus point is referred to as the “AF target”. You can position the target over your subject. At default settings, the multi selector is used to position the AF target. Use the multi selector to position the AF target.

  • Page 106: Choosing An Af Target Mode (Af Target Mode)

    Choosing an AF Target Mode (AF Target Mode) P A S M B Button (kept pressed) and Super control panel AF Target Mode Keep the multi selector pressed while rotating the front or rear dial. The camera cycles through AF target modes as shown. All All Small Small...
  • Page 107 The camera chooses the target used for focus from all available All All targets. The camera chooses from 1053 (39 × 27) targets during still photography and from 741 (39 × 19) targets in movie mode. Single Select a single focus target. Small Select a small-sized group of targets.
  • Page 108 Large Select a large-sized group of targets. The camera chooses the target used for focus from within the selected group. C1– C4 Custom Target You can change the size of the AF target and the step (the distance it moves at one time). Custom target modes can be selected when there is a check ( ) next to a custom target in AF Target Mode Settings]...

  • Page 109: Setting The Options For Af Target Modes ( Af Target Mode Settings)

    Setting the options for AF target modes AF Target Mode Settings) P A S M B Specify which options are displayed when setting the AF Target Mode. Menu MENU 6. AF Target Settings & Operations AF Target Mode Settings Select the AF target modes that you want to have displayed as AF Target Mode Settings options and put a check ( ) next to each of them.
  • Page 110 Item Horizontal Vertical 12 types (1 / 3 / 5 / 7 / 9 / 11 / 15 / 19 / 23 / 10 types (1 / 3 / 5 / 7 / 9 / 11 / 15 / 19 / 27 / 33 / 39) 23 / 27) Size...

  • Page 111: Zoom Frame Af/Zoom Af (Super Spot Af)

    Zoom frame AF/Zoom AF (Super Spot AF) P A S M B You can zoom in on the display during shooting. For greater precision during focusing, zoom in on the focus area. At higher zoom ratios, you can focus on areas smaller than the standard focus target. You can reposition the focus area as desired during zoom.
  • Page 112 Position the frame using the multi selector. [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 60p L - 8 L - 8 1023 1023 100% 100% To re-center the frame, press the multi selector or press and hold the OK button.

  • Page 113: Functions For Configuring How To Focus

    Functions for configuring how to focus Combined Auto and Manual Focus AF+MF) P A S M B After focusing using autofocus, you can adjust focus manually by keeping the shutter button pressed halfway and rotating the focus ring. Switch from auto to manual focus at will or fine-tune focus manually after focusing with autofocus.
  • Page 114 Autofocus with manual focus is also available when autofocus is assigned to other camera controls.  “Changing the roles of buttons (Button Settings)” (P.334) The lens focus ring can be used to interrupt autofocus only when M.ZUIKO PRO (Micro Four Thirds PRO) lenses are used.

  • Page 115: Configuring The Af Operation When The Shutter Button Is Pressed ( Kaf By Half-Pressing 6 )

    Configuring the AF operation when the shutter button is pressed ( AF by half- pressing P A S M B You can choose whether the camera focuses when the shutter button is pressed halfway. Menu MENU 1. AF AF by half-pressing Set the AF operation for when the AF mode is [S-AF].

  • Page 116: Autofocus Using The Af-On Button

    Autofocus using the AF-ON button P A S M B The camera starts AF operation when you press the AF-ON button. Autofocus ends when you release the AF-ON button. When you press the AF-ON button while the camera is performing autofocus because the shutter button has been pressed halfway, autofocus will be continued.

  • Page 117: Using Autofocus In Manual Focus Mode ( In Mf Mode)

    Using Autofocus in Manual Focus Mode ( in MF mode) P A S M B You can configure the camera so that it focuses with autofocus when you press the AF-ON button, even if the AF mode is [MF] or [Pre Menu MENU 1.

  • Page 118: Configuring Camera Operation When It Cannot Focus On The Subject (Release Priority)

    Configuring camera operation when it cannot focus on the subject (Release Priority) P A S M B You can choose whether the camera takes a picture when it cannot focus on the subject with autofocus. Menu MENU 1. AF Release Priority Set the camera operation for when the AF mode is [S-AF] and it cannot focus on the subject with autofocus.

  • Page 119: Changing The Settings Of Starry Sky Af (Starry Sky Af Setting)

    Changing the settings of Starry Sky AF (Starry Sky AF Setting) P A S M B You can configure the operation of the Starry Sky AF function. Menu MENU 1. AF Starry Sky AF Setting [Accuracy]: Prioritize focus accuracy over speed. Use a tripod. AF Priority [Speed]: Prioritize focus speed over accuracy.

  • Page 120: Functions For Customizing Af Operation To Fit The Subject

    Functions for customizing AF operation to fit the subject Tracking Focus on Selected Subjects (Subject Detection) P A S M B When focusing, the camera can detect people’s faces and eyes, as well as fast-moving subjects. When shooting fast-moving subjects such as motorsports vehicles or airplanes, focusing can be difficult. This function allows the camera to track and focus on specific areas such as the driver or cockpit.

  • Page 121: Taking Pictures Using [Subject Detection]

    Taking Pictures Using [Subject Detection] Point the camera at your subject. 1023 1023 [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 60p L - 8 L - 8 100 % 100 % S - AF S - AF AF Limit AF Limit...
  • Page 122 Press the shutter button halfway to focus. You can also focus by pressing the AF-ON button (P.116). When the camera focuses on a subject, a green frame appears on the focus position. When the camera detects specific elements such as the driver or the cockpit, it focuses on them.

  • Page 123: Configuring The C-Af Operation When Subject Detection Is Enabled ( V C-Af Setting)

    Configuring the C-AF operation when subject detection is enabled ( C-AF Setting) P A S M B Configure the C-AF operation when shooting with subject detection enabled. Menu MENU 2. AF C-AF Setting C-AF Area Configure the area within which C-AF tracking is performed when a specified subject is detected and focused on for still photography.

  • Page 124: Assigning Focus Priority To Buttons

    Assigning focus priority to buttons ( Button) P A S M B Separate focus points can be configured for the shutter button and the AF-ON button when a subject is detected. Menu MENU 2. AF AF Button U KV Select the AF operation for when the shutter button is pressed halfway. Priority]: Tracks focus on the subject when it is detected at the selected AF target point.

  • Page 125: Configuring The Frame Displays For Detected Eyes (Eye Detection Frame)

    Configuring the frame displays for detected eyes (Eye Detection Frame) P A S M B You can choose whether to display small frames when the camera detects small parts such as the eyes and cockpits. Menu MENU 2. AF Eye Detection Frame Frames are not displayed on small parts such as the eyes or cockpits.

  • Page 126: C-Af Center Target Priority ( C-Af Center Priority)

    C-AF Center Target Priority ( C-AF Center Priority) P A S M B When focusing using group-target AF in [C-AF] and [C-AF ] modes, the camera always assigns priority to the center target in the selected group for a repeated series of focus operations. Only if the camera is unable to focus using the center focus target will it focus using the surrounding targets in the selected focus group.

  • Page 127: C-Af Tracking Sensitivity ( C-Af Sensitivity / C-Af Sensitivity)

    C-AF Tracking Sensitivity ( C-AF Sensitivity / C-AF Sensitivity) P A S M B Choose how rapidly the camera responds to changes in the distance to the subject while focusing with [C-AF], [C-AF ], [C-AF+TR] or [C-AF+TR ] selected for [ AF Mode], or with [C-AF] or [C-AF+TR] selected for [ AF Mode].

  • Page 128: C-Af Focus Speed ( C-Af Speed)

    C-AF Focus Speed ( C-AF Speed) P A S M B Choose how quickly the camera responds to changes to the distance to subject when [C-AF] or [C-AF+TR] is selected for focus mode. This can be used to adjust the time the camera takes to refocus when, for example, you switch subjects.

  • Page 129: Functions For Changing Camera Operation Regarding Focus

    Functions for changing camera operation regarding focus Lens Focus Range ( AF Limiter) P A S M B Choose the range in which the camera will focus using autofocus. This is effective in situations in which an obstacle presents itself between the subject and the camera during the focus operation, causing drastic changes in focus.

  • Page 130: Configuring [Af Limiter]

    Return to the AF Limiter setting screen. AF Limiter is not available in the following cases. When the focus limiter is enabled on the lens When using focus bracketing or focus stacking While in the movie mode or recording a movie When [ AF] or [ ] is selected for focus mode...

  • Page 131: C-Af Lens Scanning ( Af Scanner)

    C-AF Lens Scanning ( AF Scanner) P A S M B Choose whether the camera performs a focus scan. If the camera is unable to focus, it will scan for the focus position by cycling the lens from the minimum focus distance to infinity. You can limit the scanning operation if desired.

  • Page 132: Fine-Tuning Autofocus ( Af Focus Adjustment)

    Fine-Tuning Autofocus ( AF Focus Adjustment) P A S M B Fine-tune phase-detection autofocus. Focus can be fine-tuned by up to ±20 steps. Menu MENU 4. AF AF Focus Adjustment Normally there is no need to fine-tune autofocus using this item. Fine-tuning focus may prevent the camera focusing normally.

  • Page 133: Configuring [Af Focus Adjustment]

    Configuring [AF Focus Adjustment] Configure options. AF Focus Adjustment AF Focus Adjustment Press to select an item and press the OK button to Fine-tuning Value ±0 display the setting menu. Press the OK button again to return to the AF Focus Adjustment setting screen.

  • Page 134: Af Illuminator Autofocus Assist (Af Illuminator)

    AF Illuminator Autofocus Assist (AF Illuminator) P A S M B The AF illuminator lights to assist the focus operation when lighting is poor. Menu MENU 3. AF AF Illuminator The illuminator lights during autofocus if the subject is poorly lit. The illuminator does not light even if the subject is poorly lit.

  • Page 135: Af Target Display Mode (Af Area Pointer)

    AF Target Display Mode (AF Area Pointer) P A S M B In autofocus mode, the position of the subject on which the camera has focused is shown by a green focus target. This item controls the display of the focus target. Menu MENU 3.

  • Page 136: Functions For Setting The Focusing Position

    Functions for setting the focusing position Matching AF Target Selection to Camera Orientation ( Orientation Linked P A S M B The camera can be configured to change the AF target position and AF target mode automatically when it detects that it has been rotated between landscape (wide) or portrait (tall) orientations. Rotating the camera changes the composition and consequently also the position of the subject in the frame.
  • Page 137 The display returns to the Orientation Linked setting screen. Press the MENU button to return to shooting screen. Choose the AF target mode or target position with the camera first in one orientation and then the other. Separate settings are stored for landscape orientation, portrait orientation with the camera rotated to the right, and portrait orientation with the camera rotated to the left.

  • Page 138: Choosing The Af Home Position

    Choosing the AF Home Position ( Home) P A S M B Choose the home position for the [ Home] feature. The [ Home] feature lets you recall a previously-saved “home position” for AF target at the touch of a button. This item is used to choose the home position.

  • Page 139: Using The [ Home] Function

    Using the [ Home] function The [ Home] function can be used in the following ways. Button Function] (P.334), assign [ Home] to a button. The AF target moves to the saved home position when you press the button. Select [ HP] for Center Button] (P.351).

  • Page 140: Af Target Selection ( Select Screen Settings)

    AF Target Selection ( Select Screen Settings) P A S M B Choose the roles played by the front and rear dials or arrow pad during AF target selection. The controls used can be selected according to how the camera is used or personal taste. Menu MENU 6.

  • Page 141: Enabling Af Target Selection Wrap ( Loop Settings)

    Enabling AF Target Selection Wrap ( Loop Settings) P A S M B You can choose whether AF target selection “wraps around” the edges of the display. You can also choose whether you have the option of selecting All (all targets) before AF target selection “wraps around”...
  • Page 142 AF targets do not wrap during shooting, for example sequential shooting. Loop Selection] is fixed at [Off] during movie recording and when [ AF] or [ ] is selected for focus mode. Enabling AF Target Selection Wrap ( Loop Settings)

  • Page 143: Touch Af Target Selection For Viewfinder Photography (Af Targeting Pad)

    Touch AF Target Selection for Viewfinder Photography (AF Targeting Pad) P A S M B Use touch controls in the monitor to select the AF target during viewfinder photography. Glide a finger over the monitor to position the focus target while viewing your subject in the viewfinder. Menu MENU 6.

  • Page 144: Other Functions That Are Useful When Focusing

    Other functions that are useful when focusing Manual Focus Assist (MF Assist) P A S M B This is a focus assist function for MF. When the focus ring is rotated, the edge of the subject is enhanced or a portion of the screen display is magnified. Menu MENU 7.
  • Page 145 Focus zoom is not available in the following instances: During movie recording / when [C-AF ] or [C-AF+TR ] is selected for focus mode / during a multiple exposure / when [ Digital Tele-converter] is set to [On] in movie recording mode When using third-party lenses with focus clutch mechanism, the direction of focus and the display of Focus Indicator may be reversed.

  • Page 146: Focus Peaking Options (Peaking Settings)

    Focus Peaking Options (Peaking Settings) P A S M B Highlight objects using color outlines. This makes objects that are in focus easier to see during manual focus and the like. Button A button to which [Peaking] has been assigned INFO button Menu MENU...

  • Page 147: Using Focus Peaking

    Using Focus Peaking The following options are available for using focus peaking. Assigning [Peaking] to a control using [ Button Function] or [ Button Function]: Focus peaking can be assigned to a control by selecting [Peaking] for Button Function] (P.334) Button Function] (P.334).

  • Page 148: Choosing A Focus Distance For Preset Mf (Preset Mf Distance)

    Choosing a Focus Distance for Preset MF (Preset MF distance) P A S M B Set the focusing position for Preset MF. Specify the number and unit (m or ft). Menu MENU 7. MF Preset MF distance If the lens is equipped with a focus limiter, disable it before proceeding. The figures displayed are intended as guides only.

  • Page 149: Disabling The Mf Clutch (Mf Clutch)

    Disabling the MF Clutch (MF Clutch) P A S M B Disable the manual focus clutch, which is found on some lenses. This can prevent autofocus being disabled by the focus ring being rotated accidentally. Menu MENU 7. MF MF Clutch Operative The camera responds to the position of the lens focus ring.

  • Page 150: Lens Focus Direction (Focus Ring)

    Lens Focus Direction (Focus Ring) P A S M B Choose the direction in which the focus ring is rotated to adjust focus. Menu MENU 7. MF Focus Ring Rotate the ring counterclockwise to increase the focus distance. Rotate the ring clockwise to increase the focus distance. Lens Focus Direction (Focus Ring)

  • Page 151: Resetting The Lens Position At Shutdown (Reset Lens)

    Resetting the Lens Position at Shutdown (Reset Lens) P A S M B You have the option of not restoring the lens to the reset focus position when the camera is turned off. This lets you turn the camera off without changing the focus position. Menu MENU 7.

  • Page 152: Metering And Exposure

    Metering and Exposure Controlling exposure (Exposure Compensation) P A S M The exposure selected automatically by the camera can be altered to suit your artistic intent. Choose positive values to make pictures brighter, negative values to make them darker. Button In shooting modes other than (Exposure compensation) button U H I l i...

  • Page 153: Adjusting Exposure Compensation

    During photo shooting, exposure compensation can be adjusted [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 60p L - 8 L - 8 1023 1023 100 % 100 % S - AF S - AF by up to ±5.0 EV.

  • Page 154: Resetting Exposure Compensation

    Release the shutter. Resetting Exposure Compensation To reset exposure compensation, press and hold the OK button. Controlling exposure (Exposure Compensation)

  • Page 155: Ev Steps For Exposure Control (Ev Step)

    EV Steps for Exposure Control (EV Step) P A S M B Choose the size of the increments used when adjusting shutter speed, aperture, exposure compensation, and other exposure-related settings. Choose from 1/3, 1/2, and 1 EV. Menu MENU 4. Exposure EV Step U a U EV Steps for Exposure Control (EV Step)

  • Page 156: Fine-Tuning Exposure (Exposure Shift)

    Fine-Tuning Exposure (Exposure Shift) P A S M B Fine-tune exposure. Use this option if you want the results of auto exposure to be consistently brighter or darker. Fine-tuning is not normally required. Use only as necessary. In normal circumstances, exposure can be adjusted using exposure compensation (P.152).

  • Page 157: Reducing Flicker Under Led Lighting ( Flicker Scan / Flicker Scan)

    Reducing Flicker Under LED Lighting Flicker Scan / Flicker Scan) Banding may occur in photographs taken under LED lighting. Use [ Flicker Scan] / [ Flicker Scan] to optimize shutter speed while viewing banding in the display. : This item can be used in silent mode and with Pro Capture shooting while using shooting mode.

  • Page 158: Choosing The Shutter Speed

    Choosing the Shutter Speed Choose a shutter speed using the front or rear dial or the buttons. If desired, the shutter speed can be selected by keeping pressed. You can also rotate the front dial to adjust shutter speed in the exposure increments selected for [EV Step] (P.155).

  • Page 159: Choosing How The Camera Measures Brightness (Metering)

    Choosing how the camera measures brightness (Metering) P A S M B You can choose how the camera meters subject brightness. Button Button U FGl Super control panel Metering Menu MENU 5. Metering Metering U a U Suited to most scenes, including back-lit subjects. The camera meters Digital ESP 324 areas of the frame and calculates optimal exposure taking into metering...

  • Page 160: Locking The Exposure (Ae Lock)

    Locking the exposure (AE Lock) P A S M B You can lock the exposure by pressing the AEL button. Use this when you want to adjust the focus and exposure separately or when you want to shoot several images at the same exposure. Button AEL button If the AEL button has been assigned a different role, you will need to assign...

  • Page 161: Ae Lock Exposure Metering

    AE Lock Exposure Metering (Metering during P A S M B Choose the metering method used to meter exposure when exposure is locked using the AEL button. Menu MENU 5. Metering Metering during U a U For more information on AE lock, see “Locking the exposure (AE Lock)”...

  • Page 162: Releasing Ae Lock After Shooting

    Releasing AE Lock after shooting ( Auto Reset) P A S M B Configure the camera so that it automatically releases the lock after shooting when exposure is locked using the AEL button. Menu MENU 5. Metering Auto Reset U a U Exposure remains locked after shooting.

  • Page 163: Locking Exposure When The Shutter Button Is Pressed Halfway

    Locking exposure when the shutter button is pressed halfway (AEL by half-pressing P A S M B Configure the camera so that it locks exposure when the shutter button is pressed halfway. Menu MENU 5. Metering AEL by half-pressing U a U Exposure is not locked when the shutter button is pressed halfway.

  • Page 164: Setting Metering Options For Sequential Shooting

    Setting metering options for sequential shooting (Metering during P A S M Menu MENU 5. Metering Metering during U a U The camera meters exposure when capturing the first frame and exposure is locked during sequential shooting. The camera meters brightness and determines exposure for each frame. If exposure is locked by pressing the AEL button (P.160) or pressing the shutter button halfway (P.163), exposure remains locked during sequential shooting even when [Metering during ] is...

  • Page 165: Metering The Focus Target

    Metering the Focus Target ( Spot Metering) P A S M B Choose whether the camera meters the current AF target when [ ] is selected for [Metering]. Settings can be adjusted separately for spot, spot highlight, and spot shadow metering. Menu MENU 5.

  • Page 166: Changing Iso Sensitivity (Iso)

    Changing ISO sensitivity (ISO) P A S M B Select a value according to subject brightness. Higher values let you photograph darker scenes but also increase image “noise” (mottling). Select [Auto] to let the camera adjust sensitivity according to lighting conditions. Button ISO Button U HIi...
  • Page 167 200–12800 Choose a value for ISO sensitivity. ISO 200 offers a good balance between noise (movie and dynamic range. recording) Combining [ ISO] values over ISO 16000 with settings that use an electronic shutter (for example, silent mode or focus bracketing) sets the flash sync speed to 1/50 s. Regardless of the value selected for ISO sensitivity, the flash sync speed for photos taken using ISO bracketing in silent mode is 1/50 s.

  • Page 168: Ev Steps For Iso Sensitivity Control (Iso Step)

    EV Steps for ISO Sensitivity Control (ISO Step) P A S M B Choose the size of the increments used when adjusting ISO sensitivity. Choose from 1/3 and 1 EV. Menu MENU 3. ISO/Noise Reduction ISO Step U a U EV Steps for ISO Sensitivity Control (ISO Step)

  • Page 169: Iso-A Upper/Default)

    Setting the range of ISO sensitivity values selected in [Auto] mode ( ISO-A Upper/ Default / ISO-A Upper/Default) P A S M Choose the range of ISO sensitivity values selected by the camera when [Auto] is selected for [ ISO] or [ ISO].

  • Page 170: S/S)

    Setting the shutter speed at which the camera automatically raises ISO sensitivity ( ISO-A Lowest S/S) S M B Choose the shutter speed at which the camera starts raising the ISO sensitivity when [Auto] is selected for [ ISO]. Menu MENU 3.
  • Page 171 Choosing the modes in which [Auto] can be used for ISO sensitivity ( ISO-Auto / ISO-Auto) P A S M Choose the modes in which [Auto] can be used for ISO sensitivity. Menu MENU 3. ISO/Noise Reduction ISO-Auto U a U MENU 3.

  • Page 172: High Iso Noise Reduction Options

    High ISO Noise Reduction Options ( Noise Filter / Noise Filter) P A S M B Reduce image artifacts (“noise”) in footage filmed at high ISO sensitivities. This can help reduce “graininess” in footage filmed under low light. You can choose the amount of noise reduction performed.

  • Page 173: Image Processing Options (Low Iso Processing)

    Image Processing Options (Low ISO Processing) P A S M B Choose the type of processing applied to photographs taken at low ISO sensitivities using sequential shooting. Menu MENU 3. ISO/Noise Reduction Low ISO Processing U a U Image processing is adapted so as not to curtail the number of pictures that can Drive Priority be taken in a single burst.

  • Page 174: Long Exposure Noise Reduction Options (Noise Reduction)

    Long Exposure Noise Reduction Options (Noise Reduction) P A S M B Choose whether to process photos taken at slow shutter speeds to reduce image artifacts (“noise”). At slow shutter speeds, noise is caused by the heat generated from the camera itself. After each photo is taken, the camera captures a second image for noise reduction, causing a delay equal to the selected shutter speed before the next photo can be taken.

  • Page 175: Flash Photography

    Flash photography Using a flash (Flash photography) When using a flash unit designed for use with the camera, you can choose from various shooting modes to meet your needs. Flash units designed for use with the camera Choose a flash unit to suit your needs, taking into consideration such factors as the output required and whether the unit supports macro photography.

  • Page 176: Features Available With Compatible Flash Units

    Features Available with Compatible Flash Units GN (Guide Number, ISO Supported Flash unit Flash control mode 100) wireless systems TTL-AUTO, MANUAL,  1 GN 42 (75/150 mm CMD, CMD, RCV, FL-700WR FP TTL AUTO, FP MANUAL,  1 GN 21 (12/24 mm X-RCV, RC MULTI, RC, SL MANUAL TTL-AUTO, AUTO, MANUAL,  1 FP TTL AUTO, FP MANUAL,...
  • Page 177 Remove the hot shoe cover and attach the flash. Slide the flash in until the foot clicks into place at the back of the shoe. Hot shoe cover Position the flash head for bounce-flash photography or direct lighting. The flash head can be rotated up and left or right. Note that flash output may be insufficient for correct exposure when bounce flash lighting is used.

  • Page 178: Removing Flash Units

    Removing Flash Units Keeping the UNLOCK button pressed, slide the flash unit from the hot shoe. Using a flash (Flash photography)

  • Page 179: Choosing A Flash Mode (Flash Mode)

    Choosing a Flash Mode (Flash Mode) P A S M B Button Button UFGl Super control panel Flash Mode Flash Modes Flash modes that are displayed vary depending on the configuration of [Flash Mode Settings] (P.183). Enable the flash. Fill In Shutter speed can be set to values between that selected for Slow Limit] (P.187) X-Sync.]...

  • Page 180: Flash Modes And Setting Combinations

    Flash Modes and Setting Combinations The flash modes and required setting combinations for each are as follows. Flash Mode: Fill In This setting is available only in modes. [Reduce Red- Super control Reduce Red-  1 [Synchro Settings] Flash timing  1 eye] panel display [First Curtain]...
  • Page 181 Flash Mode: SLOW This setting is available only in modes. [Reduce Red- Super control Reduce Red-  1 [Synchro Settings] Flash timing  1 eye] panel display [First Curtain] Front-curtain sync Slow [No] [Second Curtain] Rear-curtain sync Slow2 [First Curtain] Front-curtain sync Slow [Yes] [Second Curtain]...
  • Page 182 In red-eye reduction mode, the shutter will be released approximately one second after the initial red-eye reduction pre-flash. Do not move the camera until shooting is complete. Also note that red-eye reduction may not produce the desired results in some conditions. The fastest shutter speed available when the flash fires is 1/250 s.

  • Page 183: Configuring Flash Modes (Flash Mode Settings)

    Configuring flash modes (Flash Mode Settings) P A S M B Choose which modes are displayed on the flash mode selection screen. Menu MENU 6. Flash Flash Mode Settings U a U Reduce “red-eye” in portrait photos. Reduce Red- [No]: The camera does not display Reduce Red-eye modes. [Yes]: The camera displays Reduce Red-eye modes.

  • Page 184: Adjusting Flash Output (Flash Exposure Comp.)

    Adjusting flash output (Flash Exposure Comp.) P A S M B Flash output can be adjusted if you find that your subject is over- or under-exposed even though the exposure in the rest of the frame is appropriate. Flash compensation is available in modes other than manual. Super control panel Flash Exposure Comp.

  • Page 185: Wireless Remote Flash Control

    Wireless Remote Flash Control ( RC Mode) P A S M B Adjust settings for wireless remote flash control. Remote control is available with optional flash units that support wireless remote control (“wireless RC flash”). For information on using wireless remote flash control, see “Wireless remote control flash photography”...

  • Page 186: Choosing A Flash Sync Speed

    Choosing a Flash Sync Speed ( X-Sync.) P A S M Choose the fastest shutter speed available for flash photography. Choose the fastest shutter speed available for flash photography, irrespective of subject brightness. Menu MENU 6. Flash X-Sync. U a U Choosing a Flash Sync Speed ( X-Sync.)

  • Page 187: Choosing The Minimum Shutter Speed

    Choosing the Minimum Shutter Speed ( Slow Limit) S M B Choose the slowest shutter speed available for flash photography in modes. This item is used to select the slowest setting available to the camera when selecting the shutter speed automatically during flash photography, regardless of how dark the subject may be.

  • Page 188: Flash And Exposure Compensation ( 7 + F )

    Flash and Exposure Compensation ( P A S M Choose whether exposure compensation is added to the value for flash compensation. For more information on flash compensation, see “Adjusting flash output (Flash Exposure Comp.)” (P.184). Menu MENU 6. Flash U a U Flash and exposure compensation are set independently.

  • Page 189: Setting The Exposure Balance For Ttl Metering (Balanced Flash Metering)

    Setting the exposure balance for TTL metering (Balanced Flash Metering) P A S M B Set the exposure balance to be used when using an external flash in TTL metering mode. Menu MENU 6. Flash Balanced Flash Metering U a U Gives priority to the subject during metering.

  • Page 190: Sequential Shooting/Self-Timer

    Sequential Shooting/Self-Timer Performing the sequential/self-timer shooting P A S M Adjust settings for burst or self-timer photography. Choose an option according to your subject. Other options, including anti-shock and silent modes, are also available. Fix the camera securely on a tripod for self-timer shooting. Direct button Button UHIi...
  • Page 191 The camera takes photos at up to about 50 fps while the shutter button is held all the way down. If [C-AF], [C-AF High-speed [C-AF+TR], or [C-AF+TR ] is selected for AF Mode] Sequential (P.100), the camera will focus before each shot. When [Metering during ] (P.164)

  • Page 192: Number Of Pictures That Can Be Taken

    When using SH2 or ProCap SH2 with [C-AF], [C-AF ], [C-AF+TR] or [C-AF+TR selected for AF Mode (P.100) and an aperture value larger than F8, the focus accuracy will decrease. F will be displayed on the screen. SH1 and ProCap SH1 modes, the lower limit of the shutter speed is 1/15 s. SH2 and ProCap SH2 modes, the lower limit of the shutter speed is 1/640 s when [Max fps] under [Sequential Shooting Settings] is set to [50fps] and 1/160 s when it is set to [25fps], [16.7fps], or [12.5fps].

  • Page 193: Configuring The Sequential Shooting Functions (Sequential Shooting Settings)

    Configuring the sequential shooting functions (Sequential Shooting Settings) P A S M You can choose which types of sequential shooting modes are displayed when you press the button, and the maximum speed/number of frames for each sequential shooting mode. Menu MENU 7.
  • Page 194 Pre-shutter Frames (ProCap/ Set the number of frames to be captured before the shutter button is ProCap SH1/ pressed fully from between 0 and 99. ProCap SH2 only) Set the total number of frames from 2 to 99 (including the pre-shutter frames) to be captured.

  • Page 195: Configuring The Self-Timer Functions (Self-Timer Settings)

    Configuring the self-timer functions (Self- timer Settings) P A S M You can choose which types of self-timer modes are displayed when you press the button, and change the self-timer settings such as the time the camera waits before taking a picture, and the number of frames it captures.
  • Page 196 [Off]: If the number of shots is 2 or more, focus is locked when the first shot is taken. Every Frame AF [On]: The camera focuses before each shot. Configuring the self-timer functions (Self-timer Settings)

  • Page 197: Shooting Without The Vibration Caused By Shutter Button Operations (Anti-Shock Settings)

    Shooting without the vibration caused by shutter button operations (Anti-Shock Settings) P A S M B Anti-shock shooting modes can be used to reduce the slight blur caused by shutter motion. Use this option when even slight camera motion can cause blur, for example during macro or telephoto photography.

  • Page 198: Shooting Without Shutter Sound

    Shooting without shutter sound (Silent Settings) P A S M In situations where the shutter sound is a problem, you can use the silent shooting modes to shoot without making a sound. An electronic shutter is used to reduce the minuscule camera shake caused by the motion of the mechanical shutter, much as is the case for anti-shock photography.
  • Page 199 The flash sync speed will be 1/50 s when [ ISO] is 16000 or higher. Shooting without shutter sound (Silent Settings)

  • Page 200: Shooting Without A Release Time Lag (Pro Capture Shooting)

    Shooting without a release time lag (Pro Capture shooting) P A S M Capture starts when the shutter button is pressed halfway; the moment the button is pressed the rest of the way down, the camera will start saving the last n captured pictures to the memory card, where n is a number selected before shooting begins.
  • Page 201 Pro Capture SH2 (ProCap SH2) The camera shoots at up to 50 fps. A maximum of 99 frames can be captured before the shutter button is pressed all the way down. If [C-AF], [C-AF ], [C-AF+TR], or [C-AF+TR ] is selected for Mode] (P.100), the camera will focus before each shot.
  • Page 202 Pro Capture is not available while the camera is connected to a smartphone (Wi-Fi). Flickering occurred by fluorescent lights or the large movement of the subject, etc. may cause distortions in images. During capture, the monitor will not go dark and the sound of the shutter will not be heard. The slowest shutter speed is limited.

  • Page 203: Reducing Flicker In Photographs (Anti-Flicker Shooting)

    Reducing Flicker in Photographs (Anti-Flicker Shooting) P A S M You may notice uneven exposure in photos taken under flickering light. When this option is enabled, the camera will detect the flicker frequency and adjust the timing of the shutter release accordingly. Menu MENU 7.

  • Page 204: Image Stabilization

    Image Stabilization Reducing camera shake ( Image Stabilizer / Image Stabilizer) P A S M B You can reduce the amount of camera shake that can occur when shooting in low light situations or shooting with high magnification. Super control panel Image Stabilizer / Image Stabilizer Menu...

  • Page 205: Setting The Detailed Option Of Image Stabilizer

    Electronic image stabilization combined with VCM-controlled M-IS1 (All Direction Shake I.S.) image sensor movement. VCM-controlled image sensor movement only. M-IS2 (All Direction Shake I.S.) Electronic image stabilization is not performed. Setting the detailed option of image stabilizer When using lenses other than Micro Four Thirds or Four Thirds system lenses, input the focal length of the lens.

  • Page 206: Image Stabilization Options

    Image stabilization options ( IS Level) P A S M B Choose the amount of image stabilization applied during movie recording. Menu MENU 4. Image Stabilizer IS Level U n U Choose for static hand-held shots. ±0 Recommended in most situations. −1 Choose for hand-held panning, tilting, or tracking shots.

  • Page 207: Half-Press Image Stabilization ( Image Stabilizer)

    Half-press image stabilization ( Image Stabilizer) P A S M B Choose whether image stabilization applies while the shutter button is pressed halfway. An example of a situation in which you might want to suspend image stabilization would be when using the level gauge to keep the camera level while framing photographs.

  • Page 208: Burst Mode Image Stabilization ( Image Stabilizer)

    Burst mode image stabilization ( Image Stabilizer) P A S M Choose the type of image stabilization applied during burst shooting. To maximize the effects of image stabilization during burst shooting, the camera centers the image sensor for every shot. This slightly reduces the frame advance rate. Menu MENU 8.

  • Page 209: Displaying Camera Motion On The Monitor (Handheld Assist)

    Displaying camera motion on the monitor (Handheld Assist) P A S M B You can configure the camera to display the motion of the camera 60p L - 8 L - 8 1023 1023 [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 100 % 100 %...

  • Page 210: Stabilization For Is Lenses (Lens I.s. Priority)

    Stabilization for IS Lenses (Lens I.S. Priority) P A S M B When using a third-party lens with an on-board image stabilizer, choose whether image stabilization gives priority to the camera or the lens. This option has no effect if the lens is equipped with an IS switch that can be used to enable or disable image stabilization.

  • Page 211: Color And Quality

    Color and Quality Setting the Quality of Photos and Movies P A S M B You can set the image quality modes for photos and movies. Select a quality suitable for the application (such as for processing on PC, use on website etc.). Super control panel U KX Menu...

  • Page 212: Configuring Nx

    The options available during high resolution shooting (P.239) are F+RAW, F+RAW, F+RAW. When [Standard], [Dual Same ], or [Dual Same ], or [Auto Switch] is selected for [ Save Settings] in Card Slot Settings] (P.388), the selected option applies to the cards in both slots F and F+RAW are unavailable when [On ] is selected for High Res Shot (P.239).
  • Page 213 Motion Compensation A-I (ALL-Intra L-GOP (LongGOP) When Video Codec] (P.217) [H.264]: “-8” [H.265]: “-10” When ALL-Intra is used, the movie will be recorded without interframe compression. It is suitable for editing, but the data will be large. Fixed to [L-GOP] when [Movie Resolution] is [4K] or [C4K]. Playback Frame Rate 59.94p (59.94fps) 50.00p (50.00fps)
  • Page 214 Depending on the card used, recording may end before the maximum length is reached. Motion Compensation selection may be unavailable at some settings. Movies are recorded at an aspect ratio of 16:9. C4K movies are recorded at an aspect ratio of 17:9. Filming High-Speed Movies Film at high frame rates.
  • Page 215 Playback Frame Rate 59.94p (59.94fps) Playback rate: ×0.5/0.25 50.00p (50.00fps) Playback rate: ×0.5/0.25 29.97p (29.97fps) Playback rate: ×0.25/0.12 25.00p (25.00fps) Playback rate: ×0.25/0.13 23.98p (23.98fps) Playback rate: ×0.2/0.1 To change the settings for high-speed movies, press while an image quality mode is selected. When an SD/SDHC card is used, the size of one file is limited to 4 GB.

  • Page 216: Combinations Of Jpeg Image Sizes And Compression Rates ( Kx Detailed Settings)

    Combinations of JPEG image sizes and compression rates ( Detailed Settings) P A S M B You can set the JPEG image quality by combining image size and compression rate. Menu MENU 1. Basic Settings/Image Quality Detailed Settings U a U U KX Compression ratio Image size...

  • Page 217: Choosing The Codec For Recording Movies ( N Video Codec)

    Choosing the codec for recording movies Video Codec) P A S M B Choose the codec to be used when recording movies. Menu MENU 1. Basic Settings/Image Quality Video Codec U n U Records 8-bit movies using H.264, which is a versatile codec. This setting is recommended H.264 in most circumstances.

  • Page 218: Setting The Image Aspect (Image Aspect)

    Setting the image aspect (Image Aspect) P A S M B Choose the ratio of width to height for pictures according to your intent or your goals for printing or the like. In addition to the standard aspect (width-to-height) ratio of [4:3], the camera offers settings of [16:9], [3:2], [1:1], and [3:4].

  • Page 219: Peripheral Illumination (Shading Comp.)

    Peripheral illumination (Shading Comp.) P A S M B Compensate for the drop in brightness at the edges of the frame due to the optical characteristics of the lens. Some lenses may exhibit a drop in brightness at the edges of the frame. The camera can compensate for this by making the edges brighter.

  • Page 220: Processing Options ( Picture Mode / Picture Mode)

    Processing options ( Picture Mode / Picture Mode) P A S M B Choose how pictures are processed during shooting to enhance color, tone, and other properties. Choose from preset picture modes according to your subject or artistic intent. Contrast, sharpness, and other settings can be adjusted separately for each mode.
  • Page 221 The camera adjusts colors and contrast for optimal results i-Enhance according to the type of subject. Vivid Choose for vivid colors. Natural Choose for natural colors. Muted Choose for pictures that will later be retouched. Portrait Enhance skin tones. Record pictures in monochrome. You can apply color filter Monochrome effects and choose a tint.
  • Page 222 Pop Art Soft Focus Pale&Light Color Light Tone Grainy Film Pin Hole Diorama Cross Process Uses Art Filter settings. Art effects can also be used. Available effects differ depending on the art filter. Gentle Sepia Dramatic Tone Key Line Watercolor Vintage Partial Color Bleach Bypass...

  • Page 223: Setting Detailed Options Of A Picture Mode

    Setting detailed options of a Picture Mode Press on the Picture Mode setting screen (P.220) to select the option you want to set. ± ± Available settings vary depending on the selected picture ± mode. ± Norm Sharpness ± Adjust image sharpness. Outlines can be emphasized for a Sharpness sharp, clear picture.
  • Page 224 Choose the strength of i-Enhance. [Effect: Low]: Adds a low effect to images. Effect Effect [Effect: Standard]: Adds an effect between “low” and “high” to images. [Effect: High]: Adds a high effect to images. Color filter effects can be added to monochrome picture modes.
  • Page 225 Rotate the front dial to adjust hue. Rotate the rear dial to adjust Color Creator saturation. To reset exposure compensation, press and hold the OK button. Add effects to an art filter. The effects that can be added differ depending on the art filter. Effect Add Effects With some art filters, Color Filter and Monochrome Color can...

  • Page 226: Setting N Picture Mode

    Setting Picture Mode Select [ Picture Mode] from the menu. Highlight an item using FGHI Same as Records videos using the same settings as in Picture Mode. MENU Movies are recorded using the same setting as configured in Same as Picture Mode.
  • Page 227 Choosing which options are displayed when selecting a picture mode ( Picture Mode Settings) P A S M B You can display only the options you need when selecting a picture mode. For details on picture modes, see “Processing options ( Picture Mode / Picture Mode)”...

  • Page 228: Adjusting Color (Wb (White Balance))

    Adjusting color (WB (white balance)) P A S M B White balance (WB) ensures that white objects in images recorded by the camera appear white. [Auto] is suitable in most circumstances, but other values can be selected according to the light source when [Auto] fails to produce the desired results or you wish to introduce a deliberate color cast into your images.
  • Page 229 Sunlit outdoor scenes, sunsets, fireworks Sunny Color temperature is set to 5300K. Daylight shots of subjects in the shade Shade Color temperature is set to 7500K. Shots taken in daylight under overcast skies Cloudy Color temperature is set to 6000K. Subjects under incandescent lighting Incandescent Color temperature is set to 3000K.

  • Page 230: Making Fine Adjustments To White Balance Of Each Wb Mode

    Making fine adjustments to white balance of each WB mode You can fine-tune the white balance settings. Adjustments can be made separately. Configure options. Auto Auto Press on the WB setting screen (P.228) to select the option to adjust. [Off]: The camera suppresses the warm tones produced by Keep Warm incandescent lighting when WB Auto is used.

  • Page 231: One-Touch White Balance

    One-touch white balance Measure white balance by framing a piece of paper or other white object under the lighting that will be used in the final photograph. Use this option to fine-tune white balance when you find it hard to obtain the desired results with white balance compensation or preset white balance options such as (sunlight) or (overcast).
  • Page 232 Hold the button to which One-Touch White Balance is assigned and press the shutter button all the way down. One-touch white balance button When recording movies, press the one-touch white balance button to proceed to Step 3. You will be prompted to choose the one-touch white balance option that will be used to store the new value.

  • Page 233: Locking The White Balance In Movie Mode

    Locking the white balance in movie mode Button Function: Lock) P A S M B When the camera is in movie mode and the white balance is set to [WB Auto], you can lock the white balance to prevent it from changing even if the subject or the lighting changes. It is required that you assign WB Lock to a button using [Button Function] (P.334).

  • Page 234: Making Fine Adjustments To White Balance ( K All D / N All D )

    Making fine adjustments to white balance P A S M B Fine-tune white balance of all white balance modes at once. Menu MENU 2. Picture Mode/WB U a U MENU 2. Picture Mode/WB U n U Use the front dial or to adjust the “amber–blue”...

  • Page 235: Keep Warm Color)

    Preserving the warm tones of incandescent lighting when in WB Auto mode ( Keep Warm Color/ Keep Warm Color) P A S M B Choose how the camera adjusts white balance for pictures taken using auto white balance under incandescent lighting. Menu MENU 2.

  • Page 236: Flash White Balance ( +Wb)

    Flash White Balance ( +WB) P A S M B Choose the white balance used for photos taken with a flash. Instead of using a setting adapted to flash lighting, you can opt to prioritize the value selected for non-flash photography. Use this option to automatically switch from one white balance setting to another when you find yourself frequently enabling and disabling the flash.

  • Page 237: Setting The Color Reproduction Format (Color Space)

    Setting the color reproduction format (Color Space) P A S M B You can select a format to ensure that colors are correctly reproduced when shot images are regenerated on a monitor or using a printer. Menu MENU 2. Picture Mode/WB Color Space U a U The color space standardized by an international standards organization.

  • Page 238: Preview Options For [ N Picture Mode]

    Preview Options for [ Picture Mode] View Assist) P A S M B The display can be adjusted for ease of viewing when [ 1 Flat] or [ 2 OM-Log400] is selected for [ Picture Mode] (P.226). Menu MENU 2. Picture Mode/WB View Assist U n U U cn...

  • Page 239: Special Shooting Modes (Computational Modes)

    Special shooting modes (Computational Modes) Shooting still pictures in a higher resolution (High Res Shot) P A S M Shoot at resolutions higher than that of the image sensor. The camera takes a series of shots while moving the image sensor and combines them to create a single high-resolution photo. Use this option to capture details that normally would not be visible even at high zoom ratios.

  • Page 240: Configuring High Res Shot

    to select [On ] (tripod) or [On ] (handheld) and press the OK button. High Res Shot is disabled. Shoot with the camera fixed to a tripod. The RAW picture is recorded in 80M (10368 × 7776). (Tripod) Shoot with the camera in your hands. The RAW picture is recorded in 50M (8160 ×...

  • Page 241: Shooting

    Choose how long the camera waits for the flash to charge between shots Charge when using a flash unit not specifically designated for use with the camera. Time Shooting Press the MENU button to close the High Res Shot setting screen and return to shooting screen.
  • Page 242 [S-IS Off] is automatically selected for Image Stabilizer] (P.204) when [On ] (tripod) is chosen, [S-IS Auto] when [On ] (handheld) is selected. The maximum wait time for [On ] (handheld) is 1 second. During RC flash photography, the maximum flash wait time is 4 seconds and the flash control mode is fixed at [Manual].

  • Page 243: Slowing The Shutter In Bright Light (Live Nd Shooting)

    Slowing the Shutter in Bright Light (Live ND Shooting) The camera combines a series of exposures to create a single photo, giving the appearance of a single photo taken at a slow shutter speed. Enabling Live ND Shooting Menu MENU 1.

  • Page 244: Shooting

    Configuring Live ND Shooting Configure options. Live ND Shooting Live ND Shooting Press to select an item and press the OK button to ND Number ND8(3EV) display the setting menu. LV Simulation After configuring options, press the OK button to return to Live ND Shooting setting screen.
  • Page 245 Adjust shutter speed while previewing the results in the display. Adjust shutter speed using the rear dial. 1023 1023 [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 60p L - 8 L - 8 100 % 100 % ND8 - LV...

  • Page 246: Shooting Scenes With High Contrast (Live Gnd Shooting)

    Shooting scenes with high contrast (Live GND Shooting) P A S M The camera combines a series of exposures to create a single photo. This will increase the amount of detail visible in the highlights and shadows of high-contrast scenes, such as landscapes. Adjust the level of the effect while looking at the screen.
  • Page 247 Configuring Live GND Shooting Configure options. Live GND Shooting Live GND Shooting Press to select an item and press the OK button to GND Number GND8(3EV) display the setting menu. Filter Type Soft After configuring options, press the OK button to return to Filter Auto Rotate Live GND Shooting setting screen.

  • Page 248: Shooting

    Shooting Press the MENU button to close the Live GND Shooting setting screen and return to shooting screen. The selected GND number, filter type, and indicating the 100 % 100 % GND8 - S side to which the effect is applied appear in the display. The black side of the icon is the side to which the effect is applied (the dimmed side).
  • Page 249 Release the shutter. To end live GND photography, select [Off] in the [Live GND Shooting] display. When shooting immediately after the shooting display appears or while zoomed in, images may not be captured with the optimal exposure. Preview the results in the display before shooting.

  • Page 250: Increasing Depth Of Field (Focus Stacking)

    Increasing Depth of Field (Focus Stacking) P A S M Combine multiple images for a depth of field greater than can be obtained with a single shot. The camera takes a series of shots at focus distances both in front of and behind the current focus position and creates a single image from the areas that are in focus in each shot.

  • Page 251: Configuring Focus Stacking

    Highlight [On] using the buttons and press the OK button. Pictures are taken without using this function. Pictures are taken with increased depth of field. The display returns to the Focus Stacking setting screen. Configuring Focus Stacking Configure options. Focus Stacking Focus Stacking Press to select an item and press the OK button to...

  • Page 252: Shooting

    Shooting Press the MENU button to close the Focus Stacking setting screen and return to shooting screen. appears on the screen. 1023 1023 [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 60p L - 8 L - 8 100 % 100 % S - AF...

  • Page 253: Taking Hdr (High Dynamic Range) Images (Hdr)

    Taking HDR (High Dynamic Range) images (HDR) P A S M The camera varies exposure over a series of shots, selects from each tone range with the highest level of detail, and combines them to create a single picture with a wide dynamic range. If the photo features a high-contrast subject, details that would otherwise be lost in shadows or highlights will be preserved.
  • Page 254 ”HDR” appears on the screen. 60p L - 8 L - 8 1023 1023 [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 100 % 100 % HDR1 HDR1 S - AF S - AF Release the shutter.

  • Page 255: Recording Multiple Exposures In A Single Image (Multiple Exposure)

    Recording multiple exposures in a single image (Multiple Exposure) P A S M B Take two shots and combine them into a single picture. Alternatively, you can take a shot and combine it with an existing picture stored on the memory card. The combined image is recorded at current image quality settings.

  • Page 256: Configuring Multiple Exposure

    Configuring Multiple Exposure Configure options. Multiple Exposure Multiple Exposure Press to select an item and press the OK button to Auto Gain display the setting menu. Overlay After configuring options, press the OK button to return to Multiple Exposure setting screen. MENU [Off]: Do not adjust brightness the brightness of the pictures in the multiple exposure.

  • Page 257: When [Overlay] Is Set

    Release the shutter. The first shot will be visible superimposed on the view through the lens as you compose the next shot. icon turns green. Normally, a multiple exposure will be created after the second shot is taken. Pressing the button allows you to retake the first shot.
  • Page 258 The image-selection display for [Overlay] shows the JPEG copies of photographs taken with RAW + JPEG selected for image quality. Live composite photography ([Live Comp]) is not available in mode The following functions cannot be used during multiple exposure photography. HDR, bracketing, focus stacking, interval-timer photography, keystone compensation, live ND shooting, fisheye correction, High Res Shot, and live GND shooting.

  • Page 259: Digital Zoom ( K Digital Tele-Converter / N Digital Tele-Converter)

    Digital Zoom ( Digital Tele-converter / Digital Tele-converter) P A S M B This option takes a crop at the center of the frame the same dimensions as the size option currently selected for image quality and zooms it in to fill the display. This allows you to zoom in past the lens’ maximum focal length, making it a good choice when you are unable to switch lenses or find it difficult to get any closer to your subject.

  • Page 260: Shooting Automatically With A Fixed Interval (Interval Shooting)

    Shooting automatically with a fixed interval (Interval Shooting) P A S M You can set the camera to shoot automatically with a set time lapse. The shot frames can also be recorded as a single movie. Menu MENU 2. Other Shooting Functions Interval Shooting U b U Enabling Interval Shooting...
  • Page 261 Configuring Interval Shooting Configure options. Interval Shooting Interval Shooting Press to select an item and press the OK button to Number of Frames display the setting menu. Start Waiting Time 00:00:01 After configuring options, press the OK button to return to Interval Length 00:00:01 Start...

  • Page 262: Shooting

    Choose the frame size ([Movie Resolution]) and frame rate ([Frame Rate]) for movies created using [Time Lapse Movie]. The options available for [Movie Resolution] are: Movie Settings [4K], [FullHD], [HD] Choose the [Frame Rate] from the following options. [30fps], [15fps], [10fps], [5fps] [Start Waiting Time], [Interval Length] and [Estimated Time] may change depending on shooting settings.
  • Page 263 If the time until shooting or the shooting interval is 1 minute 31 seconds or longer, the monitor will go dark and the camera will enter sleep mode if no operations are performed for 1 minute. The display will turn on automatically 10 seconds before shooting for the next interval begins. It can also be reactivated by pressing the shutter button at any time.

  • Page 264: Keystone Correction And Perspective Control (Keystone Comp.)

    Keystone correction and perspective control (Keystone Comp.) P A S M Keystone distortion due to the influence of lens focal length and proximity to the subject can be corrected, or enhanced to exaggerate the effects of perspective. Keystone compensation can be previewed in the monitor during shooting.
  • Page 265 Release the shutter. Pictures may seem “grainy” depending on the amount of compensation performed. The amount of compensation also determines the amount the picture will be enlarged when cropped and whether the crop can be moved. Depending on the amount of compensation, you may be unable to reposition the crop. Depending on the amount of compensation performed, the selected AF target may not be visible in the display.

  • Page 266: Correcting Fisheye Distortion (Fisheye Compensation)

    Correcting Fisheye Distortion (Fisheye Compensation) P A S M Correct distortion caused by fisheye lenses to give photos the appearance of pictures taken with a wide-angle lens. The amount of correction can be selected from three different levels. You can also opt simultaneously to correct distortion in photos taken under water.

  • Page 267: Configuring Fisheye Compensation

    Configuring Fisheye Compensation Configure options. Fisheye Compensation Fisheye Compensation Press to select an item and press the OK button to Angle display the setting menu. Correction After configuring options, press the OK button to return to Fisheye Compensation setting screen. MENU When fisheye correction is performed, the picture is cropped to Angle...
  • Page 268 AF target selection is restricted to Single and Small target modes. The following cannot be used: live composite photography, burst photography, bracketing, focus stacking, HDR, multiple exposure, live ND shooting, keystone compensation, the digital teleconverter, movie recording, [C-AF], [C-AF ], [C-AF+TR], and [C-AF+TR ] AF modes, art filter picture modes, the custom self-timer, High Res Shot, live GND shooting, and subject detection.

  • Page 269: Configuring Bulb/Time/Comp Settings (Bulb/Time/Comp Settings)

    Configuring BULB/TIME/COMP Settings (BULB/TIME/COMP Settings) P A S M Set items related to bulb/time/composite photography. Menu MENU 2. Other Shooting Functions BULB/TIME/COMP Settings U b U Configure options. BULB/TIME/COMP Settings Bulb/Time Focusing Press to select an item and press the OK button to 8min Bulb/Time Timer display the setting menu.
  • Page 270 Choose the display interval during time photography. The number of update times is limited. Choose [Off] to disable the display. Live Time [60sec] / [30sec] / [15sec] / [8sec] / [4sec] / [2sec] / [1sec] / [0.5sec] / [Off] Set an exposure time to be the reference in composite photography. Composite [60sec] / [50sec] / [40sec] / [30sec] / [25sec] / [20sec] / [15sec] / Settings...

  • Page 271: Recording A Series Of Shots With Varied Exposure (Ae Bkt)

    Recording a series of shots with varied exposure (AE BKT) P A S M Vary exposure over a series of shots. You choose the amount of variation and the number of shots. The camera takes a series of shots with different exposure settings. The camera will take pictures while the shutter button is pressed all the way down, ending when the selected number of shots has been taken.
  • Page 272 The settings used to alter exposure vary with the shooting mode. Both aperture and shutter speed (program AE) Shutter speed (aperture-priority AE) Aperture (shutter-priority AE) Shutter speed (when [ ISO] is not set to [Auto]) (manual) ISO sensitivity (when [ ISO] is set to [Auto]) If exposure compensation is enabled before shooting begins, the camera will vary exposure around the selected value.

  • Page 273: Recording Pictures With Varied White Balance (Wb Bkt)

    Recording pictures with varied white balance (WB BKT) P A S M B The camera varies white balance to record a series of pictures. You choose the color axis and the bracketing amount. The entire series is shot with a single press of the shutter button. The camera takes one picture when the shutter button is pressed all the way down and automatically processes it to record the pictures.

  • Page 274: Recording Pictures With Varied Flash Level (Fl Bkt)

    Recording pictures with varied flash level (FL BKT) P A S M The camera varies flash level (output) over a series of shots. You choose the amount of variation. The camera takes a shot at a new flash level each time the shutter button is pressed all the way down.

  • Page 275: Recording Pictures With Varied Iso Sensitivity (Iso Bkt)

    Recording pictures with varied ISO sensitivity (ISO BKT) P A S M B The camera varies ISO sensitivity to record a series of pictures. You choose the amount of variation and the number of shots. The entire series is shot with a single press of the shutter button. The camera takes one picture when the shutter button is pressed all the way down and automatically processes it to record the required number of shots.

  • Page 276: Recording Copies Of One Picture With Different Art Filters Applied (Art Bkt)

    Recording copies of one picture with different art filters applied (ART BKT) P A S M B Create multiple versions of each picture, each with a different art filter applied. Enabling art filter bracketing Menu MENU 3. Bracketing ART BKT U b U Highlight [ART BKT] using the buttons and press the...

  • Page 277: Configuring Art Filter Bracketing

    Configuring art filter bracketing Select [ART BKT Setting] on the ART BKT setting screen and press the OK button. Select an art filter that you want to apply, and put a check ( ART BKT Setting Pop Art next to it. Pop Art Select an option using and press the OK button to...

  • Page 278: Recording Pictures With Different Focus Positions (Focus Bkt)

    Recording pictures with different focus positions (Focus BKT) P A S M The camera varies focus over a series of pictures. You choose the amount and the number of shots. The entire series is shot with a single press of the shutter button. Each time the shutter button is pressed all the way down, the camera takes the selected number of shots, varying focus with each shot.

  • Page 279: Shooting

    Configuring focus bracketing Configure options. Focus BKT Focus BKT Press to select an item and press the OK button to Set number of shots display the setting menu. Set focus differential After configuring options, press the OK button to return to Charge Time 0sec Focus BKT setting screen.
  • Page 280 Focus bracketing cannot be combined with other forms of bracketing. The flash sync speed is set to 1/100 s. It will be set to 1/50 s when [ ISO] is 16000 or higher. Recording pictures with different focus positions (Focus BKT)

  • Page 281: Functions That Are Only Available In Movie Mode

    Functions that are only available in movie mode Sound Recording Options (Sound Recording Settings) P A S M B Adjust settings for recording sound during filming. You can also access settings for use when an external microphone or recorder is connected. Menu MENU 5.
  • Page 282 Choose an audio recording format. Recording [96kHz/24bit]: High-quality audio. Rate [48kHz/16bit]: Standard-quality audio. In most circumstances, there is no need to change this setting. If your external microphone does not require plug-in power, and supplying power causes noise to Plug-in be recorded, set this to [Off].

  • Page 283: Adjusting The Headphone Volume (Headphone Volume)

    Adjusting the headphone volume (Headphone Volume) P A S M B Menu MENU 5. Sound Recording/Connection Headphone Volume U n U Headphone Volume Adjust the volume of audio output to the headphones. Adjusting the headphone volume (Headphone Volume)

  • Page 284: Time Codes (Time Code Settings)

    Time Codes (Time Code Settings) P A S M B Adjust time code settings. Time codes are used to synchronize picture and sound during editing and the like. Choose from the following options. Menu MENU 5. Sound Recording/Connection Time Code Settings U n U Choose a time code recording option.

  • Page 285: Hdmi Output

    HDMI Output ( HDMI Output) P A S M B Adjust settings for output to HDMI devices. Options are available for controlling HDMI recorders from the camera or adding time codes for use during movie editing. Menu MENU 5. Sound Recording/Connection HDMI Output U n U [Monitor]: The HDMI device functions as an external monitor.

  • Page 286: About [Raw]

    About [RAW] When [RAW] is selected, the raw images, to which shooting settings such as exposure compensation and white balance have not been applied, can be recorded. Visit our website for information on HDMI devices compatible with [RAW]. When [RAW] is selected, “HDMI” will appear on the camera monitor while outputting signals to an HDMI device.

  • Page 287: Displaying A + Mark In The Center Of The Screen While Recording Movies (Center Marker)

    Displaying a + mark in the center of the screen while recording movies (Center Marker) P A S M B During movie recording, you can display a “+” mark which enables 60p L - 8 L - 8 [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] TC00:00:01 TC00:00:01 DF DF...

  • Page 288: Displaying Zebra Patterns Over High Luminance Areas While Recording Movies

    Displaying zebra patterns over high luminance areas while recording movies (Zebra Pattern Settings) P A S M B During movie recording, you can display zebra patterns [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 60p L - 8 L - 8 TC00:00:01 TC00:00:01 DF DF...

  • Page 289: Configuring Zebra Pattern Settings

    During movie recording, zebra patterns (stripes) will be displayed over the areas where the luminance levels exceed the predetermined thresholds. pattern will be displayed where the luminance level exceeds [  Level 1]. pattern will be displayed where the luminance level exceeds [  Level 2].

  • Page 290: Displaying A Red Frame While Recording Movies (Red Frame During Rrec)

    Displaying a red frame while recording movies (Red Frame during REC) P A S M B You can display a red outer frame on the screen to make it easier to [ 1 : 42 : 21 ] [ 1 : 42 : 21 ] 60p L - 8 L - 8 REC00:01 REC00:01...

  • Page 291: Playback

    Playback Information display during playback Playback image information Basic Test 10 11 13 14 JPEG 48 ± 2024/01/01 16:30:43 100-0015 15/30 GND8 - M HDR1 Compx20 Overall JPEG 48 ± 5400 5184x3888 2024/01/01 16:30:43 100-0015 15/30 1.40 60p L-8 TC00:01:02:03 2024/01/01 16:40:01 00:20...
  • Page 292 Battery level (P.39) Fisheye Compensation (P.266) USB PD (P.468) Keystone Compensation (P.264) ® Active Bluetooth connection (P.428, P.455) Composite Photography Remote control (P.455) Number of combined shots (P.71) Wireless LAN connection (P.426, P.441) Date and Time (P.416) Active connection to computer (Wi-Fi) (P.441) Shutter Speed (P.58, P.63) Airplane Mode (P.424) Aperture Value (P.58, P.61)

  • Page 293: Switching The Information Display

    Switching the information display Button INFO button You can switch the information displayed during playback by pressing the INFO button. JPEG 48 INFO INFO ± 2024/01/01 16:30:43 100-0015 15/30 JPEG 48 INFO ± 5400 5184x3888 2024/01/01 16:30:43 100-0015 15/30 Basic Overall Image only Choose the information to display.

  • Page 294: Viewing Photographs And Movies

    Viewing photographs and movies Viewing photographs Press the button. The most recent picture will be displayed. Select the desired photograph or movie using the front dial or arrow pad. Press the shutter button halfway to return to shooting mode. 100 % 100 % ±...

  • Page 295: Watching Movies

    Protect picture (P.303) button Delete picture (P.306) button View the playback direct menu. (In calendar playback, press this button to OK button exit to single-frame playback.) Switching cards while viewing photographs You can also choose a card for playback using the button.
  • Page 296 Playing back separated movies Long movies are automatically recorded over multiple files when the file size exceeds 4 GB or the recording time exceeds 3 hours (P.78). The files can be played back as a single movie. Press the button. The most recent picture will be displayed.

  • Page 297: Finding Pictures Quickly (Index And Calendar Playback)

    Finding Pictures Quickly (Index and Calendar Playback) In single-frame playback, rotate the rear dial to for index playback. Rotate further for calendar playback. Turn the rear dial to to return to single-frame playback. 2024 / 100% 100% 100% 100% 100% 100% N+RAW N+RAW...

  • Page 298: Zooming In (Playback Zoom)

    Zooming In (Playback Zoom) 100 % 100 % 100 % 100 % 100 % 100 % ± ± N+RAW N+RAW 2024/01/01 16:30:43 16:30:43 101-0001 101-0001 19/32 19/32 15/30 15/30 15/30 15/30 Playback display Zoom frame Playback zoom scroll display When you press the multi selector or a button to which [ ] (magnify) has been assigned (P.334), a zoom frame will be displayed over the part of the picture that was in focus or the part where the subject was detected.

  • Page 299: Playback Using Touch Controls

    Playback Using Touch Controls Use touch controls to zoom pictures in and out, scroll pictures, or choose the picture displayed. Do not tap the display with your fingernails or other sharp objects. Gloves or monitor covers may interfere with touch screen operation. Full-frame playback Displaying the previous or next image Slide your finger to the left to view the next image, and right to...

  • Page 300: Index/Calendar Playback

    Movie playback to begin playback. 100 % 100 % 1.40 1.40 60p L-8 L-8 TC00:02:19:04 TC00:02:19:04 DF DF 2024/01/01 16:40:01 16:40:01 00:20 00:20 100-0016 100-0016 16/30 16/30 Tap the lower part of the screen to display the control bar which allows you to end playback and change the playback volume.

  • Page 301: Other Functions

    Other functions Lightly tap the screen during single-frame playback or tap during index playback to display the touch menu. You can then perform the desired operation by tapping the icons in the touch menu. Select an image. You can select multiple images and delete them collectively.  “Selecting Multiple Pictures (Share Order Selected, Rating Selected, , Copy Select, Erase Selected)”...

  • Page 302: Setting Playback Functions

    Setting playback functions Rotating Pictures (Rotate) Choose whether to rotate photographs. Display an image you want to rotate and press the OK button. The playback direct menu will be displayed. Select [Rotate] and press the OK button. Press to rotate the image counterclockwise, to rotate it clockwise;...

  • Page 303: Protecting Pictures

    Protecting Pictures ( Protect images from accidental deletion. Display the image you want to protect and press the button. Protected images are marked with a (“protected”) icon. 100 % 100 % Press the button again to cancel protection. N+RAW N+RAW ±...

  • Page 304: Copying An Image (Copy)

    Copying an image (Copy) When there are cards with available space in both slots 1 and 2, you can copy an image to the other card. Display an image you want to copy and press the OK button. The playback direct menu will be displayed. Select [Copy] and press the OK button.

  • Page 305: Copying All Images On A Card (Copy All)

    Copying all images on a card (Copy All) All images can be copied between the cards inserted in the camera (card slot 1 and 2). Menu MENU 1. File Copy All U q U All images are copied from the card in card slot 1 to the card in card slot 2. All images are copied from the card in card slot 2 to the card in card slot 1.

  • Page 306: Deleting Pictures (Erase)

    Deleting Pictures (Erase) Display an image you want to delete and press the button. Highlight [Yes] and press the OK button. Erase MENU The image will be deleted. You can erase images without the confirmation step by changing the button settings.  “Disabling Deletion Confirmation (Quick Erase)”...

  • Page 307: Deleting All Pictures (Erase All)

    Deleting All Pictures (Erase All) Delete all pictures. Protected pictures will not be deleted. You can also exclude the pictures which have been assigned rating stars (P.312) and delete all other pictures. Menu MENU 1. File Erase All U q U Erase Delete all pictures including those with rating stars assigned.

  • Page 308: Disabling Deletion Confirmation (Quick Erase)

    Disabling Deletion Confirmation (Quick Erase) If this option is enabled when the button is pressed to delete photos or movies, the camera will not display a confirmation dialog but will instead delete the images immediately. Menu MENU 2. Operations Quick Erase U q U A confirmation dialog is displayed when the button is pressed.

  • Page 309: Raw+Jpeg Deletion Options (Raw+Jpeg Erase)

    RAW+JPEG Deletion Options (RAW+JPEG Erase) Choose operation performed when [RAW+JPEG] images are deleted. Menu MENU 2. Operations RAW+JPEG Erase U q U JPEG Only the JPEG copy is deleted. Only the RAW copy is deleted. RAW+JPEG Both the RAW and JPEG copies are deleted. Both the RAW and JPEG copies are deleted when [Erase All] (P.307) [Erase Selected] (P.314)

  • Page 310: Selecting Pictures For Sharing (Share Order)

    Selecting Pictures for Sharing (Share Order) You can select images you want to transfer to a smartphone in advance. Display an image you want to transfer and press the OK button. The playback direct menu will be displayed. Select [Share Order] and press the OK button. Then, press The image is marked for sharing.

  • Page 311: Selecting Raw+Jpeg Pictures For Sharing (Raw+Jpeg 9 )

    Selecting RAW+JPEG Pictures for Sharing (RAW+JPEG In the case of pictures recorded with [RAW+JPEG] for image quality, you can choose to share only the JPEG copies, only the RAW copies, or both the JPEG and RAW copies.  Menu MENU 2. Operations RAW+JPEG U q U JPEG...

  • Page 312: Rating Pictures (Rating)

    Rating Pictures (Rating) Assign one to five rating stars to a picture. This can be helpful when arranging and searching for pictures using OM Workspace or other utilities. Button Button If you press the button when the selected picture has no rating stars assigned, rating stars will be assigned to the picture.

  • Page 313: Selecting The Numbers Of Stars To Be Used For Rating (Rating Settings)

    Selecting the numbers of stars to be used for rating (Rating Settings) You can select the numbers of stars that will be displayed as options for rating. Menu MENU 3. Displays Rating Settings U q U Select the number of stars that you want to display as an option when rating pictures, and put a check ( ) next to it.

  • Page 314: Selecting Multiple Pictures

    Selecting Multiple Pictures (Share Order Selected, Rating Selected, , Copy Select, Erase Selected) You can select multiple images for [Share Order Selected], [Rating Selected], [ ], [Copy Select] or [Erase Selected]. Select pictures by pressing the button during playback. The image will be selected and will be displayed.

  • Page 315: Print Order (Dpof)

    Print order (DPOF) You can save digital “print orders” to the memory card listing the pictures to be printed and the number of copies of each print. You can then have the pictures printed at a print shop that supports DPOF.
  • Page 316 The camera cannot be used to modify print orders created with other devices. Creating a new print order deletes any existing print orders created with other devices. Print orders cannot include RAW images or movies. Print order (DPOF)

  • Page 317: Resetting All Protection/Share Orders/Print Orders/Ratings (Reset All Images)

    Resetting all protection/share orders/print orders/ratings (Reset All Images) You can reset all protection/share orders/print orders/ratings from pictures on a card in one slot at once. Menu MENU 1. File Reset All Images U q U Reset Print Orders Resets all print orders. Reset Protect Resets all protection.

  • Page 318: Adding Audio To Pictures

    Adding Audio to Pictures ( You can record audio using the built-in stereo microphone or an optional external microphone and add it to pictures. The recorded audio provides a simple replacement for written notes about the pictures. Audio recordings can be up to 30 s long. Display the image to which you want to add audio and press the OK button.

  • Page 319: Audio Playback

    Audio Playback Playback begins automatically when a picture with audio is displayed. To adjust the volume: Display the picture whose audio you want to play back. Press on the arrow pad. 100% 100% button: Raise volume. button: Lower volume. Adding Audio to Pictures (...

  • Page 320: Retouching Pictures (Edit)

    Retouching Pictures (Edit) Create retouched copies of pictures. In the case of RAW pictures, you can adjust the settings in effect at the time the picture was taken, such as white balance and picture mode (art filters included). With JPEG pictures, you can make simple edits such as cropping and resizing. Retouch pictures and save the resulting copies in JPEG format (P.320).
  • Page 321 Display an image you want to edit and press the OK button. 100 % 100 % N+RAW N+RAW ± ± 2024/01/01 16:30:43 16:30:43 100-0015 15/30 The playback direct menu will be displayed. Highlight [RAW Data Edit] using and press the OK RAW/JPEG button.

  • Page 322: Retouching Jpeg Pictures (Jpeg Edit)

    To create additional copies from the same original, highlight [Reset] and press the OK button. To exit without creating more copies, highlight [No] and press the OK button. Selecting [Reset] displays editing options. Repeat the process from Step 3. Retouching JPEG Pictures (JPEG Edit) [JPEG Edit] can be used to adjust the following settings.
  • Page 323 Display an image you want to edit and press the OK button. 100 % 100 % N+RAW N+RAW ± ± 2024/01/01 16:30:43 16:30:43 101-0001 101-0001 19/32 19/32 The playback direct menu will be displayed.  Highlight [JPEG Edit] using and press the OK button. JPEG JPEG Edit Share Order...

  • Page 324: Combining Pictures (Image Overlay)

    Combining Pictures (Image Overlay) Overlay existing RAW photos and to create a new picture. Up to 3 pictures can be included in the overlay. The results can be modified by adjusting brightness (gain) separately for each picture. The overlay is saved in the format currently selected for image quality. Overlays created with [RAW] selected for image quality are saved in RAW format and in JPEG format using the image quality option selected for [ 2] (P.211).

  • Page 325: Trimming Movies (Movie Trimming)

    Trimming movies (Movie Trimming) Cut selected footage from movies. Movies can be trimmed repeatedly to create files containing only footage you want to preserve. This option is available only with movies recorded with the camera. Display a movie you want to edit and press the OK button. The playback direct menu will be displayed.

  • Page 326: Creating Movie Stills (In-Movie Image Capture)

    Creating Movie Stills (In-Movie Image Capture) Save a still copy of a selected frame. This option is available only with [4K] movies recorded with the camera. Display a movie you want to edit and press the OK button. The playback direct menu will be displayed. Select [Movie Edit] and press the OK button.

  • Page 327: Changing The Role Of The R

    Changing the role of the ) button during playback ( Function) Choose the role played by the ) button during playback. Menu MENU 2. Operations Function U q U U qR ]: Create or modify a “share order” by marking pictures for upload to a smartphone.

  • Page 328: Dial Function)

    Changing the roles of the front and rear dials during playback ( Dial Function) Choose the roles performed by the front and rear dials. Menu MENU 2. Operations Dial Function U q U Zoom in or out or switch to the index display during playback. (Index/Magnify) Prev/Next View the next or previous image during playback.

  • Page 329: Choosing The Playback Zoom Ratio

    Choosing the Playback Zoom Ratio Default Setting) Choose the starting zoom ratio for playback zoom (close-up playback). Menu MENU 2. Operations Default Setting U q U U q8 Recently Zoom in to the most recently selected zoom ratio. Images are displayed at a zoom ratio of 1:1. The icon appears in Equally Value the monitor.

  • Page 330: Automatically Rotating Portrait-Orientation Pictures For Playback

    Automatically Rotating Portrait-Orientation Pictures for Playback ( Choose whether pictures shot in portrait orientation are automatically rotated for display on the camera. Menu MENU 3. Displays U q U Pictures are automatically rotated for display during playback. Pictures are not automatically rotated for display during playback. Automatically Rotating Portrait-Orientation Pictures for Playback (...

  • Page 331: Choosing The Information Displayed During Playback

    Choosing the information displayed during playback ( Info Settings) Choose the information displayed during playback. Pressing the INFO button during playback will switch the display between the selected displays. Menu MENU 3. Displays Info Settings U q U Select the display type, and put a check ( ) next to it.

  • Page 332: Choosing The Information Displayed During Magnified Playback

    Choosing the information displayed during magnified playback ( Info Settings) Choose the display when you magnify the picture by pressing the multi selector or a button to which ] (magnify) has been assigned (P.334). 100 % 100 % 100 % 100 % 100 % 100 %...

  • Page 333: Configuring The Index Display

    Configuring the index display ( Settings) You can change the number of frames to be displayed on the index display and whether to use the calendar display. Menu : MENU 3. Displays Settings U q U Select the display type, and put a check ( ) next to it.

  • Page 334: Functions For Configuring Camera Controls

    Functions for Configuring Camera Controls Changing the roles of buttons (Button Settings) P A S M B Other roles can be assigned to buttons in place of their existing functions. The functions assigned using [ Button Function] take effect only during still photography. The functions assigned using [ Button Function] take effect in  (movie) mode.
  • Page 335 Default role Icon Button WB (white balance) Arrow pad (down) (one-touch white One-touch white balance button Peaking balance) Preview button Preview Magnify button on the optional power (exposure compensation) battery holder ISO button on the optional power ISO sensitivity battery holder AF-ON button on the optional AF-ON power battery holder...

  • Page 336: Available Roles

    Available Roles “ only”: This role is only available in the [ Button Function] menu. “ only”: This role is only available in the [ Button Function] menu. The options available vary from button to button. Role Function The control functions as a movie-record button. Press to start or stop recording.
  • Page 337 Role Function Switch between AF and MF. Press once to select MF and again to return to MF ( the previous mode. The focus mode can also be selected by holding the (AF/MF toggle) button and rotating a dial. If you press the button when [ ] is set to JPEG, it changes to (RAW image RAW+JPEG.
  • Page 338 Role Function Turn the digital teleconverter on or off (P.259). Press once to zoom in and Digital Tele- again to zoom out. converter ( You can turn it on/off even when you are recording a movie. During movie recording, a frame indicating the area that will be magnified by the digital 2x / 1.4x) teleconverter is displayed.
  • Page 339 Role Function Display the digital level gauge. The exposure bar display in the viewfinder functions as a level gauge. Press the control again to exit. This option Level Disp takes effect when [ Style 1] or [ Style 2] is selected for [EVF Style] (P.368).
  • Page 340 Role Function Enable the live GND filter (P.246). Press once to enable [Live GND Shooting] and adjust filter position and boundary settings. Press the Live GND Shooting control again to display shooting information and access other settings. (GND) Hold the button and rotate the front or rear dial to adjust [Filter Type] only) and [GND Number].
  • Page 341 Role Function Press the control once to disable, and again to enable, the lens focus ring. This option is available when [S‑AF ], [C‑AF ], [ [C‑AF+TR ], [Pre ], or [ ] is selected for [AF Mode]. portion of the AF mode indicator is displayed gray while the ring Focus Ring Lock is disabled.
  • Page 342 Role Function ART BKT Toggle [ART BKT] [On] or [Off]. To choose an option for [ART BKT], press and hold the button. only) Focus BKT Toggle [Focus BKT] [On] or [Off]. To choose an option for [Focus BKT], press and hold the button. only) Focus Stacking ( Toggle [Focus Stacking] [On] or [Off].
  • Page 343 Role Function When recording a movie with the white balance set to [WB Auto], Lock (Lock pressing the button locks the white balance. Pressing it again releases only) the lock. View Assist Toggle [ View Assist] [On] or [Off]. (BT.709) You can change the setting even when you are recording a movie.

  • Page 344: Using Multi-Function Options (Multi Function)

    Using multi-function options (Multi Function) Assign multiple roles to a single button. To use the multi-function feature, you must first assign [Multi Function] to a camera control.  “Customizable Controls” (P.334) Choosing a function Hold the button to which [Multi Function] is assigned and rotate the front or rear dial.

  • Page 345: Recording A Movie By Pressing The Shutter Button

    Image Aspect Change the setting using the front and rear dials. The setting switches between [Standard] and [S-OVF] with S-OVF LV Mode each press of the button. Peak Peaking Turns on and off with each press of the button. You can choose the options displayed.  [Multi Function Settings] (P.379) [Highlight&Shadow Control] can also be configured by following operations.

  • Page 346: Operating The Menu With The

    Operating the menu with the button (Menu operation by P A S M B You can enable a setting to use the button instead of the MENU button to operate menus. Use this feature if you would like to use your right hand to use the MENU button during shooting in some situations.

  • Page 347: Assigning Roles To The Front And Rear Dials

    Assigning Roles to the Front and Rear Dials Dial Function / Dial Function) P A S M B Choose the roles performed by the front and rear dials. Menu MENU 1. Operations Dial Settings Dial Function U C U MENU 1.
  • Page 348 Shooting mode Role Function Adjust ISO sensitivity. WB (WB) Adjust white balance. Adjust the color temperature when CWB Kelvin (CWB Kelvin) CWB (Custom WB) is selected for white balance. None. Switch between Bulb, Time, and Live Comp. The functions that can be assigned in [ Dial Function] are listed below.
  • Page 349 Mode (Movie exposure mode) Role Function None. Assigning Roles to the Front and Rear Dials Dial Function / Dial Function)

  • Page 350: Changing The Dial Direction (Dial Direction)

    Changing the Dial Direction (Dial Direction) P A S M B Choose the direction in which the dials are rotated to set exposure. Menu MENU 1. Operations Dial Settings Dial Direction U C U Choose the direction the dials are rotated to set aperture and shutter speed in A, S, M, Exposure and B modes.

  • Page 351: Changing The Functions Of The Multi Selector (Multi Selector Settings)

    Changing the Functions of the Multi Selector (Multi Selector Settings) P A S M B Choose the direction in which the dials are rotated to set exposure. Menu MENU 1. Operations Multi Selector Settings U C U Choose the operation performed by pressing the multi selector. The multi selector can then function as a button.

  • Page 352: Customizing The Fn Lever (Fn Lever Settings)

    Customizing the Fn Lever (Fn Lever Settings) P A S M B Menu MENU 1. Operations Fn Lever Settings U C U How to configure the Fn lever Choose the role played by the Fn lever in still photography modes. The Fn lever can be used to choose the roles of the front and rear dials or to recall focus settings.

  • Page 353: Fn Lever Function]

    Configuring [ Fn Lever Function] Select [ Fn Lever Function] on the [Fn Lever Settings] Fn Lever Function screen and press the OK button. mode1 mode2 mode3 Switches AF mode/AF target mode/ AF target point according to Fn lever position. Target can be selected.
  • Page 354 Configuring [ Fn Lever Function] Select [ Fn Lever Function] on the [Fn Lever Settings] Fn Lever Function screen and press the OK button. mode1 mode2 Switches AF mode/AF target mode/ AF target point according to Fn lever position. Target can be selected. MENU INFO Fn Lever Function screen...

  • Page 355: Using [Mode2] Of [ Fn Lever Function] / [ Fn Lever Function]

    Using [mode2] of [ Fn Lever Function] / [ Lever Function] When [mode2] is selected for [ Fn Lever Function] / [ Fn Lever Function], the camera will store separate focus settings for Positions 1 and 2. Rotate the Fn lever to Position 1 and set the AF settings. Fn lever The camera can store the settings that have been checked mode2...

  • Page 356: Configuring [Fn Lever/Power Lever]

    Configuring [Fn Lever/Power Lever] Select [Fn Lever/Power Lever] on the [Fn Lever Settings] Fn Lever/Power Lever screen and press the OK button. ON/OFF OFF/ON Use Fn Lever for designated functions. Use power switch to control power. MENU The lever functions according to the options selected for [ Fn Lever Function] and [ Fn Lever Function] (P.355).

  • Page 357: Power Zoom Lenses (Electronic Zoom Settings)

    Power Zoom Lenses (Electronic Zoom Settings) P A S M B Choose the speed at which power zoom lenses zoom in or out when the zoom ring is rotated. Adjust zoom speed if it is so quick that you find it hard to frame your subject. Menu MENU 1.

  • Page 358: Disabling The Button Operations

    Disabling the Button Operations ( Lock) P A S M B Lock the button to disable operations. button Menu MENU 1. Operations Lock U C U Do not lock the button. Lock the button to disable operations. Disabling the Button Operations ( Lock)

  • Page 359: Mode)

    Choosing What Happens When the Shutter Button Is Pressed During Live View Zoom (LV Close Up Mode) P A S M B Choose display options for use with focus zoom. Menu MENU 2. Operations LV Close Up Mode U C U For information on live view zoom options, see the explanation on “Zoom frame AF/Zoom AF (Super Spot AF)”...

  • Page 360: Choosing The Behavior Of The Control Used For Depth-Of-Field Preview ( Lock)

    Choosing the Behavior of the Control Used for Depth-of-Field Preview ( Lock) P A S M B Choose the behavior of the control used for depth-of-field preview. Menu MENU 2. Operations Lock U C U Choose the behavior of the control used for depth-of-field preview. [Off]: Aperture stops down while the control is pressed.

  • Page 361: Button Hold Options (Press-And-Hold Time)

    Button Hold Options (Press-and-hold Time) P A S M B Choose how long buttons must be pressed to perform resets and other similar functions for various features. For ease of use, button hold times can be set separately for different features. Menu MENU 2.

  • Page 362: Functions For Adjusting The Live View Display

    Functions for adjusting the live view display Changing the look of the display ( LV Mode) P A S M B Increase dynamic range of the viewfinder display, increasing the amount of detail visible in highlights and shadows in a manner similar to optical viewfinders. The subject can be seen easily even in back-lit conditions.

  • Page 363: Making The Display Easier To See In Dark Places Night Vision)

    Making the display easier to see in dark places Night Vision) P A S M B Increase brightness of the display to make it easier to see in dark places. Menu MENU 3. Live View Night Vision U C U Normal display.

  • Page 364: Viewfinder Display Rate (Frame Rate)

    Viewfinder Display Rate (Frame Rate) P A S M B Choose the viewfinder display refresh rate. Menu MENU 3. Live View Frame Rate U C U Normal The standard frame rate. This is the preferred choice in most situations. Smooth the motion of fast-moving subjects. Fast-moving subjects are easier to track. This High setting reverts to [Normal] automatically if the internal temperature of the camera rises during shooting.

  • Page 365: Art Filter Preview (Art Lv Mode)

    Art Filter Preview (Art LV Mode) P A S M B You can preview the effects of art filters in the monitor or viewfinder during shooting. Some filters may cause subject movement to appear jerky, but this can be minimized so as to not influence photography.

  • Page 366: Reducing Flicker In Live View (Anti-Flicker Lv)

    Reducing Flicker in Live View (Anti-Flicker LV) P A S M B Reduce flicker under fluorescent lighting and the like. Choose this option if flicker makes the display difficult to view. Menu MENU 3. Live View Anti-Flicker LV U C U Auto The camera detects and reduces flicker.

  • Page 367: Selfie Assist (Selfie Assist)

    Selfie Assist (Selfie Assist) P A S M B Choose the display used when the monitor is reversed for self- portraits. Menu MENU 3. Live View Selfie Assist U C U The display does not change when the monitor is reversed. When reversed for self-portraits, the monitor shows a mirror image of the view through the lens.

  • Page 368: Functions For Configuring Information Display

    Functions for configuring information display Selecting the display style of the viewfinder (EVF Style) P A S M B Menu MENU 4. Information EVF Style U C U Similar to film camera viewfinder displays. Style 1/ Style 2 [1:02:03] [1:02:03] Auto Auto 1023...

  • Page 369: Viewfinder Display When Shooting Using The Viewfinder (Style 1/Style 2)

    Viewfinder display when shooting using the viewfinder (Style 1/Style 2) [ 99 ] [ 99 ] S - OVF S - OVF [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] Lock Lock Night LV Night LV REC 00:59 16 17...

  • Page 370: Shooting Indicators ( Info Settings / Info Settings)

    Shooting Indicators ( Info Settings / Info Settings) P A S M B Choose the indicators listed in the live view display. You can display or hide shooting setting indicators. Use this option to choose the icons that appear in the display.

  • Page 371: Configuring

    Configuring Info Settings Select an indicator you wish to display when the INFO button Info Settings Image Only is pressed, and put a check ( ) next to it. Information 1 Information 2 Select an option using and press the OK button to Information 3 put a check ( ) next to it.

  • Page 372: Choosing A Display

    Configuring Info Settings Select an indicator you wish to display when the INFO button Info Settings Image Only is pressed, and put a check ( ) next to it. Information 1 Information 2 Select an option using and press the OK button to put a check ( ) next to it.

  • Page 373: Configuring The Display For When The Shutter Button Is Pressed Halfway

    Configuring the display for when the shutter button is pressed halfway (Info by half- pressing P A S M B You can configure the display for when the shutter button is pressed halfway. Menu MENU 4. Information Info by half-pressing U C U No information is displayed while the shutter button is pressed halfway.

  • Page 374: Viewfinder Info Display Options

    Viewfinder Info Display Options ( Info Settings) P A S M B Choose the information that can be viewed by pressing the INFO button in the viewfinder display. Just as you can with the monitor, you can display a histogram or level gauge in the viewfinder by pressing the INFO button.
  • Page 375 The set that is currently in use cannot be disabled, but the items to be displayed can be configured. Viewfinder Info Display Options ( Info Settings)

  • Page 376: Displaying The Level Gauge When The Shutter Button Is Pressed Halfway ( Q6 Level Gauge)

    Displaying the Level Gauge when the shutter button is pressed halfway ( Level Gauge) P A S M B Choose whether the level gauge can be displayed in the viewfinder by pressing the shutter button halfway when [ Style 1] or Style 2] is selected for [EVF Style] (P.368).

  • Page 377: Framing Guide Options ( Grid Settings / Grid Settings)

    Framing Guide Options ( Grid Settings / Grid Settings) P A S M B Menu MENU 5. Grid/Other Displays Grid Settings U C U MENU 5. Grid/Other Displays Grid Settings U C U Choose the displayed color. Display Color [Preset 1]: The settings of [Color of Preset 1] are used. [Preset 2]: The settings of [Color of Preset 2] are used.
  • Page 378 Viewfinder Framing Grid Options ( Grid Settings) P A S M B Choose whether to display a framing grid in the viewfinder. You can also choose guide color and type. This option takes effect when [ Style 1] or [ Style 2] is selected for [EVF Style] during still photography.

  • Page 379: Choosing The Settings Available Via Multi-Fn (Multi Function Settings)

    Choosing the Settings Available via Multi-Fn (Multi Function Settings) P A S M B Choose the settings that can be accessed via multi-function buttons. Menu MENU 5. Grid/Other Displays Multi Function Settings U C U Select the display type, and put a check ( ) next to it.

  • Page 380: Histogram Exposure Warning (Histogram Settings)

    Histogram Exposure Warning (Histogram Settings) P A S M B Choose the brightness levels that the histogram shows as overexposed (highlights) or underexposed (shadows). These levels are used for exposure warnings in the histogram displays during shooting and photo playback. The areas shown in red or blue in the monitor and viewfinder [Highlight&Shadow] displays are also selected according to the values chosen for this option.

  • Page 381: Settings Related To Operation And Display Of Menus

    Settings related to operation and display of menus Configuring the cursor on the menu screen (Menu Cursor Settings) P A S M B Choose where the cursor will be displayed when you open the menu or move to a different page. Menu MENU 2.

  • Page 382: Choosing How To Move Between Pages With The Rear Dial ( X Loop In Menu Tab)

    Choosing how to move between pages with the rear dial ( Loop in Menu Tab) P A S M B Choose whether to switch the pages only within the same menu tab when the rear dial is turned. Menu MENU 1.

  • Page 383: [Yes]/[No] Default (Priority Set)

    [Yes]/[No] Default (Priority Set) P A S M B Choose the option highlighted by default when a [Yes]/[No] confirmation is displayed. Menu MENU 2. Operations Priority Set U C U [No] is highlighted by default. [Yes] is highlighted by default. [Yes]/[No] Default (Priority Set)

  • Page 384: My Menu" Settings

    “My Menu” Settings My Menu You can use “My Menu” to create a personalized menu tab containing only items you select. “My Menu” can contain up to 5 pages of 7 items each. You can delete items or change the page or item order.
  • Page 385 Press the button. button You will be prompted to choose a page. Use on the Select My Menu to add. Bulb/Time Focusing arrow pad to choose the “My Menu” page to which the item 8min Bulb/Time Timer will be added. Live Composite Timer Bulb/Time Monitor Live Bulb...

  • Page 386: Managing "My Menu

    You can make the camera display “My Menu” first when you press the MENU button.  “Configuring the cursor on the menu screen (Menu Cursor Settings)” (P.381) Managing “My Menu” You can reorder items in “My Menu”, move them between pages, or remove them from “My Menu” altogether.

  • Page 387: Card/Folder/File Settings

    Card/Folder/File Settings Formatting the card (Card Formatting) P A S M B Cards must be formatted with this camera before first use or after being used with other cameras or computers. All data stored on the card, including protected images, is erased when the card is formatted. When formatting a used card, confirm there are no images that you still want to keep on the card.

  • Page 388: Setting The Card To Record To ( K Card Slot Settings / N Card Slot Settings)

    Setting the card to record to ( Card Slot Settings / Card Slot Settings) P A S M B When there are cards in both slots 1 and 2, you can select which card to record still images and movies Super control panel Save Settings Menu...

  • Page 389: Save Settings]

    Configuring [ Save Settings] Pictures are recorded to the memory card in the slot selected for Save Standard Slot] (P.388). Shooting ends when the card is full. Pictures are recorded to the memory card in the slot selected for Save Slot] (P.388).
  • Page 390 Configuring [ Card Slot Settings] Movies are recorded on the card in slot 1. Slot 1 Slot 2 Movies are recorded on the card in slot 2. Setting the card to record to ( Card Slot Settings / Card Slot Settings)

  • Page 391: Specifying A Folder To Save Images In (Assign Save Folder)

    Specifying a folder to save images in (Assign Save Folder) P A S M B Specify the folder on the card in which the images will be saved. Menu MENU 1. Card/Folder/File Assign Save Folder U e U [New Folder]: Specify a 3-digit folder number. 1st digit: [0] –...

  • Page 392: File Naming Options (File Name)

    File Naming Options (File Name) P A S M B Choose how the camera names files when saving photos or movies to memory cards. File names consist of a four-character prefix and a four-digit number. Use this option to choose how file numbers are assigned.

  • Page 393: Naming Files (Edit Filename)

    Naming Files (Edit Filename) P A S M B Change the file names the camera uses when saving photos and movies to memory cards. Menu MENU 1. Card/Folder/File Edit Filename U e U [Date (mdd)]: The 2nd to 4th characters will be made up of the numbers corresponding to the month and day of the recording date (A to C will be used for October to December).

  • Page 394: User Information

    User information Saving lens info (Lens Info Settings) P A S M B The camera can store information for up to 10 lenses that do not conform to the Micro Four Thirds or Four Thirds system standards. These data also supply the focal length used for the image stabilization and keystone compensation features.
  • Page 395 Entering characters Press the INFO button to switch between uppercase, Lens Name 5/31 lowercase and symbols. 1 2 - 4 0 Highlight a character using press the OK FGHI button to enter. The selected character appears in the character entry MENU a A # INFO...

  • Page 396: Output Resolution (Dpi Settings)

    Output Resolution (dpi Settings) P A S M B Choose the output resolution information (in dots per inch, or dpi) stored with photo image files. The selected resolution will be used when the images are printed. The dpi setting is stored as an Exif tag. Menu MENU 2.

  • Page 397: Adding Copyright Information (Copyright Info.)

    Adding Copyright Information (Copyright Info.) P A S M B Choose the copyright information stored with photos when they are saved. Copyright information is stored as Exif tags. Menu MENU 2. Information Record Copyright Info. U e U We will not be held liable for any disputes or damages arising from use of the [Copyright Info.] feature.

  • Page 398: Configuring Copyright Info

    Configuring Copyright Info. Configure options. Copyright Info. Copyright Info. Press to select an item and press the OK button to Artist Name display the setting menu. Copyright Name After configuring options, press the OK button to return to Copyright Info. setting screen. MENU Artist Name Enter the name of the photographer.

  • Page 399: Monitor/Sound/Connection Settings

    Monitor/Sound/Connection Settings Disabling Touch Controls (Touchscreen Settings) P A S M B Enable or disable touch controls. Menu MENU 3. Monitor/Sound/Connection Touchscreen Settings U e U Disable touch controls. Enable touch controls. Disabling Touch Controls (Touchscreen Settings)

  • Page 400: Monitor Brightness And Hue (Monitor Adjust)

    Monitor Brightness and Hue (Monitor Adjust) P A S M B Adjust monitor color temperature and brightness. This option applies in both still photography and movie modes. Menu MENU 3. Monitor/Sound/Connection Monitor Adjust U e U Adjust color temperature. Use the front dial or to adjust the “amber–blue”...

  • Page 401: Viewfinder Brightness And Hue (Evf Adjust)

    Viewfinder Brightness and Hue (EVF Adjust) P A S M B Adjust viewfinder brightness and hue. The display switches to the viewfinder while these settings are being adjusted. Menu MENU 3. Monitor/Sound/Connection EVF Adjust U e U Adjust color temperature. Use the front dial or to adjust the “amber–blue”...

  • Page 402: Configuring The Eye Sensor (Eye Sensor Settings)

    Configuring the eye sensor (Eye Sensor Settings) P A S M B You can specify how the camera operates when you put your eye to the viewfinder. Menu MENU 3. Monitor/Sound/Connection Eye Sensor Settings U e U [Off]: The display does not switch when you put your eye to the viewfinder. To switch the display, press the button.

  • Page 403: Disabling The Focus Beep ( O )

    Disabling the Focus Beep ( P A S M B Disable the beep that sounds when the camera focuses. Menu MENU 3. Monitor/Sound/Connection U e U A beep sounds after successful autofocus operations. The beep sounds only when the camera first focuses using [C-AF].

  • Page 404: External Monitor Display Options (Hdmi Settings)

    External Monitor Display Options (HDMI Settings) P A S M B Choose the signal output to external monitors connected via HDMI. Adjust the frame rate, movie frame size, and other settings according to monitor specifications. Menu MENU 3. Monitor/Sound/Connection HDMI Settings U e U Choose the type of signal output to the HDMI connector.

  • Page 405: Choosing A Usb Connection Mode (Usb Settings)

    Choosing a USB Connection Mode (USB Settings) P A S M B Choose how the camera functions when connected to external devices via USB. Menu MENU 3. Monitor/Sound/Connection USB Settings U e U [Select]: The menu for selecting the connection mode appears each time a USB cable is connected.
  • Page 406 When you connect the camera to a computer via USB while [Storage], [MTP], [Webcam], or RAW/Control] is selected, you can use the camera while powering it. Choosing a USB Connection Mode (USB Settings)

  • Page 407: Battery/Sleep Settings

    Battery/Sleep Settings Displaying Battery Status ( Battery Status) P A S M B View the status of the batteries inserted in the camera. Status of the battery in the camera and of the battery in the power battery holder are displayed individually. Menu MENU 5.

  • Page 408: Setting Which Battery Is Used First Battery Priority)

    Setting which Battery Is Used First Battery Priority) P A S M B Choose which battery to use first when there are batteries in both the camera and the optional power battery holder (P.478). Menu MENU 5. Battery/Sleep Battery Priority U e U Body Battery The battery in the camera is used first.

  • Page 409: Changing The Battery Level Display During Movie Recording ( Nz Display Pattern)

    Changing the battery level display during movie recording ( Display Pattern) P A S M B Choose a format for the battery level display. Battery level can be displayed as a percentage or as the amount of shooting time remaining. The shooting time display is intended as a guide only.

  • Page 410: Dimming The Backlight (Backlit Lcd)

    Dimming the Backlight (Backlit LCD) P A S M B Choose the length of time before the monitor backlight dims when no operations are performed. Dimming the backlight reduces the drain on the battery. Menu MENU 5. Battery/Sleep Backlit LCD U e U 8sec / 30sec / 1min The monitor backlight dims after the specified time.

  • Page 411: Setting Sleep (Power Saving) Options (Sleep)

    Setting Sleep (Power Saving) Options (Sleep) P A S M B Choose the delay before the camera enters sleep mode when no operations are performed. In sleep mode, camera operations are suspended and the monitor turns off. Menu MENU 5. Battery/Sleep Sleep U e U The camera does not enter sleep mode.

  • Page 412: Setting Auto Power Off Options (Auto Power Off)

    Setting Auto Power Off Options (Auto Power Off) P A S M B The camera will turn off automatically if no operations are performed for a set time after it has entered sleep mode. This option is used to choose the delay before the camera turns off automatically. Menu MENU 5.

  • Page 413: Reducing Power Consumption (Quick Sleep Mode)

    Reducing Power Consumption (Quick Sleep Mode) P A S M B Further reduce power consumption during viewfinder photography. The delay before the backlight turns off or the camera enters sleep mode can be shortened. Power saving is not available: during live view photography, while the viewfinder is on, while multiple exposure or interval timer photography is in progress, while connected to an HDMI device, while connecting to a smartphone via Wi-Fi, while connecting to a computer via Wi-Fi or USB, or while Bluetooth is enabled...

  • Page 414: Configuring Quick Sleep Mode

    Configuring Quick Sleep Mode Configure options. Quick Sleep Mode Quick Sleep Mode Press to select an item and press the OK button to Backlit LCD 8sec display the setting menu. Sleep 10sec After configuring options, press the OK button to return to Quick Sleep Mode setting screen.

  • Page 415: Reset/Clock/Language/Others Settings

    Reset/Clock/Language/Others Settings Restoring Default Settings (Reset/Initialize Settings) P A S M B Reset the camera to factory default settings. You can opt to reset almost all settings or only those directly related to photography. Menu MENU 6. Reset/Clock/Language/Others Reset/Initialize Settings U e U Reset Shooting Settings Reset photography-related settings only.

  • Page 416: Setting The Camera Clock ( M Settings)

    Setting the Camera Clock ( Settings) P A S M B Set the camera clock. Menu MENU 6. Reset/Clock/Language/Others Settings U e U Set the date, time, and date format. Use the buttons to highlight items and use the buttons to change the highlighted item. Set the time zone and daylight-saving time.

  • Page 417: Choosing A Language

    Choosing a Language ( P A S M B Choose a language for camera menus and tool tips. Menu MENU 6. Reset/Clock/Language/Others U e U Choosing a Language (...

  • Page 418: Calibrating The Level Gauge (Level Adjust)

    Calibrating the Level Gauge (Level Adjust) P A S M B Correct deviation in the level gauge. Calibrate the gauge if you find it is no longer truly plumb or level. Menu MENU 6. Reset/Clock/Language/Others Level Adjust U e U Reset Reset the gauge to factory default settings.

  • Page 419: Image Processing Check (Pixel Mapping)

    Image Processing Check (Pixel Mapping) P A S M B Check the image sensor and image processing functions simultaneously. For best results, end shooting and playback and wait at least a minute before performing pixel mapping. Be sure to perform the check again if you accidentally turn the camera off while the check is in progress.

  • Page 420: Viewing The Firmware Version (Firmware Version)

    Viewing the Firmware Version (Firmware Version) P A S M B View the versions of the firmware for the camera and any lenses or other peripherals currently connected. You may need this information when contacting customer support or performing firmware updates.

  • Page 421: Viewing Certificates (Certification)

    Viewing Certificates (Certification) P A S M B Display the compliance certificates for some of the standards with which the camera complies. Menu MENU 6. Reset/Clock/Language/Others Certification U e U Viewing Certificates (Certification)

  • Page 422: Connecting The Camera To External Devices

    Connecting the Camera to External Devices Connecting to External Devices A number of tasks can be accomplished by connecting the camera to an external device such as a computer or smartphone. Connecting to External Devices...

  • Page 423: Precautions For Using Wi-Fi And Bluetooth

    ® Precautions for Using Wi-Fi and Bluetooth ® Disable wireless LAN and Bluetooth in countries, regions, or locations in which their use is prohibited. ® The camera is equipped with wireless LAN and Bluetooth . Use of these features in countries outside the region of purchase may violate local wireless regulations.

  • Page 424: Disabling The Camera's Wireless Communication (Airplane Mode)

    Disabling the camera’s wireless communication (Airplane Mode) P A S M B ® Disable the camera’s wireless (Wi-Fi/ Bluetooth ) functions. Menu MENU 4. Wi-Fi/Bluetooth Airplane Mode U e U Wireless communication is enabled. Wireless communication is disabled. You cannot use it until you change the setting to [Off]. appears when you select [On].

  • Page 425: Connecting The Camera To A Smartphone

    Connecting the Camera to a Smartphone Connecting to Smartphones ® Use the camera’s wireless LAN (Wi-Fi) and Bluetooth features to connect to a smartphone, where you can use the dedicated app to enhance your enjoyment of the camera both before and after shooting.

  • Page 426: Pairing The Camera And Smartphone (Wi-Fi Connection)

    Pairing the Camera and Smartphone (Wi-Fi Connection) Follow the steps below when connecting the devices for the first time. Adjust pairing settings using OM Image Share, not the settings app that is part of the smartphone operating system. Launch the copy of the dedicated OM Image Share app previously installed on your smartphone.
  • Page 427 Follow the on-screen instructions in OM Image Share to scan the QR code and adjust connection settings. If you are unable to scan the QR code, follow the on-screen instructions in OM Image Share to adjust settings manually. ® Bluetooth : To connect, select the local name and enter the passcode displayed in the camera monitor into the Bluetooth settings dialog in OM Image Share.

  • Page 428: Wireless Connection Standby Setting For When The Camera Is On (Bluetooth)

    Wireless Connection Standby Setting for When the Camera Is On (Bluetooth) You can choose whether the camera will be on standby for wireless connection with a smartphone or optional remote control when the power is on. Complete the pairing of camera and smartphone or the optional remote control beforehand. [Bluetooth] cannot be selected unless the pairing has been completed.

  • Page 429: Wireless Settings For When The Camera Is Off (Power-Off Standby)

    Wireless Settings for When the Camera Is Off (Power-off Standby) You can choose whether the camera will maintain a wireless connection to the smartphone when off. Menu MENU 4. Wi-Fi/Bluetooth Settings Power-off Standby U e U When you turn the camera off, you will be prompted to choose whether to maintain the Select wireless connection to the smartphone.
  • Page 430 Note that if [On] is selected for [Power-off Standby], camera may not turn on immediately when the ON/OFF lever is rotated to ON. Wireless Settings for When the Camera Is Off (Power-off Standby)

  • Page 431: Transferring Images To A Smartphone

    Transferring images to a smartphone You can select images in the camera and load them to a smartphone. You can also use the camera to select images you want to share in advance.  “Selecting Pictures for Sharing (Share Order)” (P.310) If [Off] or [On ] is selected for [Bluetooth]...

  • Page 432: Automatically Uploading Images While The Camera Is Off

    Automatically uploading images while the camera is off To configure the camera to automatically upload images to a smartphone while off: Mark images for sharing (P.310). Enable power-off standby (P.429). If you are using an iOS device, launch OM Image Share. When you mark an image for sharing on the camera and turn the camera off, a notification appears in OM Image Share.

  • Page 433: Shooting Remotely With A Smartphone (Live View)

    Shooting remotely with a smartphone (Live View) You can shoot remotely by operating the camera with a smartphone while checking the live view on the smartphone screen. The camera shows the connection screen and all operations are performed from the smartphone. If [Off] or [On ] is selected for [Bluetooth]...

  • Page 434: Shooting Remotely With A Smartphone (Remote Shutter)

    Shooting remotely with a smartphone (Remote Shutter) You can shoot remotely by operating the camera with a smartphone (Remote Shutter). All operations are available on the camera. In addition, you can shoot pictures and record movies using the shutter button displayed on the smartphone screen. If [Off] or [On ] is selected for [Bluetooth]...

  • Page 435: Adding Position Information To Images

    Adding position information to images Using the smartphone’s GPS function, you can add position information when taking pictures with the camera. If [Off] or [On ] is selected for [Bluetooth] (P.428), select [On Selecting [On ] for [Bluetooth] (P.428) puts the camera on standby, ready for a wireless connection.

  • Page 436: Resetting Smartphone Connection Settings (Reset Q Settings)

    Resetting smartphone connection settings (Reset Settings) You can restore smartphone connection settings to default values. Menu MENU 4. Wi-Fi/Bluetooth Settings Reset Settings U e U The following menu items will be reset. Connection Password] (P.437) [Power-off Standby] (P.429) Before connecting to a smartphone, you will need to pair the devices again (P.426). Resetting smartphone connection settings (Reset Settings)

  • Page 437: Changing The Password ( Q Connection Password)

    Changing the password ( Connection Password) ® To change the Wi-Fi/Bluetooth passwords: Menu MENU 4. Wi-Fi/Bluetooth Settings Connection Password U e U Press the button as directed by the on-screen guide. A new password will be set. ® Both the Wi-Fi connection password and Bluetooth connection passcode can be changed.

  • Page 438: Connecting To Computers Via Wi-Fi

    Connecting to Computers via Wi‑Fi Installing Software Use OM Capture to connect the camera and computer via Wi-Fi. OM Capture Use “OM Capture” to automatically download and view pictures as they are taken or control the camera remotely. To learn more or to download the software, visit our website. When downloading the software, be prepared to provide the camera serial number.

  • Page 439: Pairing The Computer With The Camera (New Link)

    Pairing the Computer with the Camera (New Link) The camera and computer must be paired in order to connect. Up to four computers can be paired with the camera at a time. To pair a computer with the camera, connect it via USB. Pairing need only be performed once per computer.
  • Page 440 Highlight [ RAW/Control] using the buttons and press the OK button. Storage Webcam 0RAW/Control USB PD Exit Launch the copy of OM Capture installed on the computer. After starting up, “OM Capture” will prompt you to choose the connection type. Click the [+] to the right of [Create new link].

  • Page 441: Adjusting Wi-Fi Settings (Wi-Fi Connection)

    Adjusting Wi-Fi Settings (Wi-Fi Connection) Adjust settings for connection to the network to which the paired computer belongs. Before the camera can connect to the computer via Wi-Fi, it must be configured for connection to the network via the Wi-Fi router or access point. Multiple network profiles can be stored on the camera and recalled as desired.

  • Page 442: Enabling Camera Wi-Fi

    Enabling Camera Wi-Fi Before connecting to a network via Wi-Fi, you will need to enable Wi-Fi on the camera. If [Airplane Mode] (P.424) is set to [On], set it to [Off]. Connecting via WPS (Connect by WPS) Connect using the WPS feature on the router or access point. Menu MENU 4.
  • Page 443 If the connection fails, the camera will display a message to 100 % 100 % that effect, followed by the options shown in Step 3. Remove and reinsert the memory card. Connection failed Press the OK button to exit to the shooting display. The camera will return to the standard shooting display.

  • Page 444: Connecting Manually (Connect Manually)

    Connecting Manually (Connect manually) Adjust network settings manually. Menu MENU 4. Wi-Fi/Bluetooth Wi-Fi Connection U e U SSID The network name (SSID). Authentication The type of security used on the network. Password The password for connection to a secured network. Choose whether the camera IP address is assigned automatically by the IP Address Assign network DHCP server.
  • Page 445 Highlight options using the buttons and press the OK button. Options for the selected item will be displayed. SSID Enter the network SSID. Select the type of security used on the network. Choose from [None], Authentication [WPA2/WPA3] and [WPA3]. If you selected [WPA2/WPA3] or [WPA3] for [Authentication], enter Password the network password.
  • Page 446 If the camera is able to connect, the network will be displayed PC Connection SSID_001 with a check ( ) next to the network name. Connect by WPS Connect manually MENU If the camera has been paired with more than one computer, you will be prompted to choose a computer before the network is displayed.

  • Page 447: Choosing A Network From A List (Connect From List)

    Choosing a Network from a List (Connect from List) The camera will search for available networks and display them in a list from which you can choose the network to which you wish to connect. Menu MENU 4. Wi-Fi/Bluetooth Wi-Fi Connection U e U Highlight [PC Connection] using the buttons and press the OK button.

  • Page 448: Displaying The Mac Address / Resetting Wi-Fi Settings For Pc Connection (Wi-Fi Pc Settings)

    Press the OK button to exit to the shooting display. The camera will return to the standard shooting display. 1023 1023 [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 60p L - 8 L - 8 100 % 100 % S - AF...

  • Page 449: Uploading Pictures As They Are Taken

    Uploading Pictures as They Are Taken Take pictures and upload them to a computer on the same network as the camera. You can take pictures using the controls on the camera body or while controlling the camera remotely from the computer. Before proceeding, connect the camera and computer as described in “Pairing the Computer with the Camera (New Link)”...
  • Page 450 The computer cannot be used to change the camera shooting mode. The frame rate on the camera display may drop if the view through the camera lens is displayed simultaneously both on the computer and in the camera monitor. The camera will upload only photos taken while the camera and computer are connected. Photos taken while the camera is disconnected from the computer will not be uploaded.

  • Page 451: Ending The Connection

    Ending the Connection End the Wi-Fi connection. The use of Wi-Fi may be prohibited in some countries or regions, in which case Wi-Fi should be disabled. Ending the Current Connection in the camera monitor. 1023 1023 [ 1 : 02 : 03 ] [ 1 : 02 : 03 ] 60p L - 8 L - 8 100 %...

  • Page 452: Disabling Wi-Fi/Bluetooth

    If you turn the camera off while upload is in progress, you will be prompted to choose whether to power the camera down and terminate the Wi-Fi connection immediately or to power the camera down only after upload is complete. ®...

  • Page 453: Using The Remote Control

    Using the Remote Control Names of parts RM-WR1 (optional) Shutter button Data transfer indicator Shutter button lock Mode dial ( / CONNECT) Cable connector Battery-compartment lid Battery compartment cover Strap eyelet Names of parts...

  • Page 454: Connection

    Connection Wired connection Rotate the mode dial of the remote control to and connect the remote control to the camera via the supplied cable. Photographs can be taken by pressing the shutter button. Before recording movies, select [ REC] for [ Shutter Function].

  • Page 455: Wireless Connection

    Wireless connection For wireless connection, you must pair the camera and the remote control first. Menu MENU 4. Wi-Fi/Bluetooth Wireless Shutter Setting U e U Follow the on-screen instructions. When pairing is complete, [Bluetooth] will be Start Pairing set to [On Delete Pairing If you select [Yes] and press the OK button, the paired device will be deleted.

  • Page 456: Deleting Pairing

    When a message indicating pairing is complete is displayed, Wireless Shutter Setting press the OK button. Pairing is complete. Bluetooth setting is changed to On AA:BB:CC:DD:EE:FF The data transfer indicator goes out when pairing is complete. [Bluetooth] (P.428) will automatically be set to [On ] when pairing is complete.

  • Page 457: Shooting From The Remote Control

    Shooting from the remote control P A S M B Before establishing a wireless connection between the camera and remote control, confirm that ] is selected for [Bluetooth] (P.428). When set to [On appears in the display and the camera will be on standby for wireless communication with the remote control as soon as it is turned Rotate the mode dial of the remote control to Press the shutter button on the remote control to take pictures.

  • Page 458: Data Transfer Indicator Of The Remote Control

    Data transfer indicator of the remote control Lights once Remote control operation is sent to the camera correctly. Remote control operation is not sent to the camera correctly. Shorten the Flashes rapidly distance between the camera and the remote control. If the problem is not (1 second) solved, check the setting of the camera.

  • Page 459: Mac Address Of The Remote Control

    MAC address of the remote control The MAC address of the remote control is printed on the warranty card provided with the remote control. MAC address of the remote control...

  • Page 460: Precautions For Using The Remote Control

    Precautions for using the remote control Do not tug on the battery-compartment cover or use it to turn the battery-compartment lid. Do not pierce batteries with sharp objects. Do not drop or swing the remote control while holding the cable. Moisture on the cable or remote control connectors could interfere with wireless control and render wired connections unreliable.

  • Page 461: Connecting To Computers Via Usb

    Connecting to Computers via USB Installing Software Install the following software to access the camera while it is connected directly to the computer via USB. OM Capture Use “OM Capture” to automatically download and view pictures as they are taken or control the camera remotely.

  • Page 462: Uploading Pictures As They Are Taken ( Raw/Control)

    Uploading Pictures as They Are Taken RAW/Control) P A S M B Connect the camera to a computer via USB to upload pictures as they are taken. You can take pictures using the controls on the camera body or while controlling the camera remotely from the computer. After confirming that the camera is off, connect it to the computer using the USB cable.
  • Page 463 Highlight [ RAW/Control] using the buttons and press the OK button. Storage Webcam 0RAW/Control USB PD Exit Launch the copy of “OM Capture” installed on the computer. When prompted to choose the connection type, click [USB Connection]. [USB Connection] Configure OM Capture for download. Choose a destination for the downloaded pictures.

  • Page 464: Connecting The Camera For High-Speed Raw Processing ( Raw/Control)

    Launch the copy of OM Workspace installed on the computer. Choose the picture to be processed. Only the pictures that were taken using the following cameras. OM-1 Mark II/OM-1 (as of January 2024) You can not choose pictures on the SD card in the connected camera. Process RAW images.

  • Page 465: Copying Pictures To The Computer (Storage/Mtp)

    Copying Pictures to the Computer (Storage/ MTP) When connected to a computer, the camera can function as external storage in much the same way as a hard drive or other external storage device. Data can be copied from the camera to the computer. After confirming that the camera is off, connect it to the computer using the USB cable.

  • Page 466: Using The Camera As A Webcam (Webcam)

    Using the Camera as a Webcam (Webcam) The camera can be connected to a computer and used as a webcam for online meetings and live streaming. No additional drivers or applications are necessary. Video and audio data captured by the camera is streamed to the computer by simply connecting the two devices via USB (USB streaming).
  • Page 467 Video and audio cannot be streamed to the computer if: an option other than is selected for shooting mode, or the playback screen or menu screen are being displayed. Depending on the application you are using, performing these operations may temporarily disrupt video and audio streaming.

  • Page 468: Powering The Camera Via Usb (Usb Pd)

    Powering the Camera via USB (USB PD) Mobile batteries or USB AC adapters conforming to the USB Power Delivery (USB PD) standard can be used to power the camera. The device must: Standard: Conform to the USB Power Delivery (USB PD) standard Output: Be rated for an output of 27 W (9 V 3 A, 15 V 2 A, or 15 V 3 A) or more After confirming that the camera is off, use the USB cable to connect it to the device.

  • Page 469: Connecting To Tvs Or External Displays Via Hdmi

    Connecting to TVs or External Displays via HDMI Connecting the Camera to TVs or External Displays (HDMI) Pictures can be displayed on televisions connected to the camera via HDMI. Use the television to display pictures to an audience. The TV remote can be used to control the display while the television is connected to the camera.

  • Page 470: Viewing Pictures On A Tv (Hdmi)

    Viewing Pictures on a TV (HDMI) Photos and movies can be viewed on a high-definition TV connected directly to the camera by means of an HDMI cable. For information on output signal setting, see “External Monitor Display Options (HDMI Settings)” (P.404).

  • Page 471: Cautions

    Cautions Information about Dust and Water-resistant Features This camera has a water-resistant specification of IPX3 (when used in combination with an IPX3 or higher water-resistant lens supplied by our company). This camera has a dust resistant specification of IP5X (under our company’s test conditions). Precautions Dust and water-resistant capabilities may be lost when the camera is subjected to shock.

  • Page 472: Batteries

    Batteries The camera uses our lithium-ion battery. Never use any battery other than our genuine batteries. The camera’s power consumption varies widely with usage and other conditions. As the following consume a lot of power even without shooting, the battery will be drained quickly. Performing auto focus repeatedly by pressing the shutter button halfway in shooting mode.

  • Page 473: Using Your Usb-Ac Adapter Abroad

    Using your USB-AC adapter abroad The USB-AC adapter can be used in most home electrical sources within the range of 100 V to 240 V AC (50/60 Hz) around the world. However, depending on the country or area you are in, the AC wall outlet may be shaped differently and the USB-AC adapter may require a plug adapter to match the wall outlet.

  • Page 474: Information

    Information Interchangeable lenses Choose a lens according to the scene and your creative intent. Use lenses designed exclusively for the Micro Four Thirds system and bearing the M.ZUIKO DIGITAL label or the symbol shown. With an adapter, you can also use Four Thirds System lenses. The optional adapter is required.

  • Page 475: Mf Clutch Lenses

    MF Clutch Lenses The “MF clutch” (manual focus clutch) mechanism on MF clutch lenses can be used to switch between auto and manual focus simply by repositioning the focus ring. Check the position of the MF clutch before shooting. Sliding the focus ring to the AF/MF position at the end of the lens selects autofocus, while sliding it to the MF position closer to the camera body selects manual focus, regardless of the focus mode chosen with the camera.

  • Page 476: Monitor Display When Using A Lens Equipped With The Set/Call Function

    Monitor display when using a lens equipped with the SET/CALL function The camera monitor displays “ Set” when the focus position is saved using the SET option and “ Call” when a saved focus position is restored using the CALL option. For more information on SET and CALL, see the lens manual.

  • Page 477: Optional Accessories

    Optional Accessories Using the charger (BCX-1) Two batteries can be inserted. It can also be used with only one battery inserted. Charge the battery. 100% Lithium ion battery (BLX-1) USB cable (CB-USB13: supplied) USB-AC adapter (F-7AC: supplied) Direction indicating mark ( AC wall outlet Lithium-ion charger Charging indicators...

  • Page 478: Hld-10 Power Battery Holder

    HLD-10 Power Battery Holder An optional HLD-10 battery holder can be used to power the camera for extended periods. Make sure to turn the camera off when attaching and removing the holder. Part names Terminal cover AF-ON button Attachment wheel (Exposure compensation) button Multi selector Shutter button...
  • Page 479 Inserting the battery Use BLX-1 battery. Once you load the battery, make sure to lock the battery cover. Direction indicating mark The monitor battery-level indicator (P.39) shows “PBH” when the camera is powered by the battery in the HLD-10. 2024.01 Charging the battery in the power battery holder To charge the battery in the power battery holder, load a battery in the holder and attach the holder to the camera;...

  • Page 480: Notes On Using This Product

    Notes on using this product Use only the designated battery. Failure to do so could result in injury, damage to the product, and fire. Do not use your nail to turn the attachment wheel. Doing so could result in injury. Only use the camera within the guaranteed operating temperature range.
  • Page 481 Features Available with Compatible Flash Units FL-700WR TTL-AUTO, MANUAL, FP TTL AUTO, FP MANUAL, MULTI, RC, SL Flash control mode MANUAL  1 GN (Guide Number, GN 42 (75/150 mm  1 ISO 100) GN 21 (12/24 mm Supported wireless CMD, CMD, RCV, X-RCV, RC systems FL-900R TTL-AUTO, AUTO, MANUAL, FP TTL AUTO, FP MANUAL, MULTI, RC, Flash control mode SL AUTO, SL MANUAL  1...

  • Page 482: Wireless Remote Control Flash Photography

    Maximum lens focal length at which the unit can provide flash coverage (figures following slashes are 35 mm format equivalent focal lengths). Functions as commander (transmitter) only. Wireless remote control flash photography P A S M B Wireless flash photography is available with compatible flash units that support wireless remote control (RC).
  • Page 483 Adjust flash settings. Highlight items using the buttons and rotate the front dial to choose settings. FGHI Group, flash control mode A Mode Flash compensation Auto Optical signal strength ± Small Channel WB Auto Flash mode ± ± 1:02:03 1023 Choose a group.
  • Page 484 Setting up the flash Set the remote flash units to RC mode. Turn the external flash units on, press the MODE button, and select RC mode. Set up the group to control with the dedicated external flash and configure their communication channels so that they match the camera settings.

  • Page 485: Other External Flash Units

    Other external flash units Third-party flash units can be mounted on the hot shoe or connected via a sync cable. Be sure to replace the cap on the external flash connector when it is not in use. Note the following when using a third-party flash unit mounted on the camera hot shoe: Using obsolete flash units that apply currents of more than about 250 V to the X-contact will damage the camera.

  • Page 486: Principal Accessories

    Principal Accessories Converter lenses Converter lenses attach to the camera lens for quick and easy fish-eye or macro photography. See our website for information on the lenses that can be used. Eyecup (EP-18) Removal Push both levers inward and lift the eyecup. Cable Clip (CC-1) / Cable Protector (CP-2) When attaching the USB cable, using an optional cable protector and cable clip helps prevent damage to the connectors and disconnection of the table.
  • Page 487 Tighten the screw. Clip the cable clip to the cable and attach the clip to the strap. The clip attaches to the buckle. Optional Accessories...

  • Page 488: Accessories

    Accessories For the latest information, please visit our website. Power supply Lithium-ion charger USB-AC adapter Lithium-ion battery BCX-1 F-7AC BLX-1 Power Battery Holder HLD-10 Viewfinder Eyecup EP-18 Accessories...
  • Page 489 Remote control/release Remote control RM-WR1 Cable clip/cable protector Cable clip Cable protector CC-1 CP-2 Accessories...
  • Page 490 Lens Micro Four Thirds system lenses Four Thirds system lenses An MMF-2 or MMF-3 Four Thirds Adapter is required to use Four Thirds System lenses with this camera. There are restrictions on the lenses that can be used with the adapter.
  • Page 491 Flash Mode Electronic Flash Electronic Flash Electronic Flash FL-LM3 FL-900R FL-700WR Macro Flash Wireless Radiowave Commander Wireless Radiowave Receiver STF-8 FC-WR FR-WR Case/Strap Camera Case Shoulder Strap Connection Cable USB Cable HDMI Cable (HDMI cables are available from third-party suppliers.) Memory Card SDHC SDXC...
  • Page 492 Software Photo management/editing software for computers OM Workspace Camera control software for computers OM Capture Smartphone app OM Image Share Accessories...

  • Page 493: Cleaning And Storing The Camera

    Cleaning and storing the camera Cleaning the camera Turn off the camera and remove the battery before cleaning the camera. Do not use strong solvents such as benzene or alcohol, or a chemically treated cloth. Exterior: Wipe gently with a soft cloth. If the camera is very dirty, soak the cloth in mild soapy water and wring well.

  • Page 494: Inspecting And Cleaning The Image Sensor

    Inspecting and Cleaning the Image Sensor This camera incorporates a dust reduction function to keep dust from getting on the image sensor and to remove any dust or dirt from the image sensor surface with ultrasonic vibrations. The dust reduction function operates when the camera is turned on.

  • Page 495: Shooting Tips And Information

    Shooting tips and information The camera does not turn on even when a battery is loaded The battery is not fully charged Charge the battery using a USB-AC adapter or battery charger. The battery is temporarily unable to function because of the cold Battery performance drops at low temperatures.

  • Page 496: The Number Of Af Targets Is Reduced

    If no operations are performed for a set time after the camera has entered sleep mode, the camera will turn off automatically.  [Auto Power Off] (P.412) The flash is charging On the monitor, the mark blinks when charging is in progress. Wait for the blinking to stop, then press the shutter button.

  • Page 497: The Date And Time Has Not Been Set

    The date and time has not been set The camera is used with the settings at the time of purchase The date and time of the camera is not set when purchased. Set the date and time before using the camera.

  • Page 498: Functions That Cannot Be Selected From Menus

    Functions that cannot be selected from menus When you open the menu, items that cannot be set are displayed in gray. When you press the OK button while a gray item is highlighted, the reason it is not available is displayed. Refer to the on-screen instructions and check the settings.

  • Page 499: Only The Subject Is Displayed And No Information Is Shown

    Only the subject is displayed and no information is shown The display has been switched to “Image Only”. Press the INFO button and switch to another display mode.  “Switching the information display” (P.49) Focus mode cannot be changed from MF (manual focus) The lens you are using may be equipped with the MF clutch mechanism.

  • Page 500: Error Codes

    Error codes Monitor indication Possible cause/Corrective action The card is not inserted, or it cannot be recognized. Insert a card. Or reinsert the card properly. No Card There is a problem with the memory card in Slot 1. Remove and reinsert the memory card. If this does not solve the problem, format the card.
  • Page 501 Monitor indication Possible cause/Corrective action There is not enough space on the memory card to record additional pictures. Insert another memory or delete pictures. Before deleting pictures, be sure any pictures you wish to keep have been Card Full copied to a computer. Choose a different option in Card Slot Settings] (P.388).
  • Page 502 Monitor indication Possible cause/Corrective action The Image Camera retouch features cannot be applied to pictures recorded with Cannot Be Edited other devices. Retouch the picture on a computer or other devices. The Image Cannot Be Edited The clock is not set. Y/M/D Set the clock (P.416).
  • Page 503 Monitor indication Possible cause/Corrective action An abnormality has occurred between the camera and the lens. Please check the Turn off the camera, check the connection with the lens, and turn the power status of a lens. on again. Error codes...

  • Page 504: Specifications

    Specifications Camera Product type Digital camera with interchangeable Micro Four Thirds Standard Product type lens system Lens M.ZUIKO DIGITAL, Micro Four Thirds System Lens Lens mount Micro Four Thirds mount Equivalent focal length on a Approx. twice the focal length of the lens 35 mm film camera Image sensor Product type...
  • Page 505 Live view Sensor Uses Live MOS sensor Magnification 100% Monitor Product type 3.0” TFT color LCD, Vari-angle, touch screen Total no. of pixels Approx. 1.62 million dots (aspect ratio 3:2) Shutter Product type Computerized focal-plane shutter Shutter Speed 1/8000 – 60 sec., bulb photography, time photography Flash sync speed 1/250 s or slower Auto focus...
  • Page 506 White balance Auto/Preset WB (7 settings)/Customized WB/One-touch WB Mode setting (camera can store up to 4 settings) Recording SD, SDHC and SDXC Memory UHS-II compatible Recording system Digital recording, JPEG (DCF2.0), RAW Data Compatible standard Exif 2.31, Digital Print Order Format (DPOF) Sound with still pictures Wave format Movie recording mode...
  • Page 507 External flash Flash control mode TTL-AUTO (TTL pre-flash mode)/MANUAL X-Sync. 1/250 s or slower Wireless LAN IEEE 802.11a/b/g/n/ac * Compatible standard Note that cameras have been developed in line with the different standards of the countries. ® Bluetooth Compatible standard Bluetooth Version 4.2 BLE Frequency range (center 2402 –...

  • Page 508: Lithium-Ion Battery

    Operating environment −10 °C – 40 °C (14 °F – 104 °F) (operation)/ −20 °C – 60 °C (−4 °F – Temperature 140 °F) (storage) Humidity 30% – 90% (operation)/ 10% – 90% (storage) IEC Standard publication 60529 IPX3 (applies if camera is used with Water resistance our IPX3 or higher water-resistant lens) Lithium-ion battery MODEL NO.
  • Page 509 The appearance and specifications of this product are subject to change without notice or obligation on the part of the manufacturer. Visit our website for the latest specifications. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

  • Page 510: Default Settings

    Default Settings Default Settings Super Control/LV Super Control Panel (P.511) Tab (P.516) Tab (P.524) AF Tab (P.529) Tab (P.535) Tab (P.539) Tab (P.541) Tab (P.549) Default Settings...

  • Page 511: Super Control/Lv Super Control Panel

    Super Control/LV Super Control Panel *1: Can be added to [Assign]. *2: Default can be restored by selecting [Initialize All Settings]. *3: Default can be restored by selecting [Reset Shooting Settings]. Shooting Mode: Role Default role Shooting Mode — — —...
  • Page 512 Role Default role Flash Exposure Comp. ±0.0 Manual Value Full (When flash is set to [ Manual]) Drive Metering Aspect S-IS Auto Image Stabilizer Standard — Card Slot Settings F (when High Res Shot is set: F+RAW) F (when High Res Shot is set: F+RAW) 60p L-8 Super Control/LV Super Control Panel...
  • Page 513 Shooting Mode: (movie) Role Default role — — Mode Shutter Speed 1/250 s — Aperture Value F5.6 — ISO Auto — — AF Target Mode Middle Exposure Comp. / Exposure Comp. ±0.0   All ±0.0 Wi-Fi/Bluetooth — — — — Picture Mode Natural WB Auto...
  • Page 514 Shooting Mode: RC Mode Role Default role Shooting Mode — — — Shutter Speed 1/250 s (When set to ), Bulb (When set to Aperture Value F5.6 ISO Auto AF Target Mode Small Exposure Comp. / Exposure Comp. ±0.0   All ±0.0 Wi-Fi/Bluetooth —...
  • Page 515 Role Default role optical signal strength Channel Super Control/LV Super Control Panel...

  • Page 516: Tab

    *1: Can be added to [Assign]. *2: Default can be restored by selecting [Initialize All Settings]. *3: Default can be restored by selecting [Reset Shooting Settings]. 1. Basic Settings/Image Quality Role Default role Custom Mode Recall — — — — Shooting Mode: Assign —...
  • Page 517 Role Default role Detailed Settings Pixel Count: — Compression: SF Pixel Count: — Compression: F   Pixel Count: — Compression: N Pixel Count: — Compression: N Image Aspect Image Review — Shading Comp. 2. Picture Mode/WB Role Default role Picture Mode Natural ―...
  • Page 518 Role Default role Color Space sRGB 3. ISO/Noise Reduction Role Default role ISO-A Upper/Default Upper Limit 25600   Default Auto ISO-A Lowest S/S P/A/S/M ― ISO-Auto ISO Step 1/3EV Standard Noise Filter Low ISO Processing Drive Priority Noise Reduction Auto 4.
  • Page 519 5. Metering Role Default role Metering Auto Metering during Auto Reset S-AF Only AEL by half-pressing Metering during Spot Metering All items: 6. Flash Role Default role RC Mode 1/250sec X-Sync. 1/60sec Slow Limit Balanced Flash Metering Flash Mode Settings Reduce Red-eye  ...
  • Page 520 Role Default role Anti-Flicker Shooting Sequential Shooting Settings — Max fps 10fps     Frame Count Limiter —   Max fps 20fps   Frame Count Limiter —   Max fps 120fps   Frame Count Limiter —   Max fps 50fps  ...
  • Page 521 Role Default role ProCap SH1 — Max fps 120fps     Pre-shutter Frames Frame Count Limiter ProCap SH2 — Max fps 50fps     Pre-shutter Frames Frame Count Limiter Self-timer Settings — — (without   — — — Number of Frames  ...
  • Page 522 Role Default role — (without Number of Frames   1sec Timer   Interval Length 0.5sec Every Frame AF Anti-Shock Settings — Anti-Shock   Waiting Time 0sec — Silent Settings Waiting Time 0sec — Noise Reduction —   Not Allow — AF Illuminator Not Allow —...
  • Page 523 Role Default role Lens I.S. Priority...

  • Page 524: Tab

    *1: Can be added to [Assign]. *2: Default can be restored by selecting [Initialize All Settings]. *3: Default can be restored by selecting [Reset Shooting Settings]. 1. Computational Modes Role Default role High Res Shot High Res Shot F+RAW   12bit —...
  • Page 525 Role Default role Focus Stacking Focus Stacking Set number of shots —   Set focus differential — 0sec — Charge Time Multiple Exposure Multiple Exposure —   Auto Gain — Overlay — 2. Other Shooting Functions Role Default role Digital Tele-converter...
  • Page 526 Role Default role Interval Shooting Interval Shooting — Number of Frames Start Waiting Time 00:00:01 Interval Length 00:00:01 Interval Mode Time Priority   Exposure Smoothing Time Lapse Movie Movie Settings Movie Resolution FullHD   Frame Rate 10fps Keystone Comp. Fisheye Compensation Fisheye Compensation  ...
  • Page 527 Role Default role BULB/TIME/COMP Settings Bulb/Time Focusing Bulb/Time Timer 8min Live Composite Timer   Bulb/Time Monitor — Live Bulb — Live Time 0.5sec — Composite Settings 1/2sec — 3. Bracketing Role Default role AE BKT WB BKT   FL BKT ISO BKT ART BKT ART BKT...
  • Page 528 Role Default role Focus BKT Focus BKT Set number of shots   Set focus differential 0sec Charge Time...

  • Page 529: Af Tab

    AF Tab *1: Can be added to [Assign]. *2: Default can be restored by selecting [Initialize All Settings]. *3: Default can be restored by selecting [Reset Shooting Settings]. 1. AF Role Default role S-AF AF Mode AF+MF Starry Sky AF Setting AF Priority Speed  ...
  • Page 530 2. AF Role Default role Subject Detection ― C-AF Setting ― C-AF Area   ― C-AF Area AF Button Priority   Priority Eye Detection Frame ― 3. AF Role Default role AF Illuminator AF Area Pointer 4. AF Role Default role ±0 C-AF Sensitivity AF Tab...
  • Page 531 Role Default role C-AF Center Priority Cross Large   (without (without (without (without AF Limiter AF Limiter Distance for On1 5.0 - 999.9m   Distance for On2 10.0 - 999.9m Distance for On3 50.0 - 999.9m Release Priority AF Scanner AF Focus Adjustment AF Focus Adjustment ―...
  • Page 532 5. Movie AF Role Default role C-AF AF Mode ±0 C-AF Speed ±0 C-AF Sensitivity 6. AF Target Settings & Operations Role Default role AF Target Mode Settings ― ― Single ― Cross ―   Large ― ― (without ― (without ―...
  • Page 533 Role Default role Set Home AF Target Mode All)   AF Target Point Select Screen Settings dial Mode   button Loop Settings Loop Selection   AF Targeting Pad 7. MF Role Default role MF Assist Magnify ―   Peaking ― Focus Indicator ―...
  • Page 534 Role Default role Preset MF distance 999.9m MF Clutch Operative Focus Ring ― Reset Lens ― AF Tab...

  • Page 535: Tab

    *1: Can be added to [Assign]. *2: Default can be restored by selecting [Initialize All Settings]. *3: Default can be restored by selecting [Reset Shooting Settings]. 1. Basic Settings/Image Quality Role Default role H.264 Video Codec 60p L-8 ― ― Mode ―...
  • Page 536 3. ISO/Noise Reduction Role Default role ISO-A Upper/Default Upper Limit 12800 ―   Default ― ― ― ISO-Auto Standard ― Noise Filter 4. Image Stabilizer Role Default role M-IS1 ― Image Stabilizer ±0 ― IS Level...
  • Page 537 5. Sound Recording/Connection Role Default role Sound Recording Settings Recording Volume ±0 ― ― Built-In   ±0 ― ― ― ― Volume Limiter   Wind Noise Reduction ― ― Recording Rate 48kHz/16bit ― ― ― ― Plug-in Power Camera Rec. Volume Operative ―...
  • Page 538 6. Shooting Assist Role Default role Center Marker ― ― Zebra Pattern Settings Zebra Pattern Settings ― ―   ― ― Level 1 ― ― Level 2 ― ― Red Frame during...

  • Page 539: Tab

    *1: Can be added to [Assign]. *2: Default can be restored by selecting [Initialize All Settings]. *3: Default can be restored by selecting [Reset Shooting Settings]. 1. File Role Default role ― ― ― ― Reset All Images ― ― ―...
  • Page 540 Role Default role ― ― Info Settings All items: ― ― 25] and [Calendar]: Settings Rating Settings ― ― All items:...

  • Page 541: C Tab

    *1: Can be added to [Assign]. *2: Default can be restored by selecting [Initialize All Settings]. *3: Default can be restored by selecting [Reset Shooting Settings]. 1. Operations Role Default role Button Settings Button Function   Exposure Comp. —    ...
  • Page 542 Role Default role     AF-ON —     AF Stop — Button Function   Exposure Comp. — —       — —     — —   AF-ON — —     — —     — — View Selection  ...
  • Page 543 Role Default role   — — Menu operation by Dial Settings   Dial Function : Exposure Comp. Lever 1 — : Ps     : ISO Lever 2 — : WB : Exposure Comp. Lever 1 — : Aperture Value  ...
  • Page 544 Role Default role : Exposure Comp. Lever 1 — — : Aperture Value     Lever 2 — — : Exposure Comp. Lever 1 — — : Shutter Speed     Lever 2 — — : Aperture Value Lever 1 —...
  • Page 545 Role Default role Electronic Zoom Settings Normal — Elec. Zoom Speed   Normal — — Elec. Zoom Speed — Lock 2. Operations Role Default role LV Close Up Mode mode2 ― ― Lock Priority Set ― ― Menu Cursor Settings Page Cursor Position Reset ―...
  • Page 546 Role Default role 0.7sec ―   Reset   0.7sec ― Reset   0.7sec ― Reset   Call EVF Auto Switch 0.7sec ―   0.7sec ―   0.7sec ― Reset   0.7sec ― Switch Lock   End Flicker Scan 0.7sec ―  ...
  • Page 547 Role Default role Anti-Flicker LV ― Selfie Assist ― ― 4. Information Role Default role EVF Style ― ― Style 2 [Image Only], [Information 1] and [Information 2]: ― Info Settings ― Info by half-pressing [Image Only], [Information 1] and [Information 2]: ―...
  • Page 548 Role Default role Grid Settings ― Exclusive for Display Color Preset 1 ― Displayed Grid ―   R/G/B: 38 Color of Preset 1 ― α: 75% R: 180 Color of Preset 2 G/B: 0 ― α: 75% Grid Settings ― ―...

  • Page 549: Tab

    *1: Can be added to [Assign]. *2: Default can be restored by selecting [Initialize All Settings]. *3: Default can be restored by selecting [Reset Shooting Settings]. 1. Card/Folder/File Role Default role Card Formatting ― ― ― ― Card Slot Settings Standard ―...
  • Page 550 Role Default role Copyright Info. Copyright Info. ―   Artist Name ― ― ― ― Copyright Name ― ― ― ― 3. Monitor/Sound/Connection Role Default role Touchscreen Settings ― ― Monitor Adjust ±0 ― (Brightness)   A0, G0 ― (Color temperature) EVF Adjust Auto ―...
  • Page 551 Role Default role USB Settings USB Mode Select ― ―   Power Supply from USB ― ― 4. Wi-Fi/Bluetooth Role Default role Airplane Mode ― ― Bluetooth ― ― Wireless Shutter Setting ― ― ― ― Wi-Fi Connection ― ― ―...
  • Page 552 Role Default role ― ― Display Pattern Backlit LCD Hold ― Sleep 1min ― Auto Power Off ― Quick Sleep Mode Quick Sleep Mode ―   Backlit LCD 8sec ― Sleep 10sec ― 6. Reset/Clock/Language/Others Role Default role Reset/Initialize All Settings Reset Shooting Settings ―...

  • Page 553: Memory Card Capacity

    Memory Card Capacity Memory Card Capacity: Photos Figures are for a 64 GB SDXC card used to record photos with an aspect ratio of 4:3. Number of Record Image size Compression File File size (MB) storable still mode (Pixel count) ratio format (approx.) pictures...
  • Page 554 Number of Record Image size Compression File File size (MB) storable still mode (Pixel count) ratio format (approx.) pictures (Tripod) Loss-less 10368 × 7776 compression (Tripod) (Tripod) 10368 × 7776 JPEG +RAW 197.0 (14bit) Loss-less 5184 × 3888 compression (Tripod) 10368 × 7776 Loss-less compression (Tripod) (Tripod)
  • Page 555 Number of Record Image size Compression File File size (MB) storable still mode (Pixel count) ratio format (approx.) pictures Loss-less 22.4 2727 compression 1/2.7 13.4 4103 5184 × 3888 JPEG 5954 11355 1/2.7 10172 3200 × 2400 JPEG 14360 24413 1/2.7 24413 1920 ×...

  • Page 556: Memory Card Capacity: Movies

    Memory Card Capacity: Movies Figures are for a 64 GB SDXC memory card. Capacity (approx.) Movie Motion Playback Video Video Resolution Compensation Frame Rate Codec]: Codec]: Set to [H.264] Set to [H.265] 59.94p 41 minutes 54 minutes 50.00p 41 minutes 54 minutes 29.97p 80 minutes 105 minutes —...
  • Page 557 Capacity (approx.) Movie Motion Playback Video Video Resolution Compensation Frame Rate Codec]: Codec]: Set to [H.264] Set to [H.265] 59.94p — 51 minutes 50.00p — 51 minutes 29.97p 41 minutes 98 minutes 25.00p 41 minutes 98 minutes 23.98p 41 minutes 98 minutes 59.94p 152 minutes 187 minutes 50.00p 152 minutes 187 minutes L-GOP 29.97p 281 minutes...

  • Page 558: Safety Precautions

    SAFETY PRECAUTIONS SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the documentation provided with the product.

  • Page 559: Swarning

    WARNING Do not use the camera near flammable or explosive gases. Rest your eyes periodically when using the viewfinder. Failure to observe this precaution could result in eyestrain, nausea, or sensations similar to motion sickness. The length and frequency of the required rest varies with the individual; use your own judgement.
  • Page 560 Places where temperatures and/or humidity are high or go through extreme changes. Direct sunlight, beaches, locked cars, or near other heat sources (stove, radiator, etc.) or humidifiers. In sandy or dusty environments. Near flammable items or explosives. In wet places, such as bathrooms or in the rain. In places prone to strong vibrations.

  • Page 561: Scaution

    Use Only Dedicated Rechargeable Battery, Battery Charger and USB-AC adapter We strongly recommend that you use only the genuine rechargeable battery, battery charger, and USB-AC adapter specified by our company with this camera. Using a non-genuine rechargeable battery, battery charger and/or USB-AC adapter may result in fire or personal injury due to leakage, heating, ignition or damage to the battery.
  • Page 562 Do not leave the camera pointed directly at the sun. This may cause lens or shutter curtain damage, color failure, ghosting on the image sensor, or may possibly cause fires. Do not leave the viewfinder exposed to a strong light source or direct sunlight. The heat may damage the viewfinder.
  • Page 563 ® Using the wireless LAN/Bluetooth functions Turn off the camera in hospitals and other locations where medical equipment is present. The radio waves from the camera may adversely affect medical equipment, causing a malfunction ® that results in an accident. Be sure to disable wireless LAN/Bluetooth functions in the vicinity of medical equipment (P.424).

  • Page 564: Trademarks

    Disclaimer of Warranty Our company makes no representations or warranties, either expressed or implied, by or concerning any content of these written materials or software, and in no event shall be liable for any implied warranty of merchantability or fitness for any particular purpose or for any consequential, incidental or indirect damages (including but not limited to damages for loss of business profits, business interruption and loss of business information) arising from the use or inability to use these written materials or software or equipment.
  • Page 565 The standards for camera file systems referred to in this manual are the “Design Rule for Camera File System/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA). All other company and product names are registered trademarks and/or trademarks of their respective owners.
  • Page 566 date of issue 2024.01. https://www.om-digitalsolutions.com/ © 2024 WD910000...

Table of Contents
