PDR8000® Portable Digital Repeater Programming Guide

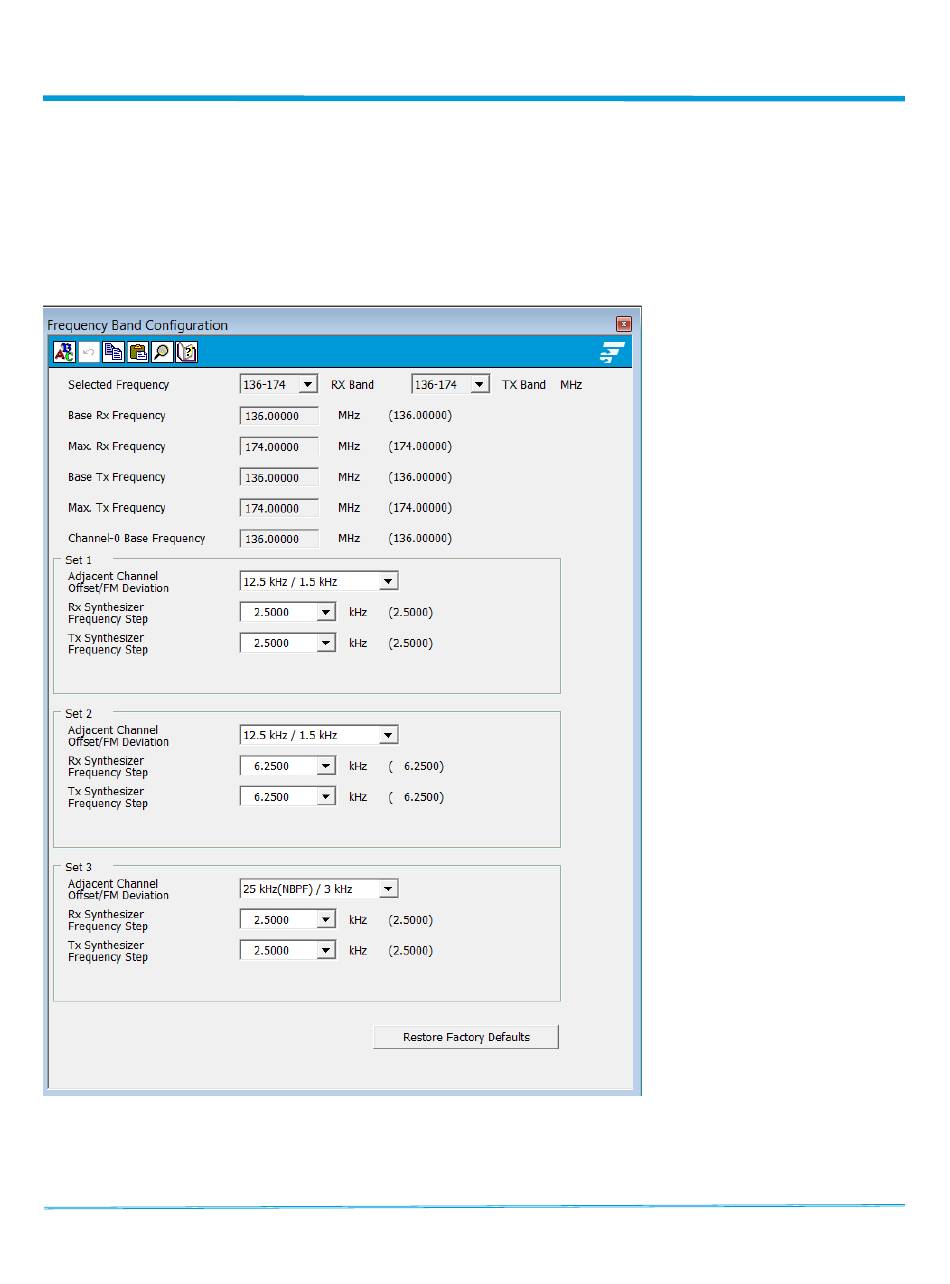

Frequency Band Configuration

This Menu Screen is used for selecting the Adjacent Channel Separation. Three selections are possible –
Set 1, Set 2 and Set 3, which can be either Narrowband (12.5 kHz) or Wideband (25 kHz). Ensure the
correct spacing (Set 1 or Set 2) is selected to match the portable radio programming on each PDR8000
channel – see "Channel Configuration Deployment x" screen, 'Bandwidth' field.
2021-11-0
Page 27 of 98
