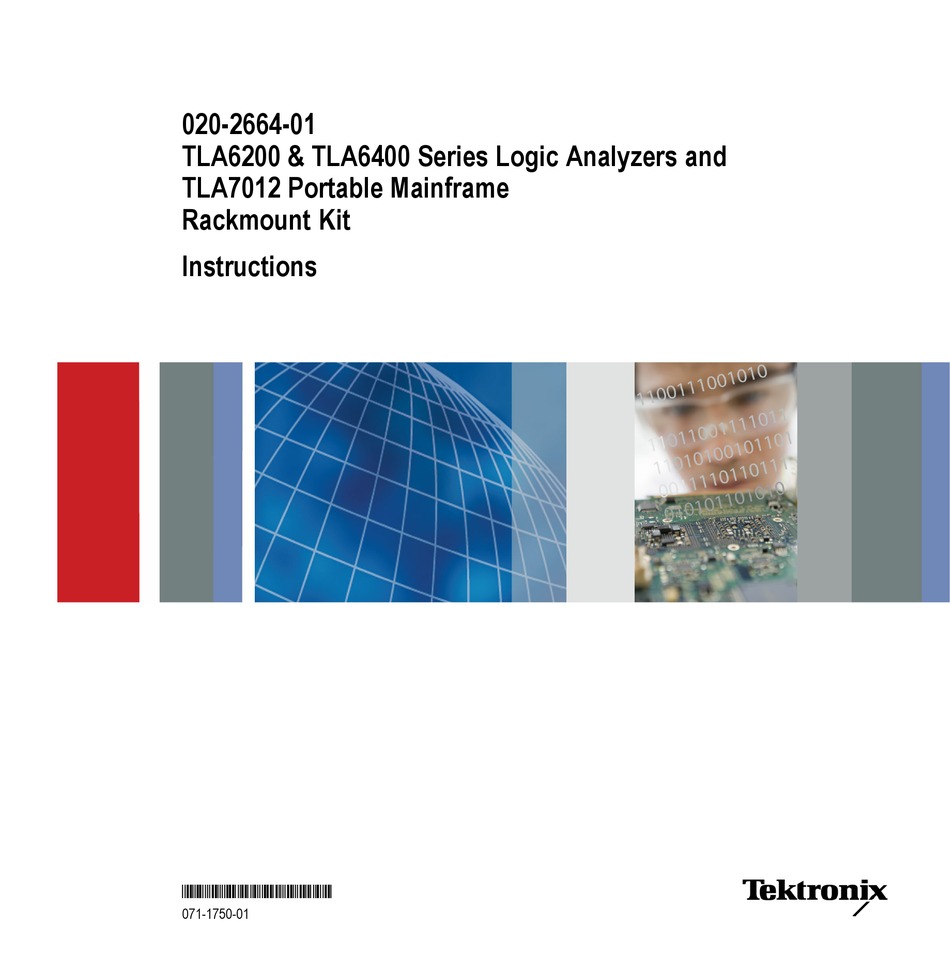

- Page 1 020-2664-01 TLA6200 & TLA6400 Series Logic Analyzers and TLA7012 Portable Mainframe Rackmount Kit Instructions *P071175001* 071-1750-01...
- Page 3 020-2664-01 TLA6200 & TLA6400 Series Logic Analyzers and TLA7012 Portable Mainframe Rackmount Kit Instructions Warning The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so. Refer to all safety summaries before performing service.
- Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
-
Page 5: Service Safety Summary
Use Care When Servicing With Power On. Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. To avoid electric shock, do not touch exposed connections. TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions... -
Page 6: Kit Description
Kit Description Kit Description This introduction describes the installation of the rackmount kit for the TLA7012 Portable Mainframe, TLA6200 series logic analyzers, and TLA6400 series logic analyzers. CAUTION. This kit requires you to remove the right-side panel of the instrument rack you intend to use. - Page 7 Kit Description The following figure shows a completed rackmount installation of a TLA7012 Portable Mainframe with two logic analyzer modules and probes attached. Installation of TLA6200 series logic analyzers or TLA6400 series logic analyzers is similar, except as noted in these instructions.
-
Page 8: Kit Parts List
2 ea 407-5125-00 Bracket, rackmount guide, set of 4 with hardware 1 ea 407-5131-00 Bracket, TLA7012 or TLA6200 series rackmount adapter, right side (R) 1 ea 407-5124-00 Bracket, TLA7012 or TLA6200 series rackmount adapter, left side (L) 2 ea 367-0530-00... -
Page 9: Warranted Characteristics
Cooling air enters from the bottom-front and right sides. (See Figure 3 on page 6.) You must provide adequate cool air to meet the ambient temperature requirements. (See Table 1 on page 6.) TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions... -
Page 10: Environmental Requirements
Temperature, Inside Rack Cabinet Operating +10 ° C to +45 ° C (+50 ° F to +113 ° F) Nonoperating -22 ° C to +60 ° C (- 7.6 ° F to +140 ° F) TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions... -
Page 11: Clearance Requirements
Failure to provide these clearances can result in overheating and can cause instrument faults or failure. Figure 4: TLA7012 or TLA6200 series instrument with rack adapter installed TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions... - Page 12 Kit Description Figure 5: TLA6400 series instrument with rack adapter installed TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions...
-
Page 13: Installation Instructions
These instructions are for personnel who are familiar with servicing the product. If you need further details for disassembling or reassembling the product, refer to the appropriate product manual. Contact your nearest Tektronix Service Center or Tektronix Factory Service for installation assistance. -
Page 14: Assemble The Shelf
28 inch-lbs of torque. (Move the rail within the track to gain access to the rearward mounting hole). Refer to the following figure to help you attach the tracks to the shelf. TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions... - Page 15 Installation Instructions Figure 7: Rackmount shelf preassembly TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions...
-
Page 16: Prepare The Instrument Rack
2. Select two 0.5 inch-spaced holes that have at least 14 inches of clearance above, on all four rails of the rack. (See Figure 8.) Figure 8: Vertical clearances for rack installation (left-front rail shown) TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions... - Page 17 Figure 9: Installation of slide-out track assemblies in rack (top view) 4. Using the method and hardware determined from step 3, attach the brackets to the rear rails. The screws should be fully, but lightly, seated so mounting can be adjusted later. TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions...
-
Page 18: Install The Shelf/Track Assembly Into The Rack
1. Grab the shelf/track assembly and slide the tracks into the brackets on the rear rails of the instrument rack. 2. Align the front of the shelf to the bottom of the cosmetic trim on the front of the instrument rack. TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions... - Page 19 4. Install two 8-32 screws through the shelf tracks to the rear brackets. Attach the screws with the 8-32 lock nuts included in the kit. 5. Tighten all of the screws and check that the shelf slides in and out easily. Loosen and adjust, if necessary. TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions...
-
Page 20: Attach The Brackets To The Instrument
2. Remove the four T-15 Torx screws near the bottom feet. Refer to the appropriate illustration for your instrument. Figure 12: Location of screws on the TLA7012 or TLA6200 series instrument for bracket mounting TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions... - Page 21 3. Attach the right and left-side brackets to the bottom of the instrument using the screws that you removed in the previous step. 4. Fold the front feet down flat against the bottom of the instrument. TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions...
-
Page 22: Mount The Instrument To The Shelf
CAUTION. To prevent damaging the probes, remove any probes from the instrument before extending the instrument. Also, for the TLA7012 Portable Mainframe, you may want to remove any modules from the instrument to make it lighter. Always reinstall the mechanical safety stop after you push the instrument back into the rack. - Page 23 Figure 14: Mounting the instrument to the shelf 5. Slowly push the shelf back into the rack. If your instrument is a TLA7012 or TLA6200 series, verify that the instrument handle and power cord clear the right-side rack rail. If necessary, remove from the instrument: a.
- Page 24 9. If necessary, reattach the power cord to the instrument by turning the mounting post 1/4-turn counterclockwise. 10. Connect the power cord to the instrument receptacle and the AC source in the instrument rack. TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions...
-
Page 25: Route The Probes To Your System-Under-Test
NOTE. It may be easier to first route all of the probes that you need through the shelf, and then connect them to the instrument. Figure 16: Routing the probes from the instrument TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions... - Page 26 Installation Instructions 5. Repeat the above steps for the remaining probes. 6. Connect the probes to your system under test. TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions...
