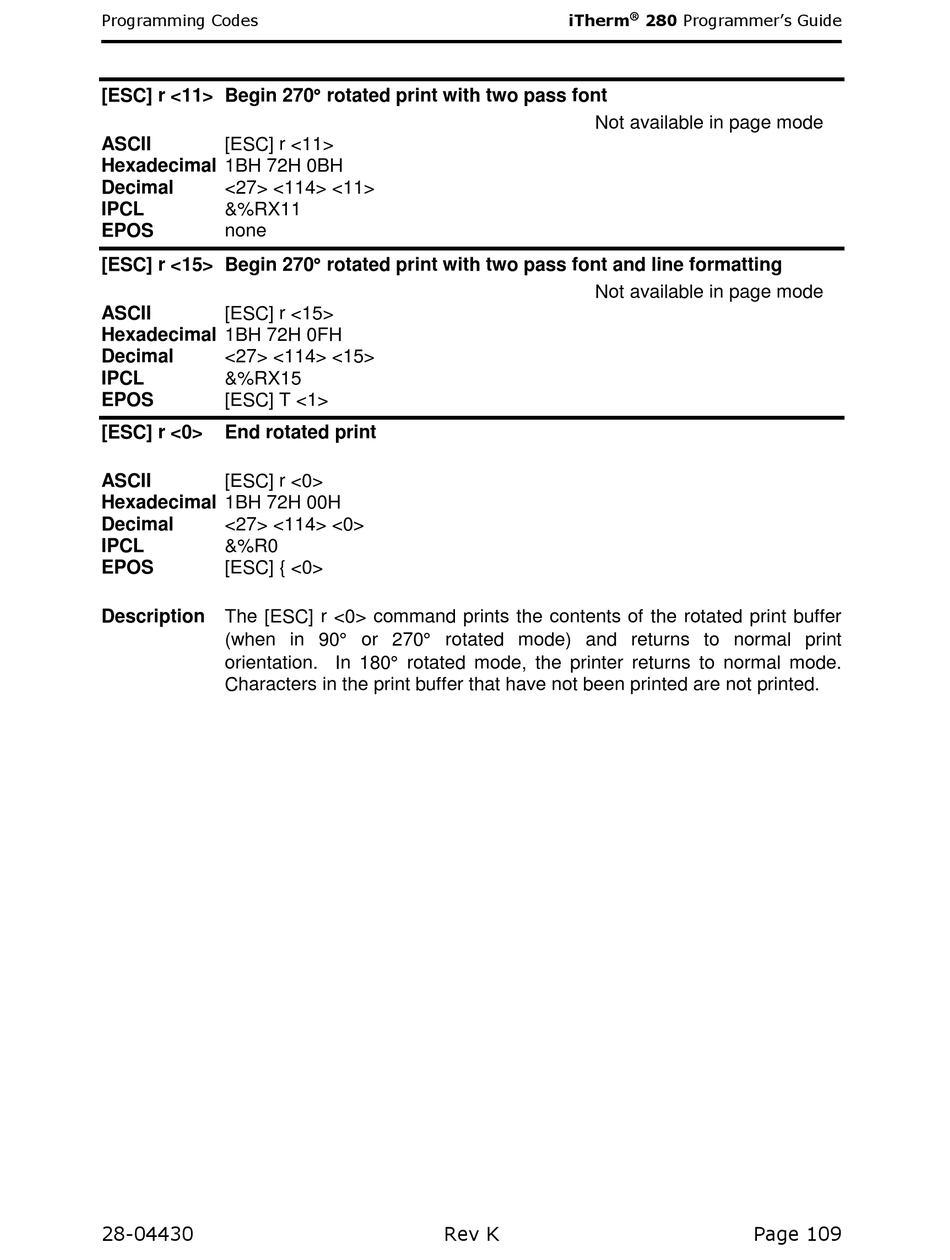

TransAct Ithaca 280 Programmer's Manual page 121

Programming Codes
[ESC] r <11> Begin 270 rotated print with two pass font
ASCII [ESC] r <11>
Hexadecimal 1BH 72H 0BH
Decimal <27> <114> <11>
IPCL &%RX11
EPOS none
[ESC] r <15> Begin 270 rotated print with two pass font and line formatting
ASCII [ESC] r <15>
Hexadecimal 1BH 72H 0FH
Decimal <27> <114> <15>
IPCL &%RX15
EPOS [ESC] T <1>
[ESC] r <0> End rotated print
ASCII [ESC] r <0>
Hexadecimal 1BH 72H 00H
Decimal <27> <114> <0>
IPCL &%R0
EPOS [ESC] { <0>
Description The [ESC] r <0> command prints the contents of the rotated print buffer
(when in 90 or 270 rotated mode) and returns to normal print
orientation. In 180 rotated mode, the printer returns to normal mode.
Characters in the print buffer that have not been printed are not printed.
28-04430
iTherm
Not available in page mode
Not available in page mode
Rev K
®
280 Programmer's Guide
Page 109
