Programming Codes
Bit Off/On
0 Off
On
1-3 -
4 Off
5,6 -
7 Off

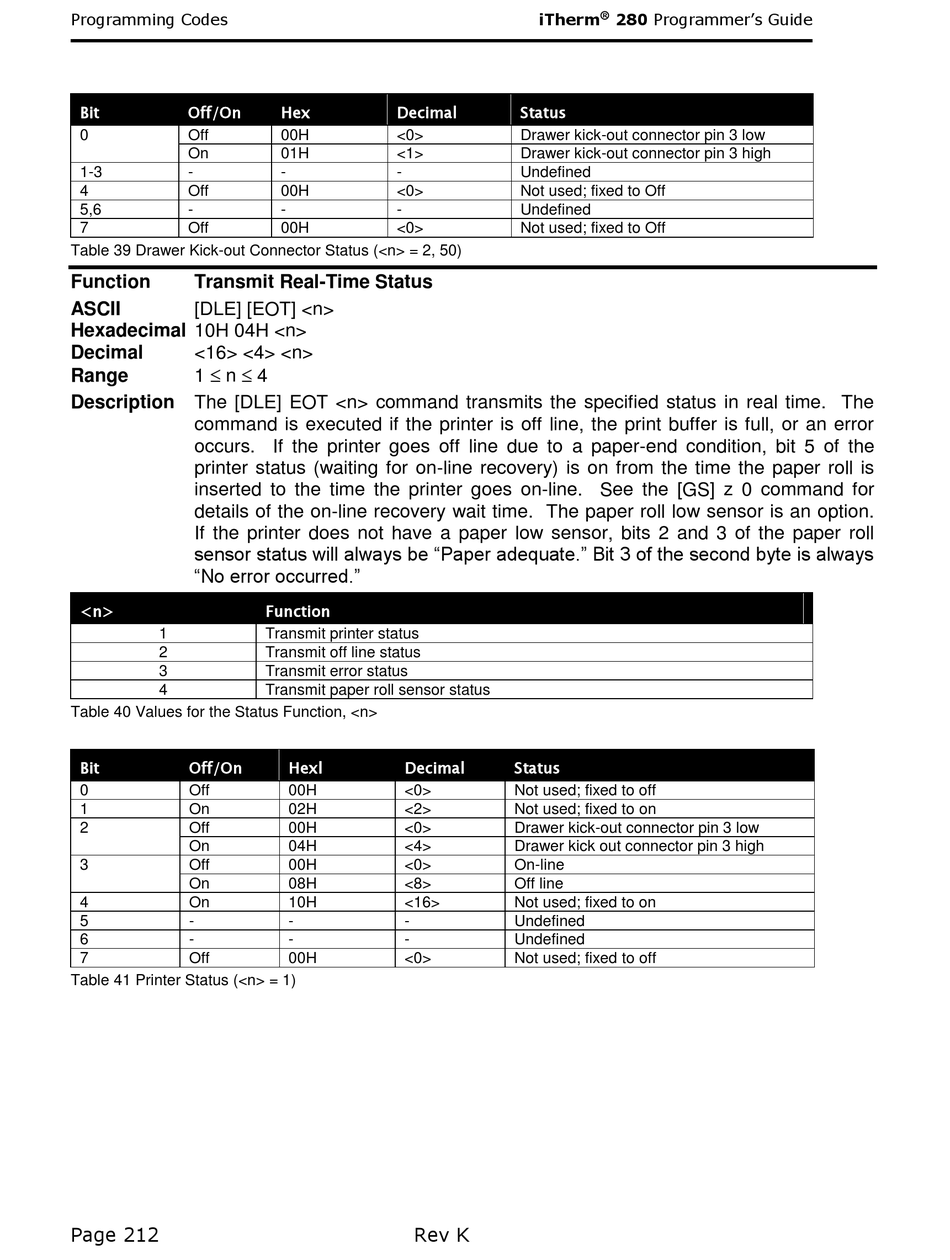

Table 39 Drawer Kick-out Connector Status (<n> = 2, 50)
Function Transmit Real-Time Status
ASCII [DLE] [EOT] <n>
Hexadecimal 10H 04H <n>
Decimal <16> <4> <n>
1  n  4
Range
Description The [DLE] EOT <n> command transmits the specified status in real time. The
command is executed if the printer is off line, the print buffer is full, or an error
occurs. If the printer goes off line due to a paper-end condition, bit 5 of the
printer status (waiting for on-line recovery) is on from the time the paper roll is
inserted to the time the printer goes on-line. See the [GS] z 0 command for
details of the on-line recovery wait time. The paper roll low sensor is an option.
If the printer does not have a paper low sensor, bits 2 and 3 of the paper roll
sensor status will always be ―Paper adequate.‖ Bit 3 of the second byte is always
―No error occurred.‖
<n>
1
2
3
4
Table 40 Values for the Status Function, <n>
Bit Off/On
0 Off
1 On
2 Off
On
3 Off
On
4 On
5 -
6 -
7 Off
Table 41 Printer Status (<n> = 1)
Page 212
Hex Decimal
00H <0>
01H <1>
- -
00H <0>
- -
00H <0>
Function
Transmit printer status
Transmit off line status
Transmit error status
Transmit paper roll sensor status
Hexl Decimal
00H <0>
02H <2>
00H <0>
04H <4>
00H <0>
08H <8>
10H <16>
- -
- -
00H <0>
Rev K
®
iTherm 280 Programmer's Guide
Status
Drawer kick-out connector pin 3 low
Drawer kick-out connector pin 3 high
Undefined
Not used; fixed to Off
Undefined
Not used; fixed to Off
Status
Not used; fixed to off
Not used; fixed to on
Drawer kick-out connector pin 3 low
Drawer kick out connector pin 3 high
On-line
Off line
Not used; fixed to on
Undefined
Undefined
Not used; fixed to off
