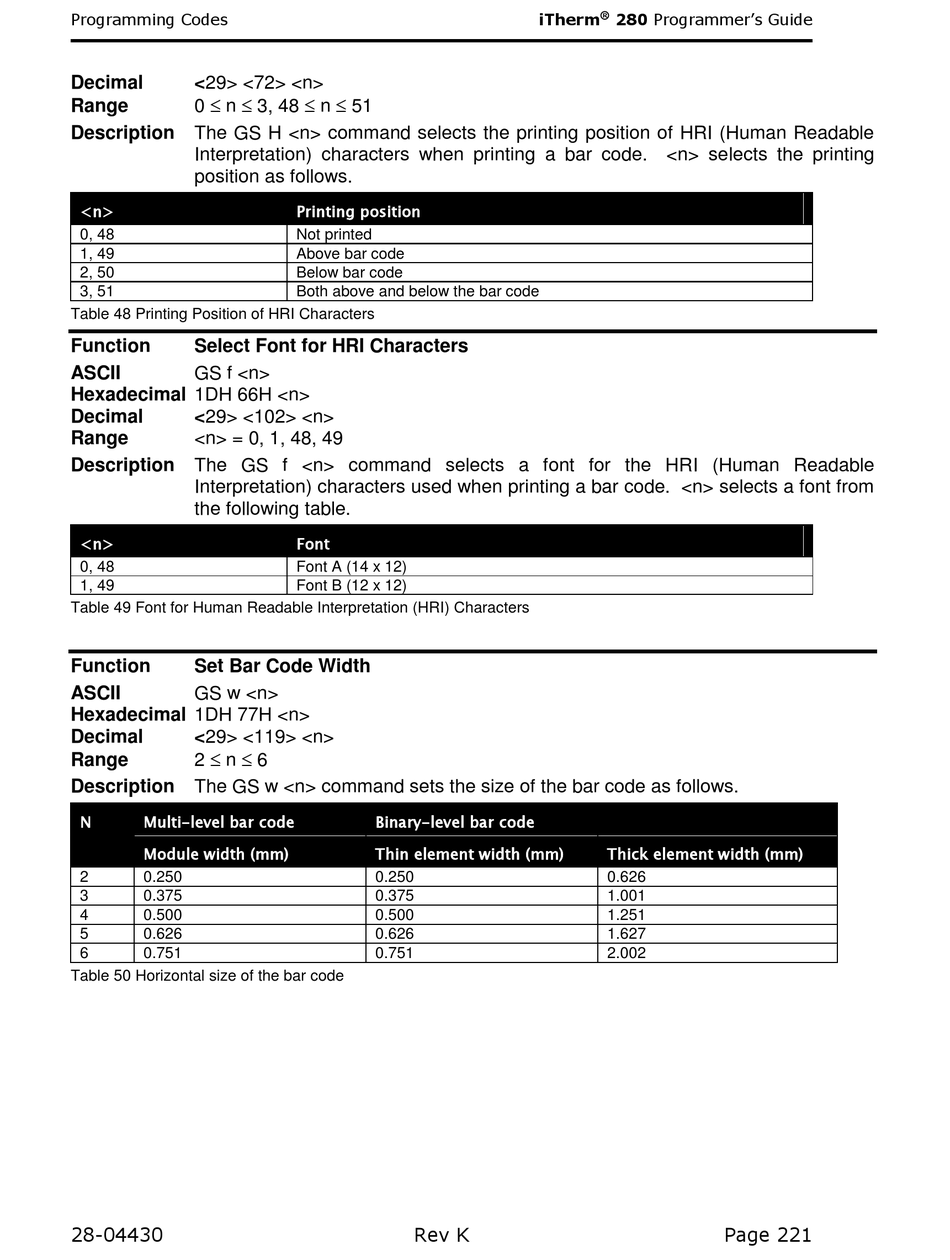

Programming Codes
Decimal <29> <72> <n>
0  n  3, 48  n  51
Range
Description The GS H <n> command selects the printing position of HRI (Human Readable
Interpretation) characters when printing a bar code. <n> selects the printing
position as follows.
<n>
0, 48
1, 49
2, 50
3, 51

Table 48 Printing Position of HRI Characters

Function Select Font for HRI Characters
ASCII GS f <n>
Hexadecimal 1DH 66H <n>
Decimal <29> <102> <n>
Range <n> = 0, 1, 48, 49
Description The GS f <n> command selects a font for the HRI (Human Readable
Interpretation) characters used when printing a bar code. <n> selects a font from
the following table.
<n>
0, 48
1, 49

Table 49 Font for Human Readable Interpretation (HRI) Characters

Function Set Bar Code Width
ASCII GS w <n>
Hexadecimal 1DH 77H <n>
Decimal <29> <119> <n>
2  n  6
Range
Description The GS w <n> command sets the size of the bar code as follows.
N Multi-level bar code
Module width (mm)
2 0.250
3 0.375
4 0.500
5 0.626
6 0.751

Table 50 Horizontal size of the bar code

28-04430
Printing position
Not printed
Above bar code
Below bar code
Both above and below the bar code
Font
Font A (14 x 12)
Font B (12 x 12)
Binary-level bar code
Thin element width (mm)
0.250
0.375
0.500
0.626
0.751
Rev K
®
iTherm 280 Programmer's Guide
Thick element width (mm)
0.626
1.001
1.251
1.627
2.002
Page 221
