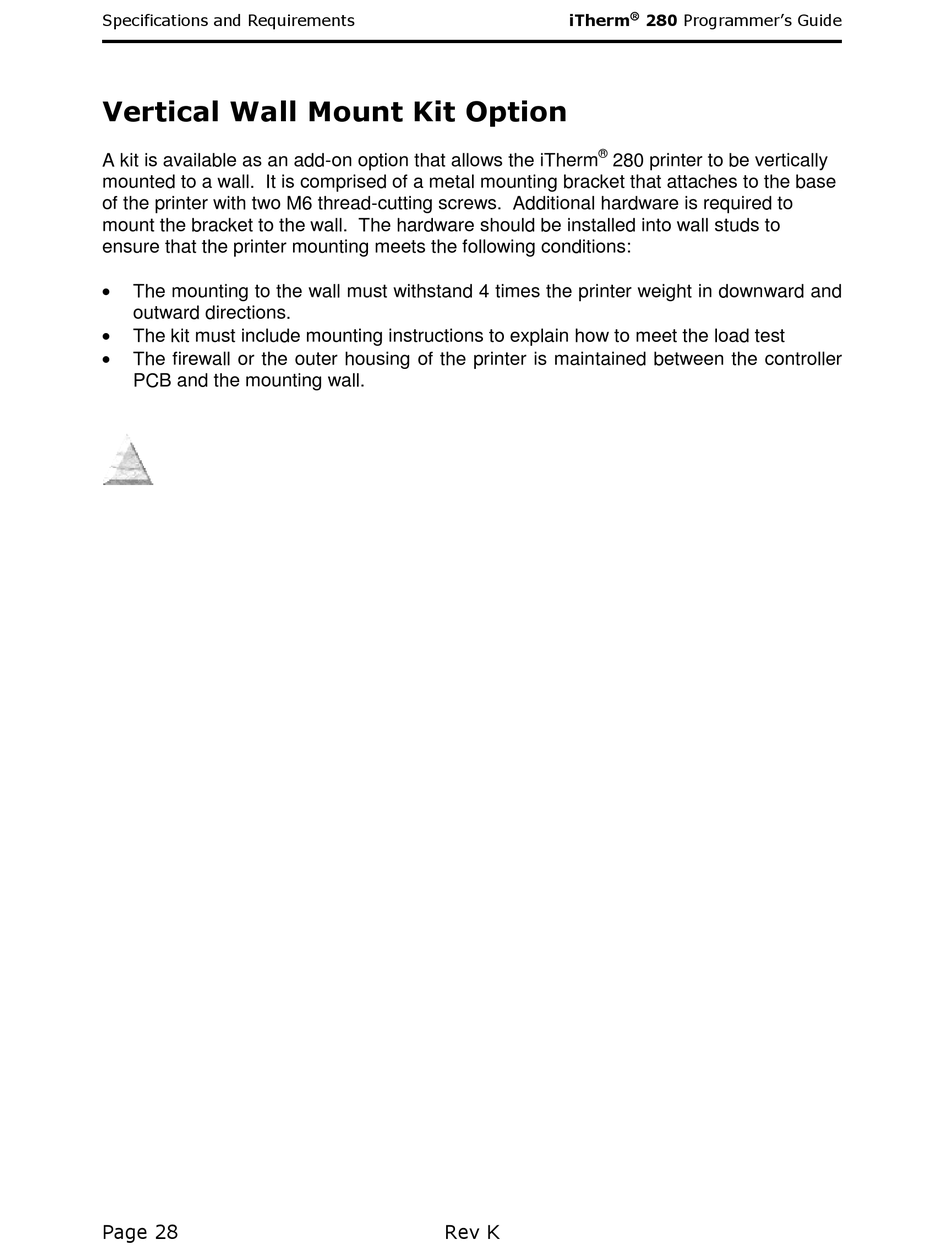

Vertical Wall Mount Kit Option

A kit is available as an add-on option that allows the iTherm
mounted to a wall. It is comprised of a metal mounting bracket that attaches to the base
of the printer with two M6 thread-cutting screws. Additional hardware is required to
mount the bracket to the wall. The hardware should be installed into wall studs to
ensure that the printer mounting meets the following conditions:

The mounting to the wall must withstand 4 times the printer weight in downward and
outward directions.

The kit must include mounting instructions to explain how to meet the load test

The firewall or the outer housing of the printer is maintained between the controller
PCB and the mounting wall.
