Specifications and Requirements

Once narrow paper has been used, some part of the print head always contacts the
platen. If 80 mm. paper is used after setting up and running 58 mm. paper, the head
or the cutter blade may be worn out. Never change the paper width from narrow to
wide (58 to 80 mm.) once you set the paper width to narrow (58 mm.).

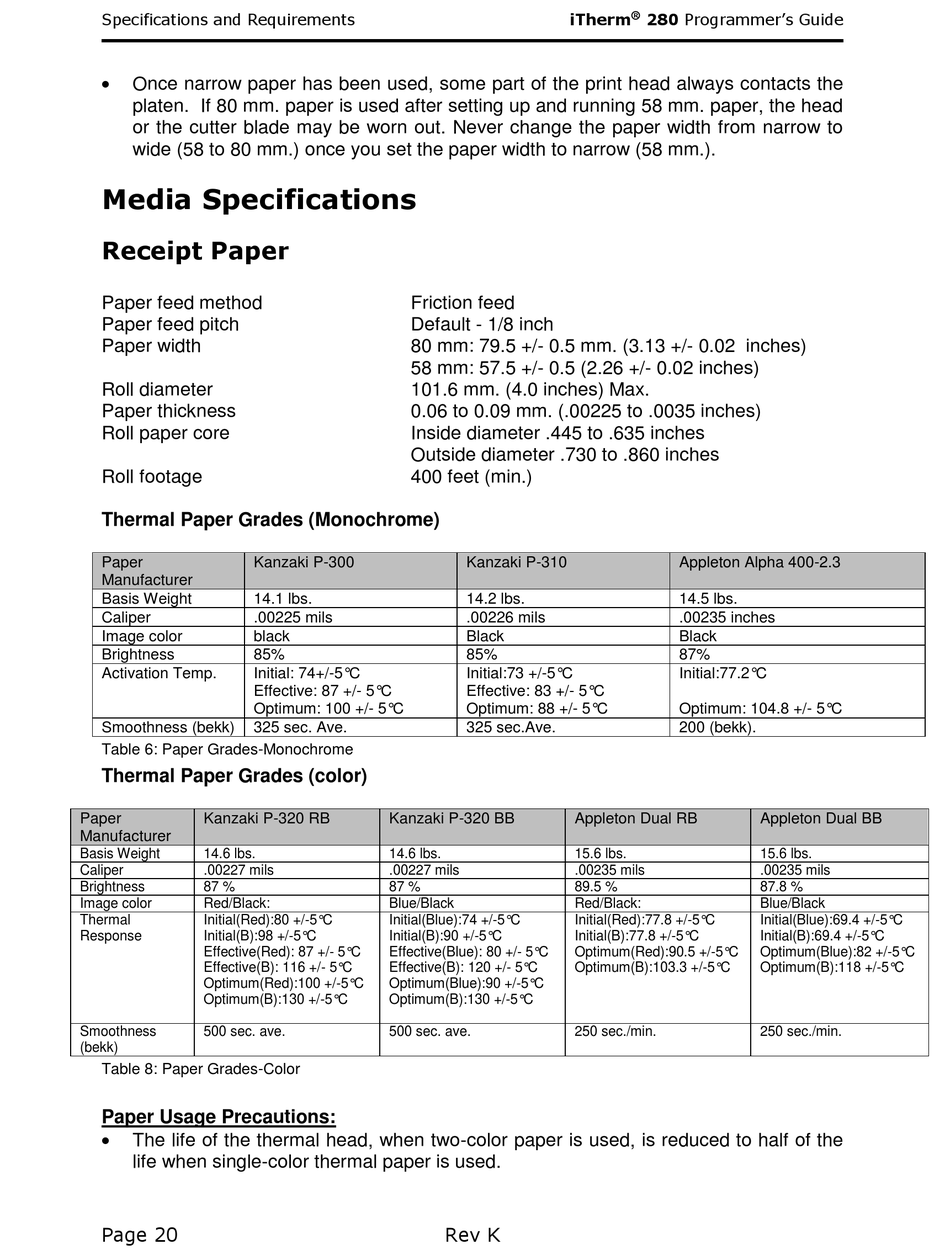

Media Specifications

Receipt Paper

Paper feed method
Paper feed pitch
Paper width
Roll diameter
Paper thickness
Roll paper core
Roll footage
Thermal Paper Grades (Monochrome)
Paper Kanzaki P-300
Manufacturer
Basis Weight 14.1 lbs.
Caliper .00225 mils
Image color black
Brightness 85%
Activation Temp. Initial: 74+/-5°C
Effective: 87 +/- 5°C
Optimum: 100 +/- 5°C
Smoothness (bekk) 325 sec. Ave.

Table 6: Paper Grades-Monochrome

Thermal Paper Grades (color)
Paper Kanzaki P-320 RB
Manufacturer
Basis Weight 14.6 lbs.
Caliper .00227 mils
Brightness 87 %
Image color Red/Black:
Thermal Initial(Red):80 +/-5°C
Response Initial(B):98 +/-5°C
Effective(Red): 87 +/- 5°C
Effective(B): 116 +/- 5°C
Optimum(Red):100 +/-5°C
Optimum(B):130 +/-5°C
Smoothness 500 sec. ave.
(bekk)
Table 8: Paper Grades-Color
Paper Usage Precautions:

The life of the thermal head, when two-color paper is used, is reduced to half of the
life when single-color thermal paper is used.
Page 20
Friction feed
Default - 1/8 inch
80 mm: 79.5 +/- 0.5 mm. (3.13 +/- 0.02 inches)
58 mm: 57.5 +/- 0.5 (2.26 +/- 0.02 inches)
101.6 mm. (4.0 inches) Max.
0.06 to 0.09 mm. (.00225 to .0035 inches)
Inside diameter .445 to .635 inches
Outside diameter .730 to .860 inches
400 feet (min.)
Kanzaki P-310
14.2 lbs.
.00226 mils
Black
85%
Initial:73 +/-5°C
Effective: 83 +/- 5°C
Optimum: 88 +/- 5°C
325 sec.Ave.
Kanzaki P-320 BB
14.6 lbs.
.00227 mils
87 %
Blue/Black
Initial(Blue):74 +/-5°C
Initial(B):90 +/-5°C
Effective(Blue): 80 +/- 5°C
Effective(B): 120 +/- 5°C
Optimum(Blue):90 +/-5°C
Optimum(B):130 +/-5°C
500 sec. ave.
Rev K
®
iTherm 280 Programmer's Guide
Appleton Alpha 400-2.3
14.5 lbs.
.00235 inches
Black
87%
Initial:77.2°C
Optimum: 104.8 +/- 5°C
200 (bekk).
Appleton Dual RB
15.6 lbs.
.00235 mils
89.5 %
Red/Black:
Initial(Red):77.8 +/-5°C
Initial(B):77.8 +/-5°C
Optimum(Red):90.5 +/-5°C
Optimum(B):103.3 +/-5°C
250 sec./min.
Appleton Dual BB
15.6 lbs.
.00235 mils
87.8 %
Blue/Black
Initial(Blue):69.4 +/-5°C
Initial(B):69.4 +/-5°C
Optimum(Blue):82 +/-5°C
Optimum(B):118 +/-5°C
250 sec./min.
