Measuring absolute power or link loss is done the same way, except for the
referencing step.
To perform power or loss measurements:
1. If necessary, perform an offset nulling.
2. Verify and clean your fibers appropriately for optimum performance.
3. For loss measurements, reference your power meter to a light source,
then deactivate the light source.
For more information on referencing, see Referencing Your Power
Meter to a Source on page 21.
4. Using the proper adapter and test jumpers, connect the fiber to test to
the light source and to the detector port of your unit.
Note: You can set the reference with one, two, or three reference jumpers.
However, keeping a record of the number of jumpers used can only be
done when you use the Loss Certification Wizard to configure the unit.
Note: If you have referenced your power meter to a source, connect the fiber
under test to the reference jumpers used for referencing.
24

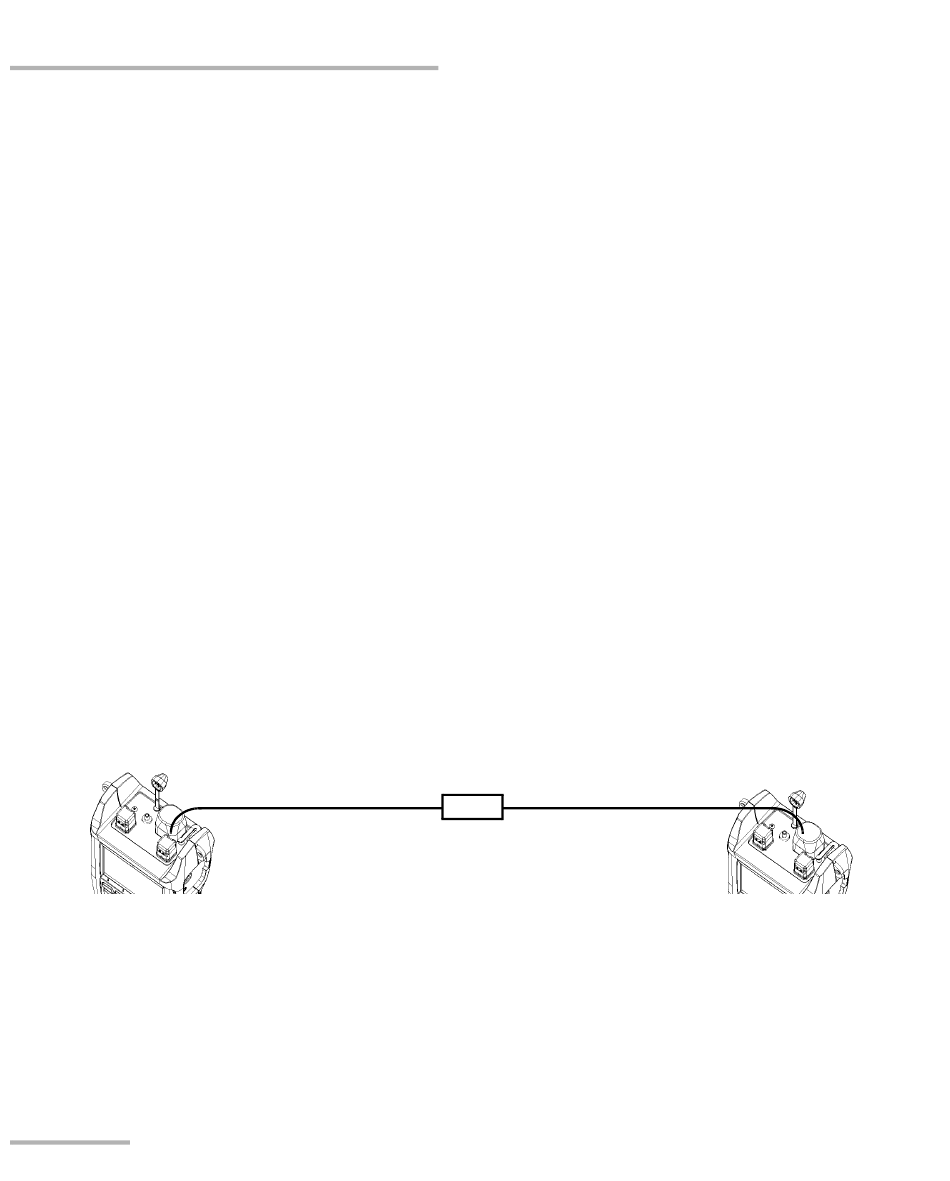

Reference
jumper
Light
source
DUT Reference
jumper
AXS-200/350 and AXS-200/360
Power
meter
