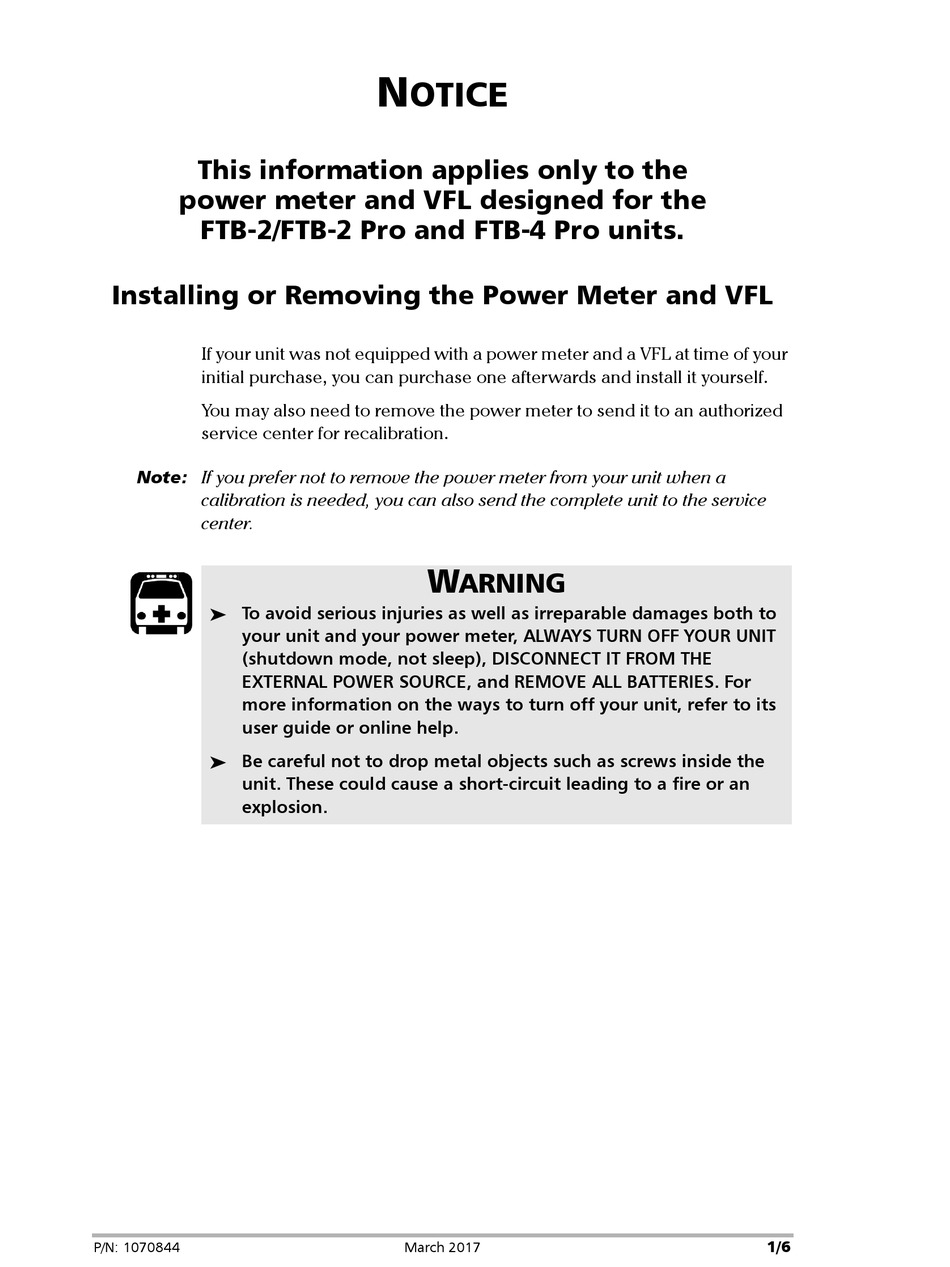

This information applies only to the
power meter and VFL designed for the

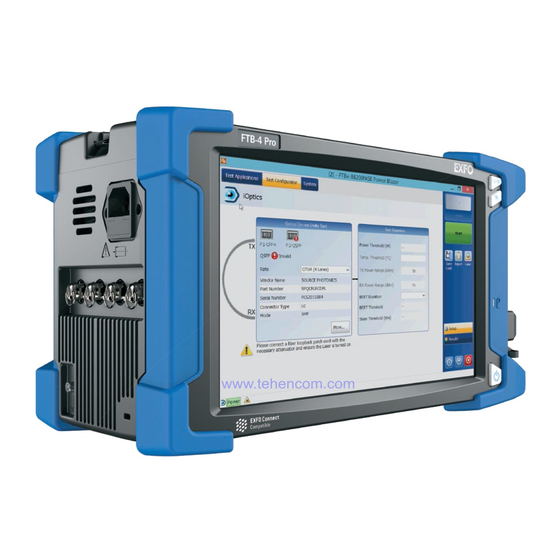

FTB-2/FTB-2 Pro and FTB-4 Pro units.

Installing or Removing the Power Meter and VFL

If your unit was not equipped with a power meter and a VFL at time of your
initial purchase, you can purchase one afterwards and install it yourself.
You may also need to remove the power meter to send it to an authorized
service center for recalibration.
Note: If you prefer not to remove the power meter from your unit when a
calibration is needed, you can also send the complete unit to the service
center.
To avoid serious injuries as well as irreparable damages both to

your unit and your power meter, ALWAYS TURN OFF YOUR UNIT
(shutdown mode, not sleep), DISCONNECT IT FROM THE
EXTERNAL POWER SOURCE, and REMOVE ALL BATTERIES. For
more information on the ways to turn off your unit, refer to its
user guide or online help.
Be careful not to drop metal objects such as screws inside the

unit. These could cause a short-circuit leading to a fire or an
explosion.
P/N: 1070844
N
OTICE
W
ARNING
March 2017
