Measuring Power or Loss
Setting Pass/Fail Thresholds

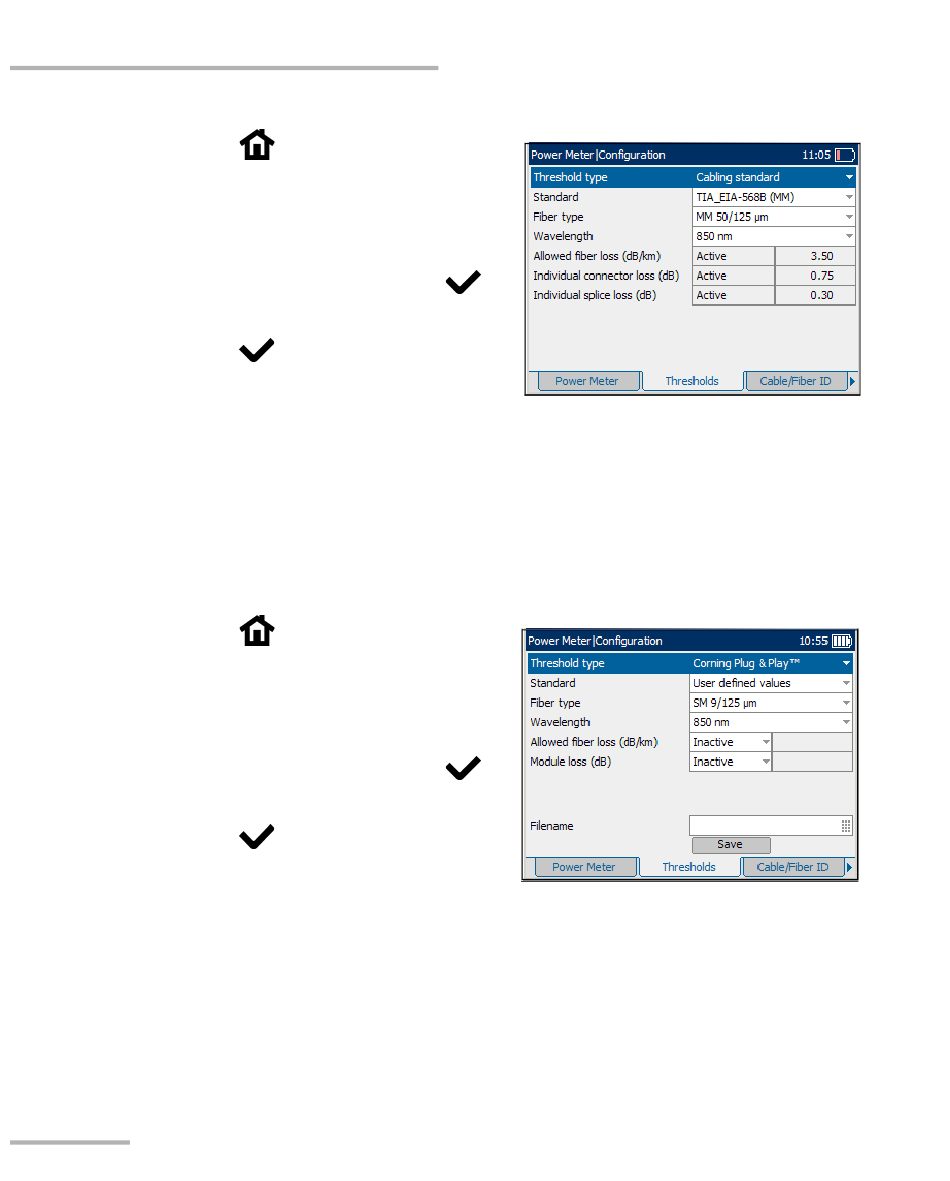

To set the pass/fail thresholds for Cabling standard:
1. Press
and then Configuration.
2. Select the Thresholds tab.
3. Using the up/down arrows, select
Threshold type, and press
4. Select Cabling standard and
press
5. From Standard, select one of the
predefined thresholds or select User defined values to set your own
threshold.
If you have chosen User defined values, you should name your
threshold configuration in the Filename box, and then press Save.
6. Enter the threshold parameters for each wavelength.
To set the pass/fail threshold for Corning Plug & Play:
1. Press
and then Configuration.
2. Select the Thresholds tab.
3. Using the up/down arrows, select
Threshold type, and press
4. Select Corning Plug & Play and
press
5. From Standard, select one of the
predefined thresholds or select User defined values to set your own
threshold.
If you have chosen User defined values, you should name your
threshold configuration in the Filename box, and press Save.
6. Enter the threshold parameters for each wavelength.
