ООО "Техэнком"
Контрольно-измерительные приборы и оборудование
www.tehencom.com

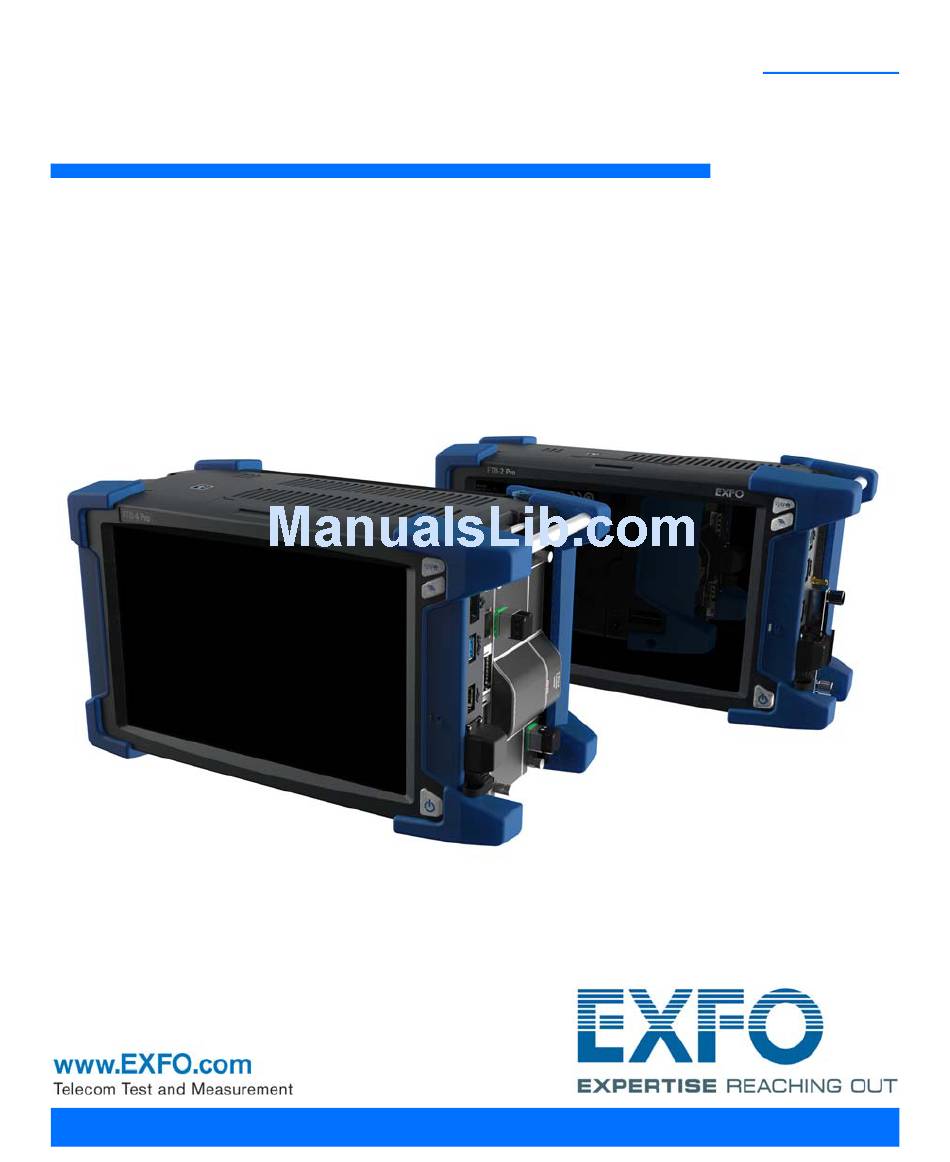

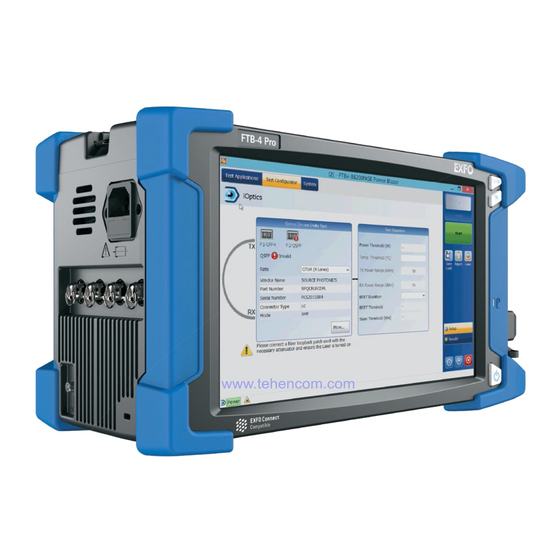

User Guide
FTB-2/FTB-2 Pro and FTB-4 Pro

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTB-2 and is the answer not in the manual?

Questions and answers

Related Manuals for EXFO FTB-2

Summary of Contents for EXFO FTB-2

  • Page 1 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com User Guide FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 2 EXFO Inc. (EXFO). Information provided by EXFO is believed to be accurate and reliable. However, no responsibility is assumed by EXFO for its use nor for any infringements of patents or other rights of third parties that may result from its use.

  • Page 3: Table Of Contents

    Контрольно-измерительные приборы и оборудование www.tehencom.com Contents Contents Certification Information ..................... viii 1 Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro .......... 1 Main Features .........................1 Working With FTB and FTBx Modules ...................10 LED Indicators Description ....................13 Function Buttons Description ....................16 Power Sources ........................17 Automatic Fan Speed Management ..................19...
  • Page 4 Adjusting the Date, Time and Time Zone ................119 Configuring the Power Management Options ..............122 Setting ToolBox X Behavior ....................132 Configuring the Internet Options ..................134 Getting Ready to Retrieve Geolocation Information ............137 Configuring Parameters via Windows Mobility Center ............142 Setting Other Parameters ....................143 FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 5 Linking Units with the Ethernet Port ...................235 Linking Units Using a Serial Port ..................235 Getting Optimum Performance from Your Unit ..............236 Changing Communication Settings ..................238 Configuring DCOM Access to Your Unit ................243 Configuring Your Instruments .....................266 FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 6 EXFO Service Centers Worldwide ..................380 A Data Types ....................381 Applicable Data Types for Input—IEEE 488.2 ..............382 Applicable Data Types for Output —IEEE 488.2 ..............391 Applicable Data Types for Input—SCPI ................401 Special Numeric Values Received on Output ...............402 FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 7 ActiveX (COM/DCOM)—Quick Reference ................460 Properties ...........................461 Events ..........................468 E Communicating Through TCP/IP Over Telnet .......... 469 Executing SCPI Commands Over Telnet ................469 Accessing Modules ......................475 Internal Commands of the TCP/IP over Telnet Protocol ............477 Index ......................489 FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 8: Certification Information

    Electronic test and measurement equipment is exempt from FCC part 15, subpart B compliance in the United States of America and from ICES-003 compliance in Canada. However, EXFO Inc. makes reasonable efforts to ensure compliance to the applicable standards. The limits set by these standards are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 9  unauthorized product changes or modifications will invalidate warranty and all applicable regulatory certifications and approvals. Note: You will only be able to work with Wi-Fi and Bluetooth® if you have purchased the RF option. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 10 Hereby, EXFO declares that the radio equipment type “Wideband Data Transmission” is in compliance with European Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: www.exfo.com/library.

  • Page 11: Main Features

    Ethernet port (10/100/1000 Base-T)  Headset/microphone port (for headsets equipped with a microphone)  External monitor port (for monitors with DisplayPort interface)  Optional Wi-Fi and Bluetooth capability  Optional built-in power meter and VFL  FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 12: Introducing The Ftb-2/Ftb-2 Pro And Ftb-4 Pro

    Windows Embedded 8 Standard can be upgraded to Windows 10 IoT Enterprise by purchasing a license from EXFO. FTB-2 Pro: Windows 10 IoT Enterprise or Windows 8.1 Pro,  depending on the time of purchase of your unit. Units running Windows 8.1 Pro can be upgraded to Windows 10 IoT Enterprise...
  • Page 13 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro Main Features Front Keyboard/ Screen capture button Application switcher button Battery LED Touchscreen On/Off button (also serves as power LED) FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 14 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro Main Features Right panel (Two-slot model) Ethernet (RJ-45) port Adapter for FTB modules USB 3.0 host port USB 2.0 host port Built-in power meter and VFL...
  • Page 15 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro Main Features Right panel Adapter for FTB modules (Four-slot model) Ethernet (RJ-45) port USB 3.0 host port USB 2.0 host port Built-in power meter and VFL...
  • Page 16 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro Main Features Left panel (Two-slot model) AC adapter/charger connector Retaining screws for FTB modules Security slot for Kensington lock Earth (ground) terminal FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 17 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro Main Features Left panel (Four-slot model) AC power inlet Retaining screws for FTB modules Earth (ground) terminal Security slot for Kensington lock FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 18 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro Main Features Stylus Headset/microphone port USB 2.0 host port (for any commercially available stereo headset equipped with a microphone, and having a 3.5 mm connector) External monitor port...
  • Page 19 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro Main Features Back Support Battery compartment FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 20: Working With Ftb And Ftbx Modules

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro Working With FTB and FTBx Modules Working With FTB and FTBx Modules You can insert FTBx modules, FTB modules, or a combination of both in your unit.
  • Page 21 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro Working With FTB and FTBx Modules Front FTBx module FTB module Back FTB module FTBx module Retaining screw hole for the retaining screw located on the unit’s...
  • Page 22 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro Working With FTB and FTBx Modules Because the two types of modules have different sizes, you need a module adapter to work with FTB modules if your unit is not already equipped with such adapters.

  • Page 23: Led Indicators Description

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro LED Indicators Description LED Indicators Description There are two LED indicators located on the front panel of your unit, providing you with information about the power and battery statuses.
  • Page 24 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro LED Indicators Description Status Meaning Green All batteries are fully charged. Green, blinking At least one battery is charging. Yellow, blinking The unit and its modules would be using more power than what is available from the batteries.
  • Page 25 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro LED Indicators Description Status Meaning The global level of the batteries is above the “low-battery threshold”. Yellow The global level of batteries is low. Yellow, blinking The unit and its modules would be...

  • Page 26: Function Buttons Description

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro Function Buttons Description Function Buttons Description Your unit is equipped with function buttons that give you access to features at all times. The table below shows an overview of their purpose.

  • Page 27: Power Sources

    Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro Power Sources Power Sources Your unit operates with the following power sources: AC adapter/charger connected to standard power outlet (FTB-2 and  FTB-2 Pro—indoor use only). Standard three-wire power cord connected to standard power outlet (FTB-4 Pro—indoor use only).
  • Page 28 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro Power Sources The number of batteries that can power your unit and that come with it depends on the model that you have purchased. The table below gives...

  • Page 29: Automatic Fan Speed Management

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro Automatic Fan Speed Management Automatic Fan Speed Management Your unit will determine the most appropriate fan speed, depending on the power requirements and the type of modules you are using.

  • Page 30: Software Options For Your Unit

    The automation features are part of the applications delivered with the FTB-2 Pro and FTB-4 Pro units. For more information on how to activate software options for your unit, see Activating Software Options on page 74.

  • Page 31: Product Registration

    Product Registration Product Registration You can now register your new EXFO products either online or directly from your unit (if it is connected to the Internet), and benefit from every possible opportunity to optimize their performance. By doing so, you will...

  • Page 32: Conventions

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Introducing the FTB-2/FTB-2 Pro and FTB-4 Pro Conventions Conventions Before using the product described in this guide, you should understand the following conventions: ARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 33: Safety Information

    ARNING Use only accessories designed for your unit and approved by EXFO. For a complete list of accessories available for your unit, refer to its technical specifications or contact EXFO.
  • Page 34 MPORTANT Other safety instructions relevant for your product are located throughout this documentation, depending on the action to perform. Make sure to read them carefully when they apply to your situation. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 35: Other Safety Symbols On Your Unit

    The unit is equipped with an earth (ground) terminal. The unit is equipped with a protective conductor terminal. The unit is equipped with a frame or chassis terminal. On (Power) Off (Power) On/Off (Power) Fuse FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 36: Laser Safety Information

    If your unit is not equipped with a VFL, the laser class of your unit depends on the modules that you use. Refer to the user guide or the online help of the different modules for the exact information. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 37: Electrical Safety Information

    Safety Information Electrical Safety Information Electrical Safety Information The FTB-2 and FTB-2 Pro models use an external AC/DC adapter connected to an international safety standard three-wire power cable. The FTB-4 Pro model uses an international safety standard three-wire power cable. This cable serves as a ground when connected to an appropriate AC power outlet.
  • Page 38 Unless otherwise specified, all interfaces are intended for  connection to Safety Extra Low Voltage (SELV) circuits only. Capacitors inside the unit may be charged even if the unit has  been disconnected from its electrical supply. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 39 ARNING Use only the listed and certified AC adapter/charger provided by  EXFO with your FTB-2 or FTB-2 Pro unit. It provides reinforced insulation between primary and secondary, and is suitably rated for the country where the unit is sold.
  • Page 40 0 °C to 50 °C (32 °F to  122 °F) Operation  unit connected to AC adapter (FTB-2 and FTB-2 Pro):  0 °C to 40 °C (32 °F to 104 °F) unit connected to AC power directly (FTB-4 Pro): ...
  • Page 41  power source) 3 (unit operated from batteries)  FTB-4 Pro: 2  Overvoltage category unit (FTB-2 and FTB-2 Pro): I  unit (FTB-4 Pro): II  AC adapter: II  Measurement category Not rated for measurement categories II, III, or IV...
  • Page 42 The operation and storage temperatures, as well as the altitude  and relative humidity values of some modules may differ from those specified for your platform. In this case, always ensure that you comply with the most restrictive conditions (either module or platform). FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 43: Getting Started With Your Unit

    If you are not sure on how to proceed, consult a certified electrician. Note: To ground your unit, you need a grounding wire (18 AWG minimum) with a U-shaped terminal. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 44 2. Place the U-shaped terminal under the grounding stud’s screw head. 3. Turn the grounding stud clockwise to screw it tight. 4. Ground the other end of the wire as per your local regulation. Your unit is now grounded properly. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 45: Positioning Your Unit

    You can position your unit either vertically (with the screen facing you), or at an angle, using the support on the back panel. With the FTB-2 and FTB-2 Pro models, you can also hold your unit with the provided hand strap.

  • Page 46: Installing The Carry Handle

    Installing the Carry Handle Installing the Carry Handle You can install a carry handle on your unit. Note: If you wish to use a shoulder strap (sold separately by EXFO), you must first install the carry handle. To install the carry handle: 1.
  • Page 47 4. Slide each end of the handle under the corresponding metal rod. 5. Pull on the straps until the base of each D-shaped metal ring rests on the corresponding rod. 6. Slide the straps through the D-shaped rings. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 48 8. Fold the large part of the handle over the straps, and secure it in place with the Velcro. You are now ready to use the carry handle, or to attach a shoulder strap (see Installing the Shoulder Strap on page 39). FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 49: Installing The Shoulder Strap

    Getting Started with Your Unit Installing the Shoulder Strap Installing the Shoulder Strap Your unit comes with a hand strap (FTB-2 and FTB-2 Pro) and a carry handle, but you can also install an optional shoulder strap for more versatility.

  • Page 50: Installing Or Removing Ftb Module Adapters

    These adapters must be removed before inserting FTBx modules. To install the FTB modules adapters: 1. Position the adapter so that you can see the retaining screw as shown below. Retaining screw FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 51 Installing or Removing FTB Module Adapters 2. Slide the adapter into the unit until it stops, making sure that the retaining screw is well aligned with the corresponding screw hole on the unit. Hole for the retaining screw FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 52 3. Using a screwdriver, turn the retaining screw clockwise to secure the adapter in place. Turn retaining screw clockwise 4. If necessary, repeat the steps above with another adapter. You are now ready to work with FTB modules. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 53 Installing or Removing FTB Module Adapters To remove the FTB modules adapters: 1. Using a screwdriver, turn the retaining screw counterclockwise until it is loose. Since it is a captive screw, you cannot remove it completely. Turn retaining screw counterclockwise FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 54 2. Place your fingers just under the protruding edge on the faceplate of the adapter, and then slide the adapter out of the unit. Protruding edge 3. If necessary, repeat the steps above with the second adapter. You are now ready to work with FTBx modules. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 55: Inserting And Removing Test Modules

    AUTION For FTB modules: Never insert or remove a module while the  FTB-2, FTB-2 Pro, or FTB-4 Pro unit is turned on. This will result in immediate and irreparable damage to both the module and unit. For FTBx modules: There is no need to turn off your unit before ...
  • Page 56 FTB modules. For a list of supported modules, refer to your unit’s technical specifications. To avoid damaging your unit, use it only with modules approved by EXFO. MPORTANT You can insert FTBx modules, FTB modules, or a combination of both in your unit.
  • Page 57 Retaining screw hole at the back Connector pins at the back Identification sticker on right side Connector pins at the back Identification sticker on right side Protruding edges on left side Protruding edges on left side FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 58 5. Push the module all the way to the back of the slot, until it stops. 6. If you are working with an FTBx module, turn the two retaining screws clockwise until they are tightened. This will secure the module into its “seated” position. Turn retaining screw clockwise Right panel FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 59 7b. While applying slight pressure to the module, lift the mobile part of the retaining screw and use it to turn the retaining screw clockwise until it is tightened. This will secure the module into its “seated” position. Turn retaining screw clockwise Left panel FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 60 Getting Started with Your Unit Inserting and Removing Test Modules MPORTANT For FTB modules: EXFO recommends that you use the front locking screws to secure the modules in your unit, especially when you work with heavier modules such as the OSA, or the FTB-88100NGE PowerBlazer.
  • Page 61 Note: If you are working with an FTBx module, it will be detected automatically after the insertion, which means that you do not have to restart the unit. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 62 AUTION Once you have pressed the button, wait until the status of the module switches to “Safe to Remove” in ToolBox X. 2. Position the unit so that its right panel is facing you. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 63 3. If you are working with an FTBx module, turn the two retaining screws counterclockwise until they are loose. Since they are captive screws, you cannot remove them completely. Turn retaining screw counterclockwise Right panel FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 64 4a. Turn one locking screw counterclockwise until you can remove it completely. Turn locking screw counterclockwise 4b. Remove the three remaining screws in the same way. 4c. Position the unit so that the left panel is facing you. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 65 5. Hold the module by its sides or by the handles (NOT by the connectors) and pull it out. Note: On the FTBx modules, the retaining screws can be used as handles to pull out the module safely. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 66 Always pull out a module by its casing or the handles. 6. Cover empty slots with the supplied protective covers. AUTION Failure to reinstall protective covers over empty slots will result in ventilation problems. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 67: Turning On Your Unit

    After a shutdown, the unit will start in Toolbox X or in the application you defined as the startup application. Note: Should the unit ever stop responding, you can force a hardware reset by pressing and holding down the power button for more than 15 seconds. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 68 1. From the right side of the screen, swipe left to display the Charm bar. For more information, see the section about working with Windows 8.1 Pro or Windows Embedded 8 Standard. 2. Tap Settings > Power > Shut down. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 69 Getting Started with Your Unit Turning Off Your Unit To define the behavior of the power button: 1. From the main window, tap the System Settings button. 2. Tap Control Panel. 3. Tap Hardware and Sound. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 70 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Getting Started with Your Unit Turning Off Your Unit 4. Under Power Options, tap Change what the power buttons do. 5. Tap Changes settings that are currently unavailable. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 71 AC current (Shut down option is selected by default in both cases). 7. Tap Save changes to confirm the changes and return to the Power Options window. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 72 Clear the box if you prefer that your unit does not restart automatically after AC power comes back. 4. Tap OK to confirm the changes and return to the System Settings window. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 73: Configuring Your Unit At First Startup

    During the configuration process, you will also be asked to read and accept the Microsoft end-user license agreement (EULA). Once the configuration is complete in Windows, an EXFO wizard will be displayed, allowing you to read the user documentation for important safety information, and to read and accept the EULA related to your unit and instruments.
  • Page 74 Контрольно-измерительные приборы и оборудование www.tehencom.com Getting Started with Your Unit Configuring Your Unit At First Startup 4. When the EXFO wizard is displayed, follow the on-screen instructions. 5. Tap Finish to close the wizard and start working. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 75: Accessing And Exiting Toolbox X

    To access ToolBox X from the Windows environment: Double-tap the icon on your desktop. Note: If ToolBox X has been sent to the notification area, from this location, right-click the icon, and then select Restore ToolBox X. To exit ToolBox X: FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 76: Starting Module Applications

    1. If necessary, tap the Modules button to display the modules window. Inserted module Applications specific to the module 2. On the row corresponding to the desired module, tap the icon of the application with which you want to work. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 77: Using The On-Screen (Virtual) Keyboard

    2. From the unit's front panel, press the button. 3. From the taskbar, tap the on-screen keyboard icon (located to the left of the clock). 4. Enter the data as required. 5. Close the keyboard when you are done entering data. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 78: Working With Windows 8.1 Pro Or Windows Embedded 8 Standard

    Working with Windows 8.1 Pro or Windows Embedded 8 Standard If you are not familiar with Windows 8.1 Pro (FTB-2 Pro) or Windows Embedded 8 Standard (FTB-2), you may want to visit Microsoft Web site for tutorials as well as detailed information on the features and concepts brought by this operating system.
  • Page 79 From the top edge of the screen, swipe towards the bottom. Swipe left: To display the Charm bar, which is a special toolbar that  gives you access to many tools and settings. From the right edge of the screen, swipe towards the left. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 80: Right-Clicking With The Touchscreen

    From the location where you want to right-click, using the stylus or any blunt pointing device, press the screen for a few seconds until the shortcut menu appears. If you want to hide the shortcut menu without performing any action, simply tap anywhere outside the menu. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 81: Installing Or Upgrading The Applications

    When updates are available for an application, you will need to download them from EXFO Apps, either directly on your unit or on a computer. The update files must be copied to the location that has been specified for the deployment packages in Update Manager.
  • Page 82 Getting Started with Your Unit Installing or Upgrading the Applications To update or reinstall Update Manager: 1. If necessary, retrieve the desired installation files from EXFO Apps at http://www.exfo.com/software/exfo-apps. If you do not intend to download files directly on your unit, connect a USB memory key to one of the USB ports of the computer and copy the installation files to this USB key.
  • Page 83 Getting Started with Your Unit Installing or Upgrading the Applications To install or upgrade the applications: 1. If necessary, retrieve the desired installation files from EXFO Apps at http://www.exfo.com/software/exfo-apps. If you do not intend to download files directly on your unit, connect a USB memory key to one of the USB ports of the computer and copy the installation files to this USB key.

  • Page 84: Activating Software Options

    However, if you purchase options afterwards, you will have to activate them yourself. Before being able to activate options, you need to contact EXFO with the following information: Purchase order number of the newly purchased options ...
  • Page 85 Контрольно-измерительные приборы и оборудование www.tehencom.com Getting Started with Your Unit Activating Software Options To activate software options for your unit or module: 1. From the main window, tap the System Settings button, and then tap Options Activation. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 86 5. Tap OK to close the confirmation message, and then Close to exit. Note: At this point, if you have used a USB key to copy your key file, you can remove it as it is not required to use your new options. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 87: Installing Third-Party Software On Your Unit

    Microsoft license, you should only install antivirus software and the applications provided by EXFO. In all cases, EXFO does not provide any support for the installation, use or troubleshooting of third-party software. Should you need help, refer to the corresponding third-party software documentation or technical support.

  • Page 88: Securing Your Unit Using The Kensington Lock

    Your unit is equipped with a security slot to which you can connect an optional Kensington lock (security cable) to help prevent theft. To secure your unit: Connect your lock to the security slot located on the left panel of your unit. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 89: Using A Keyboard, Mouse Or Other Usb Devices

    USB ports. Printer To print documents such as reports directly from you unit. If you prefer to use a network printer, you can also configure one. For more information, see Configuring Network Printers on page 104. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 90 Note: It is not necessary to turn off the unit before connecting the USB device. The software will automatically detect its presence. Your device is automatically recognized and immediately usable (provided that it uses the drivers already available on your unit). FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 91: Working With Bluetooth Devices

    Transfer files between your unit and a cell phone (see Transferring  Data Using the Bluetooth Technology on page 171). Share files between your unit and computers compatible with the  Bluetooth® technology (see Transferring Data Using the Bluetooth Technology on page 171). FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 92 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com...

  • Page 93: Setting Up Your Unit

    If you want to set the delay after which the display is dimmed to save power, see Configuring the Power Management Options on page 122. To adjust the display brightness: 1. From the main window, tap the System Settings button. 2. Tap Windows Mobility Center. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 94 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Setting Up Your Unit Adjusting Brightness 3. Move the Brightness slider until the screen appearance is to your liking. The new brightness value is taken into account immediately. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 95: Adjusting Microphone And Speaker Volume

    1. Ensure that your headset is connected to the audio port located on the top panel of the unit. Headset/microphone port (for 3.5 mm connector) 2. From the main window, tap the System Settings button. 3. Tap Control Panel. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 96 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Setting Up Your Unit Adjusting Microphone and Speaker Volume 4. Tap Hardware and Sound. 5. Under Sound, tap Manage audio devices. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 97 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Setting Up Your Unit Adjusting Microphone and Speaker Volume 6. Select the Recording tab. 7. Ensure that your microphone is selected, and then tap Properties. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 98 If the sound coming from your microphone is too low, you may want to adjust the boost level as well. 9. Tap OK to confirm your new settings and close the window. 10. Tap OK to close the window and return to Control Panel. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 99 Контрольно-измерительные приборы и оборудование www.tehencom.com Setting Up Your Unit Adjusting Microphone and Speaker Volume To adjust speaker (or headphones) volume: 1. From the main window, tap the System Settings button. 2. Tap Windows Mobility Center. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 100 3. Move the Volume slider until the sound level is to your liking. Note: You can also access the sound level slider by tapping the icon from the taskbar. The new value is taken into account immediately. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 101: Recalibrating The Touchscreen

    Be as accurate as possible when you press the center of the  targets that appear during touchscreen calibration. This will ensure a greater accuracy of the touchscreen, especially along the edges and in corners. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 102 To recalibrate the touchscreen: 1. From the main window, tap the System Settings button. 2. Tap Touch Screen Calibration. 3. Tap the button corresponding to the type of calibration (or linearization) that you want to perform. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 103 System Settings window. 5. When you see the message indicating that the calibration is complete, tap OK to return to the System Settings window. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 104: Customizing The Right-Click Feature

    To customize the right-click feature: 1. From the main window, tap the System Settings button. 2. Tap Control Panel. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 105 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Setting Up Your Unit Customizing the Right-Click Feature 3. Tap Hardware and Sound. 4. Tap Pen and Touch. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 106 6. Tap Settings. 7. If you want to use the right-click feature with your unit, select the Enable press and hold for right-clicking check box. Clear the check box if you prefer not to use this feature. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 107 Customizing the Right-Click Feature 8. If you want to modify the response time of the right-click, move the Speed or Duration sliders to adjust the configuration to your needs. 9. Tap OK to confirm your changes. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 108: Enabling Or Disabling The Automatic Logon

    In Windows 10: Start button > Settings > Accounts.  In Windows Embedded 8 Standard: Charm bar > Settings >  Change PC settings > Users. In Windows 8.1 Pro: Charm bar > Settings >  Change PC settings > Accounts). FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 109 1. From the main window, tap the System Settings button. 2. Tap Automatic Logon. 3. From the User Accounts window, clear the Users must enter a user name and password to use this computer check box. 4. Tap OK to confirm. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 110 At next startup, you will no longer need to specify a user name and password (except if the unit comes back from sleep mode). To disable the automatic logon: 1. From the main window, tap the System Settings button. 2. Tap Automatic Logon. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 111 3. From the User Accounts window, select the Users must enter a user name and password to use this computer check box. 4. Tap OK to confirm and to return the System Settings window. At next startup, you will have to specify the user name and password. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 112: Selecting The Startup Applications

    To set applications to start automatically at ToolBox X startup: 1. From the main window, tap the System Settings button. 2. Tap Startup Applications. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 113 4. Tap OK to use the new settings. Tap Cancel to exit without using the new settings. Note: The new settings will be taken into account the next time ToolBox X is started. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 114: Configuring Network Printers

    For more information on printing, see Printing Documents on page 145. To configure the printer: 1. From the main window, tap the System Settings button. 2. Tap Control Panel. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 115 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Setting Up Your Unit Configuring Network Printers 3. Under Hardware and Sound, tap View devices and printers. 4. Tap Add a printer. 5. Follow the on-screen instructions. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 116: Selecting The Language Of Operation

    (both on-screen or “real” keyboards). Once the keyboards are added, you can switch easily from one input language to another. Values are kept in memory even when you turn the unit off. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 117 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Setting Up Your Unit Selecting the Language of Operation To select a new interface language: 1. From the main window, tap the System Settings button. 2. Tap Control Panel. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 118 Контрольно-измерительные приборы и оборудование www.tehencom.com Setting Up Your Unit Selecting the Language of Operation 3. Under Clock, Language, and Region, tap Add a language. 4. Select the desired language from the list. 5. Tap Options. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 119 6. If you want to select another keyboard layout than the one that has been added by default, proceed as follows. 6a. Under Input method, tap Add an input method. 6b. Select the desired keyboard layout, and then tap Add. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 120 Windows interfaces do not switch to the selected language. They remain in the language configured at time of purchase. However, the EXFO applications are displayed in the selected language (when available). FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 121 2. From the list of languages, select the desired one. You are now ready to start entering text in the selected input language. Note: Modifying the input language does not modify the language of the interface. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 122 Setting Up Your Unit Selecting the Language of Operation To download language packs: 1. Ensure that your unit has access to the Internet. 2. From the main window, tap the System Settings button. 3. Tap Control Panel. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 123 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Setting Up Your Unit Selecting the Language of Operation 4. Under Clock, Language, and Region, tap Add a language. 5. Tap Add a language. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 124 Setting Up Your Unit Selecting the Language of Operation 6. Browse the list of languages, and then select the one that you want to use. 7. Tap Open to access the list of sub-languages. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 125 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Setting Up Your Unit Selecting the Language of Operation 8. Select the desired sub-language, and then tap Add. 9. Select the desired language from the list. 10. Tap Options. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 126 11. Tap Download and install language pack. 12. When the application prompts you to allow the installation, tap Yes. The installation may take a few minutes. 13. When the installation is complete, restart your unit. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 127: Setting Date And Time Formats

    For information on how to adjust the date, the time, and the time zone, see Adjusting the Date, Time and Time Zone on page 119. To set date and time formats: 1. From the main window, tap the System Settings button. 2. Tap Control Panel. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 128 3. Under Clock, Language, and Region, tap Change date, time, or number formats. 4. Refine the settings according to your needs. 5. Tap Apply to confirm, and then OK to close the window. The new values are taken into account immediately. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 129: Adjusting The Date, Time And Time Zone

    For information on how to modify the format in which the date and time are displayed, see Setting Date and Time Formats on page 117. To adjust the date, time or time zone: 1. From the main window, tap the System Settings button. 2. Tap Control Panel. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 130 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Setting Up Your Unit Adjusting the Date, Time and Time Zone 3. Tap Clock, Language, and Region. 4. Under Date and Time, tap Set the time and date. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 131 6. Modify the settings according to your needs, and then tap OK. 7. Tap Apply to confirm, and then OK to close the window. The new values are taken into account immediately. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 132: Configuring The Power Management Options

    It is always possible to revert to factory default values for the predefined plans. You can delete custom power plans that you no longer use, but not the predefined plans. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 133 Setting Up Your Unit Configuring the Power Management Options To select a power plan: 1. From the main window, tap the System Settings button. 2. Tap Control Panel. 3. Tap Hardware and Sound > Power Options. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 134 4. If necessary, tap Change settings that are currently unavailable. 5. From the list of available power plans, select the desired set of parameters. 6. Close the window. The new values are taken into account immediately. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 135 Setting Up Your Unit Configuring the Power Management Options To create a power plan: 1. From the main window, tap the System Settings button. 2. Tap Control Panel. 3. Tap Hardware and Sound > Power Options. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 136 Configuring the Power Management Options 4. From the list on the left, tap Create a power plan. 5. Select a power plan that will serve as a basis. 6. Enter a name, and then tap Next. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 137 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Setting Up Your Unit Configuring the Power Management Options 7. Modify the parameters to suit your needs. 8. Tap Create. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 138 Configuring the Power Management Options To modify or delete an existing power plan: 1. From the main window, tap the System Settings button. 2. Tap Control Panel. 3. Tap Hardware and Sound > Power Options. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 139 Note: You can only delete custom power plans, not predefined ones. If the custom power plan that you want to delete is currently in use, you must select another plan first. 5. Tap Change plan settings (appearing next to the power plan). FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 140 Configuring the Power Management Options 6. If you want to modify the parameters, proceed as follows: 6a. If necessary, tap Change settings that are currently unavailable. 6b. Modify the parameters to your needs. 6c. Tap Save changes. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 141 Setting Up Your Unit Configuring the Power Management Options 7. If you want to delete the power plan, tap Delete this plan, and then confirm the deletion. 8. Close the window. The changes are taken into account immediately. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 142: Setting Toolbox X Behavior

    You can specify how ToolBox X behaves when the application is started, minimized or closed. To set the ToolBox X behavior: 1. From the main window, tap the System Settings button. 2. Tap ToolBox X Setup. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 143 ToolBox X application, then shutting down the unit from Windows. For more information on the different ways to turn off your unit, see Turning Off Your Unit on page 57. 4. Tap OK to confirm your settings and close the window. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 144: Configuring The Internet Options

    If you are not sure about how you should configure your Internet access, contact your network administrator. To configure the Internet options: 1. From the main window, tap the System Settings button. 2. Tap Control Panel. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 145 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Setting Up Your Unit Configuring the Internet Options 3. Tap Network and Internet. 4. Tap Internet Options. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 146 Setting Up Your Unit Configuring the Internet Options 5. Go to the Connections tab. 6. Modify the settings using the information provided by your network administrator. 7. Tap OK to return to the Control Panel window. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 147: Getting Ready To Retrieve Geolocation Information

    Your unit must be equipped with the RF (Wi-Fi) option.  To be able to create a mobile wireless hotspot on your smart  device, you may have to subscribe to a data plan. Contact your mobile service provider for more information. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 148 3. If it is not done already, install EXFO Link: 3a. Ensure you have access to an Internet connection. 3b. Ensure that you have a Google account to be able to download EXFO Link.
  • Page 149 5. If it is not done already, enable the geolocation feature: 5a. From the main window, tap Note: Depending on the smart device you are using, the application settings could be found in the menu button instead. 5b. Select Settings. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 150 Getting Ready to Retrieve Geolocation Information 5c. Under GENERAL SETTINGS, select the Geolocation option. Note: For more information on how to modify other settings related to geolocation, refer to the EXFO Link user documentation. 5d. Tap to return to the main window.
  • Page 151 Setting Up Your Unit Getting Ready to Retrieve Geolocation Information To connect your unit to the mobile hotspot: 1. On your smart device, ensure that EXFO Link is running, configured properly, and that the mobile hotspot that you have created is available.

  • Page 152: Configuring Parameters Via Windows Mobility Center

    Windows Mobility Center. To configure the parameters via Windows Mobility Center: 1. From the main window, tap the System Settings button. 2. Tap Windows Mobility Center. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 153: Setting Other Parameters

    Setting Up Your Unit Setting Other Parameters 3. Set the parameters as desired. Setting Other Parameters You can also configure many other parameters via the Control Panel window. Refer to Microsoft Windows documentation for details. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 154 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com...

  • Page 155: Working With Your Unit

    Print button. 3. Select the desired printer (PDF creation tool by default). 4. If necessary, adjust the printer’s parameters to your needs. 5. Tap Print to start the printing process, and follow the on-screen instructions. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 156: Viewing Pdf Files

    1. From the main window, tap the Utilities button. 2. Tap File Manager. 3. Browse through the folders to find the desired PDF file. 4. Double-tap the file. 5. The file opens automatically in the PDF viewer. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 157: Taking Screen Captures

    The screen capture is automatically taken (a visual effect typical of a camera taking a picture indicates that the capture is complete). Note: If a keyboard is connected to your unit, you can also press the Windows logo key + PRINT SCREEN. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 158: Browsing The Web

    2. Enter the desired Web address in the address bar and tap the button (located at the right of the address bar) to start browsing. 3. Close the window to return to the Utilities window. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 159: Accessing The Internet With A Mobile Broadband Usb Modem Key

    USB modem key. Most of the time, this application is installed automatically the very first time you connect a USB modem key to your unit. In all cases, you only need to install this application once. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 160 If you are not sure on how to proceed or need more information about the configuration, contact your service provider. 5. When you have finished working, disconnect from the mobile network, and then remove the USB modem key from your unit. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 161: Retrieving The Gps Location Of Your Unit

    1. If necessary, turn on your unit and wait for the startup sequence to complete. 2. On your smart device, ensure that EXFO Link is running and that the mobile hotspot that you have created is available. 3. Connect your unit to the mobile hotspot as you would do with any other wireless network.
  • Page 162 Working with Your Unit Retrieving the GPS Location of Your Unit 4. From the main window, tap the Utilities button, then tap GPS Coordinates Viewer. The GPS coordinates are displayed. Status of the connection FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 163 Tap Copy Coordinates to send the displayed information to the  Clipboard as a text string. Tap Copy Hyperlink to send the displayed information to the  Clipboard as a URL link. 5. When your work is finished, tap to close the utility. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 164: Managing Favorites

    Note: To have access to the same Favorites on several units, the corresponding applications must be available on all units. To add Favorites: 1. From the main window, tap the Favorites button. 2. Tap Favorites Management. 3. Tap Add. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 165 7. Repeat the previous steps with all the Favorites that you want to add. 8. Tap OK to apply the changes and close the window. To remove Favorites: 1. From the main window, tap the Favorites button. 2. Tap Favorites Management. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 166 Note: The application will not prompt you to confirm the removal of the Favorite from the list. Removing a Favorite from the list does not uninstall the application from the unit. 5. Tap OK to apply the changes and close the window. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 167 Контрольно-измерительные приборы и оборудование www.tehencom.com Working with Your Unit Managing Favorites To work with Favorites: 1. From the main window, tap the Favorites button. 2. Tap the icon corresponding to the application that you want to use. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 168 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Working with Your Unit Managing Favorites To export the list of Favorites: 1. From the main window, tap the Favorites button. 2. Tap Favorites Management. 3. Tap Export. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 169 Контрольно-измерительные приборы и оборудование www.tehencom.com Working with Your Unit Managing Favorites 4. Select a location and type a name for the Favorites list. 5. Tap Save. 6. Tap OK to apply the changes and close the window. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 170 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Working with Your Unit Managing Favorites To import a list of Favorites: 1. From the main window, tap the Favorites button. 2. Tap Favorites Management. 3. Tap Import. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 171 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Working with Your Unit Managing Favorites 4. Select the desired Favorites list. 5. Tap Open. 6. Tap OK to apply the changes and close the window. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 172: Using The Calculator

    1. From the main window, tap the Utilities button. 2. Tap Calculator. Using the Text Editor You can use Microsoft Notepad directly from your unit. To use the text editor: 1. From the main window, tap the Utilities button. 2. Tap Notepad. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 173: Accessing Other Tools

    For more information, refer to the online help provided with these tools, when applicable. To access the applications: 1. From the main window, tap the Test Tools button. 2. Tap the icon corresponding to the application that you want to start. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 174 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com...

  • Page 175: Using The Optional Built-In Power Meter And Vfl

    (for example, do not use the VFL, make sure that the other modules in your platform are not performing measurements and that their internal parts are not moving, etc.). FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 176 Note: The Power Meter and VFL button is only visible if your unit is equipped with a power meter and a VFL. Note: You can access the online help of the power meter and the VFL by tapping button from the power meter application. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 177: Inspecting Fibers With A Probe

    1. Connect the probe to one of the USB ports of your unit (right or top panel). 2. From ToolBox X, tap the ConnectorMax2 button to open the application. Note: You can access the online help by tapping the button from the ConnectorMax2 application. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 178 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com...

  • Page 179: Managing Data

    Ethernet port to connect to a network (for transfer via VNC or  Remote Desktop - see Accessing Your Unit Remotely on page 203) ® internal Wi-Fi and Bluetooth module (optional) to connect to a  ® wireless network or transfer data via the Bluetooth technology FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 180: Viewing Disk Space And Managing Files

    2. Tap File Manager. The file explorer is displayed. Folders Free disk space Note: The free disk space is also visible from the Platform tab (tap in the lower right corner of the main window). FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 181: Transferring Data Using The Bluetooth Technology

    The procedure presented hereafter explains how to transfer data from your unit to a computer. Note: If you transfer files from a computer to your unit, they will be sent automatically to the This PC\Documents\Bluetooth Folder on your unit. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 182 1. Configure your unit as follows: ® 1a. From the notification area, tap the Bluetooth icon. 1b. Tap Open Settings. 1c. From the Options tab, under Discovery, select the Allow Bluetooth devices to find this PC check box. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 183 2. Configure the computer as follows: ® 2a. From the notification area, click the Bluetooth icon. 2b. Select Open Settings. ® 2c. Ensure that the option allowing Bluetooth devices to find the computer is selected. 2d. Click OK to confirm. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 184 1a. From the notification area, tap the Bluetooth icon. 1b. Tap Add a Bluetooth Device. ® 1c. From the list of Bluetooth devices, tap the item corresponding to the computer to which you want to transfer files. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 185 Managing Data Transferring Data Using the Bluetooth Technology 1d. On the FTB-2 running Windows 10, FTB-2 Pro, or FTB-4 Pro, tap Pair. On the FTB-2 running Windows Embedded 8 Standard, the application tries to establish the pairing automatically. Note: If the computer or device that you want to select is already paired, you must remove the pairing first with the Remove device button.
  • Page 186 Контрольно-измерительные приборы и оборудование www.tehencom.com Managing Data Transferring Data Using the Bluetooth Technology 2. Transfer the files as follows. 2a. From the main window, tap the Utilities button. 2b. Tap Bluetooth File Transfer. 2c. Select Send files. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 187 2d. Select the desired computer, and then tap Next. 2e. Tap the Browse button to select the file that you want to transfer, and then tap Next. 2f. Tap Finish when the transfer is complete. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 188: Connecting To A Wireless Network

    (see Enabling or Disabling the Wireless Communication on page 191). Note: To save power when your unit is running on batteries, you may wish to disable the Wi-Fi device when you do not use it. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 189 In Windows 8.1 Pro or in Windows Embedded 8 Standard, from the right side of the screen, swipe left to display the Charm bar. 2. In Windows 10, tap Network. In Windows 8.1 Pro or in Windows Embedded 8 Standard, tap Settings, and then the icon. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 190 As soon as the connection is established, you can start working with the selected wireless network. When you have finished, from the Networks list, tap Disconnect to stop communication with the wireless network. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 191: Using The Usb To Rs-232 Adapter

    USB ports, the unit will recognize the adapter and identify it with the saved COM port number. The communication between your unit and the device is established using the PuTTY application. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 192 Note: If the device that you want to use is a computer (not equipped with USB ports) you may want to use a null-modem serial cable as an “extension cable” between the device and the USB/RS-232 adapter. The adapter will be detected automatically on your unit. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 193 Using the USB to RS-232 Adapter 3. From your unit, retrieve the COM port of the adapter as follows: 3a. From the main window, tap the System Settings button. 3b. Tap Control Panel. 3c. Tap Hardware and Sound. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 194 3e. Expand the Ports (COM & LPT) list to retrieve the COM port number that has been assigned to the adapter (identified as USB Serial Port) and write it down. 3f. Close the Device Manager. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 195 From the tree view, select Session. Select Serial. The COM port  number and the speed should correspond to those that you have previously entered. 4d. Tap Open. The unit is now ready to receive or send data. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 196 Note: The COM port number that you set on your device will probably differ from the one that you used on your unit. 6. From the device, establish communication with the unit using your favorite communication tool (PuTTY, HyperTerminal, etc.). FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 197: Freeing Up Disk Space With The Disk Cleanup Utility

    C drive (Windows (C:)). If you do not see the Windows.old folder, it means no refresh operation has ever been performed on your unit. 2. From the main window, tap the System Settings button. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 198 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Managing Data Freeing Up Disk Space with the Disk Cleanup Utility 3. Tap Control Panel. 4. Tap System and Security. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 199 5. Tap Administrative Tools, and then double-tap Disk Cleanup. 6. If you want to free up even more disk space by removing system files such as the files from the Windows.old folder, tap Clean up system files. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 200 Note: If you cannot see the Previous Windows installation(s) check box, this means that no refresh operation has been made on your unit yet. 8. Tap OK. 9. When the application prompts you to confirm the deletion of the folder, tap Delete Files. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 201: Enabling Or Disabling The Wireless Communication

    USB modem key (connected to your unit) are disabled. ® You can enable the Wi-Fi and Bluetooth communication as well as the mobile broadband USB modem key again at any time. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 202 Turning this mode on disables the communication, and turning it off enables the communication. ® If you want to set the parameters for the Wi-Fi or the Bluetooth  communication only, tap the desired button to turn the corresponding communication on or off. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 203 Off position to enable the communication, or to the On position to disable it. On an FTB-2 Pro, if you want to set the parameters for the Wi-Fi  device only, set the Wi-Fi slider to the On position to enable the communication, or to the Off position to disable it.
  • Page 204 To enable or disable the wireless communication in Windows Embedded 8 Standard: 1. From the right side of the screen, swipe left to display the Charm bar. 2. Tap Settings, and then Change PC Settings. 3. Tap Wireless. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 205 On position to disable it. If you want to set the parameters for the Wi-Fi device only, set the  Wi-Fi slider to the On position to enable the communication, or to the Off position to disable it. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 206: Connecting To A Vpn From Your Unit

    MPORTANT EXFO does not provide any VPN clients. You must either use one of the VPN clients available directly in Windows or provide the installation files for another VPN client yourself.
  • Page 207 VPN server, ensure that the date set on your unit corresponds to the current date. To add a VPN connection: 1. From the main window, tap the System Settings button. 2. Tap Control Panel. 3. Tap Network and Internet. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 208 Контрольно-измерительные приборы и оборудование www.tehencom.com Managing Data Connecting to a VPN from Your Unit 4. Under Network and Sharing Center, tap View network status and tasks. 5. Tap Set up a new connection or network. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 209 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Managing Data Connecting to a VPN from Your Unit 6. Tap Connect to a workplace, and then tap Next. 7. Follow the on-screen instructions. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 210 Once the installation is complete, all users will now be able to connect to a VPN from the unit. To connect to a VPN from your unit: 1. From the main window, tap the System Settings button. 2. Tap Control Panel. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 211 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Managing Data Connecting to a VPN from Your Unit 3. Tap Network and Internet. 4. Under Network and Sharing Center, tap Connect to a network. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 212 VPN connection from the list. 7. Tap Connect. 8. Enter your sign-in information to the VPN, and then tap OK. If you are not sure about the information that you should provide, contact your network administrator. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 213: Accessing Your Unit Remotely

    Remote Desktop as well, you must Each user to whom you specifically grant them access. provide the password will be able to connect to the unit via VNC. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 214: Working With Remote Desktop

    Enter the appropriate user name when Remote Desktop application  prompts you. Usually, this user name must correspond to the user name of the person currently logged on the unit. Otherwise, you will disconnect the person that was already connected. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 215 1. From the main window, tap the System Settings button. 2. Tap Remote Session. 3. Under Remote Desktop, select Allow remote connections to this computer. 4. Tap OK to confirm the changes and return to the System Settings window. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 216 If you want to use a wireless network, see Connecting to a Wireless  Network on page 178. 2. Turn on both the computer and the unit. 3. On your unit, from Toolbox X, tap the button (located at the bottom of the button bar). FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 217 IP address of the unit that you wrote down at step 4. 7. Click Connect. 8. When the application prompts you, enter your user name and password. 9. Click OK to open the session. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 218 Remote Desktop. To allow a user with limited accounts to use Remote Desktop: 1. From the main window, tap the System Settings button. 2. Tap Remote Session. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 219 Контрольно-измерительные приборы и оборудование www.tehencom.com Accessing Your Unit Remotely Working with Remote Desktop 3. Under Remote Desktop, select Allow remote connections to this computer. 4. Tap Select Users. 5. From the Remote Desktop Users dialog box, tap Add. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 220 6. From the Select Users dialog box, tap Advanced. 7. Tap Find Now to let the system find and display the list of users. 8. Select the user to which you want to grant access rights, and then tap FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 221 10. Repeat steps 7 to 9 with all the users to which you want to grant access rights. 11. From the Remote Desktop Users dialog box, tap OK. 12. From the System Properties dialog box, tap OK to confirm the changes and return to the System Settings window. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 222 Desktop. However, all users having administrator user rights will be able to modify this setting at any time. To prevent users from connecting to the unit using Remote Desktop: 1. From the main window, tap the System Settings button. 2. Tap Remote Session. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 223 Accessing Your Unit Remotely Working with Remote Desktop 3. Under Remote Desktop, select Don’t allow remote connections to this computer. 4. Tap OK to confirm the changes and return to the System Settings window. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 224: Working With Vnc

    Know the IP address of the unit and provide it in the connection  settings on the computer. Know the password (same for all users by default).  This section provides you with the basic information to control your unit with VNC. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 225 To configure the VNC Server: 1. From the main window, tap the System Settings button. 2. Tap UltraVNC Server. 3. From the notification area, right-click the UltraVNC icon. 4. From the shortcut menu, tap Admin Properties. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 226 Authentication, enter a value in the VNC Password or View-Only Password box. Note: The VNC and view-only passwords are independent of each other. They do not have to be identical. 6. Tap Apply, and then OK. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 227 If no VNC viewer is already installed on your computer, you can download the UltraVNC Viewer from the Web for free. MPORTANT EXFO does not provide licenses for UltraVNC Viewer. Always ensure that you are entitled to install it on your computer. To install the UltraVNC Viewer on your computer: 1.
  • Page 228 (see Transferring Data Using the Bluetooth Technology on page 171). 2. Turn on both the computer and the unit. 3. On your unit, ensure that ToolBox X is open. 4. At the bottom of the button bar, tap FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 229 6. Scroll down until you can see the IP address. 7. Write down the IP address, and then close the window. Note: It may take a few seconds before you see the IP address on the list. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 230 (right-click the UltraVNC icon, and then tap Install Service). Refer to the Web site of UltraVNC (http://www.uvnc.com) for more information. 10. From your computer, start the UltraVNC Viewer. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 231 Note: The appearance of the UltraVNC Viewer window may vary depending on the version of the viewer that you have. 12. Click Connect. 13. When the application prompts you for a password, enter it and click OK to confirm. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 232: Adding Exceptions To The Firewall

    If you are not sure about how to configure the firewall, contact your network administrator. To add exceptions to the firewall: 1. From the main window, tap the System Settings button. 2. Tap Control Panel. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 233 Контрольно-измерительные приборы и оборудование www.tehencom.com Accessing Your Unit Remotely Adding Exceptions to the Firewall 3. Tap System and Security. 4. Under Windows Firewall, tap Allow an app through Windows Firewall. 5. Tap the Change settings button. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 234 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Accessing Your Unit Remotely Adding Exceptions to the Firewall 6. Tap the Allow another app button. 7. Select the desired application from the list, and then tap Add. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 235 Adding Exceptions to the Firewall 8. Ensure that the Private and Public settings of the added application suit your needs. 9. When you have finished, tap OK to confirm the changes and return to the Control Panel window. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 236 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com...

  • Page 237: 10 Testing Network Connections

    (TTL) A flag to indicate whether a packet can be fragmented.  When the test is complete, you can export the results. You can later import the generated text file (tab-delimited) directly into Microsoft Excel. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 238 Контрольно-измерительные приборы и оборудование www.tehencom.com Testing Network Connections Performing a Ping Test To perform a ping test: 1. From the main window, tap Test Tools. 2. Tap IP Tools. 3. From IP Testing Tools, select the Ping tab. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 239 Clear the Allow fragmentation check box if you prefer sending  complete packets to the host. 6. Tap the Start button. You can stop a ping test at any time by tapping the Stop button. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 240: Performing A Trace Route Test

    Choose whether to resolve DNS for the IP address or not.  When the test is complete, you can export the results. You can later import the generated text file (tab-delimited) directly into Microsoft Excel. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 241 Select or clear the Resolve IP addresses check box if you want to  get the host name for the corresponding IP address of nodes. 4. Tap the Start button. You can stop a trace route test at any time by tapping the Stop button. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 242: Exporting The Results

    For a ping test at www.yoursite.org made on July 3 , 2014, the suggested filename would be: Ping for www.yoursite.org on 2014_07_03.txt To export results: Tap the Export button. If necessary, modify the suggested file name. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 243: 11 Preparing For Automation

    Your unit was designed to meet the requirements of automation and to facilitate its integration with your test environment. Note: To have access to automation features on an FTB-2 unit, you must purchase the Automation option. EXFO supplies commands that follow the guidelines determined by the SCPI consortium for many instruments.
  • Page 244 Allows you to develop computer-based applications to directly  TCP/IP) communicate with your unit. RS-232 USB to RS-232 adapter (purchased from EXFO) required to  establish connection between the computer and your unit. For increased speed and performance, run the application ...

  • Page 245: Linking Units With The Ethernet Port

    Your unit is not equipped with a serial (RS-232) port, but you can connect a USB to RS-232 adapter (sold by EXFO) to your one of the USB ports of your unit if you wish to send and receive data via RS-232.

  • Page 246: Getting Optimum Performance From Your Unit

    (no need for an internal conversion to log). Note: You must make the choice of output unit for each instrument offering such a feature. Refer to the user guide of each optical instrument for a list of available commands and queries. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 247 Note: The choice of data format cannot be made directly via the ToolBox X software. For more information on how to set the output format and data types, see :FORMat[:DATA](IEEE 488.2 and specific commands appendix), Read and ReadBinary (COM properties and events appendix), and the data types appendix. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 248: Changing Communication Settings

    To change communication settings: 1. Tap the System Settings button, then tap Instrument Control Configuration. 2. Tap Change settings, and then, when the application prompts you to authorize the changes to your unit, tap Yes. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 249 For more information, see Configuring Your Instruments on page 266. If you cleared the check box because you prefer to block automation, you can go directly to step 6. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 250 For more information on the choice of a particular type, see the table on page 234. Note: If the selected communication type does not match the protocol that will actually be used, an error message is displayed when attempting to control the instruments. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 251 Note: When you select TCP/IP, you can send SCPI commands on both ports (Telnet and Socket) simultaneously. For information on communicating with TCP/IP over Telnet, see the section pertaining to communication through TCP/IP over Telnet. 6. Tap Apply to confirm your changes. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 252 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Preparing for Automation Changing Communication Settings To revert to default RS-232 settings: 1. Tap the Default settings button. 2. Tap Apply to confirm your changes. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 253: Configuring Dcom Access To Your Unit

    DCOM technology allows to control devices and optical instruments via Ethernet. The EXFO IcSCPIAccess Class component provided with your unit acts as a communication link between a client application and EXFO’s Instrument Control. For more information, refer to the EXFO Remote Control Demo available in EXFO Apps, at http://www.exfo.com/software/exfo-apps/exfo-remote-control-demo.
  • Page 254 3. Tap System and Security > Administrative Tools. 4. Double-tap Component Services. 5. In the Component Services dialog box, go to Console Root > Component Services > Computers. 6. Right-click My Computer, and then select Properties. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 255 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Preparing for Automation Configuring DCOM Access to Your Unit 7. In the My Computer Properties dialog box, tap the COM Security tab. 8. Under Access Permissions, tap Edit Limits. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 256 9. In the Access Permission dialog box, ensure that the Distributed COM Users group appears in the Group or user names list. 10. Tap OK. 11. In the My Computer Properties dialog box, tap the COM Security tab. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 257 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Preparing for Automation Configuring DCOM Access to Your Unit 12. Under Launch and Activation Permissions, tap Edit Limits. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 258 Add a user to the Distributed COM Users group (refer to Microsoft  help). Add a user explicitly and define both, access and launch permissions  (see procedure below). Note: If you add a user explicitly, ensure to give remote access rights to the new user. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 259 Configuring DCOM Access to Your Unit To add a user explicitly: 1. In the My Computer Properties dialog box, tap the COM Security tab. 2. Under Access Permission, tap Edit Limits. 3. In the Access Permission dialog box, tap Add. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 260 Configuring DCOM Access to Your Unit 4. In the Select Users or Groups dialog box, under Enter the object names to select, type the name of the user to whom you want to give access rights. 5. Tap OK. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 261 6b. Under Permissions for (new user), ensure Allow is selected for Remote Access. 6c. Tap OK. 7. In the My Computer Properties dialog box, tap the COM Security tab. 8. Under Launch and Activation Permissions, tap Edit Limits. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 262 10. In the Select Users or Groups dialog box, under Enter the object names to select, type the name of the user to whom you want to give start and activation access rights. 11. Tap OK. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 263 Activation permissions as follows: 12a.In the Launch Permission dialog box, select the name of the new user. 12b.Under Permissions for (new user), ensure Allow is selected for both Remote Launch and Remote Activation. 12c. Tap OK. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 264 (see Setting the General Security Parameters on page 244). If you do not specify local access rights, no user will be able to access EXFO KernosHost and, therefore, no user will be able to start ToolBox X. To customize the specific security parameters: 1.
  • Page 265 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Preparing for Automation Configuring DCOM Access to Your Unit 3. Tap the General tab. 4. In the Authentication Level list, select Default. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 266 Preparing for Automation Configuring DCOM Access to Your Unit 5. In the EXFO KernosHost Properties dialog box, tap the Security tab. 6. Under Launch and Activation Permissions, select Customize, and then click Edit to edit the list of allowed users.
  • Page 267 8. In the Select Users or Groups dialog box, under Enter the object names to select, type the name of the user to whom you want to give start and activation permissions for remote access. 9. Tap OK. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 268 10. In the Launch and Activation Permission dialog box, select a user. 11. To allow this user to start and activate the unit remotely, select Allow for all four permission choices. 12. Repeat steps 10 and 11 for each newly added user. 13. Tap OK. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 269 Preparing for Automation Configuring DCOM Access to Your Unit 14. In the EXFO KernosHost Properties dialog box, tap the Security tab. 15. Under Access Permissions, select Customize, and tap Edit to edit the list of allowed users. 16. In the Access Permission dialog box, tap Add.
  • Page 270 21. Repeat steps 19 and 20 for each newly added user. 22. Tap OK to close the Access Permission dialog box. 23. Tap OK to close the EXFO KernosHost Properties dialog box. 24. Restart your unit. The EXFO IcSCPIAccess Class component, located on your unit, can now be accessed with DCOM.
  • Page 271 Enabling DCOM on Client Computer Note: To run DCOMCNFG.EXE, you need Administrator access rights. If you want to subscribe to EXFO IcSCPIAccess Class component events, you need to set security parameters on the client computer. To enable DCOM on the client computer: 1.
  • Page 272 6. Select Enable Distributed COM on this computer. 7. Under Default Distributed COM Communication Properties, in the Default Authentication Level list, select Connect. 8. In the Default Impersonation Level list, select Identify. 9. Tap Apply. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 273 LOGON, local and remote accesses are allowed. If ANONYMOUS LOGON is not listed under Group or user names, tap Add to add it. For more information on enabling events with DCOM, refer to AppId Key in MSDN Documentation. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 274 5. From the Component Services window, select: Console Root > Component Services > Computers > My Computer > DCOM Config to show the contents of the DCOM Config folder. 6. From DCOM Config, right-click EXFO KernosHost, and select Properties. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 275 Preparing for Automation Configuring DCOM Access to Your Unit 7. In the EXFO KernosHost Properties dialog box, tap the Security tab. 8. Under Launch and Activation Permissions and Access Permissions, select Use Default. This ensures the EXFO IcSCPIAccess Class component uses the default lists instead of the customized lists.

  • Page 276: Configuring Your Instruments

    EXFO (when available). MPORTANT Before being able to control instruments with SCPI commands, or control them remotely using a dedicated application such as EXFO Remote ToolBox, you must first allow remote access to these instruments. Regardless of how you intend to control your instruments, you can configure the following parameters for each of them: Enable or disable remote access.
  • Page 277 You will have to configure remote control again in the following cases:  you inserted the module in another slot  you applied changes to applications while the module was not  inserted in its slot. Note: Some instruments do not support remote control. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 278 1. From the main window, tap the System Settings button. 2. Tap Remote Control Configuration. 3. If necessary, tap Change settings, and then, when the application prompts you to authorize the changes to your unit, select Yes. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 279 6. If desired, under Description, type a description that will help you identify the instrument. Note: You can enter up to 10 characters. The description can correspond to the test interface ID or to any other short text of your choice. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 280 Note: This information will be updated the next time you start the instrument application and will appear in the title bar if the instrument application allows it. Refer to the corresponding instrument documentation for more details. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 281 1. From the main window, tap the System Settings button. 2. Tap Remote Control Configuration. 3. If necessary, tap Change settings, and then, when the application prompts you to authorize the changes to your unit, select Yes. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 282 Note: The LINS offset value that you select will be used to build the LINS of the next instruments that you will insert in the unit. The LINS of the instruments that were already in the system when you selected the LINS offset value will not be updated. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 283 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Preparing for Automation Configuring Your Instruments To release the remotely-controlled instrument: Tap Release. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 284 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com...

  • Page 285: Using Your Unit And Modules In An Automated Test Environment

    If you need information on how to prepare your unit for remote control, see the corresponding section in this documentation. Note: To have access to automation features on an FTB-2 unit, you must purchase the Automation option. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 286: Standard Status Data Structure

    The standard event status register and status enable register information is presented in the following table. Bits Mnemonics Bit Value Power On (PON) User Request (URQ) Command Error (CME) Execution Error (EXE) Device-Dependent Error (DDE) Query Error (QYE) Not Used (N.U.) Operation Complete (OPC) FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 287 Bits Mnemonics Bit Value Not Used (N.U.) Master Summary Status (MSS)/ Service Request (RQS) Event Summary Bit (ESB) Message Available (MAV) Not Used (N.U.) Error Available (EAV) Not Used (N.U.) Not Used (N.U.) FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 288 Using a service request, a device notifies the controller that an event requiring special attention occurred. The controller will then find which device generated a SRQ (its RQS bit is set) and the causes of it. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 289 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Using Your Unit and Modules in an Automated Test Environment Standard Status Data Structure FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 290: Scpi Command Structure

    The corresponding command syntax would be: Mandatory Optional keyword keywords (in square brackets) SOUR:POW[:STAT]<wsp><Boolean Program Data> Keyword Required Parameter separators space When sending a message containing the previous command, you would actually type: SOUR:POW ON. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 291 Do not include “<wsp>” in your program message; simply type a space. <digit> Element used in the construction of various numeric data types. Can take any value between 0 and 9 inclusively (corresponds to ASCII character codes 48 to 57, in decimal). FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 292 Indicate that the enclosed parameters can appear 0 to n times when the command is used. Do not include braces in your program message. Mandatory to separate keywords. Can be omitted at the beginning of a program message. For example, you can use either :SYST:ERR or SYST:ERR. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 293: Consulting Data Types

    Short form (small words :SYST:ERR? represented by the capital letters :syst:err? of the long form) Consulting Data Types If you need information about data types used in EXFO’s documentation, see the appendix on data types. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 294: Writing Remote Control Code

    You can find all the commands and queries supported by your unit in the IEEE 488.2 and Specific Commands appendix. For information on commands specific to particular instruments, refer to each instrument’s user guide. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 295 Since the controller can only retrieve data when the instrument has finished processing the queries, it could result in problems ranging from a saturation of the output queue to the complete blocking of the whole system. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 296: Error Message Format

    As shown in the above figure, the message contains three parts: error number  error description  device-dependent information  Error messages ending in a negative number are SCPI-based errors. For a complete list of possible errors, see the appendix on SCPI-based errors. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 297: Monitoring Remote Commands

    ToolBox X allows you to monitor remote commands sent to your units, if desired. To monitor remote commands: 1. From the main window, tap the Test Tools button. 2. Depending on which type of communication protocol you are using, select IC Monitor or SCPI Telnet Monitor. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 298 You can use any program, as the list is copied in text format. To exit the monitoring utility, tap For more information, see the section on using your unit in an automated test environment. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 299 Using Your Unit and Modules in an Automated Test Environment Monitoring Remote Commands If monitoring using TCP/IP, which provides sending SCPI  commands over TCP/IP through Telnet or Socket from the EXFO Instrument Control, you are automatically connected to the monitoring system. Connection...
  • Page 300 To save the list as a file, tap Save. To exit the monitoring utility, tap Exit. For more information, refer to the user documentation about communication through TCP/IP over Telnet. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 301: 13 Maintenance

    ARNING The use of controls, adjustments and procedures, namely for operation and maintenance, other than those specified herein may result in hazardous radiation exposure or impair the protection provided by this unit. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 302: Cleaning Detector Ports

    4. While applying light pressure (to avoid breaking the detector window), gently rotate the cleaning tip on the detector window. 5. Repeat step 4 with a dry cleaning tip or blow dry with compressed air. 6. Discard the cleaning tips after one use. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 303: Cleaning Vfl-Type Connectors

    1. Insert the cleaning tip into the optical adapter, and push the outer shell into the cleaner. Note: The cleaner makes a clicking sound to indicate that the cleaning is done. 2. Verify connector surface with a fiber inspection probe (for example, EXFO’s FIP). FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 304: Cleaning The Touchscreen

    Using anything else than water can damage the special coating used for units equipped with an outdoor-enhanced screen (S2 option). When not using your unit, EXFO recommends using the screen protector that came with it. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 305: Recharging The Batteries

    Use only the certified power cord that is suitably rated for the  country where the unit is used. For the FTB-2 and FTB-2 Pro units: Only charge the batteries  with the AC adapter/charger provided by EXFO with your unit.
  • Page 306 After 300 cycles (approximately 18 months of use), you may  want to replace the batteries with new ones to maintain optimal operation conditions. Otherwise, the operating time might be reduced. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 307 80 % of the total capacity. This will ensure that you get the optimum performance out of the batteries. To recharge the batteries: For the FTB-2 and FTB-2 Pro units: Connect the unit to a power outlet  using the AC adapter/charger.

  • Page 308: Modifying The Low-Battery Thresholds

    To modify the low-battery thresholds: 1. From the main window, tap the System Settings button. 2. Tap Control Panel. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 309 3. Tap Hardware and Sound > Power Options. 4. From the list of available power plans, locate the set of parameters that you want to modify. 5. Tap Change plan settings (appearing next to the power plan). FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 310 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Maintenance Modifying the Low-Battery Thresholds 6. If necessary, tap Change settings that are currently unavailable. 7. Tap Change advanced power settings. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 311 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Maintenance Modifying the Low-Battery Thresholds 8. From the list of settings, go to Battery > Critical battery level. 9. Under On battery, enter the new value. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 312 10. From the list of settings, go to Battery > Low battery level. 11. Under On battery, enter the new value. 12. Tap OK. 13. Close the window. The changes are taken into account immediately. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 313: Replacing Batteries

    Replacing Batteries Your unit can be powered either by batteries or from an appropriate power outlet when used with the provided AC adapter/charger (FTB-2 and FTB-2 Pro), or with the provided three-wire power cord (FTB-4 Pro). You can easily replace the batteries while the unit is running, as long as the unit remains powered by another reliable power source during the operation.
  • Page 314 Maintenance Replacing Batteries ARNING Your unit uses smart lithium-ion (Li-Ion) batteries with built-in protection that have been especially designed for EXFO. For this reason, you can only replace them with batteries of the same type and model. ARNING RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
  • Page 315 1c. Lift the mobile part of the battery compartment screws and turn the screws counterclockwise until the compartment door is loose. Since they are captive screws, you cannot remove them completely. Turn screws counterclockwise Battery compartment 1d. Remove the battery compartment door. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 316 MPORTANT On the FTB-2 units, the second battery slot does not power the unit. The battery must be inserted in the first battery slot (as indicated on the label affixed to your unit).
  • Page 317 3b. Slide in the new battery, and push it toward the back until it stops. 4. Repeat steps 2 and 3 with the other battery if it also needs replacement (FTB-2 Pro and FTB-4 Pro only). 5. Position the battery compartment door so that you can see its two screws.
  • Page 318 If necessary, slightly move the battery compartment door until alignment is correct. 7. Lift the mobile part of the compartment screws and, while applying slight pressure, turn the screws clockwise until they are tightened. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 319: Installing Or Removing The Power Meter And Vfl

    Turning Off Your Unit on page 57. Be careful not to drop metal objects such as screws inside the  unit. These could cause a short-circuit leading to a fire or an explosion. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 320 1. Turn off your unit. 2. Disconnect the unit from its external power source and remove the batteries. 3. Put on a wrist (or an ankle) antistatic strap and ensure that the end of its wire is grounded properly. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 321 6. Remove the protective cover. MPORTANT Do not discard the protective cover. You will need it to protect the power meter bay if you ever send the power meter for recalibration. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 322 Note: If the power meter slides all the way into the bay without any resistance, it probably means that it is not properly inserted. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 323 Note: If the power meter is not detected, this could mean that it is not inserted properly in the unit. In this case, repeat the installation procedure. If the problem persists, contact EXFO. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 324 You will need them to secure the protective cover in place later. MPORTANT Do not discard the screws. You will need them to secure the protective cover, and the power meter in its bay when it is back from calibration. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 325 8b. Using a screwdriver, secure the protective cover in place with the screws that you have removed at step 5. 9. Remove your antistatic strap. 10. Connect your unit to an external power source if desired. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 326: Managing Windows Updates

    In all cases, only the applications from Microsoft will be updated with the automatic Windows update feature. If you want to update EXFO applications, see Installing or Upgrading the Applications on page 71. The third-party applications will need to be updated manually.
  • Page 327 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Maintenance Managing Windows Updates 3. Select Windows Update. 4. Under Update status, tap Check for updates. 5. Follow the on-screen instructions. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 328 Windows applications. Your unit will need an Internet access for the updates. To manage the updates for Windows applications: 1. From the main window, tap the System Settings button. 2. Tap Control Panel. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 329 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Maintenance Managing Windows Updates 3. Tap System and Security. 4. Under Windows Update, tap Turn automatic updating on or off. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 330 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Maintenance Managing Windows Updates 5. Select the update options that best suit your needs. 6. Tap OK to confirm your changes and return to Control Panel. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 331: Replacing Fuses (Ftb-4 Pro Only)

    To replace a fuse: 1. Turn off the unit and unplug the power cord. 2. Using a flat-head screwdriver as a lever, pull the fuse holder out of the unit. Fuse holder FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 332: Recycling And Disposal

    5. Make sure the fuses are placed firmly in the holder prior to reinsertion. 6. Firmly push the fuse holder into place. Recycling and Disposal For complete recycling/disposal information, visit the EXFO Web site at www.exfo.com/recycle. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 333: 14 Troubleshooting

    ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com 14 Troubleshooting Solving Common Problems Before calling EXFO’s technical support, you may want to consider the following solutions to problems that could occur. Problem Possible Cause Solution My unit does not start. It is not connected to a Make sure that the external power source.
  • Page 334 ToolBox X. Tap Reset.  The screen is hard to calibrate properly. If you need to perform  further adjustments to the calibration, from ToolBox X, tap System Settings > Touch Screen Calibration. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 335 Module is not supported on Refer to the unit’s technical your unit. specifications for the complete list of supported modules. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 336 USB port. The SIM card has not been Contact your provider of activated or there is a mobile services. problem with service package that you purchased. There is a problem with the mobile network. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 337 The EXFO Link application Start the EXFO Link application in the GPS Coordinates is not running on the smart on the smart device. If EXFO Viewer utility. device. Link is not installed on the smart device, see Getting Ready to Retrieve Geolocation Information on page 137.
  • Page 338 Contact your mobile service provider for more information on how to subscribe to a data plan and activate it. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 339 The AC adapter or the For FTB-2 and FTB-2 Pro  power cord is not units: Make sure that the connected properly. AC adapter is connected to...
  • Page 340 Up Disk Space with the Disk previous installation are Cleanup Utility on page 187. stored. This folder now uses too much disk space. The disk needs a  cleanup. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 341  application’s page, tap Update. Follow the on-screen instructions. In Windows Embedded 8 Contact EXFO if you think that Standard, when you select a the language that was language that you have configured at time of purchase installed manually, the does not cover your needs.

  • Page 342: Restoring Your Unit To Normal Operation

    USB key for future use. MPORTANT The WIM files that you create are based on the serial number of your unit. This means that the WIM files created on one unit are only valid to restore this particular unit. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 343 DO NOT TURN OFF your unit while the recovery operation is  underway. Doing so may severely damage your unit. Damaged units will need to be sent back to EXFO for repair. The recovery operations that are offered for your unit depend on the operating system that it is running.
  • Page 344 MPORTANT To avoid problems, always use the wizard provided by EXFO to revert your unit to a previous state, not the recovery tools provided by Microsoft. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 345 16 GB of free disk space. To create a WIM file for your unit: 1. From the task bar, tap the Start button ( ), and then Settings ( 2. Tap Update & security. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 346 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Troubleshooting Restoring Your Unit to Normal Operation 3. Select Recovery. 4. Under Advanced Startup, tap Restart now. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 347 Контрольно-измерительные приборы и оборудование www.tehencom.com Troubleshooting Restoring Your Unit to Normal Operation 5. Under Choose an option, tap Troubleshoot. 6. Tap Platform Imaging Utility to display the corresponding application. 7. Connect a USB key to your unit. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 348 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Troubleshooting Restoring Your Unit to Normal Operation 8. From the Platform Servicing and Imaging Utility wizard, select Create a WIM file, an then tap Next. 9. Tap Browse. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 349 13. Tap Start. Note: The time required to create the image varies with the configuration of your unit. 14. When the operation is complete and the application prompts you, tap 15. Disconnect the USB key. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 350 Контрольно-измерительные приборы и оборудование www.tehencom.com Troubleshooting Restoring Your Unit to Normal Operation 16. Tap Cancel to return to the Welcome window of the utility. 17. Tap Restart. The WIM file is ready for future use. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 351 AC adapter/charger or power cord. 2. If desired, back up your data. 3. From the task bar, tap the Start button ( ), and then Settings ( 4. Tap Update & security. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 352 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Troubleshooting Restoring Your Unit to Normal Operation 5. Select Recovery. 6. Under Advanced Startup, tap Restart now. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 353 Restoring Your Unit to Normal Operation 7. Under Choose an option, tap Troubleshoot. 8. Tap Platform Imaging Utility to display the corresponding application. 9. Connect the USB key with the desired WIM file to your unit. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 354 Контрольно-измерительные приборы и оборудование www.tehencom.com Troubleshooting Restoring Your Unit to Normal Operation 10. From the Platform Servicing and Imaging Utility wizard, select Restore unit from a WIM file, and then tap Next. 11. Tap Browse. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 355 15. Read the warning, and then tap Start to restore the unit with the selected image. 16. When the operation is complete and the application prompts you, disconnect the USB key, and then tap OK. The unit will restart. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 356 AC adapter/charger or power cord. 2. If desired, back up your data. 3. From the task bar, tap the Start button ( ), and then Settings ( 4. Tap Update & security. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 357 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Troubleshooting Restoring Your Unit to Normal Operation 5. Select Recovery. 6. Under Advanced Startup, tap Restart now. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 358 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Troubleshooting Restoring Your Unit to Normal Operation 7. Under Choose an option, tap Troubleshoot. 8. Tap Platform Imaging Utility to display the corresponding application. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 359 OK. The unit will restart. 12. Configure the regional parameters, and accept the license agreements as you did when you first received your unit (see Configuring Your Unit At First Startup on page 63). FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 360 WIM file was created. All data files will be lost once the operation is  complete. If you have installed products and updates since  the WIM file was created, you will have to reinstall them. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 361 Reset and restore operations: To avoid losing the data that is  stored on your unit, you may want to back it up before resetting or restoring your unit. Otherwise, all your files will be lost. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 362 16 GB of free disk space. To create a WIM file for your unit: 1. On your unit, from the right side of the screen, swipe left to display the Charm bar. 2. Tap Settings > Change PC settings. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 363 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Troubleshooting Restoring Your Unit to Normal Operation 3. On an FTB-2 Pro, tap Update and recovery. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 364 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Troubleshooting Restoring Your Unit to Normal Operation 4. On an FTB-2 Pro, tap Recovery. On an FTB-2, tap General, and then scroll down the list. FTB-2 Pro FTB-2 FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 365 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Troubleshooting Restoring Your Unit to Normal Operation 5. Under Advanced Startup, tap Restart now. 6. Under Choose an option, tap Troubleshoot. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 366 7. Tap Platform Imaging Utility to display the corresponding application. 8. Connect a USB key to your unit. 9. From the Platform Servicing and Imaging Utility wizard, select Create a WIM file, an then tap Next. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 367 Restoring Your Unit to Normal Operation 10. Tap Browse. 11. Locate the USB key, and then double-tap its identifier to access the contents. 12. Select the desired folder. 13. Enter a file name, and then tap Save. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 368 14. Tap Start. Note: The time required to create the image varies with the configuration of your unit. 15. When the operation is complete and the application prompts you, tap 16. Disconnect the USB key. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 369 AC adapter/charger. 2. If desired, back up your data. 3. On your unit, from the right side of the screen, swipe left to display the Charm bar. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 370 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Troubleshooting Restoring Your Unit to Normal Operation 4. Tap Settings > Change PC settings. 5. On an FTB-2 Pro, tap Update and recovery. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 371 ООО "Техэнком" Контрольно-измерительные приборы и оборудование www.tehencom.com Troubleshooting Restoring Your Unit to Normal Operation 6. On an FTB-2 Pro, tap Recovery. On an FTB-2, tap General, and then scroll down the list. FTB-2 Pro FTB-2 FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 372 7. If you want to refresh or reset your unit, proceed as follows: 7a. Tap the Get started button corresponding to your choice. To refresh your unit To reset your unit 7b. Follow the on-screen instructions. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 373 Restoring Your Unit to Normal Operation 8. If you want to restore your unit (with a WIM file), proceed as follows: 8a. Under Advanced Startup, tap Restart now. 8b. Under Choose an option, tap Troubleshoot. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 374 Контрольно-измерительные приборы и оборудование www.tehencom.com Troubleshooting Restoring Your Unit to Normal Operation 8c. Tap Platform Imaging Utility to display the corresponding application. 8d. Connect the USB key with the desired WIM file to your unit. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 375 Контрольно-измерительные приборы и оборудование www.tehencom.com Troubleshooting Restoring Your Unit to Normal Operation 8e. From the Platform Servicing and Imaging Utility wizard, select Restore unit from a WIM file, and then tap Next. 8f. Tap Browse. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 376 8j. Read the warning, and then tap Start to restore the unit with the selected image. 8k. When the operation is complete and the application prompts you, disconnect the USB key, and then tap OK. The unit will restart. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 377: Accessing The Online Documentation

    PDF viewer. Note: The user guides of all products are available from the Library section of the EXFO Web site (www.exfo.com/library) for download in PDF format. To view the online help: From ToolBox X or an instrument application, tap (or the equivalent).

  • Page 378: Contacting The Technical Support Group

    Contacting the Technical Support Group To obtain after-sales service or technical support for this product, contact EXFO at one of the following numbers. The Technical Support Group is available to take your calls from Monday to Friday, 8:00 a.m. to 7:00 p.m.

  • Page 379: Viewing System Information

    ToolBox X and hardware components, or network interfaces information directly from your unit. You can also find the contact information if you ever need to reach EXFO. Retrieving the Serial Number of Your Unit The serial number of your unit is easily accessible from ToolBox X.
  • Page 380 To retrieve the ToolBox X version: 1. In the lower right corner of the main window, tap 2. Tap the About tab. The version number is displayed. FTB-2/FTB-2 Pro and FTB-4 Pro...
  • Page 381 Viewing System Information To retrieve the version numbers of the system image and hardware components: 1. In the lower right corner of the main window, tap 2. Tap the Platform tab. The version numbers are displayed. FTB-2/FTB-2 Pro and FTB-4 Pro...

  • Page 382: Retrieving Network Interfaces Information

    To retrieve the information for the Ethernet and Bluetooth network interfaces: 1. In the lower right corner of the main window, tap 2. Tap the Platform tab. The information is displayed (one section per network interface). FTB-2/FTB-2 Pro and FTB-4 Pro...
