Defining the Cable Information

The cable information allows you to enter the following information:
Singlemode or multimode fiber
Number of connector pairs, splices, harnesses, and modules
Measurement method for length offers you two choices:
To define cable information:
1. Press
and then Configuration.

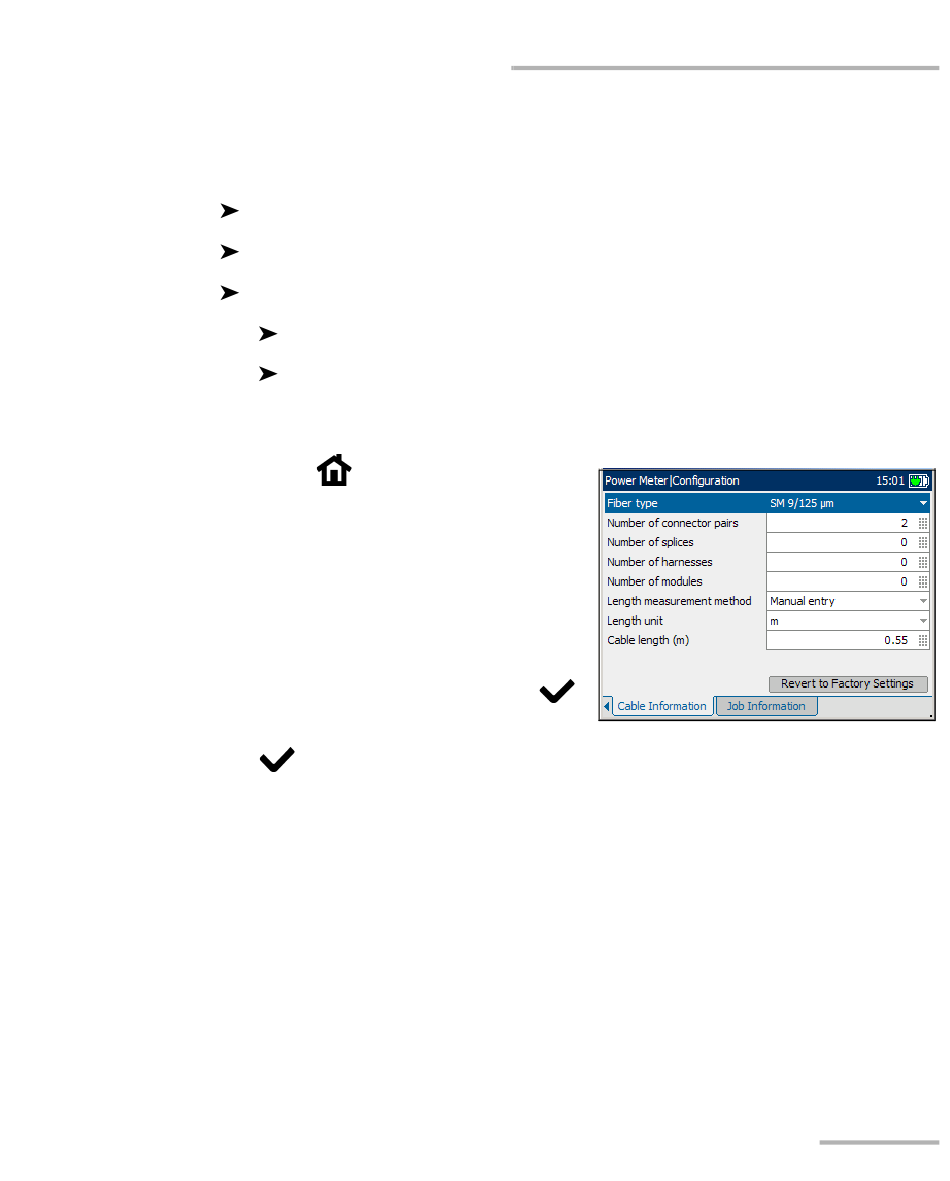

2. Using the arrows next to the
function keys (F1/F2/F3), select
the Cable Information tab.
3. Using the up/down arrows, select
the parameter for which you want
to set information, and press
4. Enter the information and press
5. Repeat steps 3 and 4 for all required parameters.
Note: If you have selected Sheath marking as the measurement method for the
cable, you have to set the position of the beginning and the end markings of
the cable sheath.
To revert to factory settings:
Press Revert to Factory Settings.
OLTS and Power Meter
Manual entry: when you know the cable length
Sheath marking: when you want to use the provided marks on the
cable sheath
, select Power Meter,
.
Measuring Power or Loss
