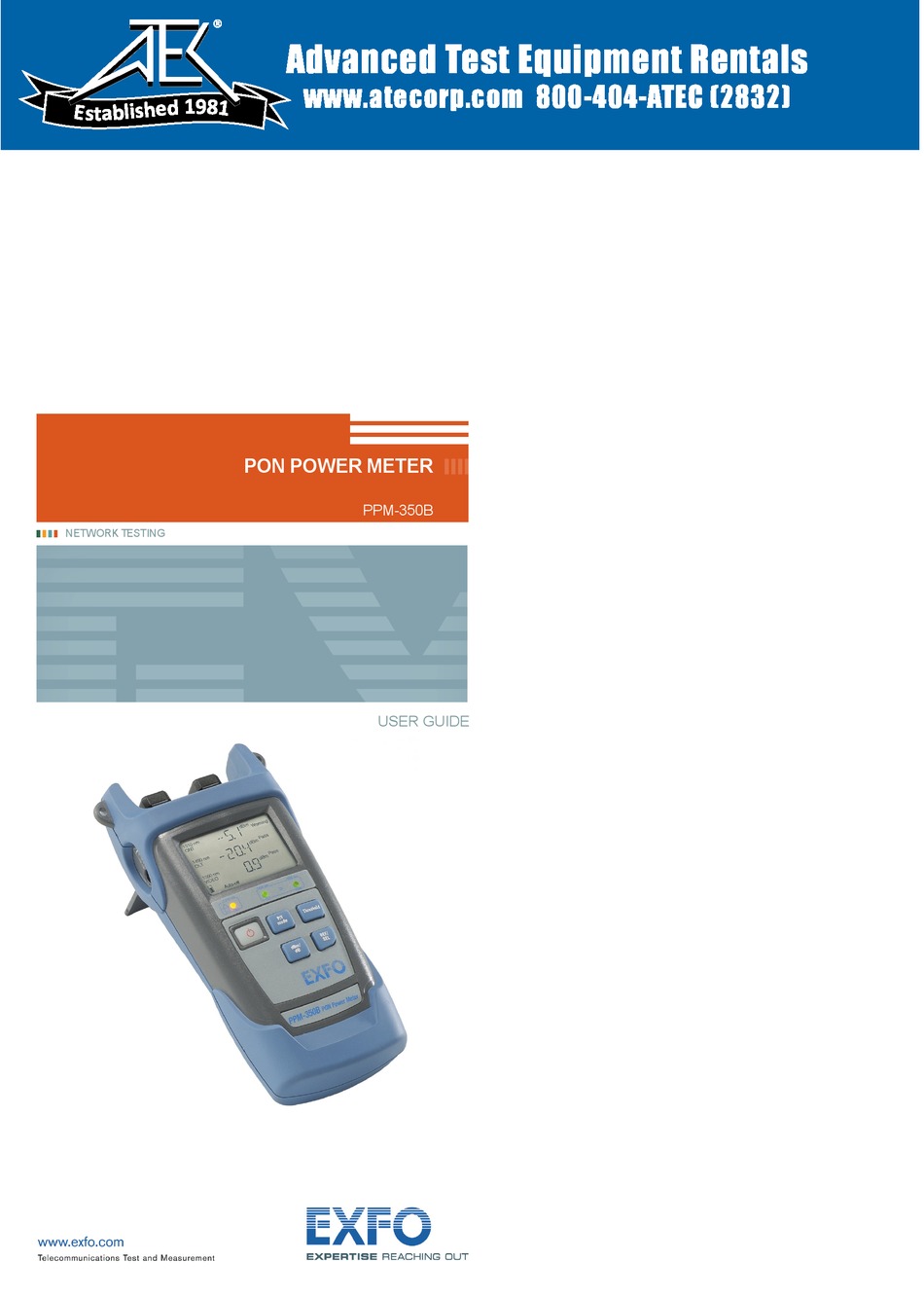

- Page 1 ® Advanced Test Equipment Rentals www.atecorp.com 800-404-ATEC (2832) PON POWER METER PPM-350B NETWORK TESTING USER GUIDE...
- Page 2 Information provided by EXFO is believed to be accurate and reliable. However, no responsibility is assumed by EXFO for its use nor for any infringements of patents or other rights of third parties that may result from its use. No license is granted by implication or otherwise under any patent rights of EXFO.
-
Page 3: Table Of Contents
2 Safety Information ..............4 Electrical Safety Information ................4 Conventions ...................... 4 3 Getting Started with Your PPM-350B PON Power Meter ..5 Turning the Unit On and Off ................5 Activating Automatic Shutdown (Auto-Off) ............6 Installing the EXFO Universal Interface (EUI) ............. 7 Cleaning and Connecting Optical Fibers ............ -
Page 4: Certification Information
Vanier, Québec Canada G1M 2K2 (418) 683-0211 Equipment Type/Environment: Industrial Scientific Equipment Trade Name/Model No.: PPM-350B PON Power Meter Standard(s) to which Conformity is Declared: EN 61326: Electrical Equipment for Measurement, Control and Laboratory 1997/ A2: Use - EMC Requirements... -
Page 5: Introducing The Ppm-350B Pon Power Meter

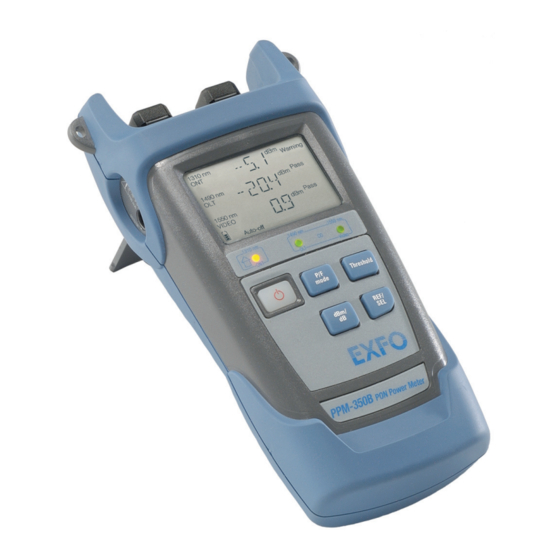

1 Introducing the PPM-350B PON Power Meter The PPM-350B PON Power Meter was designed to suit FTTP testing needs and to be easy to use for people who are not necessarily familiar with fiber optics. Main Features 1-port 2-port Details... - Page 6 Introducing the PPM-350B PON Power Meter 1-port 2-port Details Models Models Contains up to 10 different You can select any of the threshold sets predefined threshold sets You can configure thresholds on a computer and transfer them to your PPM-350B PON...
-
Page 7: Available Models
If the battery level becomes too low, the unit turns itself off. Typical Applications You can use your PPM-350B PON Power Meter during service activation (at ONT) or to troubleshoot passive optical networks (at ONT, drop terminal, fiber distribution hub or CO). -
Page 8: Safety Information
Safety Information 2 Safety Information Electrical Safety Information ARNING 6 -16 V DC Use the AC adapter provided with this product 150 mA indoors only. Conventions Before using the product described in this manual, you should understand the following conventions: ARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. -
Page 9: Getting Started With Your Ppm-350B Pon Power Meter
Meter Turning the Unit On and Off When you turn the PPM-350B PON Power Meter off, it saves the current mode (Pass/Fail or Normal) and threshold set. On models supporting relative-power measurement, unit and reference values are also kept in memory. -
Page 10: Activating Automatic Shutdown (Auto-Off)
Getting Started with Your PPM-350B PON Power Meter Keypad (models that can measure relative power) Activates/deactivates Pass/Fail mode (not possible during nulling, threshold Accesses threshold selection mode verification, LEDs/LCD verification) PRESS: Turns unit on Controls auto-off Exits special modes HOLD: Turns unit off... -
Page 11: Installing The Exfo Universal Interface (Eui)
Installing the EXFO Universal Interface (EUI) The EUI fixed baseplate is available for connectors with angled (APC) or non-angled (UPC) polishing. A green border around the baseplate indicates that it is for APC-type connectors, as shown below: Green border Bare metal... -
Page 12: Cleaning And Connecting Optical Fibers
To ensure maximum power and to avoid erroneous readings: Always clean fiber ends as explained below before inserting them into the port. EXFO is not responsible for damage or errors caused by bad fiber cleaning or handling. Ensure that your patchcord has appropriate connectors. Joining mismatched connectors will damage the ferrules. -
Page 13: Configuring Thresholds And Correction Factors
Correction Factors Your PPM-350B PON Power Meter offers 3 correction factors (one per wavelength) and up to 10 threshold sets. On a properly calibrated PPM-350B PON Power Meter, correction factors are set to 0 dB. Correction factors are added to the measured values. For this reason, once the correction factors are applied, your PPM-350B PON Power Meter may display “HI”... -
Page 14: Testing With Your Ppm-350B Pon Power Meter
Testing with Your PPM-350B PON Power Meter 5 Testing with Your PPM-350B PON Power Meter In this chapter, some instructions are identified as “Models measuring relative power”. A quick way to confirm that your unit can measure relative power is to... -
Page 15: Viewing Correction Factors
For this reason, once the correction factors are applied, your PPM-350B PON Power Meter may display “HI” or “LO”, indicating the power levels are no longer within the unit’s power limits. Note: The unit takes correction factors into account in both Pass/Fail and Normal modes. - Page 16 Testing with Your PPM-350B PON Power Meter To select a threshold set: Current threshold set indicators 1. Press . The unit enters the threshold Threshold Threshold set number selection mode and displays the current threshold set. If the threshold name has more than 4 characters, it will scroll automatically.
-
Page 17: Testing In Pass/Fail Mode Or In Normal Mode
On 1-port units, you will only see values at 1490 nm and 1550 nm. At startup, the unit is in the same mode that was used during last test session. You may activate the Pass/Fail mode at any time (except during nulling, threshold verification, and LEDs and LCD verification). PPM-350B... - Page 18 Testing with Your PPM-350B PON Power Meter To test in Pass/Fail or Normal mode with a 1-port model: 1. Clean your fibers properly as explained in Cleaning and Connecting Optical Fibers on page 8. 2. Connect as shown: Test at the premises...
- Page 19 3. Turn unit on. 4. If you want to test in Pass/Fail mode: Ensure that LEDs are on. If not, press mode Ensure that the desired threshold set is selected (see Selecting a Threshold Set on page 11). Results are now available. PPM-350B...
-
Page 20: Measuring Loss Between Two Points
Testing with Your PPM-350B PON Power Meter Measuring Loss Between Two Points You can measure loss between two locations using a single PPM-350B PON Power Meter. Note: This type of test is only possible with models measuring relative power. To measure loss between two points: 1. - Page 21 You should see 0 dB at each wavelength. 7. When you are done, disconnect and turn unit off. 8. Repeat steps 1 to 3 at location B, using the same PPM-350B PON Power Meter. dBm/ 9. Press to select dB.
-
Page 22: Maintenance
Pull Push 2. Moisten a 2.5 mm cleaning tip provided by EXFO with one drop of isopropyl alcohol (alcohol may leave traces if used abundantly). 3. Slowly insert the cleaning tip into the EUI adapter until it comes out on the other... - Page 23 6c. With a dry lint-free wiping cloth, gently wipe the same surfaces to ensure that the connector and ferrule are perfectly dry. 6d. Verify connector surface with a portable fiber-optic microscope (e.g., EXFO’s FOMS) or fiber inspection probe (e.g., EXFO’s FIP). ARNING Verifying the surface of the connector WHILE THE UNIT IS ACTIVE WILL result in permanent eye damage.
-
Page 24: Replacing Disposable Alkaline Batteries
You should determine the adequate calibration interval for your unit according to your accuracy requirements. Under normal use, EXFO recommends calibrating your unit every year. Note: The FlexCare warranty program includes Calibration/Verification packages (see Service and Repairs on page 29). -
Page 25: Verifying Thresholds
Once LEDs are turned off, all the screen segments will be displayed at the same time, allowing you to verify them. Note: Keypad is disabled during the operation. 2. Press any key to return to your previous mode (Pass/Fail or Normal). PPM-350B... -
Page 26: Recycling And Disposal (Applies To European Union Only)
European Union member state with legislation regarding Directive 2002/96/EC. Except for reasons of safety or environmental benefit, equipment manufactured by EXFO, under its brand name, is generally designed to facilitate dismantling and reclamation. For complete recycling/disposal procedures and contact information, visit the EXFO... -
Page 27: Troubleshooting
Solving Common Problems Problem Possible Cause Solution One of the LEDs remains LED is burnt. Contact EXFO. off. Verify LEDs (see Verifying the LEDs and LCD on page 21). One of the LEDs remains green or red even if the status is Warning. -
Page 28: Error Codes And Descriptions
Light detected while nulling offsets. Correctly place protective cap on Nulling is not performed. ports, then retry. If the problem persists, contact EXFO. ER 12/16 Threshold values are not usable Download new threshold sets to (corruption problem). your unit. For more information,... -
Page 29: Contacting The Technical Support Group
Contacting the Technical Support Group To obtain after-sales service or technical support for this product, contact EXFO at one of the following numbers. The Technical Support Group is available to take your calls from Monday to Friday, 7:30 a.m. to 8:00 p.m. (Eastern Time in North America). -
Page 30: Finding Information On The Exfo Web Site
3. Click on FAQs and follow the on-screen instructions. You will be given a list of questions pertaining to your subject. The EXFO Web site also provides the product’s most recent technical specifications. Transportation Maintain a temperature range within specifications when transporting the unit. -
Page 31: Warranty
DAMAGES. Liability EXFO shall not be liable for damages resulting from the use of the product, nor shall be responsible for any failure in the performance of other items to which the product is connected or the operation of any system of which the product may be a part. -
Page 32: Exclusions
Warranty Exclusions EXFO reserves the right to make changes in the design or construction of any of its products at any time without incurring obligation to make any changes whatsoever on units purchased. Accessories, including but not limited to fuses, pilot lamps, batteries and universal interfaces (EUI) used with EXFO products are not covered by this warranty. -
Page 33: Service And Repairs
After repair, the equipment will be returned with a repair report. If the equipment is not under warranty, you will be invoiced for the cost appearing on this report. EXFO will pay return-to-customer shipping costs for equipment under warranty. Shipping insurance is at your expense. -
Page 34: Exfo Service Centers Worldwide
Warranty EXFO Service Centers Worldwide If your product requires servicing, contact your nearest authorized service center. EXFO Headquarters Service Center 400 Godin Avenue 1 866 683-0155 (USA and Canada) Quebec (Quebec) G1M 2K2 Tel.: 1 418 683-5498 CANADA Fax: 1 418 683-9224 quebec.service@exfo.com... -
Page 35: A Technical Specifications
MPORTANT The following technical specifications can change without notice. The information presented in this section is provided as a reference only. To obtain this product’s most recent technical specifications, visit the EXFO Web site at www.exfo.com. PPM-351B PPM-352B PPM-352B-EG PPM-352B-EG-ER... - Page 36 400 Godin Avenue Quebec (Quebec) G1M 2K2 CANADA HEADQUARTERS Tel.: 1 418 683-0211 · Fax: 1 418 683-2170 EXFO AMERICA 3701 Plano Parkway, Suite 160 Plano TX, 75075 USA Tel.: 1 972 907-1505 · EXFO EUROPE Le Dynasteur 92366 Meudon la Forêt Cedex FRANCE 10/12, rue Andras Beck Tel.: +33.1.40.83.85.85 ·...
