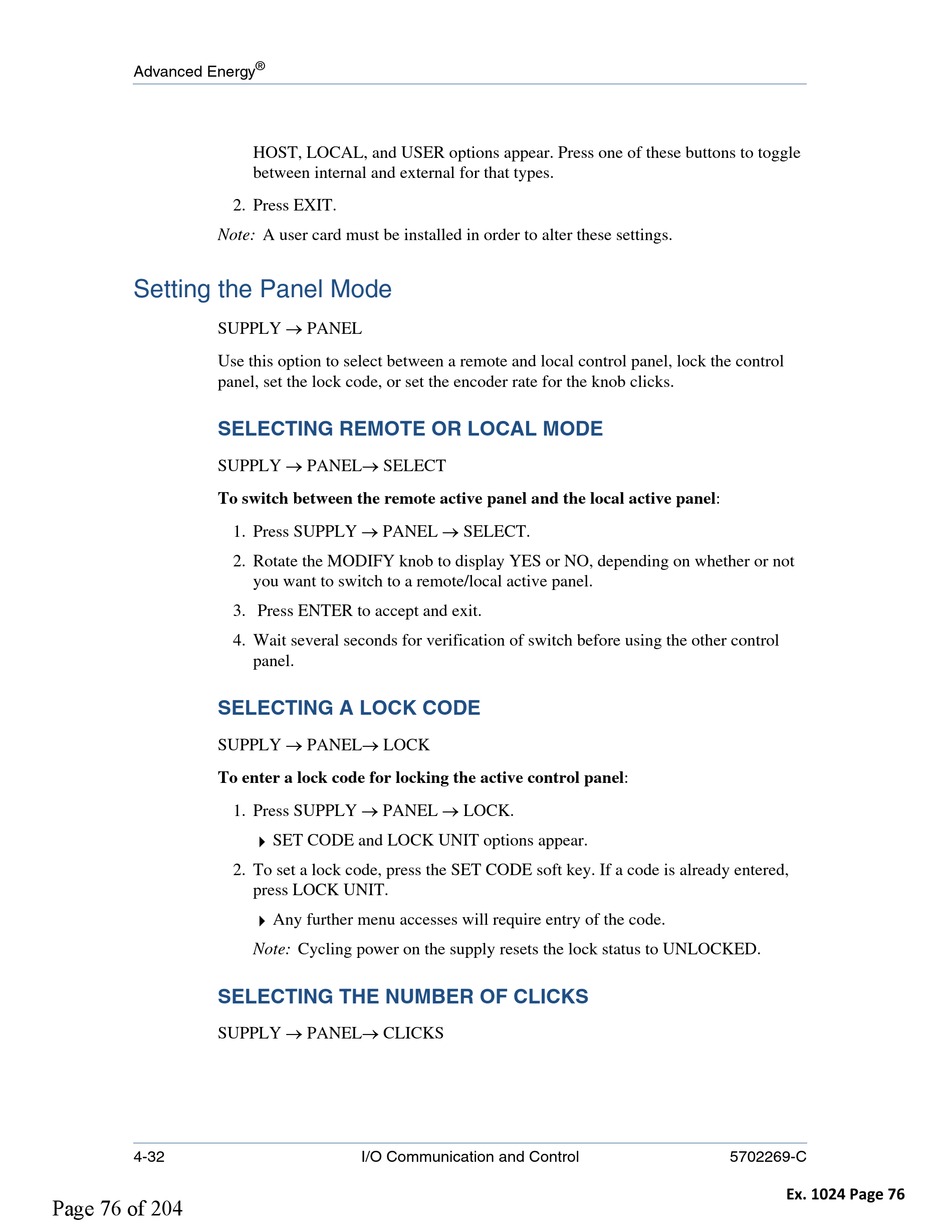

Setting The Panel Mode; Selecting Remote Or Local Mode; Selecting A Lock Code; Selecting The Number Of Clicks - Advanced Energy Pinnacle Plus+ User Manual

Advanced Energy
Note: A user card must be installed in order to alter these settings.

Setting the Panel Mode

SUPPLY → PANEL
Use this option to select between a remote and local control panel, lock the control
panel, set the lock code, or set the encoder rate for the knob clicks.

SELECTING REMOTE OR LOCAL MODE

SUPPLY → PANEL→ SELECT
To switch between the remote active panel and the local active panel:

SELECTING A LOCK CODE

SUPPLY → PANEL→ LOCK
To enter a lock code for locking the active control panel:

SELECTING THE NUMBER OF CLICKS

SUPPLY → PANEL→ CLICKS
4-32
Page 76 of 204
®
HOST, LOCAL, and USER options appear. Press one of these buttons to toggle
between internal and external for that types.
2. Press EXIT.
1. Press SUPPLY → PANEL → SELECT.
2. Rotate the MODIFY knob to display YES or NO, depending on whether or not
you want to switch to a remote/local active panel.
3. Press ENTER to accept and exit.
4. Wait several seconds for verification of switch before using the other control
panel.
1. Press SUPPLY → PANEL → LOCK.
4 SET CODE and LOCK UNIT options appear.
2. To set a lock code, press the SET CODE soft key. If a code is already entered,
press LOCK UNIT.
4 Any further menu accesses will require entry of the code.
Note: Cycling power on the supply resets the lock status to UNLOCKED.
