Table 4-18. Command Status Response (CSR) Codes (Continued)

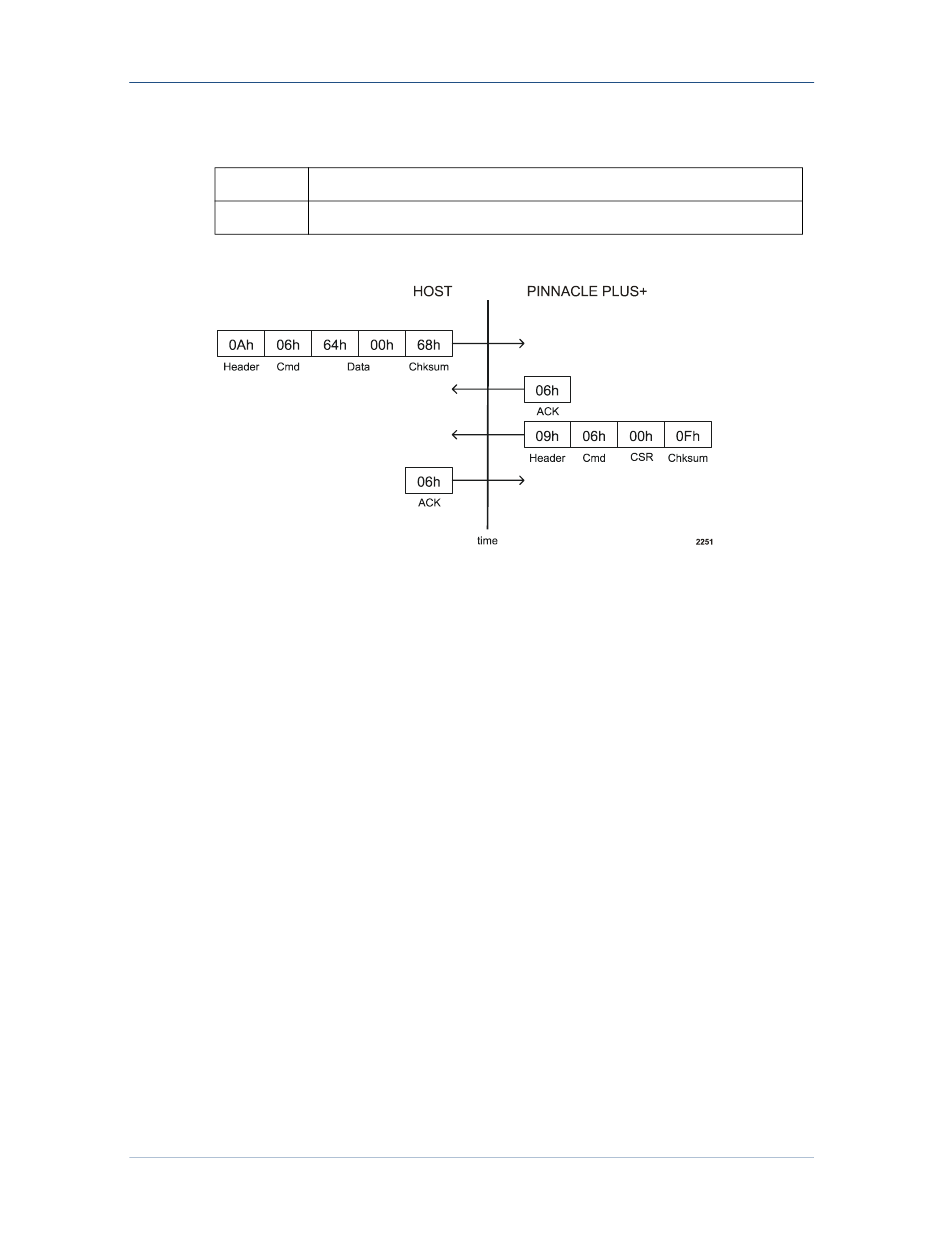

Figure 4-18. AE Bus communications transaction example

AE Bus Commands

To operate the power supply from a host computer, you must first set the control mode
to host (command 14).
AE Bus commands 1 through 127 change the value of a parameter or direct the power
supply to perform a specific function. The Pinnacle Plus+ supply responds to these
commands with a CSR code (see "Understanding Command Status Response (CSR)
Codes" on page 4-57). The codes returned in response to each of these commands is
listed in the rightmost column of the table.
Commands 128 through 255 request a value to be read from the Pinnacle Plus+
supply. The number of data bytes contained in the return packet is listed in the
rightmost column of the table. Some of these commands may return CSR codes; those
codes are listed in the same column.
5702269-C
Page 103 of 204
User set point out of range
36
Command not accepted (there is no such command)
99
I/O Communication and Control
Pinnacle™ Plus+ 10 kW
4-59
Ex. 1024 Page 103
