Pinnacle™ Plus+ 10 kW
There are two types of DIP switches on AE Bus interfaces: "rocker" DIPs and "slide"
DIPs (see Figure 4-13 on page 4-49 and Figure 4-14 on page 4-49). Your supply will
have one of these types. While the switches on these DIPs are slightly different, they
serve the same function. Both DIPs contain eight miniature switches (here called
"min-switches"). In all units, setting a switch to the "up" position means setting it
toward the numbers on the DIP, and setting a switch to the "down" position means
setting it away from the numbers. On "rocker" DIPs, "up" means that the side of the
switch toward the numbers is depressed. On "slide" DIPs, "up" means that the slide is
pushed toward the numbers.

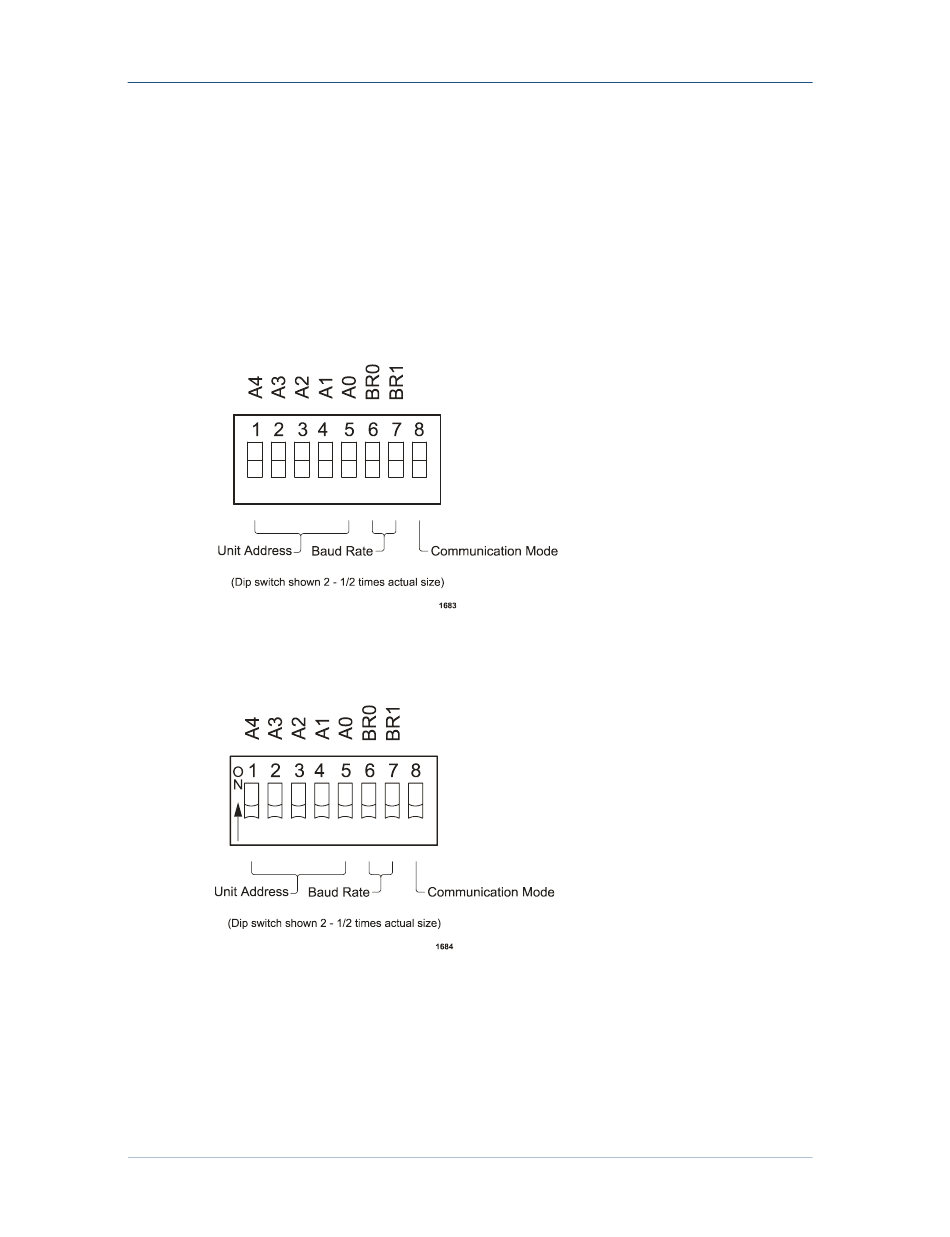

Figure 4-13. Rocker DIP switch

Figure 4-14. Slide DIP switch

On units where the DIP switch is located externally on the rear panel, it can be
difficult to see the numbers, and the orientation of the unit may change. However, the
orientation of the DIP is always the same relative to the unit and, when the unit is
5702269-C
I/O Communication and Control
4-49
