CONTROL PANEL INTERFACE

Your Pinnacle Plus+ unit may have either an active front panel, which is an integrated
part of the unit, or an active remote panel, which is connected to the DISPLAY port on
the rear panel of the unit. This manual uses the term "control panel" to refer to either
of these panels since they function identically.
An active control panel has three main sections:

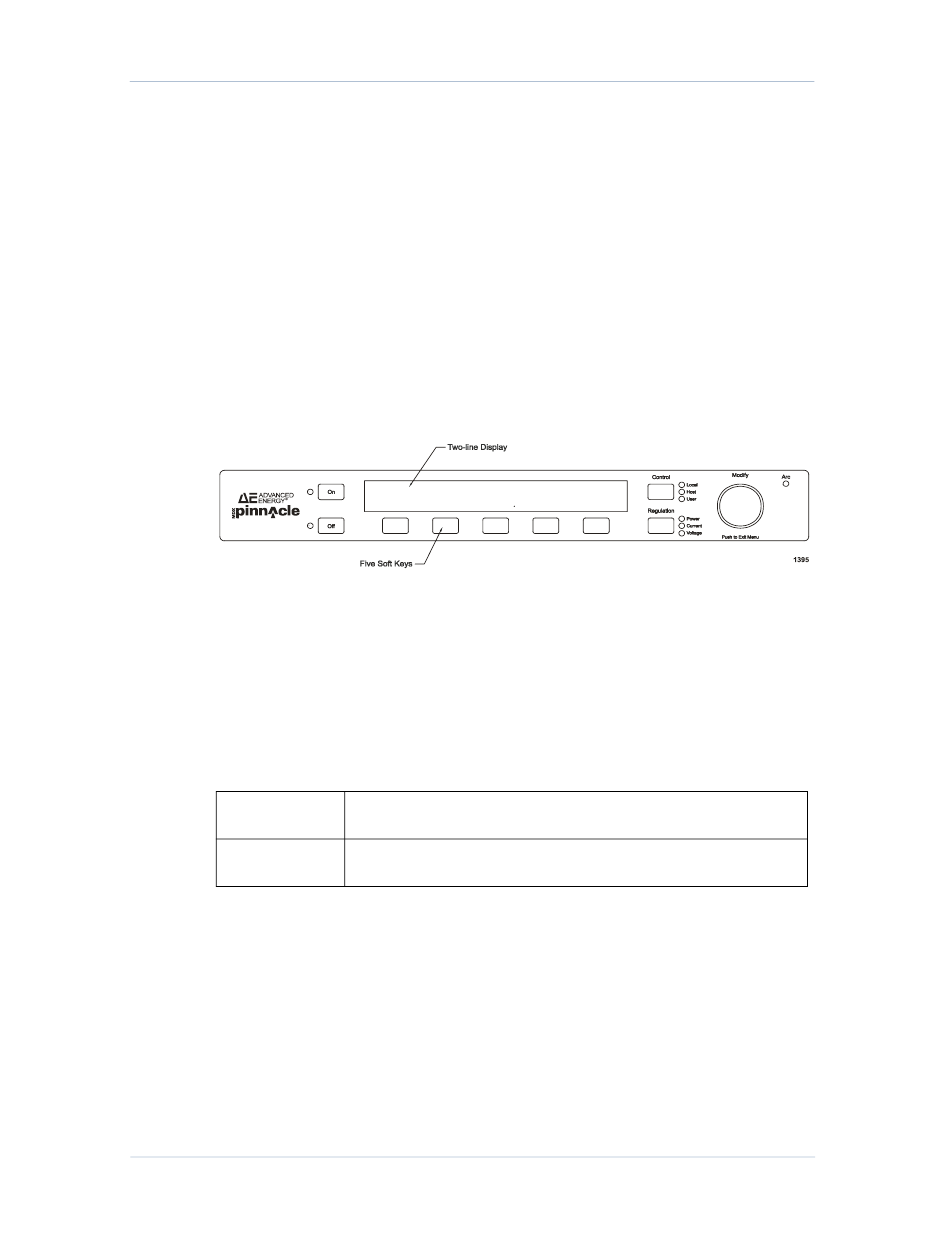

Figure 4-5. Control panel

Output Power Key

Use the following keys to turn output power on and off.
Table 4-9. Output Power Keys
ON
OFF

Control Key

To control your Pinnacle Plus+ supply from the panel, select local mode by pressing
the CONTROL key on the panel until the LOCAL LED lights. Placing the unit in
local mode gives you full access to the front panel menu.
4-18
Page 62 of 204
®
• ON and OFF switches at the far left of the panel
• CONTROL and REGULATION switches at the far right of the panel
• A two-line display, five soft keys, and a MODIFY knob
Turns on output power if the control panel has control of the on/
off function and all interlock conditions are satisfied.
Turns off output power, no matter which interface is currently
controlling the unit.
I/O Communication and Control 5702269-C
