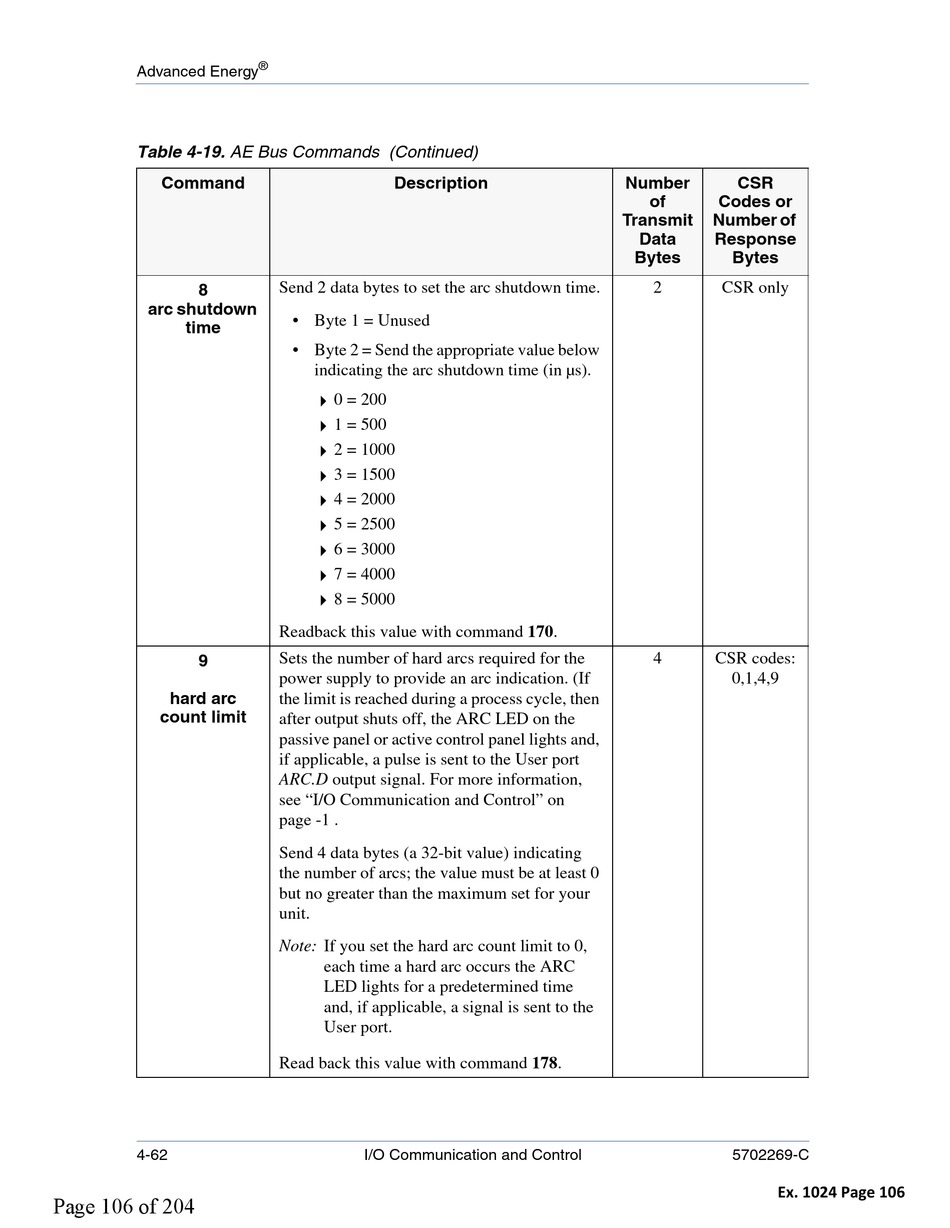

Table 4-19. AE Bus Commands (Continued)
Command
8
arc shutdown
time
9
hard arc
count limit
4-62
Page 106 of 204
®
Description
Send 2 data bytes to set the arc shutdown time.
• Byte 1 = Unused
• Byte 2 = Send the appropriate value below
indicating the arc shutdown time (in µs).
4 0 = 200
4 1 = 500
4 2 = 1000
4 3 = 1500
4 4 = 2000
4 5 = 2500
4 6 = 3000
4 7 = 4000
4 8 = 5000
Readback this value with command 170.
Sets the number of hard arcs required for the
power supply to provide an arc indication. (If
the limit is reached during a process cycle, then
after output shuts off, the ARC LED on the
passive panel or active control panel lights and,
if applicable, a pulse is sent to the User port
ARC.D output signal. For more information,
see "I/O Communication and Control" on
page -1 .
Send 4 data bytes (a 32-bit value) indicating
the number of arcs; the value must be at least 0
but no greater than the maximum set for your
unit.
Note: If you set the hard arc count limit to 0,
each time a hard arc occurs the ARC
LED lights for a predetermined time
and, if applicable, a signal is sent to the
User port.
Read back this value with command 178.
I/O Communication and Control
Number CSR
of Codes or
Transmit Number of
Data Response
Bytes Bytes
2 CSR only
4 CSR codes:
0,1,4,9
