Advanced Energy

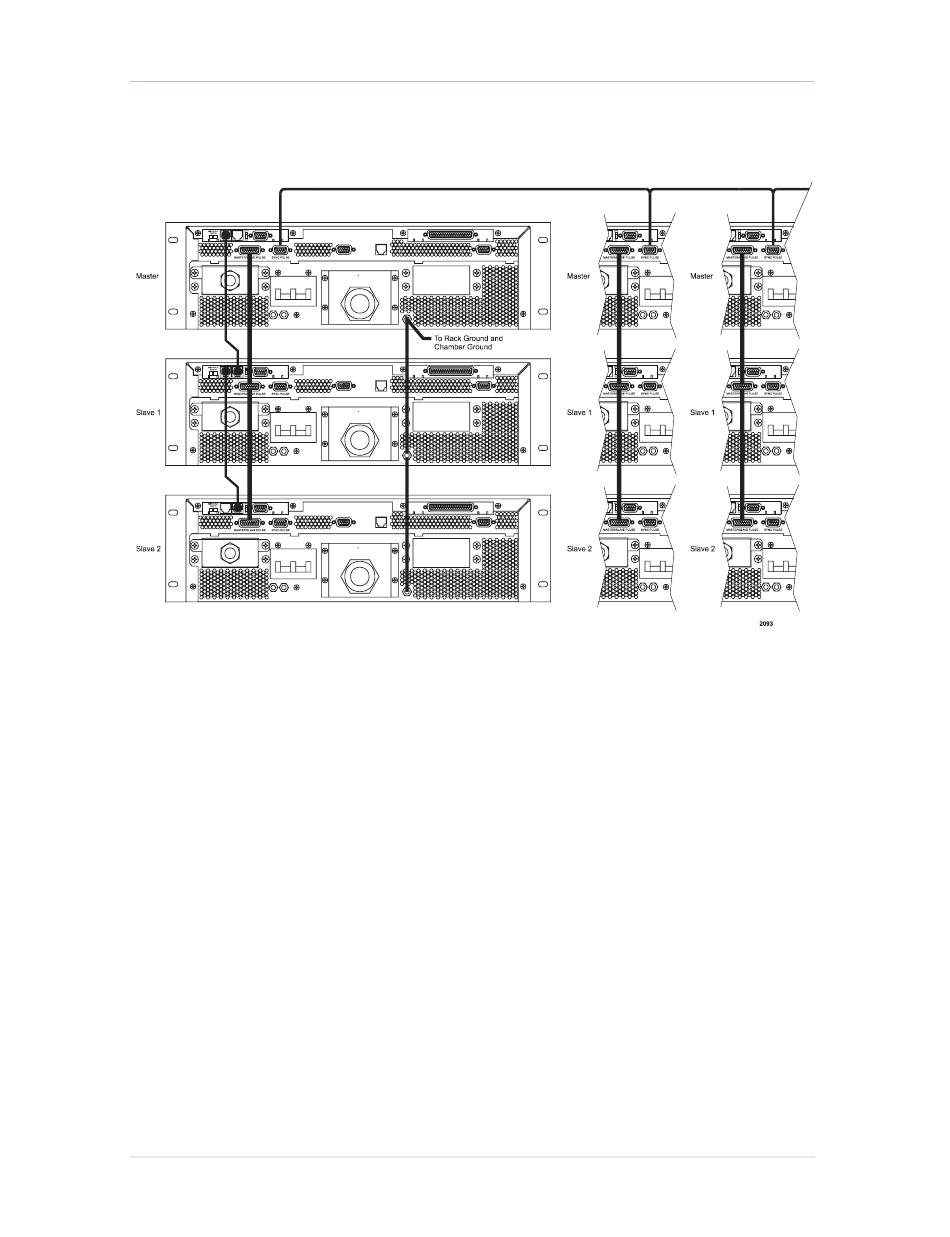

Figure 5-14. Sync Pulse master/slave configuration
MONITORING YOUR SYNC PULSE SYSTEM
There are three options for monitoring your Pinnacle Plus+ units while in a sync pulse
configuration, depending on your unit's features. These options are as follows:
5-22
Page 168 of 204
®
• If you have a passive front panel or remote passive panel attached to any unit in
the system, you can view the out for that unit. For more information, see the "I/O
Communication and Control" chapter.
• If you have an active front panel or Pinnacle Plus+ Remote Active Panel attached
to any unit in the system, you can monitor the output (power, current, or voltage)
of the unit and its set points. For more information, see the "I/O Communication
and Control" chapter.
• If you have a host computer connected to a serial port on any unit in the system,
you can monitor the output (power, current, or voltage) of the unit and its set
points.
Installation
5702269-C
Ex. 1024 Page 168
