AE BUS (HOST) PORT

Your Pinnacle Plus+ supply features an AE Bus card with a 9-pin, female,
subminiature-D connector for interfacing with a host computer. You can do
everything from a host computer interfaced with the Pinnacle Plus+ supply that you
can do from the active front panel or Pinnacle Plus+ Remote Active Panel.
To obtain a diskette containing sample software with a limited command set, as well
as an executable version of the AE Bus software, please call AE Customer Support.
Note: If you have an isolated AE Bus card, your card provides isolation of more than
Make connections for the serial port through its 9-pin, female subminiature-D
connector on the rear panel of the unit.

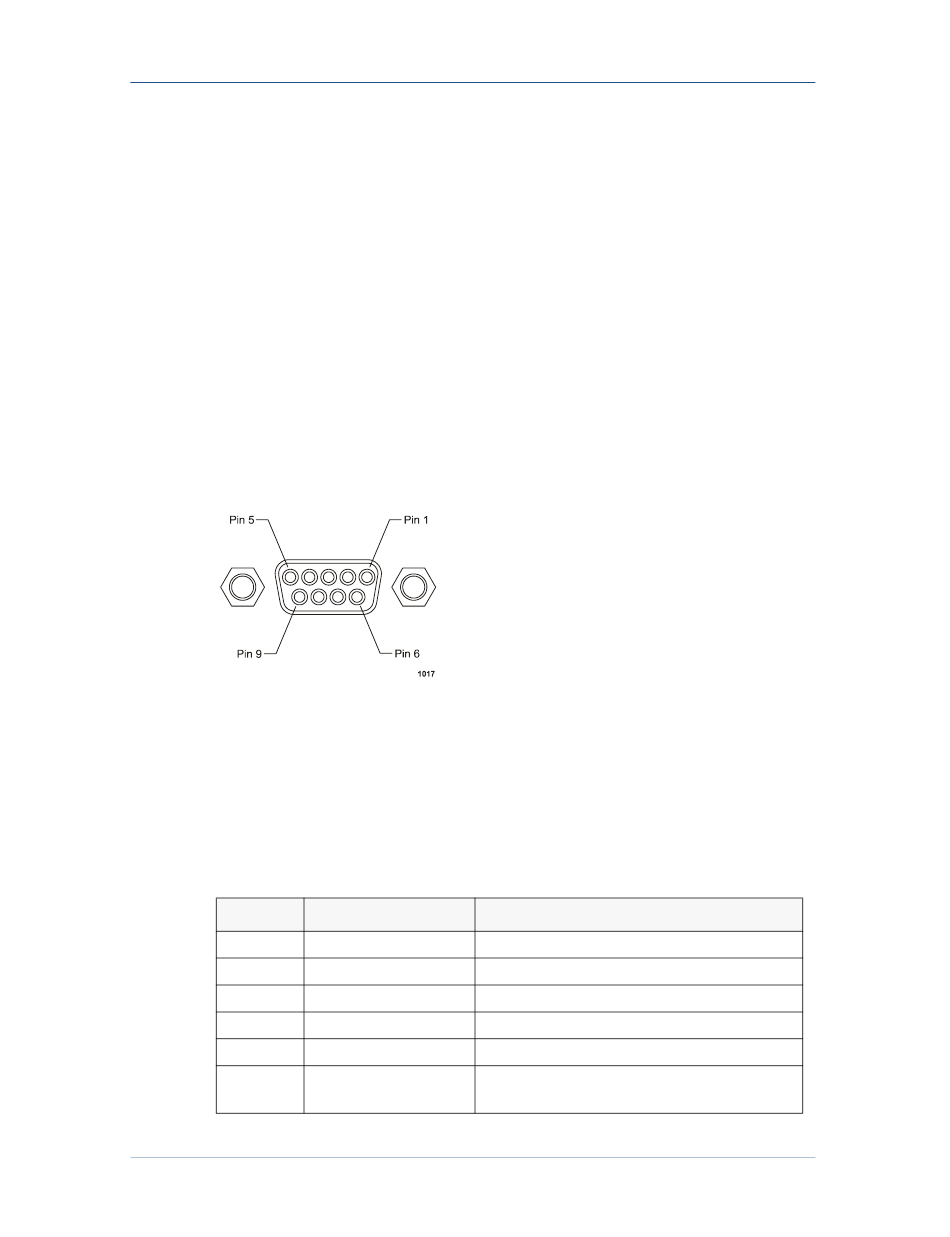

Figure 4-12. AE Bus port connector

Pin Descriptions

Refer to the following table for pin descriptions.

Table 4-14. AE Bus Host Port Pin Descriptions

5702269-C
Page 91 of 204
500 Vrms from the Pinnacle Plus+ unit's SELV logic and control circuitry to all
nine pins on the connector.
Pin
Pin Name
1
UNASSIGNED
2
TXD.D
3
RXD.D
4
UNASSIGNED
5
COM.D
6
TR- / R-
I/O Communication and Control
Pinnacle™ Plus+ 10 kW
Description
RS-232 transmit data
RS-232 receive data
Data common
RS-485 (-) transmit/receive data;
RS-422 (-) received data
4-47
Ex. 1024 Page 91
