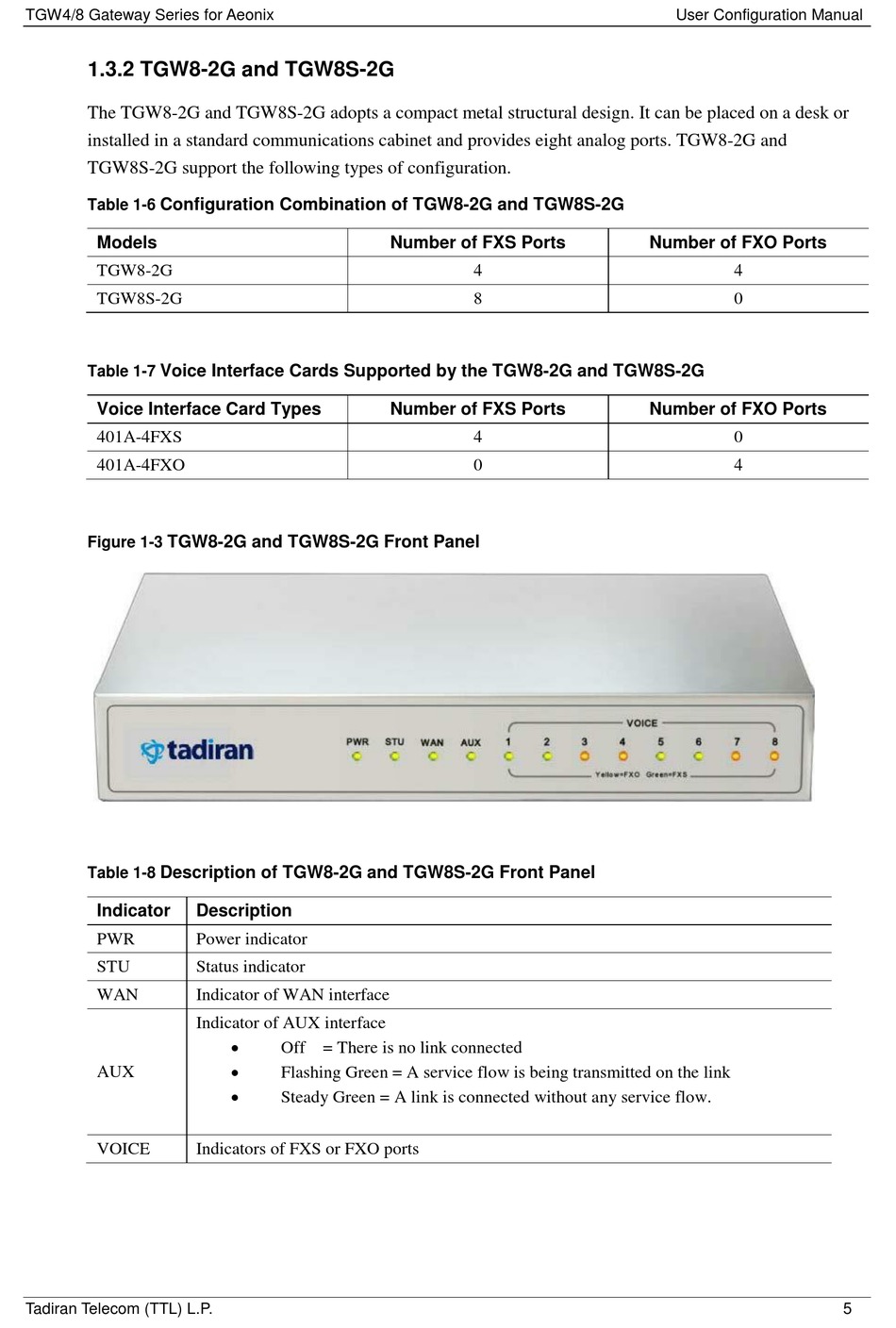

Tgw8-2G And Tgw8S-2G; Figure 1-3 Tgw8-2G And Tgw8S-2G Front Panel; Table 1-6 Configuration Combination Of Tgw8-2G And Tgw8S-2G; Table 1-7 Voice Interface Cards Supported By The Tgw8-2G And Tgw8S-2G - Tadiran Telecom TGW4 SERIES User Configuration Manual

TGW4/8 Gateway Series for Aeonix

1.3.2 TGW8-2G and TGW8S-2G

The TGW8-2G and TGW8S-2G adopts a compact metal structural design. It can be placed on a desk or
installed in a standard communications cabinet and provides eight analog ports. TGW8-2G and
TGW8S-2G support the following types of configuration.
Configuration Combination of TGW8-2G and TGW8S-2G
Table 1-6
Models
TGW8-2G
TGW8S-2G
Voice Interface Cards Supported by the TGW8-2G and TGW8S-2G
Table 1-7
Voice Interface Card Types
401A-4FXS
401A-4FXO
TGW8-2G and TGW8S-2G Front Panel
Figure 1-3
Description of TGW8-2G and TGW8S-2G Front Panel
Table 1-8
Indicator
PWR
STU
WAN
AUX
VOICE
Tadiran Telecom (TTL) L.P.
Description
Power indicator
Status indicator
Indicator of WAN interface
Indicator of AUX interface

Off = There is no link connected

Flashing Green = A service flow is being transmitted on the link

Steady Green = A link is connected without any service flow.
Indicators of FXS or FXO ports
Number of FXS Ports
4
8
Number of FXS Ports
4
0
User Configuration Manual
Number of FXO Ports
4
0
Number of FXO Ports
0
4
