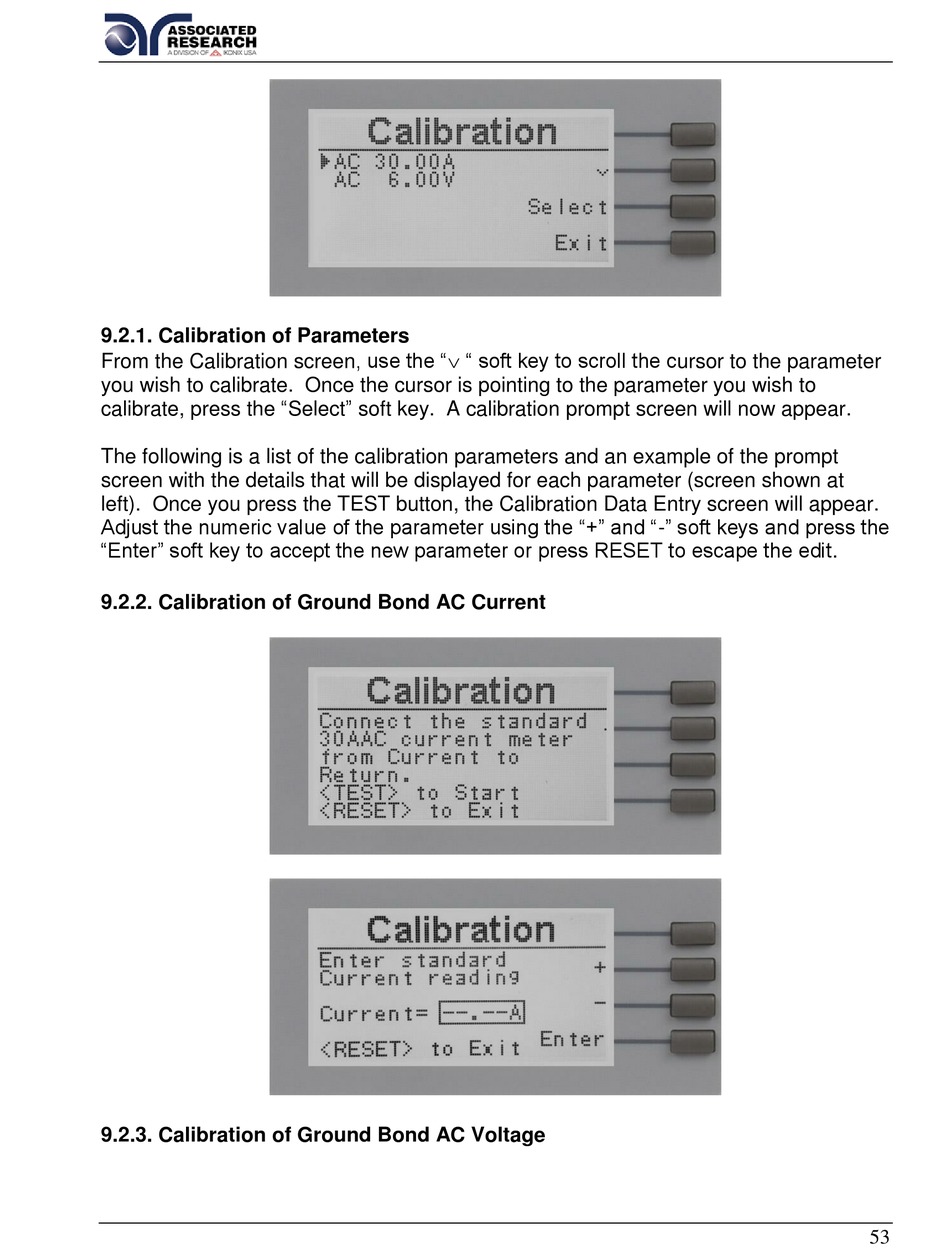

9.2.1. Calibration of Parameters

From the Calibration screen, use the " " soft key to scroll the cursor to the parameter
you wish to calibrate. Once the cursor is pointing to the parameter you wish to
calibrate, press the "Select" soft key. A calibration prompt screen will now appear.
The following is a list of the calibration parameters and an example of the prompt
screen with the details that will be displayed for each parameter (screen shown at
left). Once you press the TEST button, the Calibration Data Entry screen will appear.
Adjust the numeric value of the parameter using the "+" and "-" soft keys and press the
"Enter" soft key to accept the new parameter or press RESET to escape the edit.

9.2.2. Calibration of Ground Bond AC Current

9.2.3. Calibration of Ground Bond AC Voltage

53
