The Main Menu will now be displayed. From the Main Menu screen, three software

controls may be accessed: Menu, Memory and Step. Pressing the "Exit" soft key at

any time will return you to the Perform Tests screen.

Pressing the "Menu" soft key from the Main Menu will display the Results, Test and

System selections. Please refer to section 5.2.3. Results, Test, and System

Selections.

Memory

The HYAMP III has 10, 3-step programmable memory locations (M0-M9). Press the

"Memory" soft key to increment the instrument to the desired memory location. As the

"Memory" soft key is pressed, the parameters of the selected memory location are

automatically loaded into the instrument.

Step

Each of the 10 memory locations in HYAMP III has 3 programmable test steps that

may be connected together to create a multi-step test sequence. Press the "Step" soft

key to increment the test step number.

4.1.3. Results, Tests and System Selections

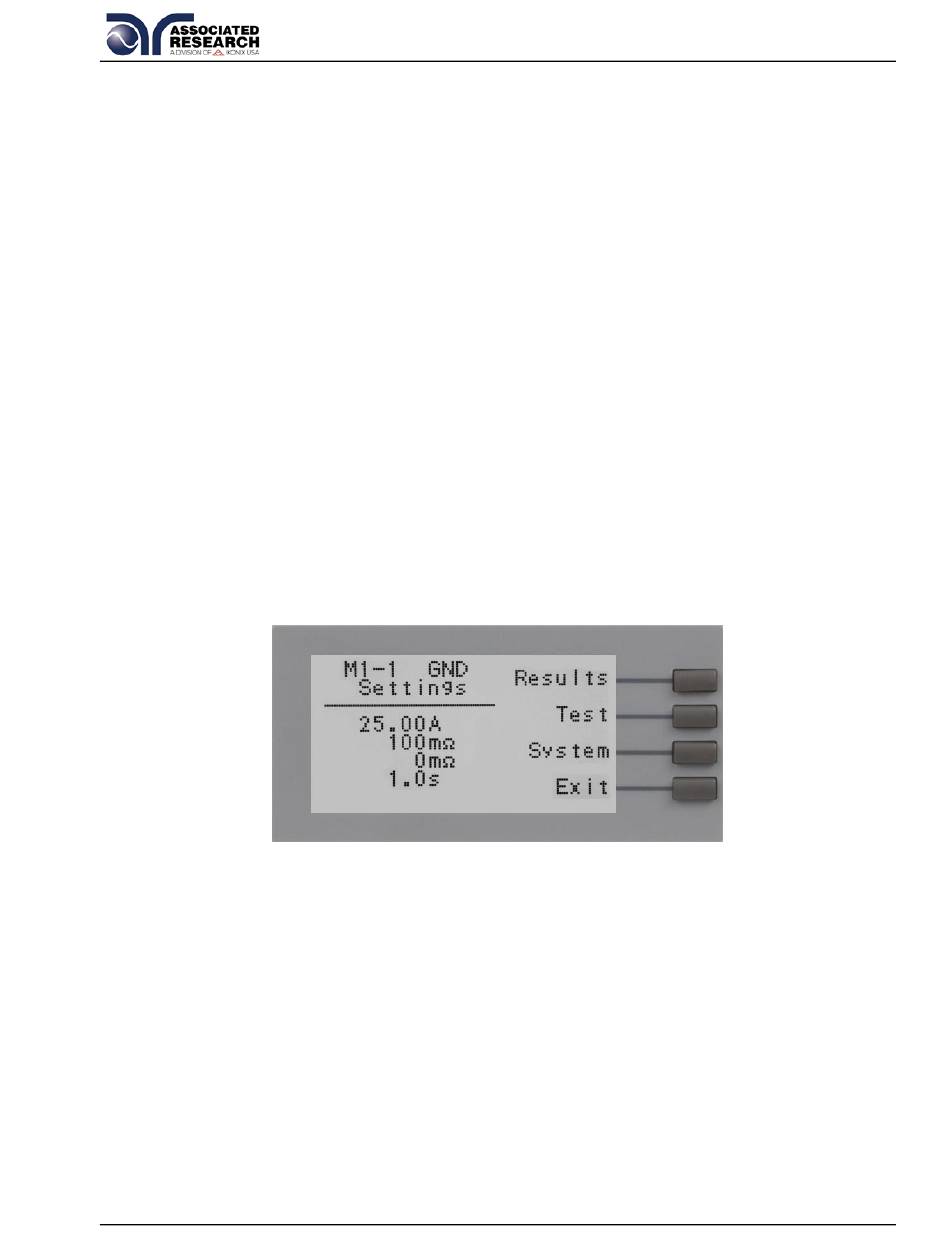

From the Main Menu, press the "Menu" soft key.

From this screen, three software controls may be accessed: Results, Test and

System. Pressing the "Exit" soft key at any time will return you to the Main Menu

screen.

Results

Pressing the "Results" soft key from this menu will allow you to review the test results

of the last test performed. An example of a Results screen is shown below.
