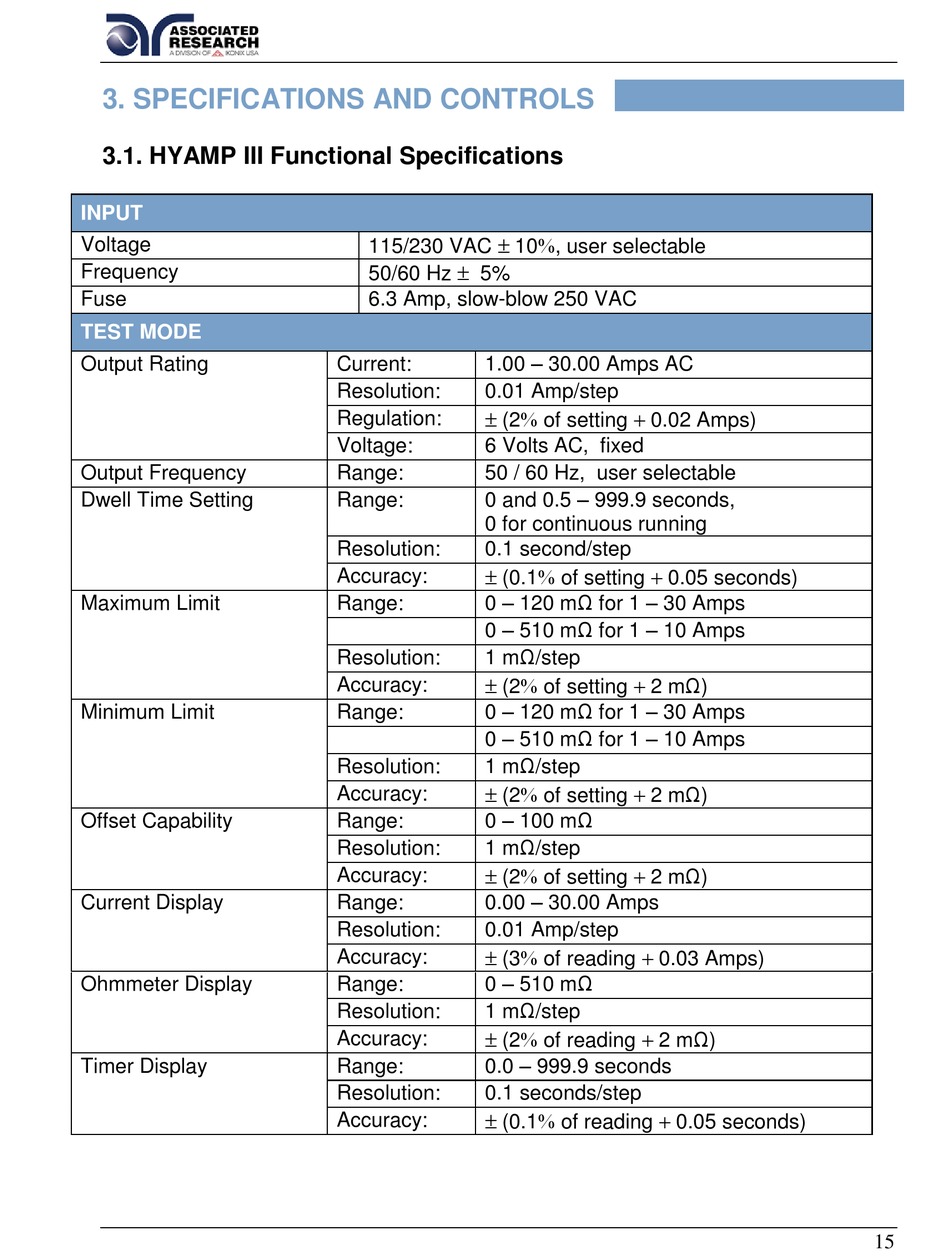

3. SPECIFICATIONS AND CONTROLS

3.1. HYAMP III Functional Specifications

INPUT
Voltage
Frequency
Fuse
TEST MODE
Output Rating
Output Frequency
Dwell Time Setting
Maximum Limit
Minimum Limit
Offset Capability
Current Display
Ohmmeter Display
Timer Display
115/230 VAC  10, user selectable
50/60 Hz  5%
6.3 Amp, slow-blow 250 VAC
1.00 – 30.00 Amps AC
Current:
Resolution: 0.01 Amp/step
 (2 of setting  0.02 Amps)
Regulation:
Voltage: 6 Volts AC, fixed
Range: 50 / 60 Hz, user selectable
0 and 0.5 – 999.9 seconds,
Range:
0 for continuous running
Resolution: 0.1 second/step
 (0.1 of setting  0.05 seconds)
Accuracy:
0 – 120 mΩ for 1 – 30 Amps
Range:
0 – 510 mΩ for 1 – 10 Amps
Resolution: 1 mΩ/step
 (2 of setting  2 mΩ)
Accuracy:
0 – 120 mΩ for 1 – 30 Amps
Range:
0 – 510 mΩ for 1 – 10 Amps
Resolution: 1 mΩ/step
 (2 of setting  2 mΩ)
Accuracy:
0 – 100 mΩ
Range:
Resolution: 1 mΩ/step
 (2 of setting  2 mΩ)
Accuracy:
0.00 – 30.00 Amps
Range:
Resolution: 0.01 Amp/step
 (3 of reading  0.03 Amps)
Accuracy:
0 – 510 mΩ
Range:
Resolution: 1 mΩ/step
 (2 of reading  2 mΩ)
Accuracy:
0.0 – 999.9 seconds
Range:
Resolution: 0.1 seconds/step
 (0.1 of reading  0.05 seconds)
Accuracy:
