Quick Start Guide
SAFETY CHECKLIST
S
urvey the test station. Make sure it is safe & orderly.
A
lways keep unqualifi ed/unauthorized personnel away from the test area.
F
amiliarize yourself with safety protocols in the event of a problem.
E
xercise caution and never touch products or connections during a test.
T
rain operators. Never touch clips directly and always connect the return lead fi rst.
Y
ou should always know when a test is being performed.
WARNING: THIS GUIDE WAS CREATED FOR OPERATORS HAVING SOME FAMILIARITY WITH ELECTRICAL SAFETY
TESTING. AN ELECTRICAL SAFETY TESTER PRODUCES VOLTAGES AND CURRENTS THAT CAN CAUSE HARMFUL
OR FATAL ELECTRIC SHOCK. TO PREVENT ACCIDENTAL INJURY OR DEATH, THESE SAFETY PROCEDURES MUST
BE STRICTLY OBSERVED WHEN HANDLING AND USING A TEST INSTRUMENT. CONTACT US AT
INFO@ARISAFETY.COM FOR MORE INFO ON HOW TO GET TRAINED ON ELECTRICAL SAFETY TESTING.

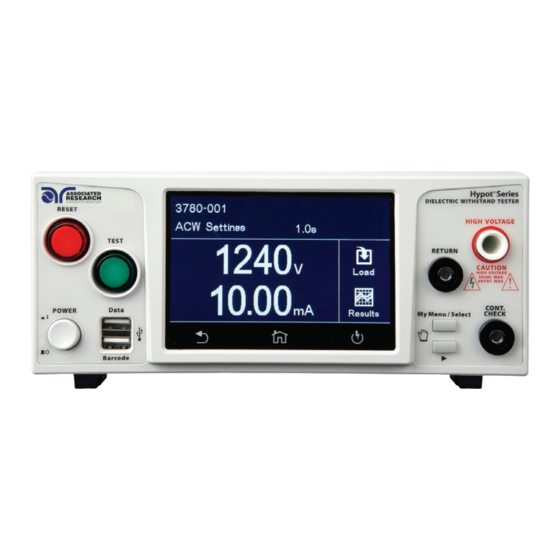

Hypot
Models 3805, 3865, 3870, 3880
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IKONIX Associated Research Hypot 3805
Summary of Contents for IKONIX Associated Research Hypot 3805
- Page 1 Quick Start Guide Hypot ® Models 3805, 3865, 3870, 3880 SAFETY CHECKLIST urvey the test station. Make sure it is safe & orderly. lways keep unqualifi ed/unauthorized personnel away from the test area. amiliarize yourself with safety protocols in the event of a problem. xercise caution and never touch products or connections during a test.
-
Page 2: Instrument Setup
INSTRUMENT SETUP WARNING: LOCATE A SUITABLE TESTING AREA WITH A THREE-PRONG, GROUNDED OUTLET. BE SURE THAT YOUR THREE-PRONG OUTLET HAS BEEN TESTED FOR PROPER WIRING. READ THE SAFETY CHECKLIST OF THIS GUIDE BEFORE STARTING TO TEST. Find parts for Instrument Setup in Section 1 of your Accessory Box. Connect the female end of the power input plug into the rear of the instrument and plug SIGNAL OUTPUT... -
Page 3: Touch Screen Operations
TOUCH SCREEN OPERATIONS Back Home Test Screen TOUCH SWIPE UP, DOWN, LEFT & RIGHT Tap the virtual buttons to open various functions. Simple swipes allow you to quickly move through screens & parameters DRAG & DROP TOUCH & HOLD Drag and drop meters on your Perform Touch and hold test fi... -
Page 4: Test Setup
TEST SET UP TAP SETUP TESTS TAP ADD FILE ADD FILE NAME Home Screen File Screen Tap the ENTER ( ) key to save your selection TAP ADD STEP TAP TEST SETTING EDIT PARAMETERS Tap the test type, and the Add Step parameter you would like Tap parameter values to... -
Page 5: Test Connection
TEST CONNECTION WARNING: DO NOT TOUCH THE DEVICE UNDER TEST ONCE YOU START THE TEST. Find parts for Instrument Setup in Section 2 of your Accessory Box. Adapter Box Connections To increase operator safety, you may elect to use an adapter box for products terminating in either a two-prong or three-prong line cord. - Page 6 TEST CONNECTION WARNING: DO NOT TOUCH THE DEVICE UNDER TEST ONCE YOU START THE TEST. Find parts for Instrument Setup in Section 3 of your Accessory Box. DUT Connections Connect the black ground return lead (P/N 2100A-13) to the Return terminal located on the front panel of the instrument.
-
Page 7: Perform Tests
PERFORM TESTS PUSH THE TAP PERFORM TAP TEST TEST BUTTON TESTS TO START THE TEST RESULTS After test is complete, the Results icon will be available on the screen. TAP RESULTS TAP DESIRED RESULT To view detailed test results To view your test results. REVIEW TEST RESULTS... - Page 8 SCAN FOR QUICK START VIDEO Safety Is Our Only Focus ® For additional information about these and other key features of the Hypot , please consult the ® full Operation and Service Manual or call us toll-free 1-800-858-TEST (8378) or +1-847-367-4077 ©2017 Associated Research arisafety.com •...
