6.3. System 3100, HYAMP III Integrated with HYPOT III

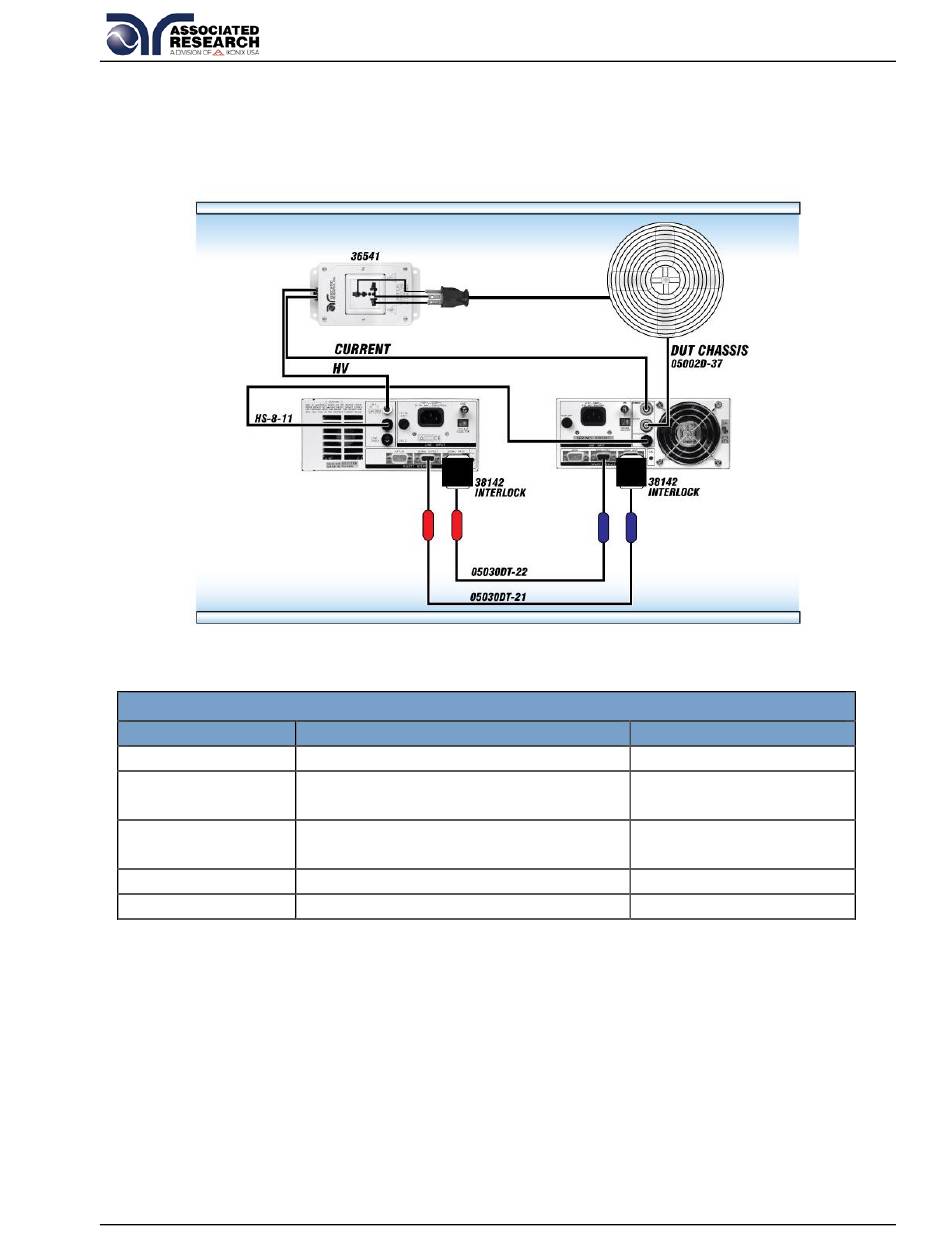

The following illustration should be used to configure the HYAMP III for integrated

operation with Hypot III:

If you order the HYAMP III interconnect kit you will receive the following items.

PART NUMBER

HS-8-11

5030DT-21

5030DT-22

38142

36541

When connecting HYAMP III to Hypot III the 38075 Interlock connectors may no

longer be used. The 38142 Interlock connectors provided with the kit will replace

these parts.

When Hypot III is connected to HYAMP III, the Hypot III should have PLC Remote

turned "ON." In this configuration, you will only be able to start and reset the HYAMP

III from the HYAMP III. It is possible to reset or abort the Hipot from both instruments.

INTERCONNECT KIT

DESCRIPTION

Cable Assembly Return

Cable Assembly R/P Interface

COM

Cable Assembly R/P Interface

SEQ

Interlock Connector

Adapter Box HV, HC Domestic

QTY.
