Summary of Contents for IKONIX 3145

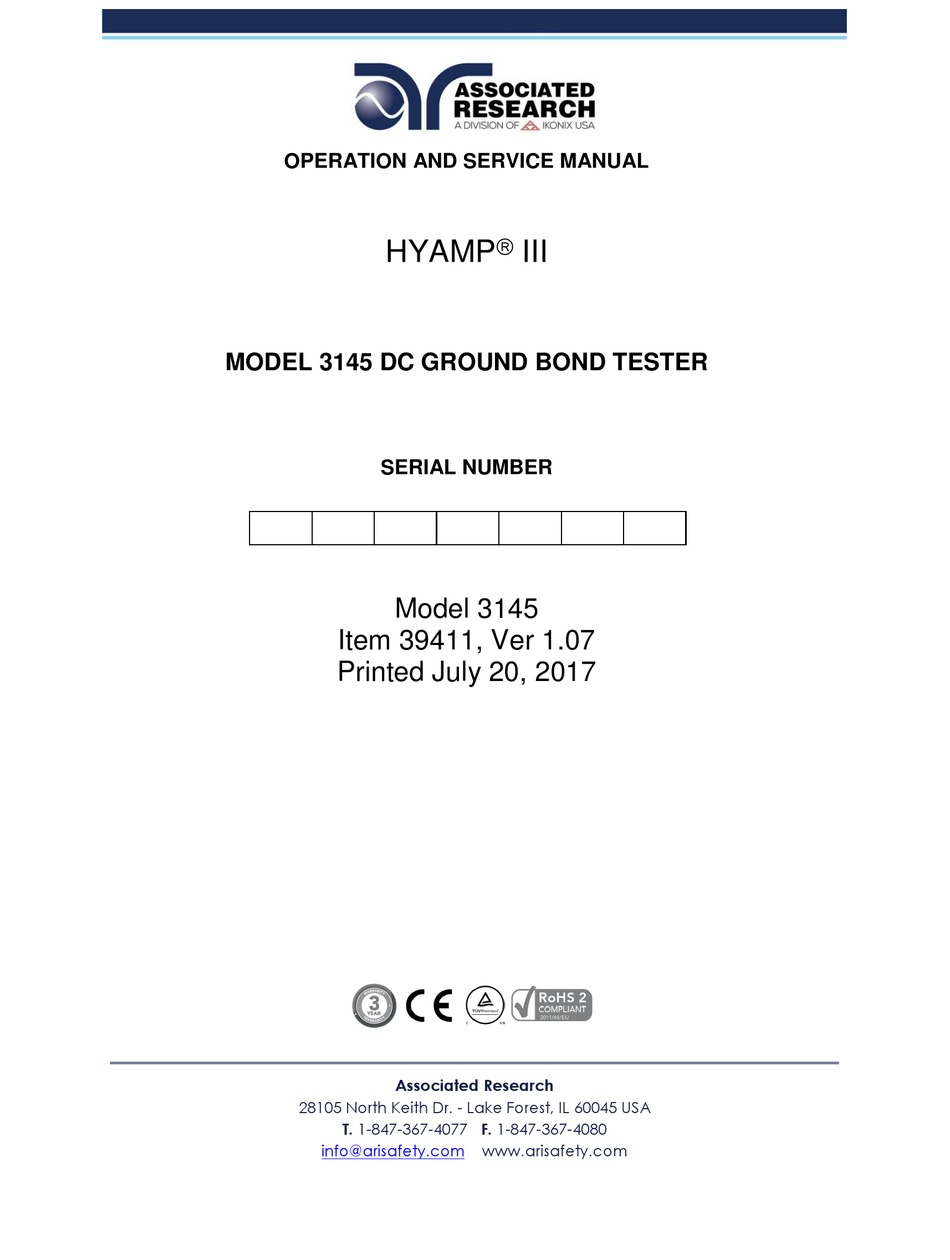

- Page 1 OPERATION AND SERVICE MANUAL HYAMP MODEL 3145 DC GROUND BOND TESTER SERIAL NUMBER Model 3145 Item 39411, Ver 1.07 Printed July 20, 2017 Associated Research 28105 North Keith Dr. - Lake Forest, IL 60045 USA T. 1-847-367-4077 F. 1-847-367-4080 info@arisafety.com...
- Page 2 Associated Research, Inc. Address: 28105 North Keith Dr. Lake Forest, IL 60045 Product Name: HYAMP III DC Ground Bond Tester Model Number: 3145 Conforms to the following Standards: Safety: IEC61010-1:2010 EN61010-1:2010 EMC: EN61326-1:2013(EN55011:2009+A1:2010 CLASS A, EN61000-3-3:2008, IEC61000-4-2:2008, IEC61000-4- 3:2006/A1:2007/A2:2010, IEC61000-4-...
-
Page 3: Table Of Contents
2.2.4. Environmental Conditions ..............12 3. SPECIFICATIONS AND CONTROLS ............14 3.1. 3145 Specifications ..................14 3.2. Instrument Controls ..................17 3.2.1. Front Panel Controls for 3145 ............17 3.2.2. Rear Panel Controls for 3145 ............18 4. PROGRAMMING INSTRUCTIONS ..............20 4.1. Power Up ......................20 4.1.1. - Page 4 10.2. Calibration Initialization ................52 10.2.1...................... Cali bration of Parameters ....................53 10.2.2...................... Cali bration of Ground Bond DC Current for 3145 ............53 10.2.3...................... Cali bration of Ground Bond DC Voltage for 3145 ............54 11. REPLACEMENT PARTS LIST ..............56...
-
Page 5: Introduction
1. INTRODUCTION 1.1. Warranty Policies Associated Research, Inc., certifies that the instrument listed in this manual meets or exceeds published manufacturing specifications. This instrument was calibrated using standards that are traceable to the National Institute of Standards and Technology (NIST). Your new instrument is warranted to be free from defects in workmanship and material for a period of (3) year from the date of shipment. -
Page 6: Safety Symbols
Operator Modifications Any non-authorized modifications, tampering or physical damage will void this warranty. Elimination of any connections in the earth grounding system or bypassing any safety systems will void this warranty. This warranty does not cover accessories not of Associated Research, Inc. manufacture. Parts used must be parts that are recommended by Associated Research, Inc. - Page 7 Alternating Current, AC: Current that reverses direction on a regular basis. Utility power is usually generated in the form of a sinusoid at a frequency of 60 times per second in the United States and 50 times per second in other countries. Arc: A partial momentary breakdown due to the force of a strong electric field on closely spaced conductors, sometimes evidenced by corona or a luminous flashover.
-
Page 8: Safety
PF (Power factor): Power Factor = W/VA where W =Watts (Real Power) and VA =Volts x Amps (apparent power). It is important to note that the closer the power factor is to "1" the more resistive the DUT is. The closer the power factor is to 0 the more reactive (inductive or capacitive) the DUT is. Reactive Current: The current component due to the reactive impedance of a load. -
Page 9: Test Station
To prevent electric shock do not remove the instrument cover. There are no internal user serviceable parts. Routine maintenance or cleaning of internal parts is not necessary. Avoid the use of cleaning agents or chemicals on the instrument, as some chemicals may damage plastic parts or lettering. -
Page 10: Test Operator
removed from the test bench and put away. It should be apparent to both the operator and to any observers which product is under test, which product is waiting to be tested and which product has already been tested. Power Power to the test station should be arranged so that it can be shut off by one prominently marked switch located at the entrance to the test area. -
Page 11: Key Features And Benefits
Medical Restrictions Personnel with heart ailments or devices such as pacemakers should be informed that the voltages and currents generated by the instrument are very dangerous. If contacted, the instrument may cause heart-related problems. Please have the test operator consult a physician for recommendations. 1.5. -
Page 12: Getting Started
1-800-858-TEST (8378). 2.1.2. Contents of the Carton Inside the carton should be the following: DESCRIPTION AR PART NUMBER HYAMP III Instrument 3145 Cable ASSY High 38489 Current with Kelvin Current Output Cable ASSY High 38490 Return with Kelvin... -
Page 13: Installation
3145 Carton Contents 2.2. Installation 2.2.1. Work Area Locate a suitable testing area and be sure you have read all safety instructions for the operation of the instrument and suggestions on the test area setup in section 1.4. Safety. Make sure the work area you choose has a three-prong grounded outlet capable of supplying the necessary input current to the power source. -
Page 14: Basic Connections
2.2.3. Basic Connections Power Cable The instrument is shipped with a line cord containing a protective earth ground. When the line cord is connected to an appropriate AC power source the cable will connect the chassis to earth ground. The main plug shall only be inserted in a socket outlet with a protective ground (earth) contact. - Page 15 Failure to operate this instrument within the specified conditions could result in damage. More Information For more information on test operator and workstation safety please visit the Events and Training section of our website at http://www.asresearch.com/events- training/Default.aspx ____________________________________________________________________________...
-
Page 16: Specifications And Controls
3. SPECIFICATIONS AND CONTROLS 3.1. 3145 HYAMP III Functional Specifications INPUT 100-120 / 200-230 VAC 10, auto-detection Voltage 50/60 Hz 5% Frequency Fuse 10 Amp, slow-blow 250 V AC TEST MODE 1.00 – 40.00 Amps DC Output Rating... - Page 17 (0.1 of reading 0.05 seconds) Accuracy: ____________________________________________________________________________...
- Page 18 GENERAL Safety Agency Listing CE, cTUVus, RoHS2 Remote Control And Signal The following input and output signals are provided Output through two 9 pin D type connectors; 1. Remote control: Test, Reset, Interlock, and Withstand Processing. 2. Remote recall of memory program #1, #2 and #3. 3.
-
Page 19: Instrument Controls
3.2. Instrument Controls 3.2.1. Front Panel Controls for 3145 1. RESET BUTTON: Momentary contact switch used to reset the instrument. If a failure condition occurs during a test, you will need to reset the system to shut off the alarm and signal the system that you are aware of a failure condition. The reset button must be pressed before you can proceed to the next test or change any of the set-up parameters. -
Page 20: Rear Panel Controls For 3145
10. RETURN OUTPUT JACK: Connector used to attach the Return test lead, adapter box, or test fixture to the instrument. 3.2.2. Rear Panel Controls for 3145 1. RS-232 CONNECTOR: 9-Pin D subminiature connector for interconnection to RS- 232 Bus interface. - Page 21 6. CALIBRATION BUTTON: To put the instrument into the calibration mode, push this button and turn on the POWER switch simultaneously. 7. REMOTE SIGNAL OUTPUT: 9-Pin D subminiature female connector for monitoring PASS, FAIL, PROCESSING, and RESET output relay signals. 8.
-
Page 22: Programming Instructions
4. PROGRAMMING INSTRUCTIONS 4.1. Power Up The HYAMP III automatically defaults to the Perform Tests screen upon power up. The Perform Tests screen will appear as follows: The Perform Tests screen is the main operational screen of instrument. From this screen, all test parameters are monitored while the test is being performed. -
Page 23: Results, Tests And System Selections
The Main Menu will now be displayed. From the Main Menu screen, three software controls may be accessed: Menu, Memory and Step. Pressing the “Exit” soft key at any time will return you to the Perform Tests screen. Menu Pressing the “Menu” soft key from the Main Menu will display the Results, Test and System selections. -
Page 24: System Setup
Results Pressing the “Results” soft key from this menu will allow you to review the test results of the last test performed. An example of a Results screen is shown below. Test Pressing the “Test” soft key from this menu will allow you to access the Parameter Review screen. -
Page 25: System Setup Soft Keys
4.2.1. System Setup Soft Keys Directional soft keys ,, The “,, ” soft keys are used to scroll the cursor to the different system parameters. + key The “+” soft key is used to increase numerical values or toggle settings ON and OFF. Exit key The “Exit”... - Page 26 Refer to the section 6. Connection of Remote I/O for more details. Single Step This function is used to temporarily override the automatic connection feature. When the Single Step function is ON the instrument will pause after each test step is completed.
- Page 27 When P/F is selected, a Pass or Fail screen will be displayed at the end of the test. The Pass and Fail screens will appear as follows: When P/F is selected, it is not possible to see the test results directly at the end of the test.
- Page 28 Mem Lock is a sub-function of the Lock setting. In order for the Mem Lock function to work, the Lock must first be turned ON. Turning the Mem Lock OFF will allow the user to access all available memory locations but restricts access to memory and step editing capabilities.
- Page 29 NOTE: It is recommended that calibration should be performed at least once a year. Alert (Alert Date) The Alert Date is like an alarm clock that will warn you in advance of the actual Calibration Due Date. After a calibration is performed, the Alert Date is automatically set for 11 months after the calibration date.
-
Page 30: Default System Parameters
It is possible to quickly bypass the security of the Cal-Alert by powering up the instrument while pressing the soft key that is second from the top of the instrument. This will temporarily start the instrument in an unsecured state. The Cal-Alert Warning screen will be displayed and Cal-Alert may be disabled by selecting “No”... -
Page 31: Test Setup Soft Keys
2. From the Main Menu screen, press the “Menu” soft key. Results, Test and System selections will now be displayed. 3. From this screen, press the “Test” soft key. The Test Parameter Review screen will now be displayed. 4. From this screen all relevant test parameters may be edited and saved. Refer to section 4.3.4 Setting Up a Test for a complete list of test parameters. -
Page 32: Default Parameters
Connect: This function when turned ON will connect or link the current step to the next step. The third step in a Memory will not have this function because it is the last step of the Memory location. Offset The Offset function may be used to compensate for test lead and test fixture resistance during the test. - Page 33 From the Parameter Review screens the following parameters may be selected for editing: Current, Max Lmt, Min Lmt, Dwell, Frequency, Offset, and Connect. ____________________________________________________________________________...
-
Page 34: Operating Instructions
40 A, 600V Connecting the Test Leads on 3145 The 3145 Current and Return leads are equipped with high current locking connectors that should be pushed into their mating receptacle until seated against the rubber grommet. Avoid excessive force. If the grommet becomes compressed, the lock feature may not activate. -
Page 35: Adapter Box Connections (Adapter Box Is Sold Separately)
5.1.2. Adapter Box Connections (Optional, for use with 3145 only) The adapter box provides an easy way to connect a DUT to a 3145 HYAMP III that is terminated in a two or three-prong line cord. The following diagram shows how to connect the adapter box to the HYAMP III and to the device under test. -
Page 36: Performing A Test
contacts are open the output of the instrument will be disabled. To disable the Remote Interlock feature connect the Interlock Key into the Signal Input port located on the back of the tester. 5.2. Performing a Test 1. From the Main Menu, select the memory and step you wish to perform then press the “Exit”... -
Page 37: Error Messages
NOTE: For multi-step tests, use the “” and “” soft keys to scroll through the results. 5.5. Error Messages While performing tests a number of messages will be displayed to indicate the test state or test results. These messages are displayed in the status area of the screen located on the first line at the top of the LCD. - Page 38 Out-Error: This message appears on the display if the instrument has an internal problem and the TEST button is pressed. The RESET button is not active while this screen is displayed. To clear this screen and return to test mode press the “Exit” soft key.
-
Page 39: Connection Of Remote I/O
6. CONNECTION OF REMOTE I/O Two 9 pin D-type connectors mounted on the rear panel provide REMOTE-INPUT- OUTPUT control and information. These connectors mate with a standard 9 pin D- type subminiature connector provided by the user. The output mates to a male (plug) connector while the input mates to a female (receptacle) connector. - Page 40 the RESET function is activated. This can be used to abort a Hipot test while the units are interfaced as a test system. The START OUT gives a momentary output pulse that can be used to start a Hipot test. These are normally open free contacts and will not provide any voltage or current.
-
Page 41: Signal Inputs Of Remote I/O And Memory Access
6.2. Signal Inputs and Memory Access The HYAMP III remote connector enables remote operation of the TEST, RESET, and REMOTE INTERLOCK functions, and allows the operator to select Memory Location 1, 2, and 3. When the PLC Remote mode is on, the HYAMP III will respond to simple switch or relay contacts closures. - Page 42 Memory Location 3 – Momentarily connecting terminal 7 to terminals 8 and 9 signals the instrument to immediately begin the test program that is stored in Memory Location 3. Remote Interlock HYAMP III is equipped with a Remote Interlock feature. Remote Interlock utilizes a set of closed contacts to enable the instrument’s output.
- Page 43 If the Hipot start is set to GW (sequential) then the “Withstand Processing” indicator will appear as the following pop-up message: If the Hipot start signal is set to G+W then a small “W-T” indicator will appear in the upper right of the display. PLC Remote Pop-up message If you attempt to start a test from the front panel TEST button and the PLC remote function is turned “ON”, a pop-up message will be displayed.
-
Page 44: Hyamp Iii Connected To Hypot Iii
Both front and rear connections may be used to connect the adapter box and interconnect. If you order the 3145 HYAMP III interconnect kit you will receive the following items: INTERCONNECT KIT FOR 3140 ONLY, AR PART #260-03 Part Number Description Qty. - Page 45 When Hypot III is connected to HYAMP III, the Hypot III should have PLC remote turned on. In this configuration, you will only be able to start and reset the HYAMP III from the HYAMP III. It is possible to reset or abort the Hipot from both instruments. Hipot Start parameter The Hipot Start parameter, found in the System Menu screen, controls whether the Hipot test will run sequentially after the Ground Bond test or simultaneously with the...
-
Page 46: Bus Remote Interface
7. BUS REMOTE INTERFACE RS-232 Interface The RS-232 cabling should be configured as follows for a 9-pin serial port interface: Instrument RS-232 Port PC / Bus Controller The COM port should have the following configuration: 19200 baud 8 data bits 1 stop bit No parity This interface does not support XON/XOFF protocol or any hardware handshaking. - Page 47 letters. Each command string should be terminated by the ASCII control code, New Line <NL>, or OAh. The following conventions are used to describe the commands syntax for the HYAMP III. Braces ({ }) enclose each parameter for a command string. Triangle brackets (< >) indicate that you must substitute a value for the enclosed parameter.
- Page 48 SALL <memory+step, p1, p2, p3… > This command edits all parameters in a memory and step. Parameters will be edited at the step location that has been selected. Example: SALL<11,10.00,100,0…> The parameter <memory+step> indicated the memory and step number. The parameters <p1,p2>...
- Page 49 COMMAND NAME VALUE PLC {1|0} PLC Remote ON/OFF 1=On, 0=Off SSTP {1|0} Single Step ON/OFF 1=On, 0=Off ALAR <value> Alarm Level 0-9, 0=Off, 9=High CNTR <value> Contrast Level 0-9, 9=High RLT {L|A|P} Result Setting L=Last, A=All, P=P/F HS {1|0} Hipot Start 0=GW, 1=G+W Query Commands These query commands will retrieve data from the instrument.
- Page 50 Lists all the step parameters for the step currently selected. Each parameter is separated by commas and includes memory with step number and parameter values. The syntax for this command response is SALL memory+step, current, max limit, min limit, dwell, offset, connect. Read the remote Reset input signal.
-
Page 51: Options
On the rear panel of the instrument, you will find a label that contains the option code. For example, your options code would appear as follows: Fitted with option 04 ..........OPT: 04 Fitted with option 01and04........OPT: 0104 HYAMP III Options Model 3145 does not include any options. ____________________________________________________________________________... -
Page 52: Instrument Verification
9. INSTRUMENT VERIFICATION Verification is the process by which an instrument’s failure detectors are proven to be functioning properly by performing basic tests in open and short circuit conditions. Verifying the failure detection circuitry of the electrical safety tester is required by safety agencies such as CSA, UL, and TÜV. - Page 53 Ground Bond Verification From the Verification screen, press the TEST button to begin the verification process. At the end of the Verification process, a message will appear indicating the outcome of the process. If the instrument passes the Verification (test failure, indicating the fail detectors are working properly) the RESET button will illuminate, the alarm will sound and the following message will appear: If the instrument fails the Verification (test pass, indicating the fail detectors are not...
-
Page 54: Calibration Procedure
10. CALIBRATION PROCEDURE You will find in this manual a copy of the DID YOU KNOW? "Certificate of Calibration". It is recommended that you have this instrument recertified at least once per year. Associated Research, Inc. recommends This instrument has been you use "Calibration Standards"... -
Page 55: Bration Of Parameters
Adjust the numeric value of the parameter using the “+” and “-” soft keys and press the “Enter” soft key to accept the new parameter or press RESET to escape the edit. 10.2.2. Calibration of Ground Bond DC Current for 3145 ____________________________________________________________________________... -
Page 56: Bration Of Ground Bond Dc Voltage For 3145
10.2.3. Calibration of Ground Bond DC Voltage for 3145 ____________________________________________________________________________... - Page 57 ____________________________________________________________________________...
-
Page 58: Replacement Parts List
11. REPLACEMENT PARTS LIST Rev. B 04/28/04 ECO 5034 3145 Part Reference Qty. Description Number Designator Supplied Accessories 38503 Fuse, 10 Amp slow-blow 250VAC 38489 Cable HC Current 2Wire MC 40A 38490 Cable HC Return 2Wire MC 40A 38075 Interlock Connector... - Page 59 Index Adapter Box ..................14, 15, 30, 39, 47 Arc .......................... 3, 28 Benefits ......................... 8 Breakdown ........................ 3, 4 Calibration ....................9, 23, 24, 44 Calibration Alert Alert Date ........................23, 24 Cal Alert ......................19, 23, 24, 25 Cal Date ........................
- Page 60 Test Parameters .................... 8, 13, 17, 19, 26 PLC ......................19, 20, 25, 36 Power ........................4, 6, 10 Power Factor ........................ 4 Programming ......................17 Rear Panel Controls ....................10, 15 Receptacle ......................15, 34 Regulation ........................12 Remote ....... 8, 13, 16, 19, 20, 21, 25, 30, 33, 34, 35, 36, 37, 38, 40, 42 Remote Interlock ..................
